Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

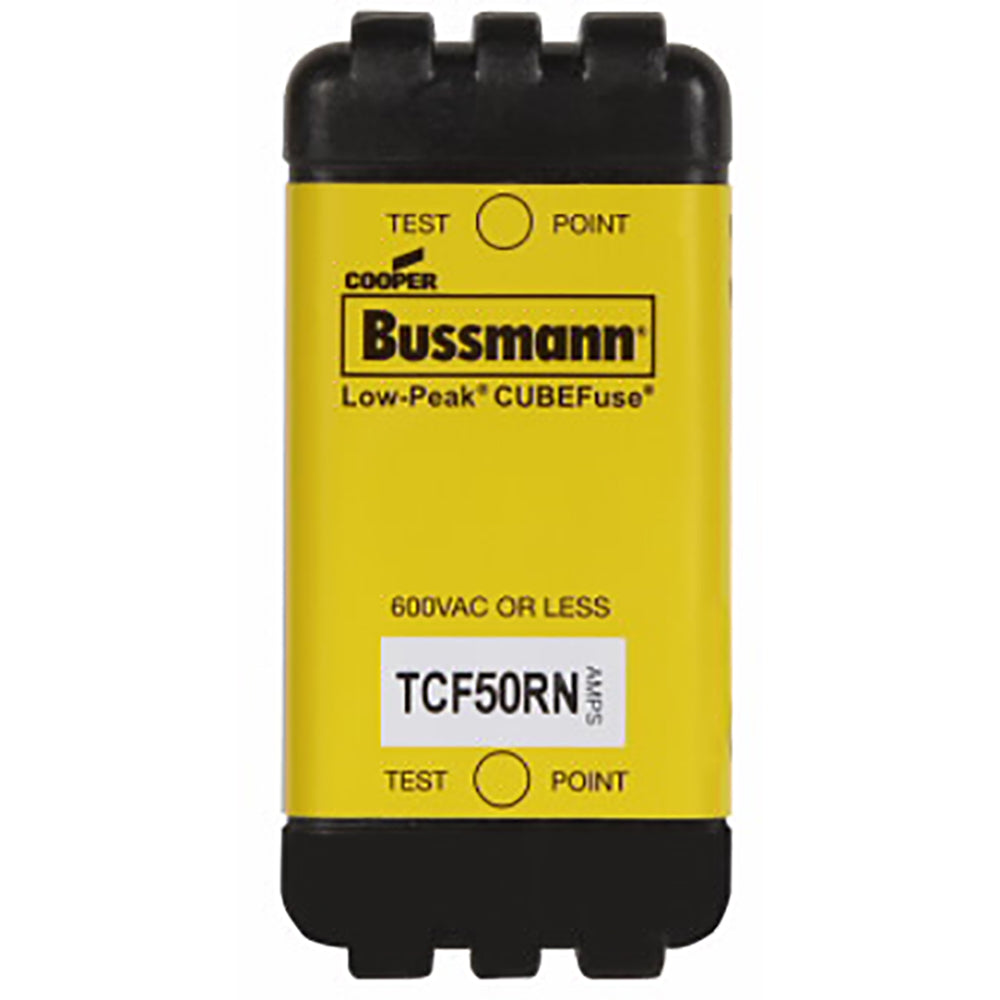

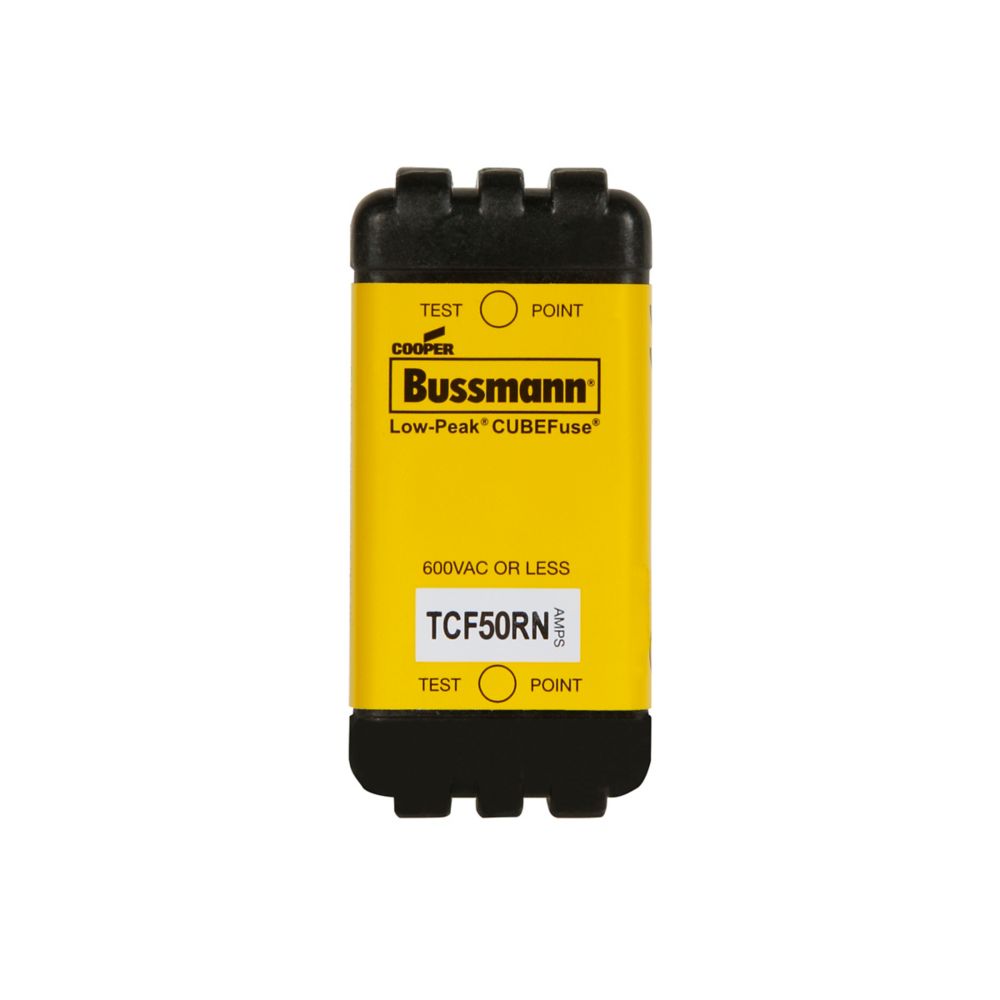

TCF50RN
TCF50RN is a Bussmann series UL Class CF time-delay, dual-element, current-limiting fuse designed for branch circuit protection in industrial and commercial applications.Engineered for reliable performance, the Eaton TCF50RN fuse features a blade end mounting style and is rated for 50 amps at 600 volts AC. This fuse provides time-delay characteristics for motor starting and offers high interrupt capacity to ensure safety in demanding environments.
- Amperage: 50 A
- Voltage: 600 V AC
- Mounting Type: Blade End
- Interrupt Rating: 300 kAIC
- Series/Frame: Bussmann TCF
- Element Type: Dual-Element
- Time-Delay: Yes
- UL Class: CF
- Frequency: 50/60 Hz
- Indicating: Non-Indicating
- Application: Branch Circuit Protection
- Standards: UL Listed
Specifications
- Part Number: TCF50RN
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CUBEFuse
- Type : TCF_RN
- Voltage : 600
- Amperage : 50
- AIC rating : 300kA@600V
- Class Rating : CF
- Barrels : 1
- Velocity : TD - Time Delayed
Product Data
- UPC : 051712221016
- GTIN : 00051712221016
- Country of Origin : China
- Dimensions : 2.13 in x 1.9 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.17
- Certification : CE Marked, CSA Certified, RoHS Compliant, UL Listed
