Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TCF50

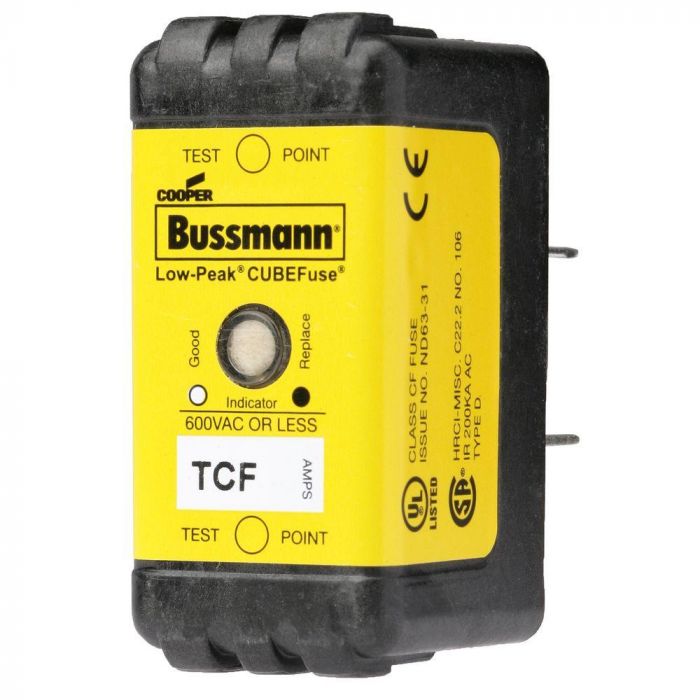

TCF50 is a Bussmann Class J time-delay cube fuse rated for 50 amps and 600 volts AC with dual-element current limiting and indication.This Eaton Bussmann TCF50 fuse features a dual-element, time-delay design providing reliable motor and branch circuit protection with a 300kA interrupting rating at 600V AC. It is finger-safe and indicating for easy status verification. The fuse is UL Class J rated and suitable for residential, commercial, and industrial applications.
- Amperage: 50A
- Voltage: 600V AC
- Fuse Class: UL Class J
- Time Delay: Dual-element
- Interrupting Rating: 300kA at 600V AC
- Indicating Fuse: Yes
- Finger-safe Design: Yes
- Mounting Type: Cube fuse
- Manufacturer: Bussmann (Eaton)
- Series: TCF
Specifications
- Part Number: TCF50
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CUBEFuse
- Type : TCF
- Voltage : 600
- Amperage : 50
- AIC rating : 300kA@600V
- Class Rating : CF
- Barrels : 1
- Velocity : TD - Time Delayed
Product Data
- UPC : 051712615075
- GTIN : 00051712615075
- Country of Origin : China
- Dimensions : 2.13 in x 1.9 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.17
- Certification : CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
