TCF45 - Eaton Bussmann Series 45A 600VAC 300VDC Class CF Time-Delay Dual-Element Cube Fuse with Indicator

TCF45

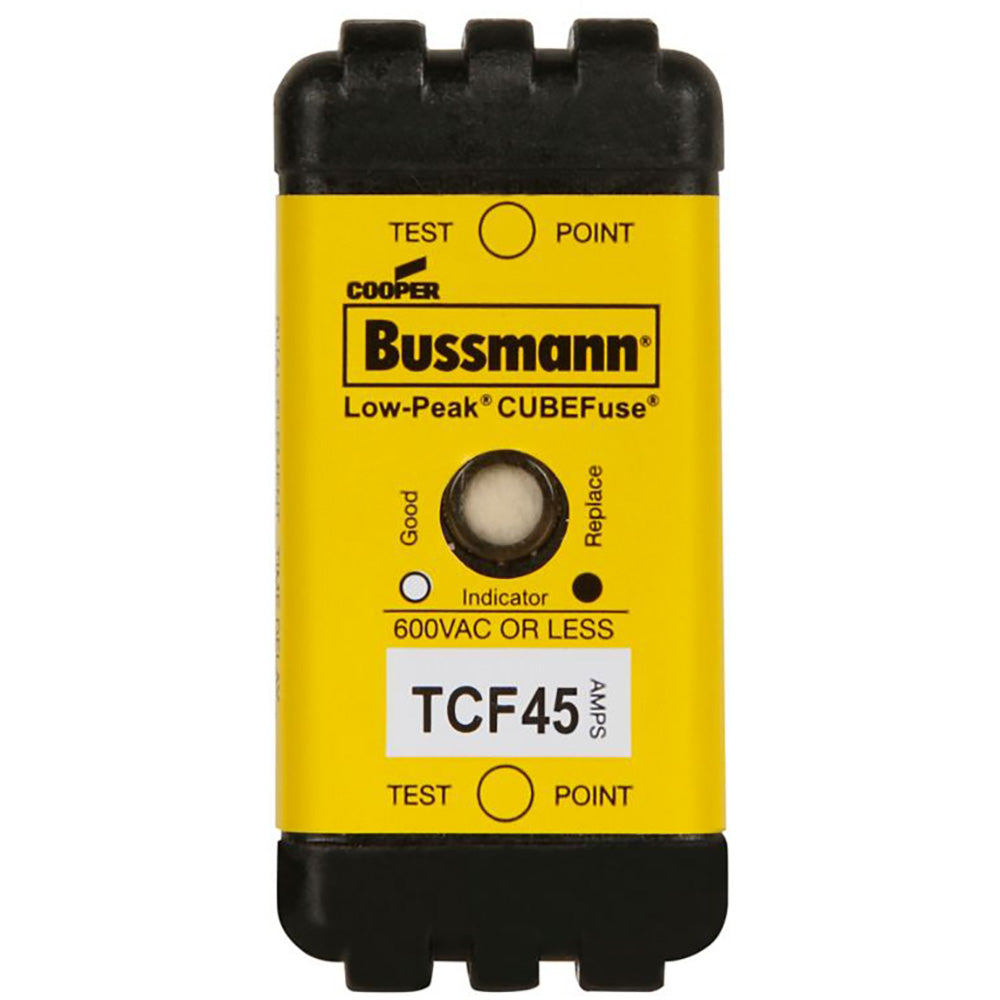

TCF45 is a Bussmann Series Class CF time-delay, dual-element, current-limiting cube fuse rated for 45A, 600VAC, and 300VDC, featuring an indicating fuse element and finger-safe design. This Eaton Bussmann Series TCF45 fuse is designed for reliable branch circuit protection in industrial and commercial applications. It offers a high interrupting rating, time-delay characteristics for motor starting, and is suitable for use with compatible fuse holders such as TCFH60N and CCP2-3-60CF. The fuse is constructed with glass-filled PES material for durability and safety.

• Amperage Rating: 45 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
• Fuse Type: Class CF, Time-Delay, Dual-Element
• Mounting Type: Chassis 35 mm DIN Rail
• Series/Frame: Bussmann Series TCF
• Fuse Indicator: With Indicator
• Connection: Blade End
• Material: Glass Filled PES
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Special Features: Finger Safe, Current Limiting
• Used With: TCFH60N, CCP2-3-60CF

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TCF45
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CUBEFuse
• Type : TCF
• Voltage : 600
• Amperage : 45
• AIC rating : 300kA@600V
• Connection : Radial Blade Plug-In
• Class Rating : CF
• Velocity : TD - Time Delayed

Product Data

• UPC : 051712615068
• GTIN : 00051712615068
• Country of Origin : China
• Dimensions : 2.13 in x 1.9 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.17
• Certification : CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
