Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

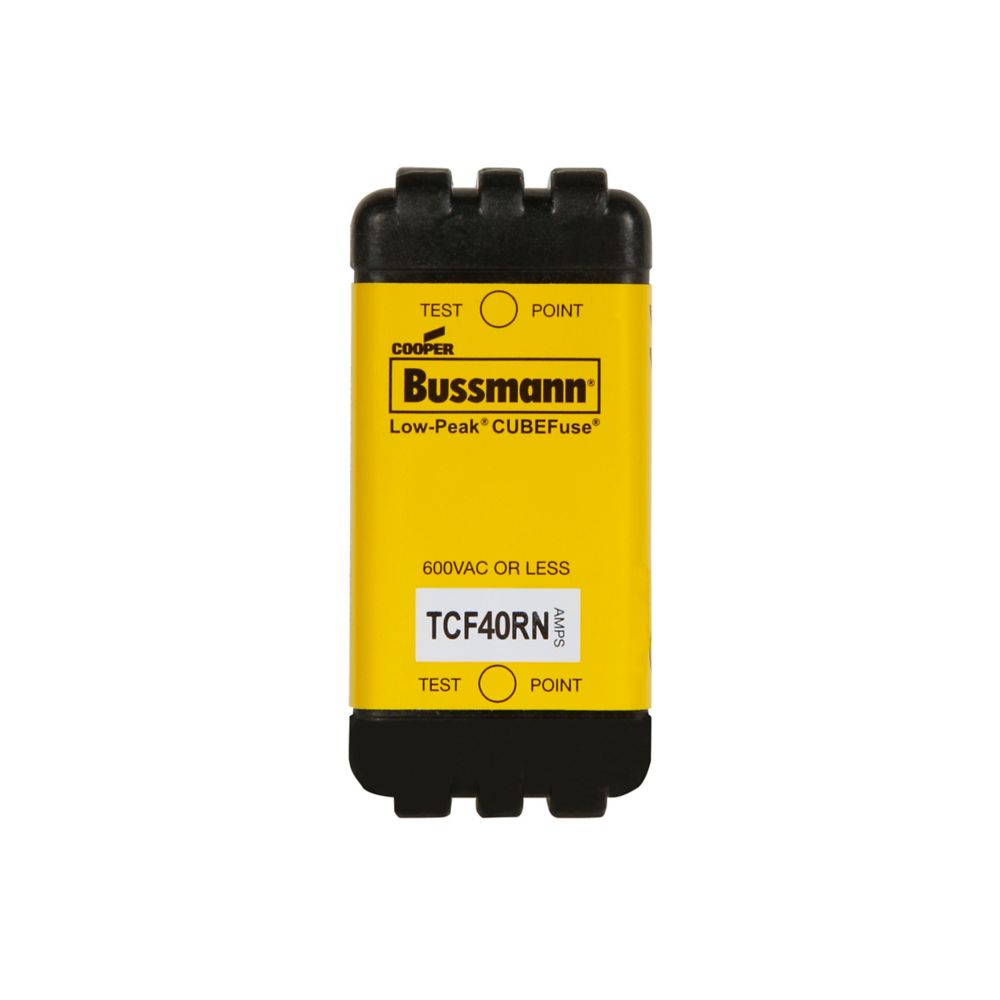

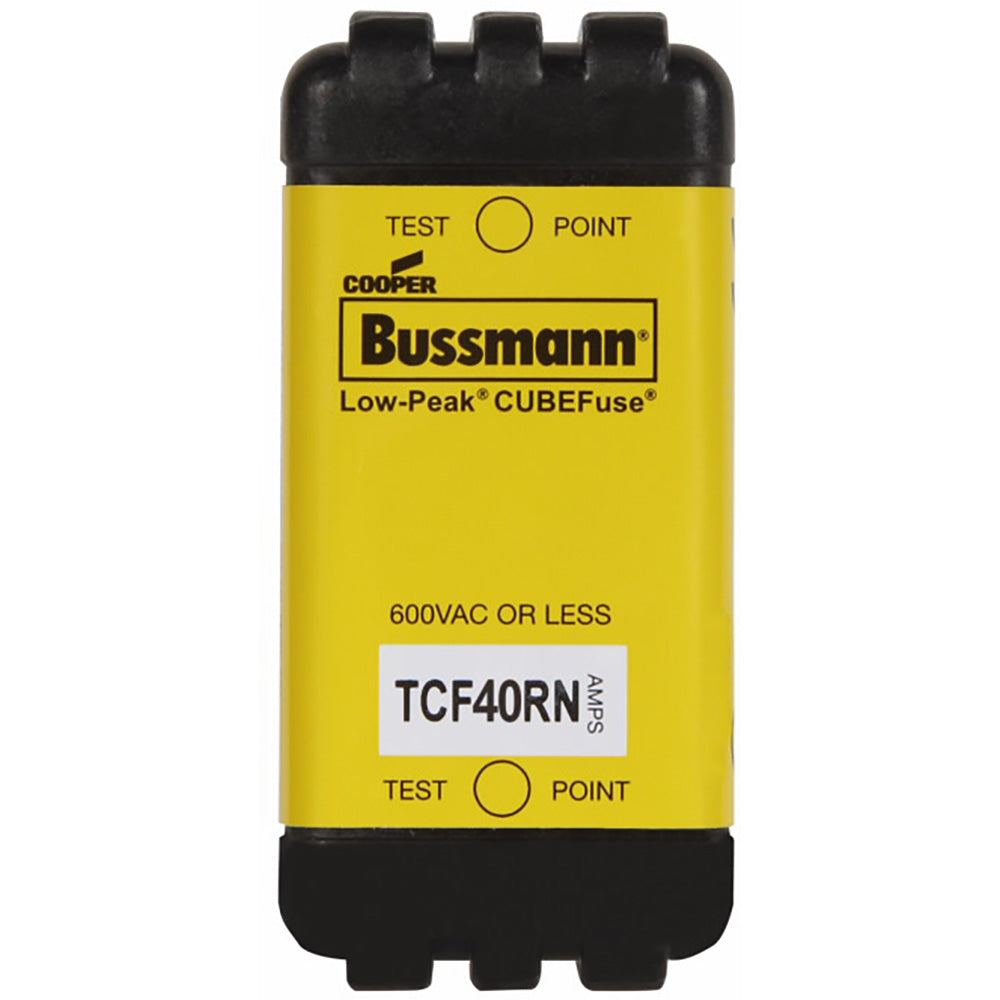

TCF40RN
TCF40RN is a Bussmann by Eaton Class CF time-delay, dual-element, current-limiting cube fuse designed for robust circuit protection in industrial applications.
This non-indicating, finger-safe fuse features a black, glass-filled polyethersulfone body with blade terminals for secure connection. It is engineered to withstand high inrush currents, making it ideal for protecting sensitive equipment. The fuse is chassis or DIN rail mountable and meets stringent safety and performance standards.
-
Key Specifications
- Amperage: 40A
- Voltage Rating: 600V AC, 300V DC
- Poles: 1
- Mounting Type: Chassis/DIN Rail (35mm)
- Interrupt Rating: 300kA at 600V AC, 100kA at 300V DC
- Series/Frame: TCF (CubeFuse)
- Trip Unit: Time-delay, dual-element
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
- Frequency: 50/60 Hz
- Terminal Type: Blade, radial blade plug-in
- Body Material: Glass-filled polyethersulfone
- Color: Black
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: TCF40RN
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CUBEFuse
- Type : TCF_RN
- Amperage : 40
- AIC rating : 300kA@600V
- Class Rating : CF
- Barrels : 1
- Velocity : TD - Time Delayed
Product Data
- UPC : 051712220989
- GTIN : 00051712220989
- Country of Origin : United States
- Dimensions : 2.13 in x 1.9 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.17
