Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

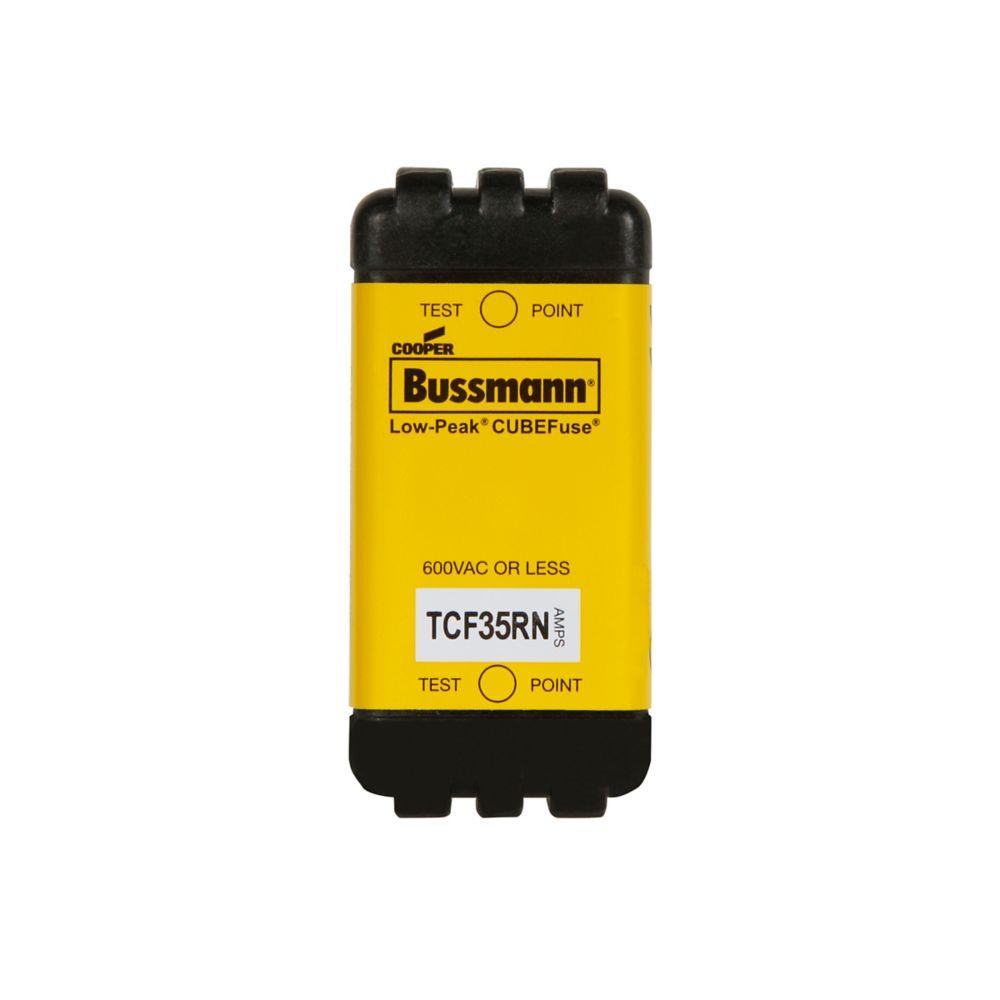

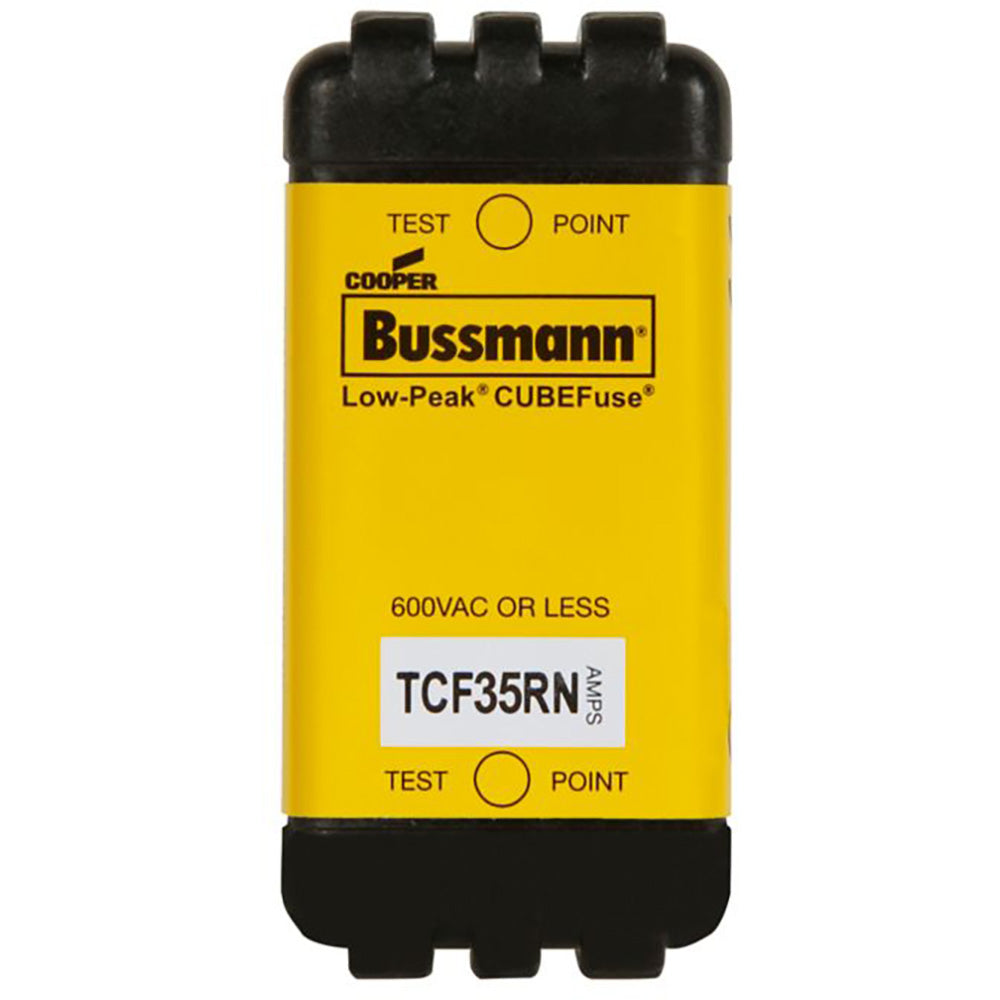

TCF35RN
TCF35RN is a 35 amp, 600 volt dual-element, time-delay Class CF fuse from Eaton Bussmann designed for branch circuit protection.
This fuse features a 300kA interrupting rating at 600V, blade end mounting, and a 10-second minimum operating time at 500% rated current. It is non-indicating and finger-safe, suitable for motor circuit applications requiring time-delay protection. The TCF35RN is UL listed and CSA certified, ensuring compliance with industry safety standards.
- Key Specifications
- Amperage: 35A
- Voltage Rating: 600V AC
- Interrupting Rating: 300kA at 600V
- Fuse Type: Dual-element, time-delay
- Class: UL Class CF
- Mounting Type: Blade end
- Operating Time: 10 seconds minimum at 500% rated current
- Non-indicating, finger-safe design
- Certifications: UL Listed, CSA Certified
- Series: Bussmann CUBEFuse
- Part Number: TCF35RN
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 35
- AIC rating : 300kA@600V
- Class Rating : H
- Barrels : 1
- Velocity : TD - Time Delayed
- UPC : 051712220972
- GTIN : 00051712220972
- Country of Origin : United States
- Dimensions : 2.13 in x 1.9 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.17
