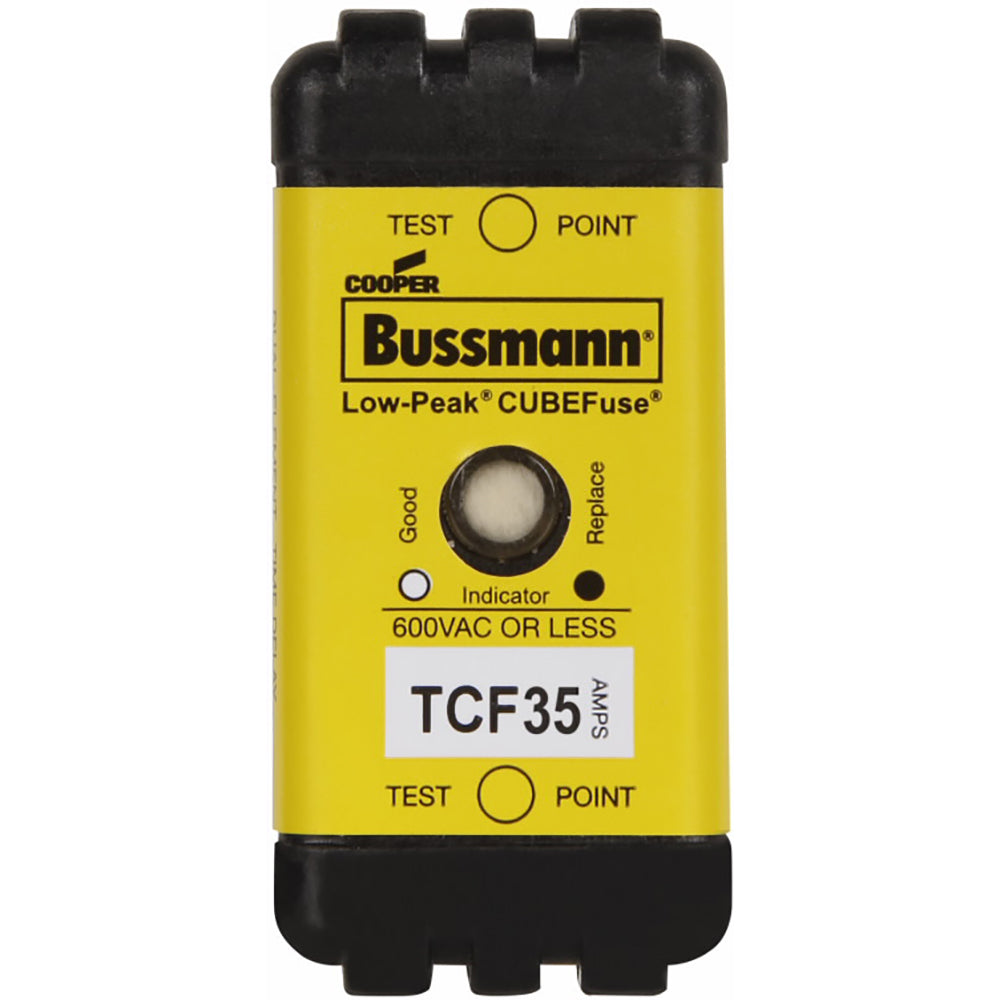

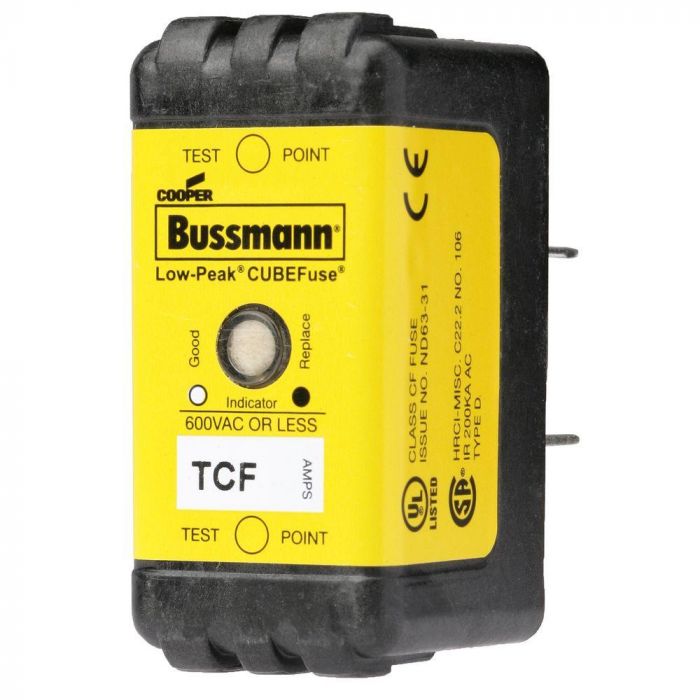

TCF35 - Eaton Bussmann Series 35A 600VAC Class CF Time-Delay Cube Fuse

TCF35

TCF35 is a Bussmann Series Class CF time-delay, dual-element, current-limiting cube fuse designed for reliable branch circuit protection in industrial and commercial applications. This fuse features a 35A rating, 600VAC voltage rating, and is engineered for use in systems requiring high interrupting capacity and precise motor protection. The fuse is equipped with an indicating feature for easy status monitoring and is UL Class CF certified for safety and performance. This fuse is ideal for applications requiring robust protection against overloads and short circuits, offering a time-delay characteristic to accommodate motor starting surges. The cube design allows for compact mounting in fuse blocks or panels, and the dual-element construction ensures both overload and short-circuit protection. The fuse is suitable for use in systems with up to 300VDC and features a high interrupting rating for added safety.

• Part Number: TCF35
• Manufacturer: Eaton
• Series: Bussmann Series
• Amperage: 35A
• Voltage Rating: 600VAC, 300VDC
• Interrupt Rating: 100kA at 300VDC
• Fuse Type: Time-Delay, Dual-Element, Current-Limiting
• Mounting Type: Cube
• Indicating: Yes
• UL Class: CF
• Standards: UL Listed
• Application: Branch Circuit, Motor Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TCF35
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CUBEFuse
• Type : TCF
• Voltage : 600
• Amperage : 35
• AIC rating : 300kA@600V
• Class Rating : CF
• Barrels : 1
• Velocity : TD - Time Delayed

Product Data

• UPC : 051712615044
• GTIN : 00051712615044
• Country of Origin : United States
• Dimensions : 2.13 in x 1.9 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.17
