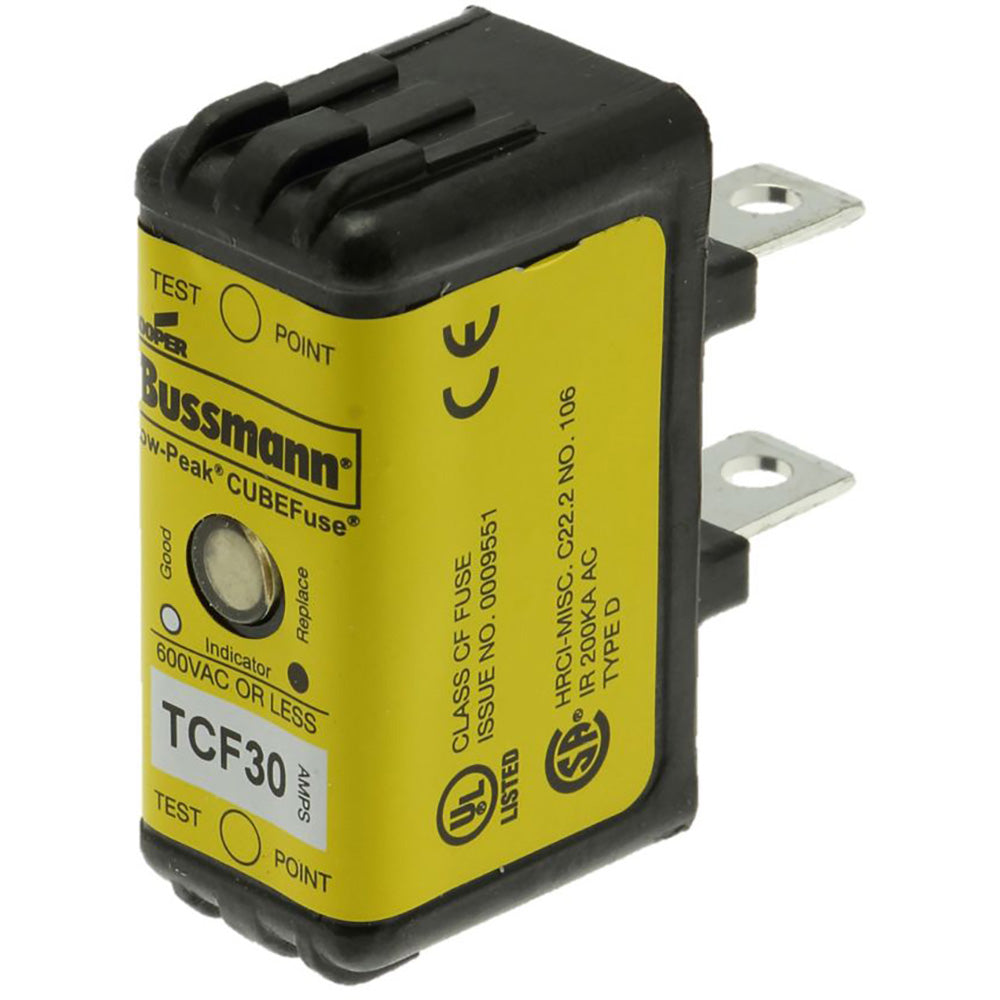

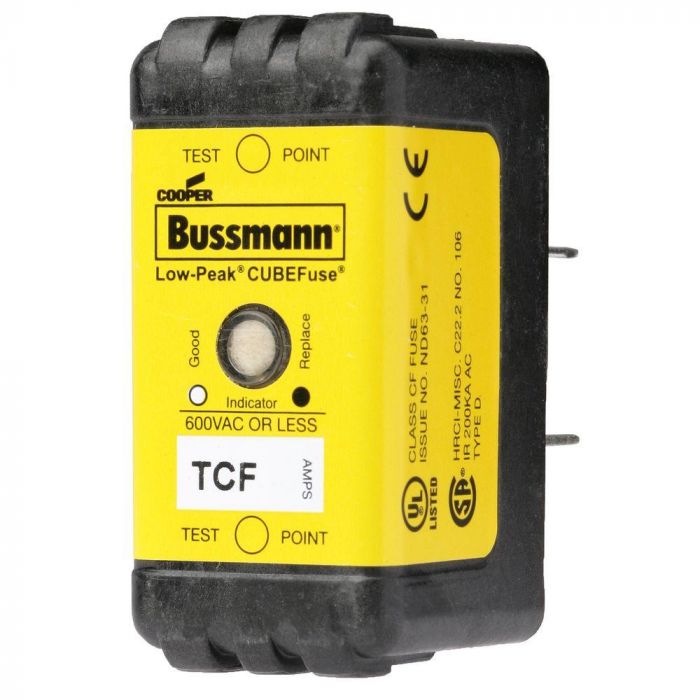

TCF30 - Bussmann Eaton 30A 600VAC/300VDC Time Delay Fuse Class CF Square Body

TCF30

TCF30 is a Bussmann Eaton time delay fuse rated for 30 amps and 600VAC/300VDC operation, designed for reliable circuit protection.TCF30 features a dual-element, time-delay design with a Class CF rating and a high interrupting capacity of 300kA at 600VAC. It has a square body with radial blade plug-in terminals and is suitable for DIN rail mounting. The fuse is constructed with glass-filled PES and includes an indicating lens for quick status identification. It provides robust protection with low let-through current and is finger-safe for enhanced operator safety.

Key Specifications
• Amperage: 30A
• Voltage Rating: 600VAC / 300VDC
• Interrupting Rating: 300kA at 600VAC / 100kA at 300VDC
• Fuse Class: CF (UL Class CF)
• Body Style: Square, 1.88" x 0.75" x 1"
• Mounting Type: Radial Blade Plug-In, DIN Rail Compatible
• Construction: Dual-element, time-delay, glass-filled PES
• Indicating Fuse with EasyID open fuse technology
• Operating Temperature Range: -10°C to 65°C
• Certifications: UL Listed, CSA Certified
• Power Loss: 3.99W
• Finger-safe design for operator protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TCF30
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CUBEFuse
• Type : TCF
• Voltage : 600
• Amperage : 30
• AIC rating : 300kA@600V
• Class Rating : CF
• Barrels : 1
• Velocity : TD - Time Delayed

Product Data

• UPC : 051712615037
• GTIN : 00051712615037
• Country of Origin : China
• Dimensions : 1.88 in x 1 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.08
• Certification : CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
