TCF25 - Eaton Bussmann 25A 600V AC Class CF Time Delay Fuse Dual Element

TCF25

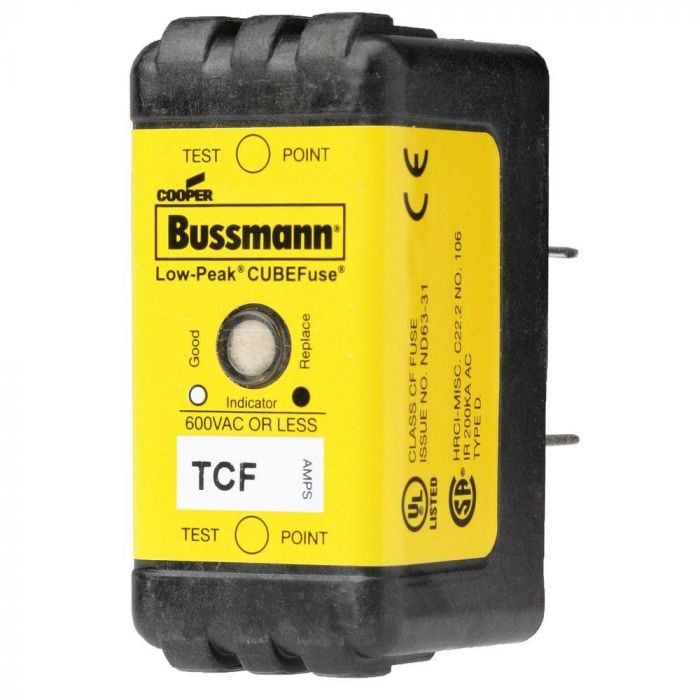

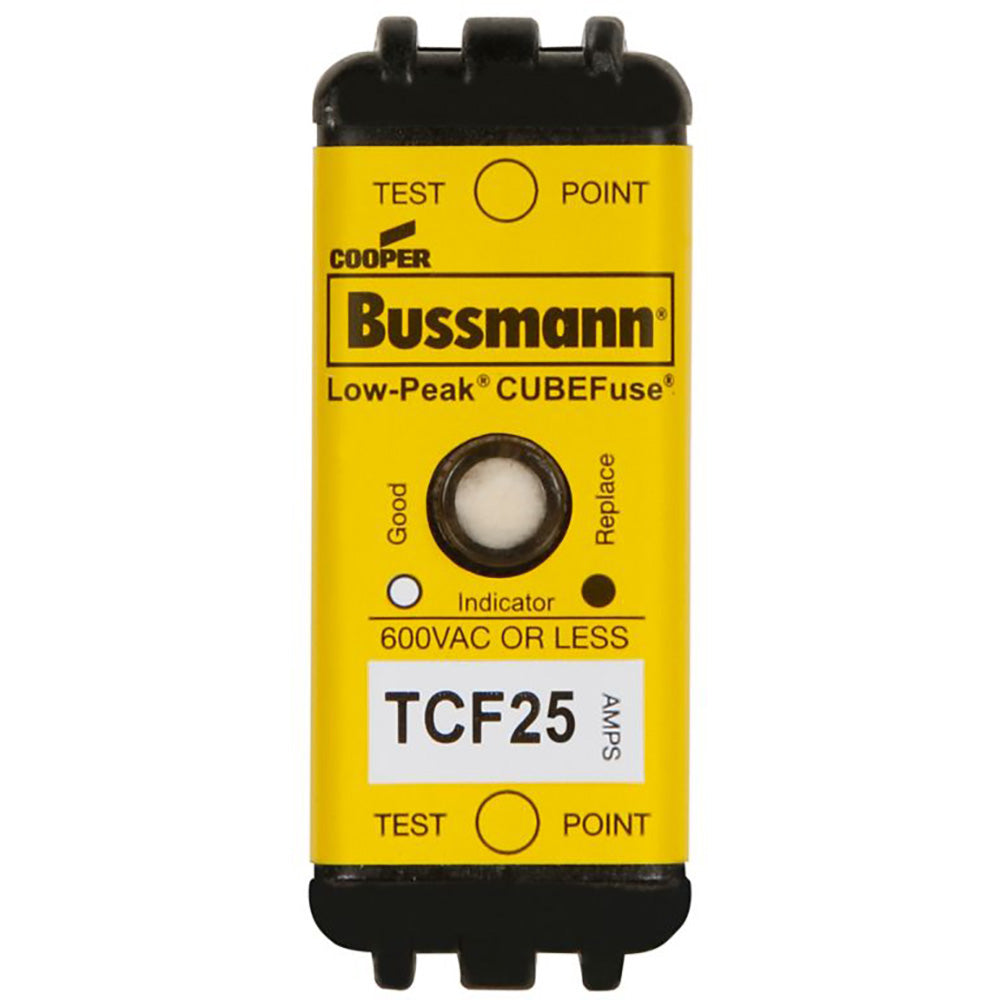

TCF25 is a 25 amp, 600 volt AC Class CF time delay fuse from Eaton Bussmann designed for branch circuit protection.This dual-element, time-delay fuse features a blade end design with an indicator for easy status checking. It offers a high interrupt rating of 300 kA at 600 V AC and 100 kA at 300 V DC, suitable for motor and branch circuit applications. The fuse is UL Class CF rated and constructed with a glass-filled PES body for durability. It is compatible with 35 mm DIN rail chassis mounting.

• Amperage: 25 A
• Voltage Rating: 600 V AC, 300 V DC
• Fuse Type: Time Delay, Dual Element
• Interrupt Rating: 300 kA at 600 V AC, 100 kA at 300 V DC
• Class: UL Class CF
• Mounting: Blade end, 35 mm DIN rail chassis compatible
• Indicator: Fuse blown indicator included
• Construction: Glass-filled PES body
• Frequency: 50/60 Hz
• Manufacturer: Eaton Bussmann

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TCF25
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CUBEFuse
• Type : TCF
• Voltage : 600
• Amperage : 25
• AIC rating : 300kA@600V
• Class Rating : CF
• Barrels : 1
• Velocity : TD - Time Delayed

Product Data

• UPC : 051712615020
• GTIN : 00051712615020
• Country of Origin : China
• Dimensions : 1.88 in x 1.75 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.08
• Certification : CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
