Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TCF1RN

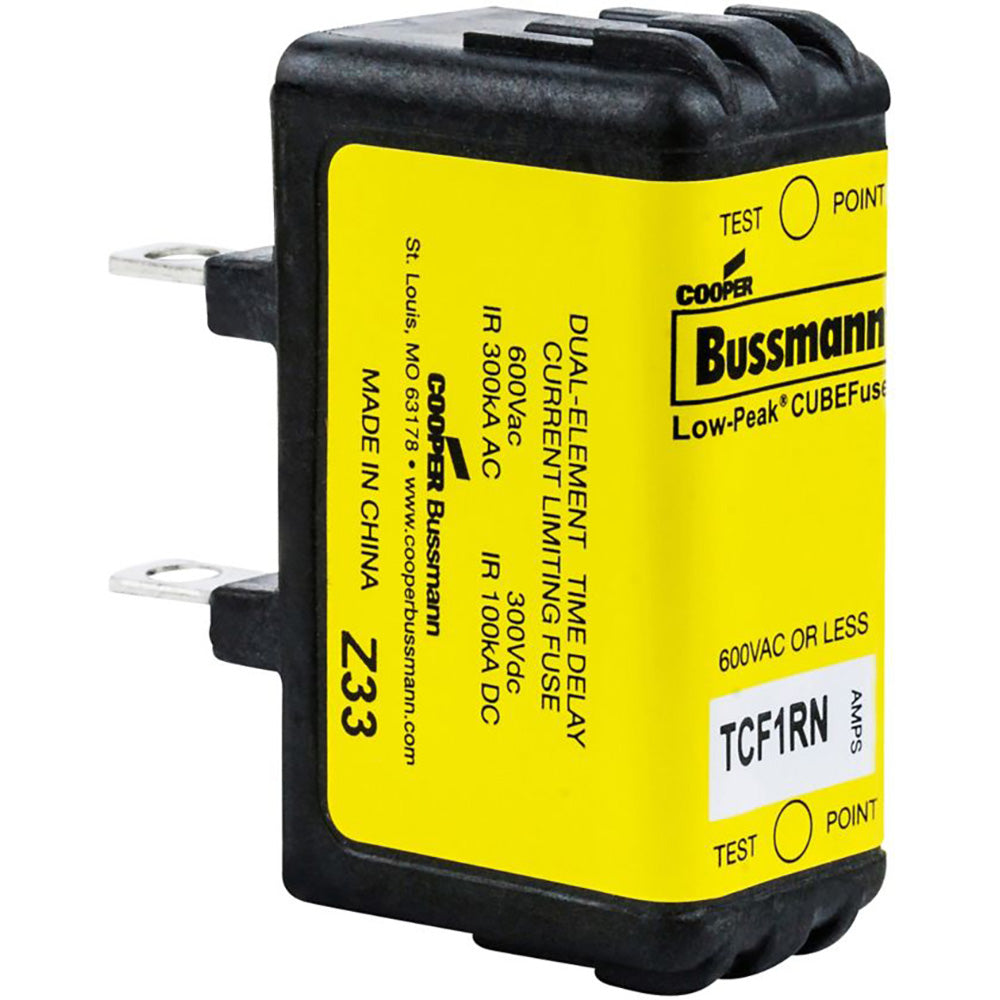

TCF1RN is a Bussmann series Low-Peak CUBEFuse, a UL Class CF current-limiting, dual-element, time-delay branch circuit fuse designed for reliable branch circuit protection in industrial and commercial applications. TCF1RN delivers Class J performance with finger-safe operation and non-indicating design for seamless integration into existing electrical systems. This fuse combines time-delay characteristics with low-peak current-limiting technology to provide selective coordination and protection against overloads and short circuits while minimizing nuisance trips during motor starting and inrush conditions.
- Amperage: 1 A
- Voltage Rating AC: 600 VAC
- Voltage Rating DC: 300 VDC
- Fuse Type: Time Delay, Slow Blow
- Class: CF
- Interrupt Rating AC: 300 kA RMS Symmetrical
- Interrupt Rating DC: 100 kA
- Length: 1.880 in
- Dual-Element Design
- Non-Indicating
- Finger-Safe
- UL Listed
Specifications
- Part Number: TCF1RN
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 15
- AIC rating : 300kA@600V
- Class Rating : H
- Barrels : 1
- Velocity : TD - Time Delayed
Product Data
- UPC : 05171220817
- GTIN : 00051712208178
- Country of Origin : United States
- Dimensions : 1.88 in x 1 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.044
