Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TCF17-1/2RN

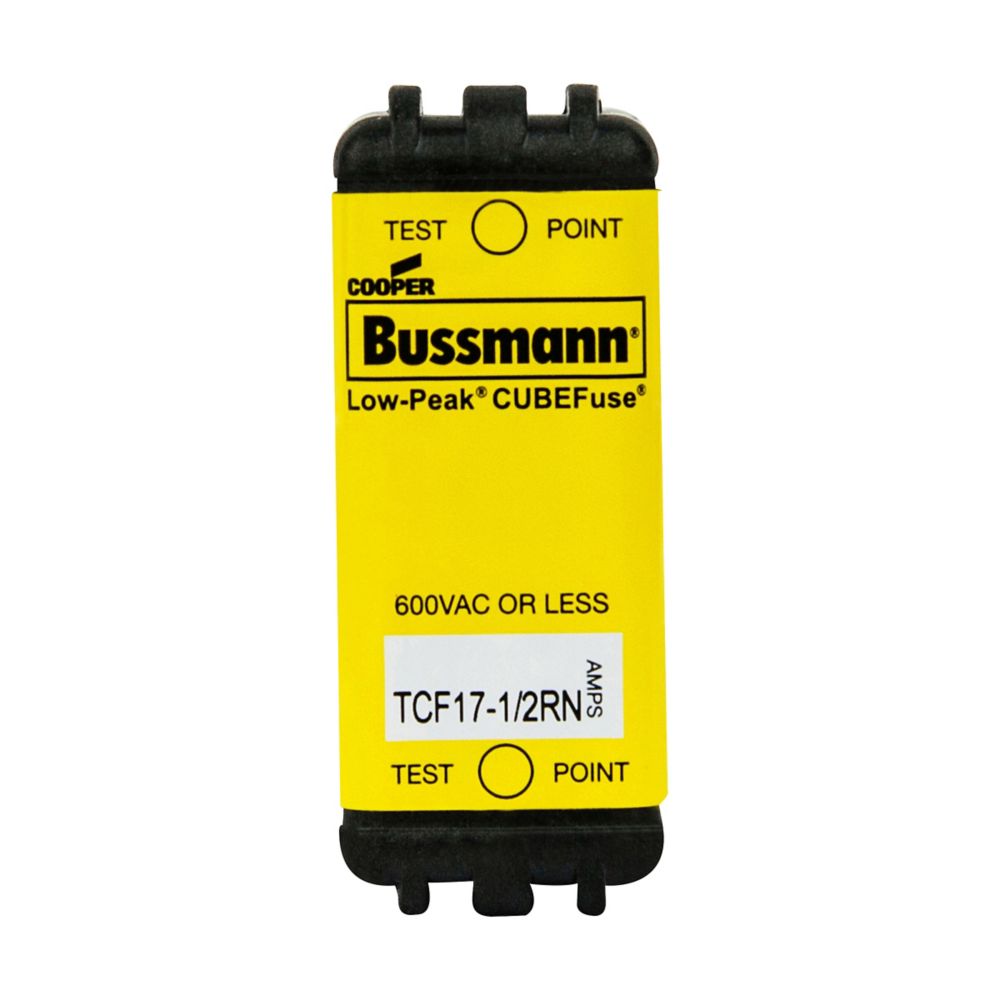

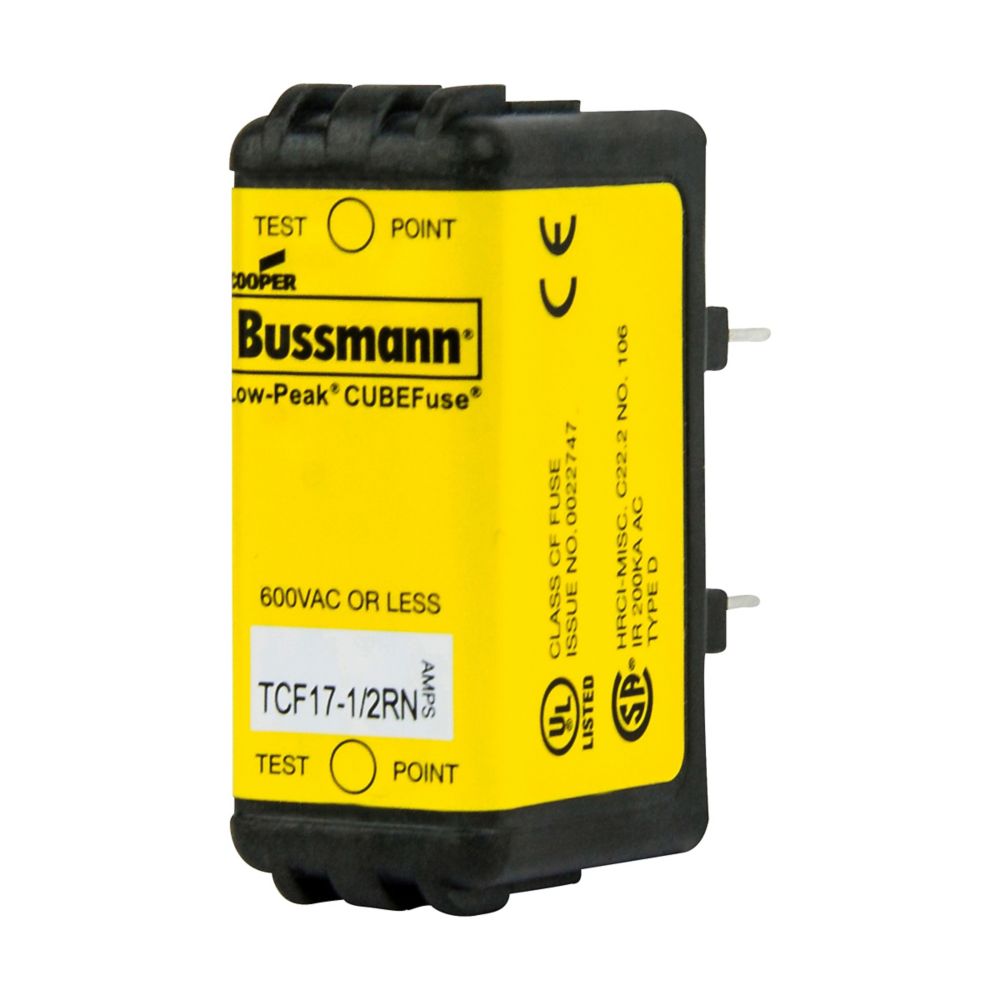

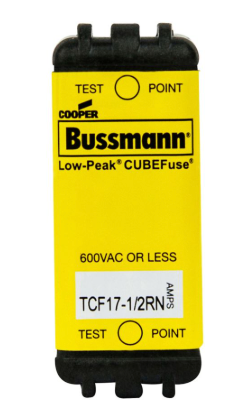

TCF17-1/2RN is a Bussmann series Low-Peak CUBEFuse, a UL Class CF current-limiting, dual-element, time-delay branch circuit fuse with Class J electrical performance and finger-safe design. This non-indicating fuse provides the smallest footprint of any class fuse including Class J, CC, T, and RK, offering substantial space savings and installation flexibility. The separate overload and short-circuit elements provide time delay for handling high inrush loads, with a selective coordination ratio of 2:1 within the Low-Peak fuse family to prevent electrical shutdowns from extending beyond the failed circuit. Key Specifications
- Amperage Rating: 17.5 A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Type: Time Delay / Slow Blow
- Interrupt Rating: 300 kA
- Class: UL Class CF
- Fuse Indicator: Non-Indicating
- Mounting: 35 mm Din Rail, Chassis
- Dimensions: 1.88 in L x 1.75 in H x 0.75 in W
- Weight: 0.08 lb
- Certifications: UL Listed, CSA Certified
- Compliance: CE Marked, RoHS Compliant
Specifications
- Part Number: TCF17-1/2RN
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CUBEFuse
- Type : TCF_RN
- Voltage : 600
- Amperage : 17
- AIC rating : 300kA@600V
- Class Rating : CF
- Barrels : 1
- Velocity : TD - Time Delayed
Product Data
- UPC : 051712220934
- GTIN : 00051712220934
- Country of Origin : United States
- Dimensions : 1.88 in x 1.75 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.08
