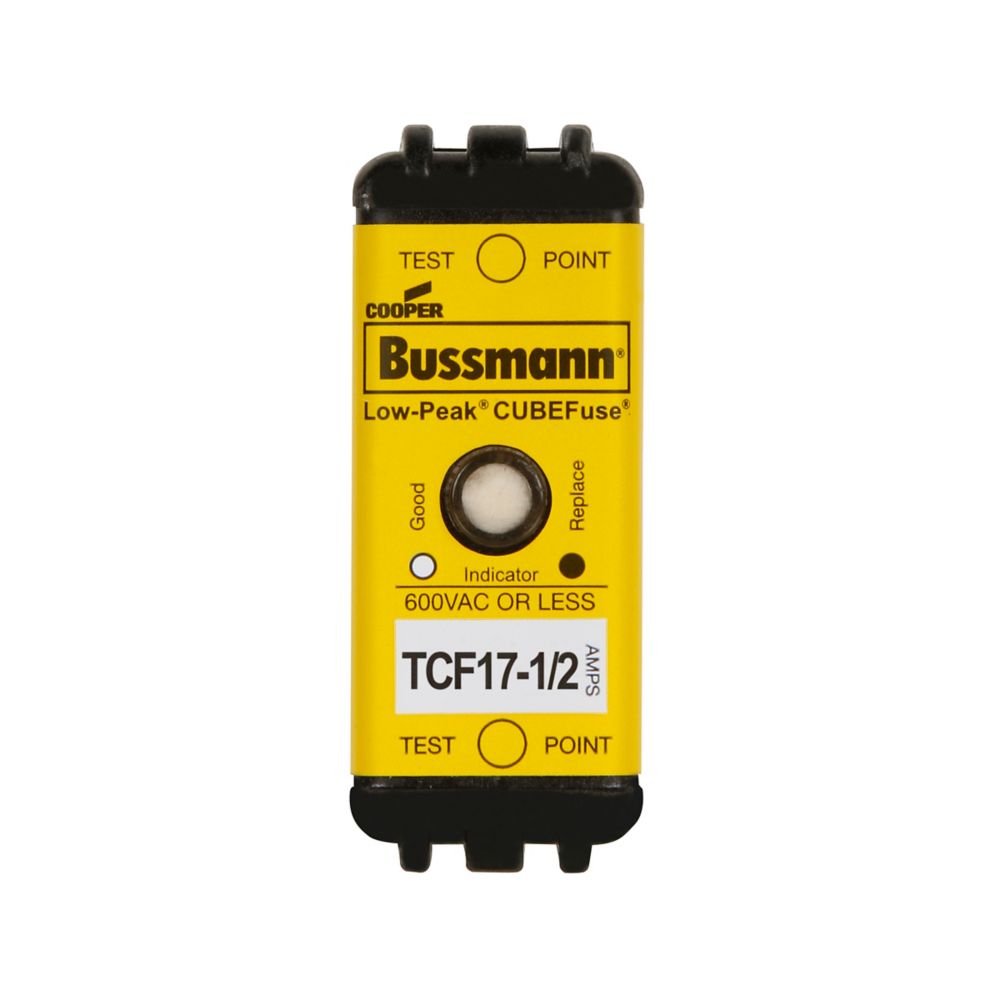

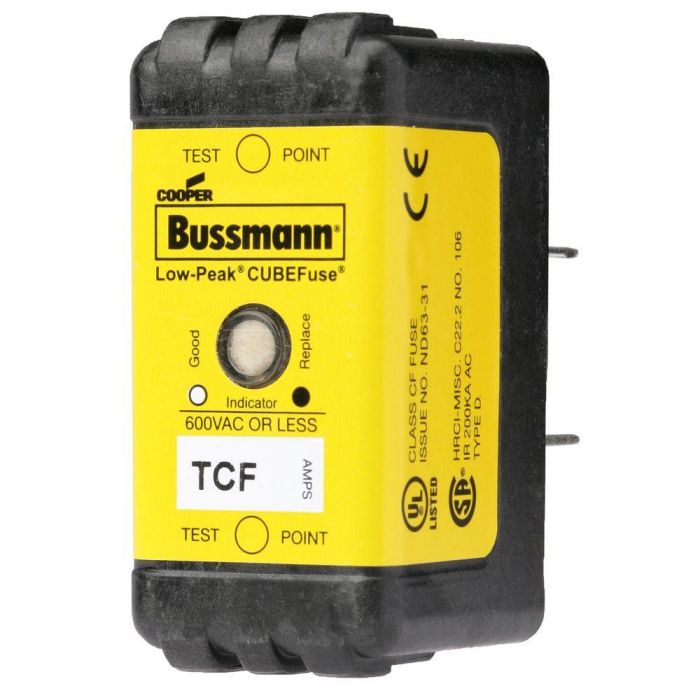

TCF17-1/2 - Cooper Bussmann Eaton 17.5A 600VAC/300VDC Class CF Time-Delay Cube Fuse Dual Element 100/300kA Interrupt

TCF17-1/2

TCF17-1/2 is a Cooper Bussmann Eaton Class CF time-delay cube fuse rated at 17.5 amps and 600 VAC/300 VDC with a dual-element design.This fuse features a compact square blade body, chassis/DIN rail mounting, and a 100kA AC / 300kA DC interrupt rating. It provides 10 seconds minimum operating time at 500% rated current for motor and branch circuit protection. The fuse is UL listed, CSA certified, and CE marked, offering finger-safe protection and compliance with IEC standards.

Key Specifications
• Amperage: 17.5 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 100 kA AC / 300 kA DC
• Class: CF (Low-Peak CUBEFuse)
• Body Type: Square Blade
• Mounting: Chassis / 35 mm DIN Rail
• Time Delay: 10 seconds at 500% rated current
• Dual Element for overload and short circuit protection
• Certifications: UL Listed, CSA Certified, CE Marked
• Material: Glass-filled polyethersulfone
• Dimensions: 1.88 in L x 0.75 in W x 1 in H
• Non-indicating version available

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TCF17-1/2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CUBEFuse
• Type : TCF
• Voltage : 600
• Amperage : 17
• AIC rating : 300kA@600V
• Class Rating : CF
• Barrels : 1
• Velocity : TD - Time Delayed

Product Data

• UPC : 051712615006
• GTIN : 00051712615006
• Country of Origin : China
• Dimensions : 1.88 in x 1 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.104
• Certification : CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
