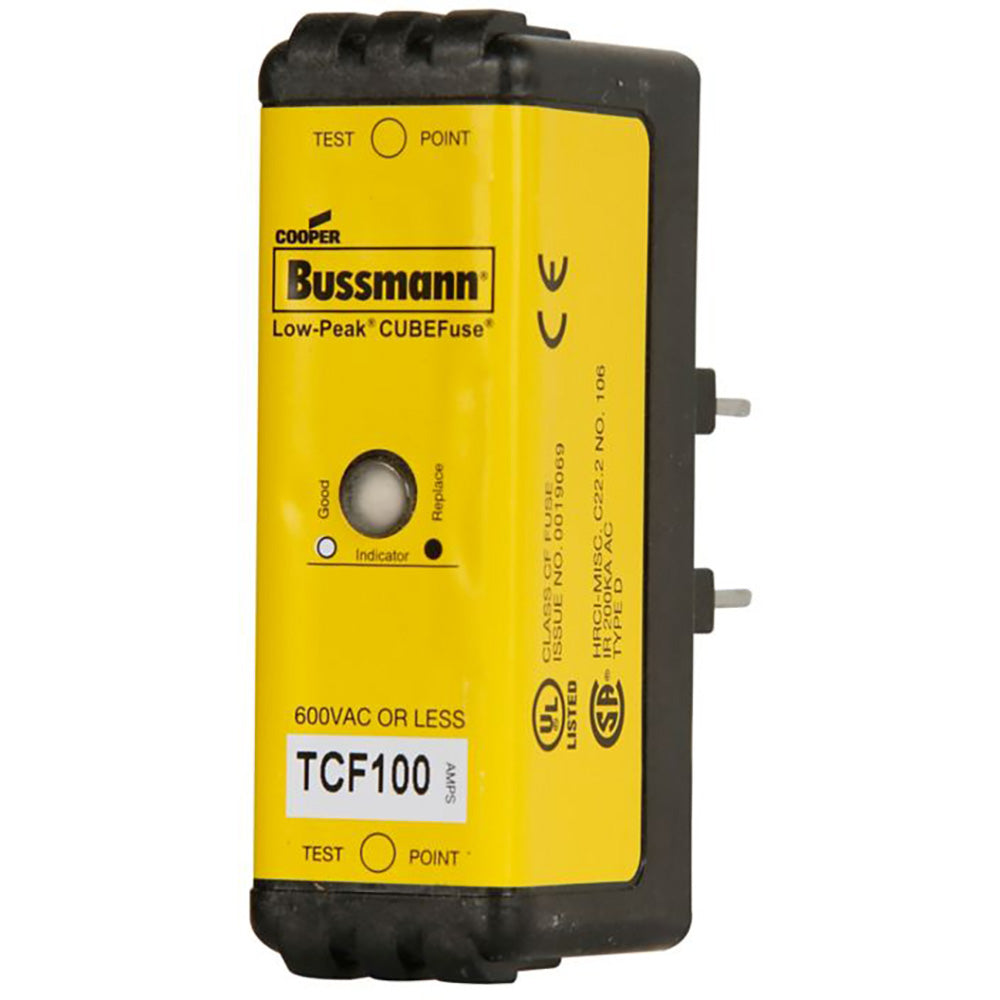

TCF100 - Bussmann Eaton 100A 600VAC Class CF Time-Delay Fuse 300kA Interrupt Rating

TCF100

TCF100 is a 100 amp, 600 VAC Class CF time-delay fuse from Bussmann Eaton designed for high interrupt rating applications.This dual-element, time-delay fuse features a 300 kA interrupt rating at 600 VAC and 100 kA at 300 VDC, providing robust protection for industrial control, power distribution, and motor circuits. It offers a 10-second minimum operating time at 500% rated current, finger-safe design, and easyID indicator for fast troubleshooting. The fuse meets Class CF and Class J performance requirements and supports selective coordination with other Bussmann Low-Peak fuses.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Type: Time-Delay, Dual-Element
• Class: CF
• Mounting Type: Plug-In Blade
• Operating Time: 10 seconds at 500% rated current
• Indicator: easyID open fuse technology
• Finger-Safe Design
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TCF100
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CUBEFuse
• Type : TCF
• Voltage : 600
• Amperage : 100
• AIC rating : 300kA@600V
• Class Rating : CF
• Barrels : 1
• Velocity : TD - Time Delayed

Product Data

• UPC : 051712618182
• GTIN : 00051712618182
• Country of Origin : China
• Dimensions : 3.01 in x 2.125 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.284
• Certification : CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
