Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
TCF10

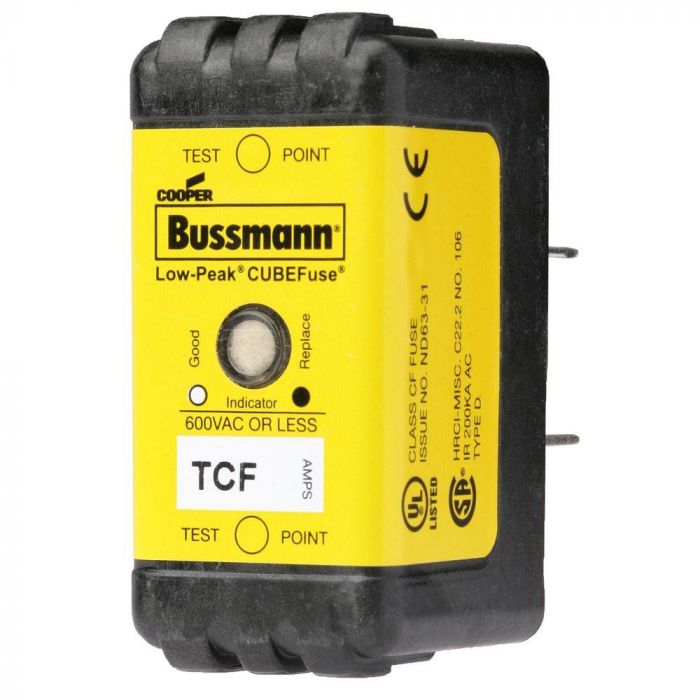

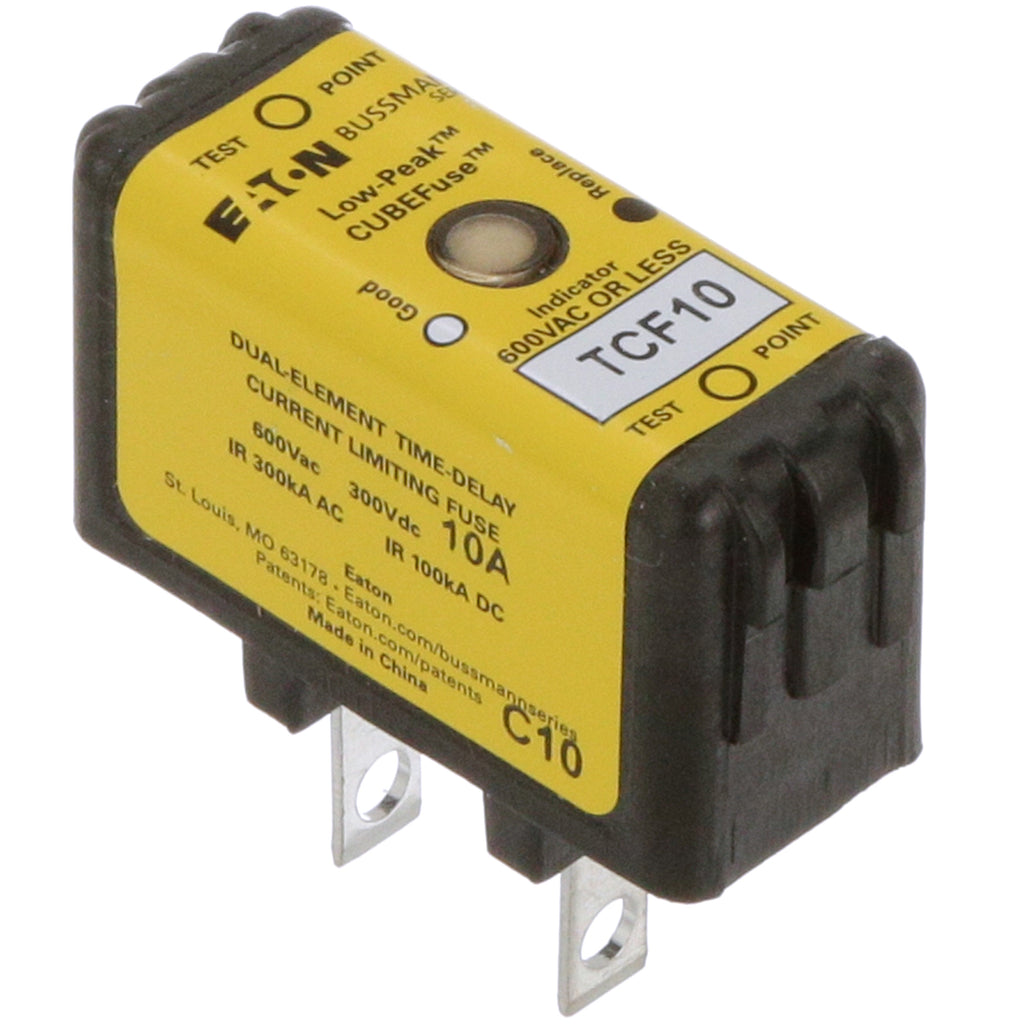

TCF10 is an Eaton Bussmann Series Class CF time-delay cube fuse with a 10 amp rating and indicating feature.
This dual-element, current-limiting fuse is designed for branch circuit protection with a voltage rating of 600 VAC and 300 VDC. It features a time-delay characteristic suitable for motor and general-purpose applications, with an interrupting rating of 100 kA at 300 VDC and 300 kA at 600 VAC. The fuse is UL listed and CSA certified, with a compact cube design for space-saving installation.
- Key Specifications
- Amperage: 10 A
- Voltage AC: 600 VAC
- Voltage DC: 300 VDC
- Class: CF
- Time-Delay (Slow Blow)
- Indicating fuse with blade end
- Interrupting Rating: 100 kA at 300 VDC, 300 kA at 600 VAC
- Dual-element, current-limiting design
- UL Listed and CSA Certified
- Length: 1.880 inches
- Mounting: Cube style for fuse holders
- Part Number: TCF10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CUBEFuse
- Type : TCF
- Voltage : 600
- Amperage : 10
- AIC rating : 300kA@600V
- Class Rating : CF
- Barrels : 1
- Velocity : TD - Time Delayed
- UPC : 051712614986
- GTIN : 00051712614986
- Country of Origin : China
- Dimensions : 1.88 in x 1.75 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.08
- Certification : CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
