Product Info
- Manufacturer:General Electric
- Sub-Category:Lug Terminal Kit
Description
TCAL18

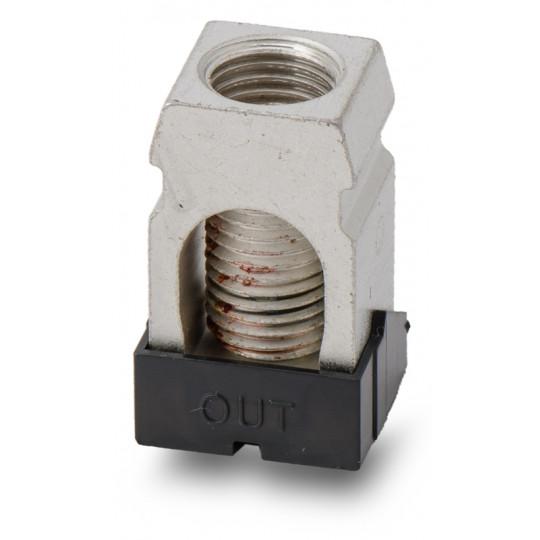

TCAL18 is a General Electric single lug terminal kit designed for SE150 series molded case circuit breakers, rated at 150 Amps and 600VAC.This lug terminal supports 1-pole connection and is compatible with SEDA, SEHA, SELA, and SEPA frame breakers. It accommodates copper or aluminum conductors from 12 AWG to 3/0 AWG with plated extruded aluminum construction for durability and reliable electrical connection.
- Manufacturer: General Electric
- Part Number: TCAL18
- Amperage Rating: 150 Amps
- Voltage Rating: 600VAC
- Poles: 1
- Compatible Frames: SEDA, SEHA, SELA, SEPA (SE150 line)
- Conductor Range: 12 AWG to 3/0 AWG, Cu/Al
- Material: Plated extruded aluminum lug
- Mounting Type: Lug terminal kit
- Dimensions: Approximately 1" x 1" x 2"
- Certifications: CSA approved
Specifications
- Part Number: TCAL18
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : TCAL Series
- Type : TCAL
- Voltage : 600VAC
- Amperage : 150
- MCM Size : 168
- Barrels : 1
- Metal Type : Aluminum
- Compatible Frames : SEDA, SEHA, SELA, SEPA
Product Data
- UPC : 783164212501
- GTIN : 40783164212509
- Dimensions : 0.75" X 1.25" X 0.65"
- Weight : 0.03 lb
- Wire Size : 1x AWG 12 to AWG 3/0, Cu/Al
