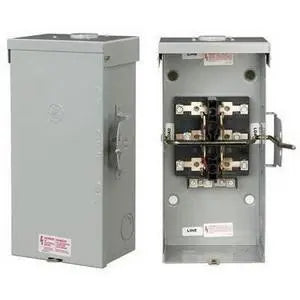

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Manual Transfer
- Series
- Spec-Setter
- Frame
- TC
- Rated current
- 200
- Voltage
- 240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 100kA@600V
- Configuration
- Single
- Switch style
- Non-Fusible
- NEMA rating
- NEMA 3R
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Compatible Frames
- FD
Show all specifications (3 more)
- UPC
- 78316402483
- GTIN
- 40783164024836
- Weight
- 60
Product description & additional details
TC10324R
TC10324R is a General Electric 200 Amp, 240 Volt, 2-Pole Non-Fusible Double Throw Safety Switch designed for emergency power transfer applications.This Spec-Setter series switch features a double throw (DPDT) contact configuration suitable for standby systems per NEC Article 702. It is rated for 200 Amps and 240 VAC with a NEMA 3R outdoor enclosure, supporting 3-wire connections and wire range of 6-250 Cu/Al. The switch is non-fusible and UL/cUL listed for safety and reliability.
- Amperage: 200 A
- Voltage: 240 VAC
- Poles: 2
- Contact Form: Double Throw (DPDT)
- Enclosure: NEMA 3R (Outdoor)
- Fusing: Non-Fusible
- Wire Range: 6-250 Cu/Al
- Certifications: UL Listed, cUL Listed
- Mounting: Surface Mount
- Application: Emergency Power Transfer
- Conductor Rating: 60/75°C
- Dimensions: 30.2" H x 13.3" W x 8.5" D
Specifications
- Part Number: TC10324R
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Manual Transfer
- Family : Spec-Setter
- Type : TC
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 100kA@600V
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : FD
Product Data
- UPC : 78316402483
- GTIN : 40783164024836
- Weight : 60
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
