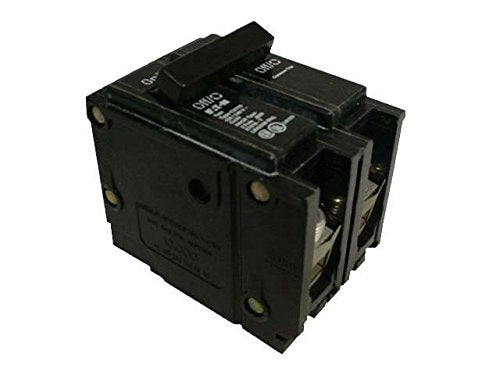

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Thomas & Betts
- Sub-Category
- Molded Case
- Series
- TB Series
- Frame
- TB
- Rated current
- 30
- Voltage
- 240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Weight
- 2
Product description & additional details
TB230
TB230 is a 30 amp, 2-pole molded case circuit breaker by Thomas & Betts designed for 240 volt applications.
This thermal magnetic breaker features a 10,000 amp interrupting rating (AIC) at 240 volts and uses box lug terminals for secure mounting. It is part of the TB series and offers reliable protection for branch circuits with a common trip mechanism that ensures both poles trip simultaneously for safety.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Interrupt Rating: 10,000 AIC @ 240V
- Mounting Type: Plug-In with Box Lug Terminals
- Trip Unit: Thermal Magnetic
- Series/Frame: TB Series
- Certifications: HACR Rated
- Durable thermoset plastic case
- Common trip mechanism for both poles
- Part Number: TB230
- Manufacturer : Thomas & Betts
- Brand : Thomas & Betts
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : TB Series
- Type : TB
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Weight : 2
