TAP363R

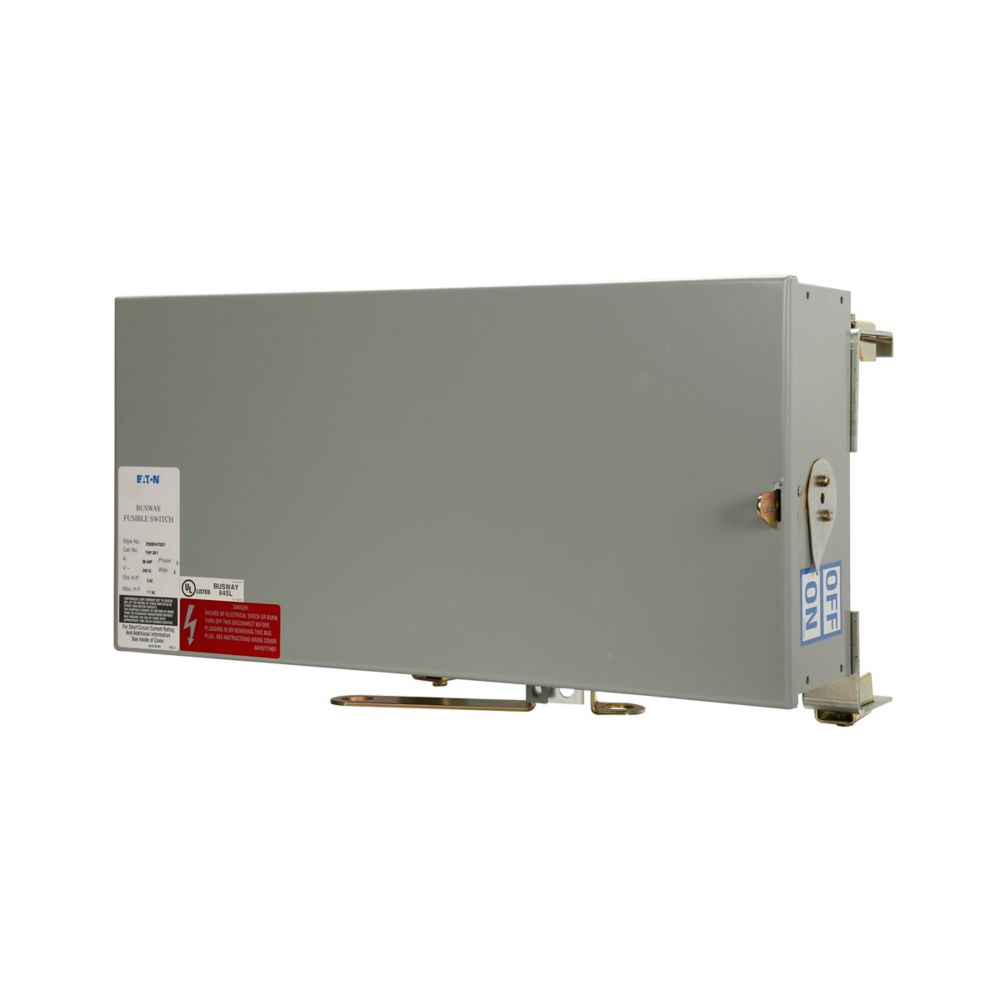

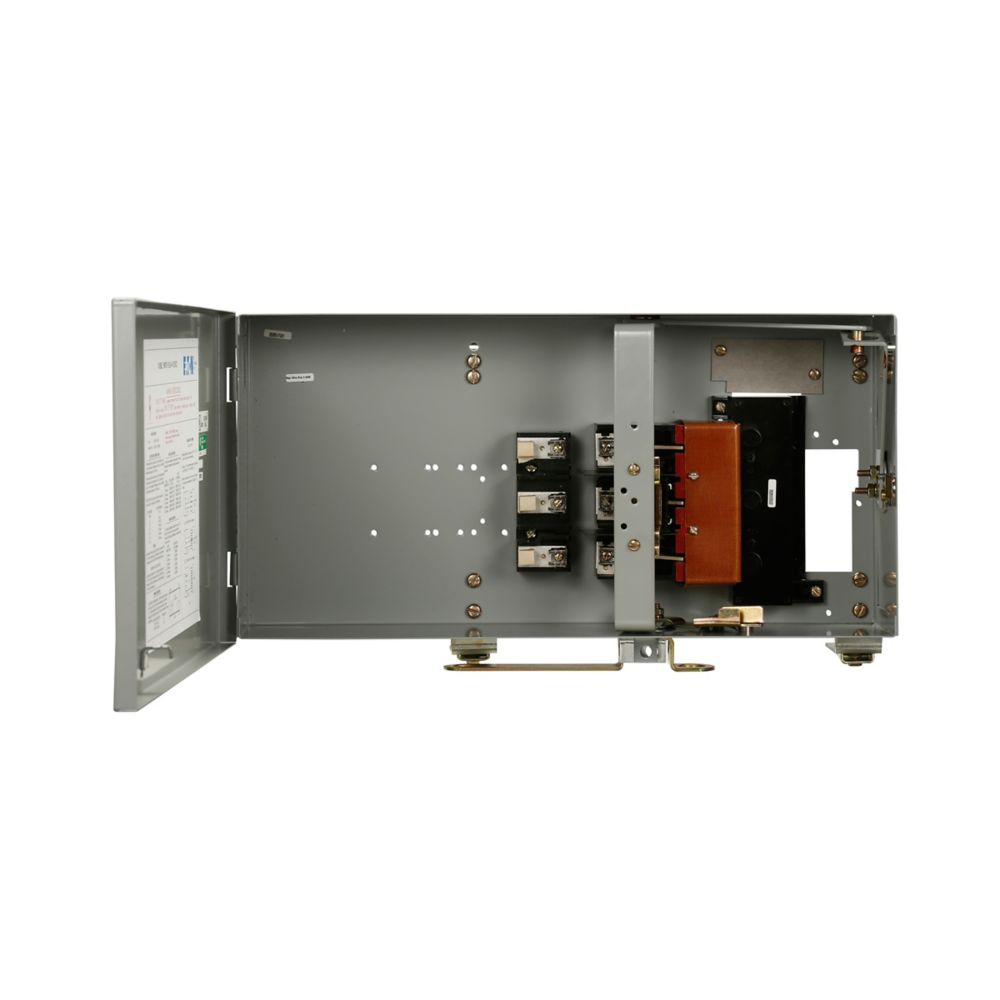

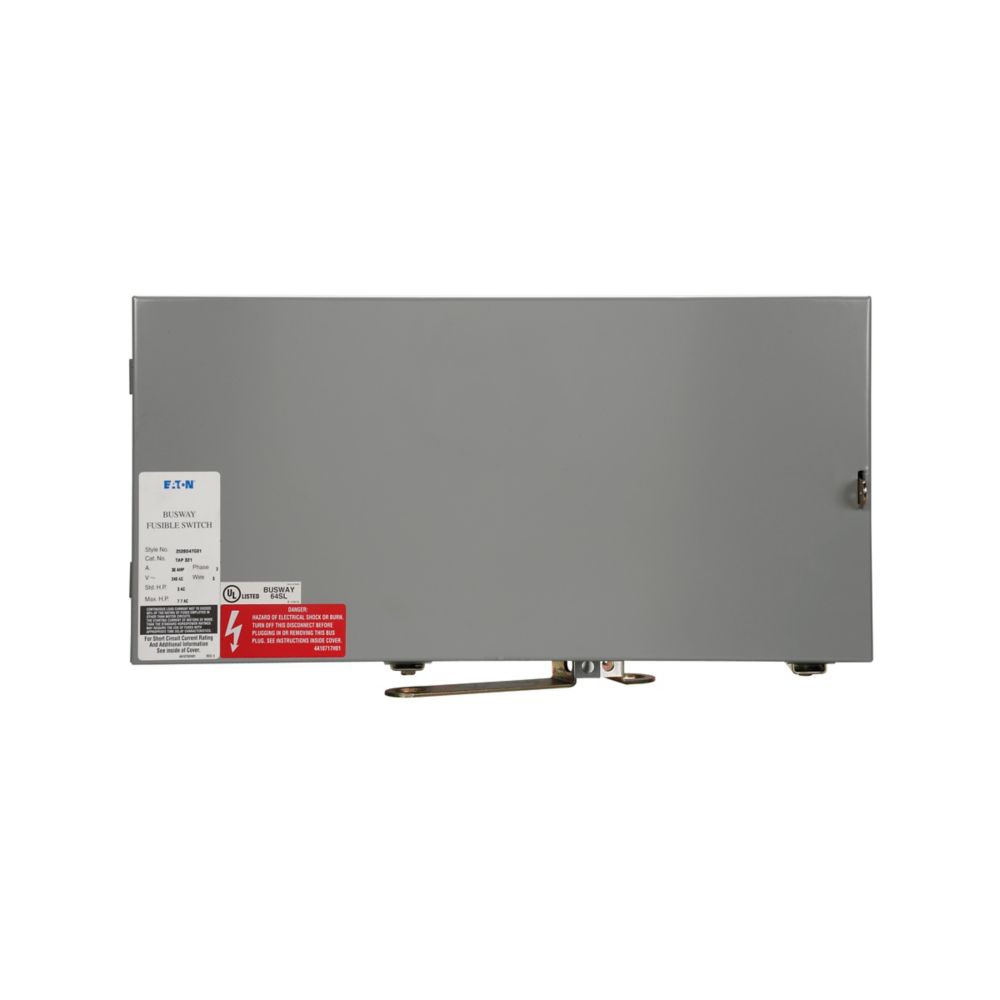

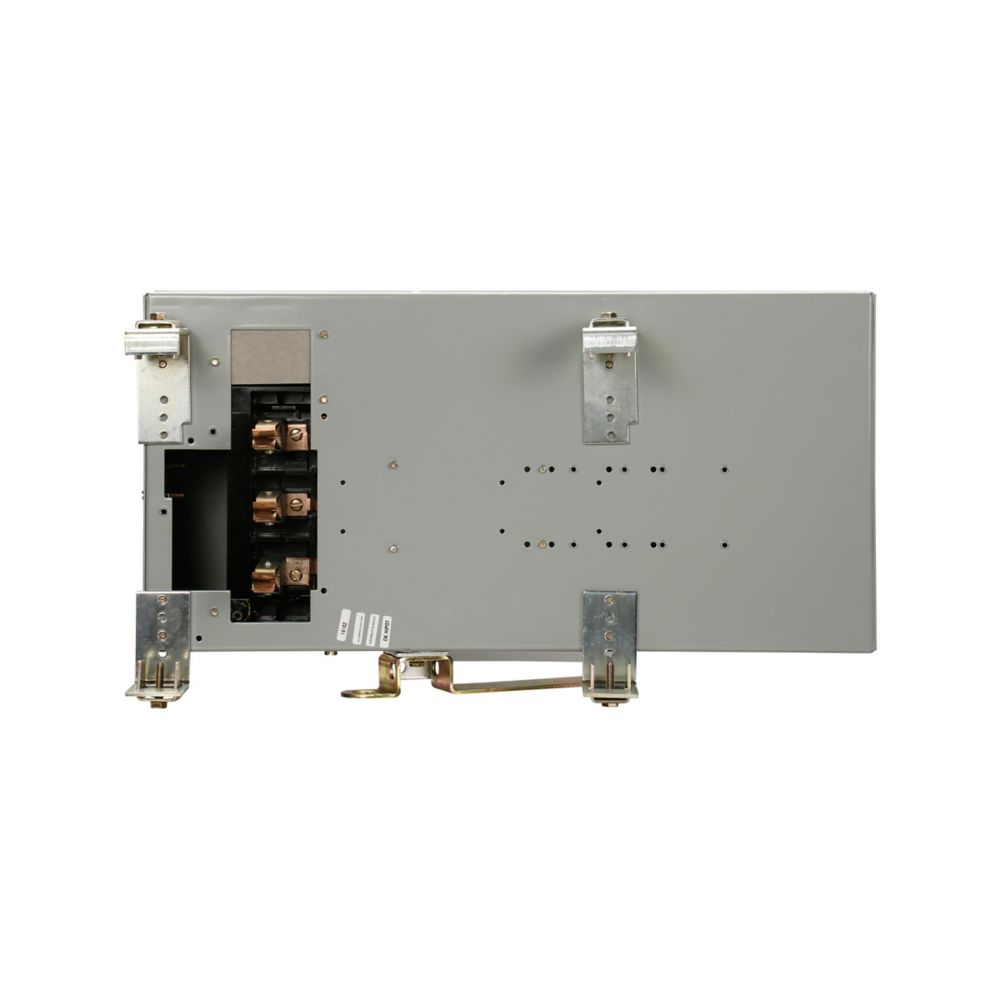

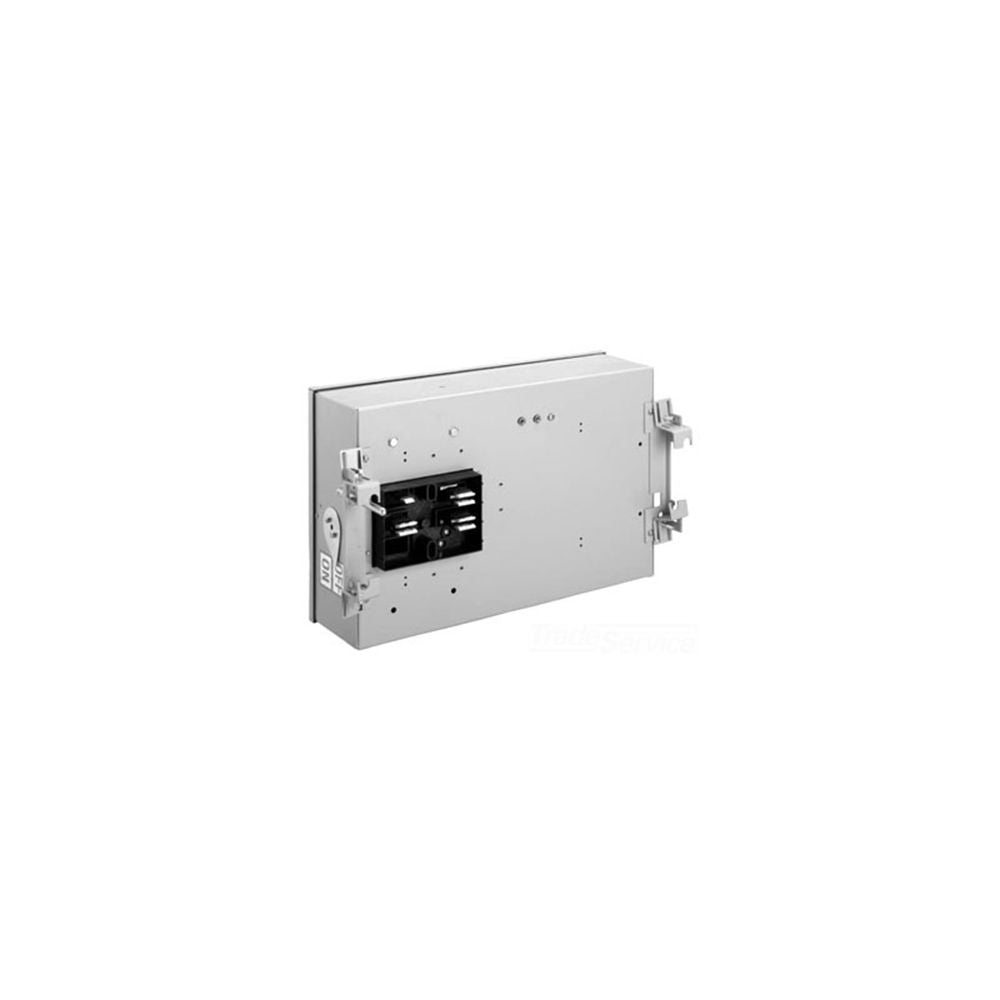

TAP363R is a three-pole, 100 amp, 600 volt fusible bus plug designed for use with Eaton Old Line busway systems. This plug-in unit accommodates R class fuses and is rated for three-phase, three-wire applications in industrial power distribution environments.Key Specifications
- Amperage Rating: 100A
- Voltage Rating: 600VAC
- Number of Poles: 3
- Phase: Three-phase
- Wire Configuration: 3-wire
- Fuse Type: R class
- Product Type: Fusible plug-in unit
- Design: Old Line
- Certifications: UL 857, NEMA Compliant, CSA Certified, ANSI, IEEE Certified
- Product Weight: 23.16 lb
- Warranty: One year from installation or eighteen months from shipment, whichever occurs first
Specifications
- Part Number: TAP363R
- Manufacturer : Eaton
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : Standard Design
- Type : TAP
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Wire : 3
Product Data
- UPC : 078668302234
- GTIN : 00786683022347
- Country of Origin : United States
- Dimensions : 22 in x 11.5 in x 12 in (Length/Depth x Height x Width)
- Weight : 23.16
- Certification : CSA Certified,ANSI,UL 857,IEEE Certified,NEMA Compliant
