Description
TAP323N

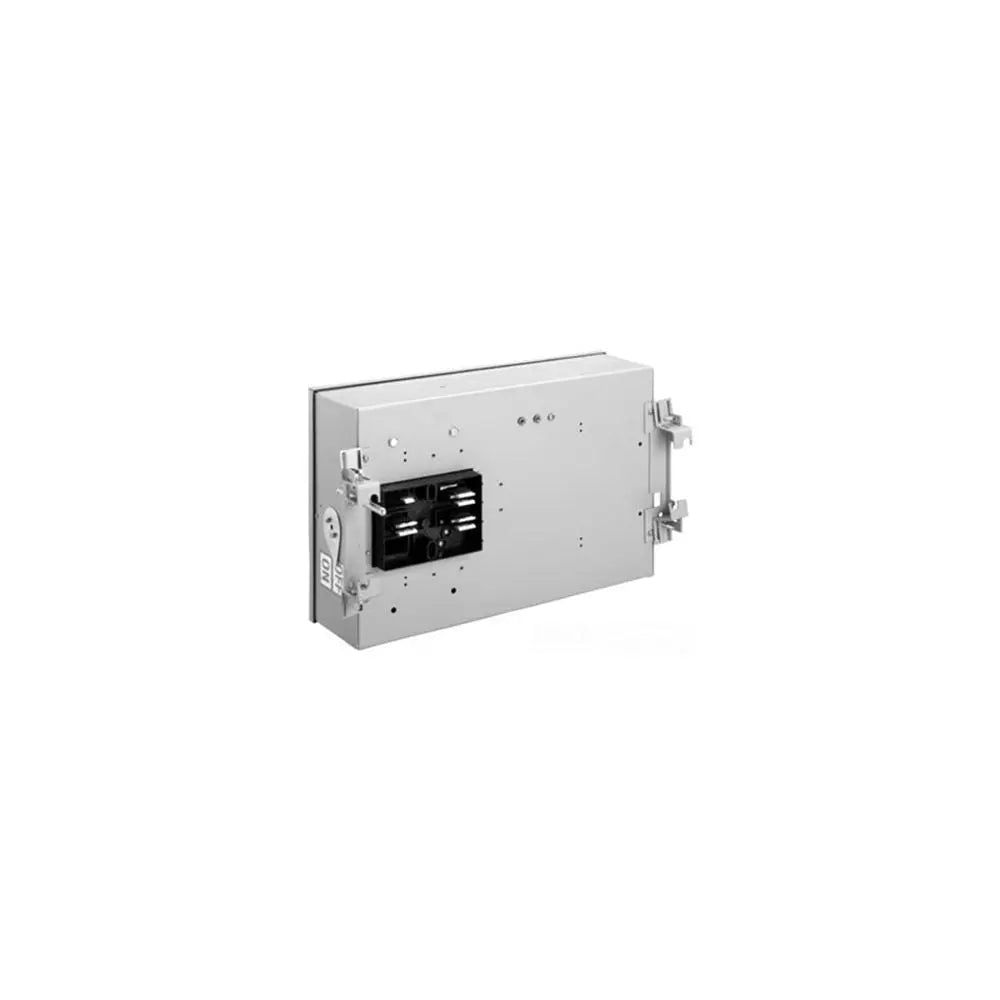

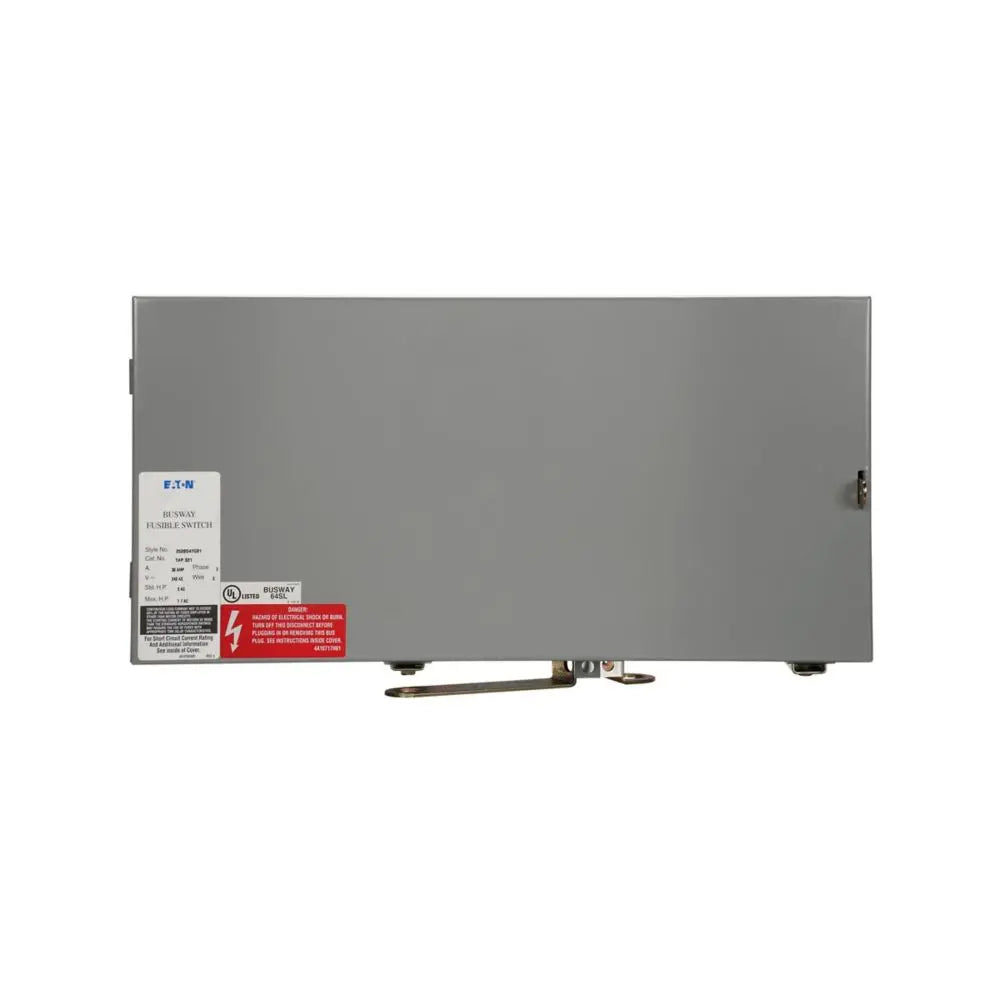

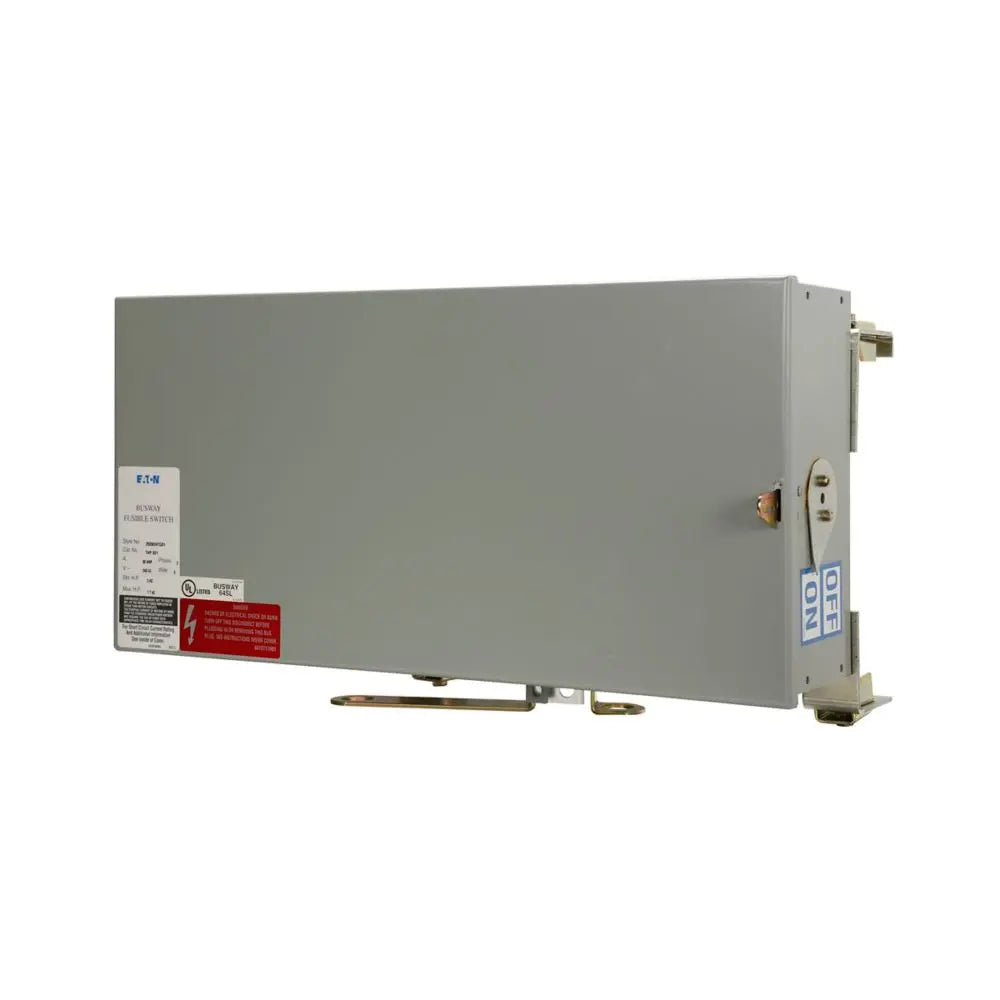

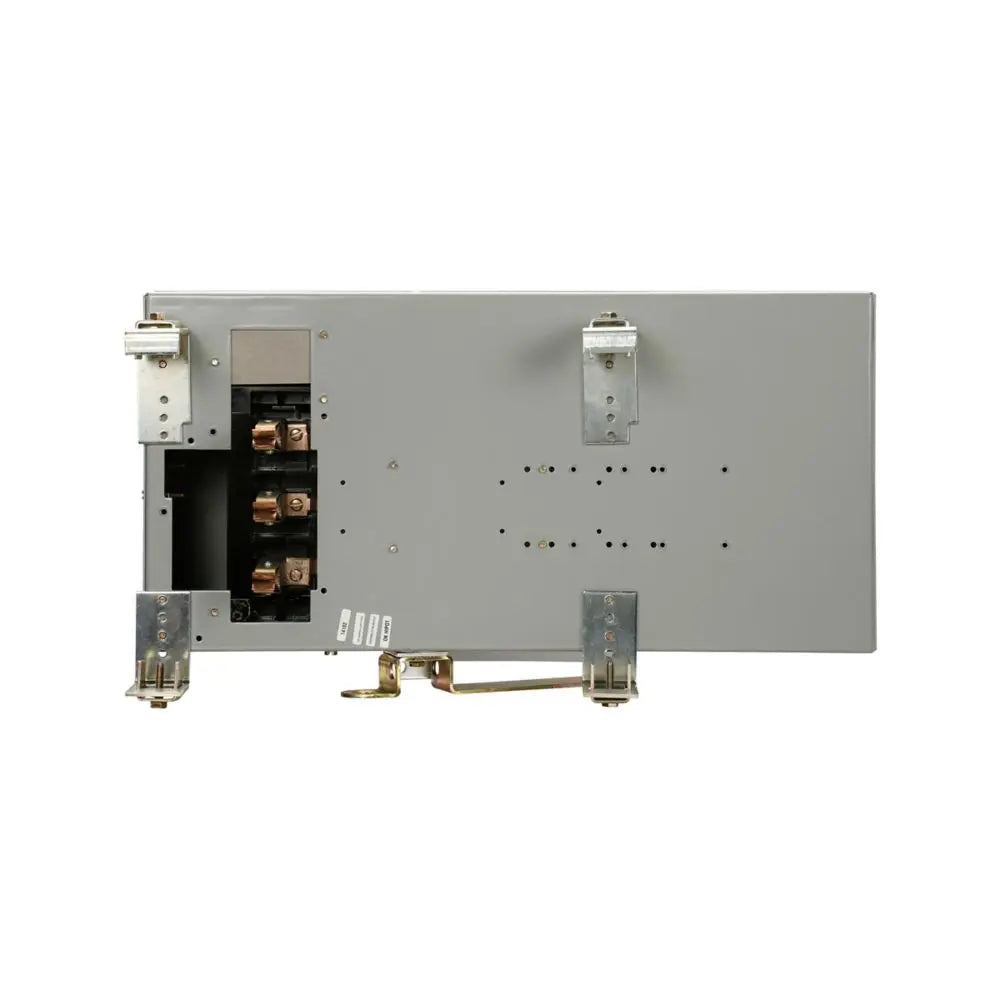

TAP323N is a 100 amp, 240 volt, 3-pole fusible bus plug from Eaton's Standard Design series.This Eaton TAP323N bus plug features a fusible design compatible with type R, H, and J fuses and offers a 200kA interrupting rating at 240 volts. It is designed for plug-in busway applications and includes a 100% neutral. The unit complies with ANSI, IEEE, CSA, and UL 857 standards, ensuring reliable and safe operation in electrical distribution systems.
- Amperage: 100A
- Voltage: 240V
- Poles: 3
- Fusible: Yes (Type R, H, J fuses)
- Interrupt Rating: 200kA @ 240V
- Series: Standard Design
- Mounting Type: Plug-in Busway
- Neutral: 100%
- Certifications: ANSI, IEEE, CSA, UL 857
Specifications
- Part Number: TAP323N
- Manufacturer : Eaton
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : Standard Design
- Type : TAP
- Voltage : 240
- Amperage : 100
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : R,H,J
- Wire : 4
Product Data
- UPC : 078668302279
- GTIN : 00786683022798
- Country of Origin : United States
- Dimensions : 22.7 in x 12.2 in x 13.7 in (Length/Depth x Height x Width)
- Weight : 22.85
- Certification : CSA Certified,ANSI,UL 857,IEEE Certified,NEMA Compliant
