Description

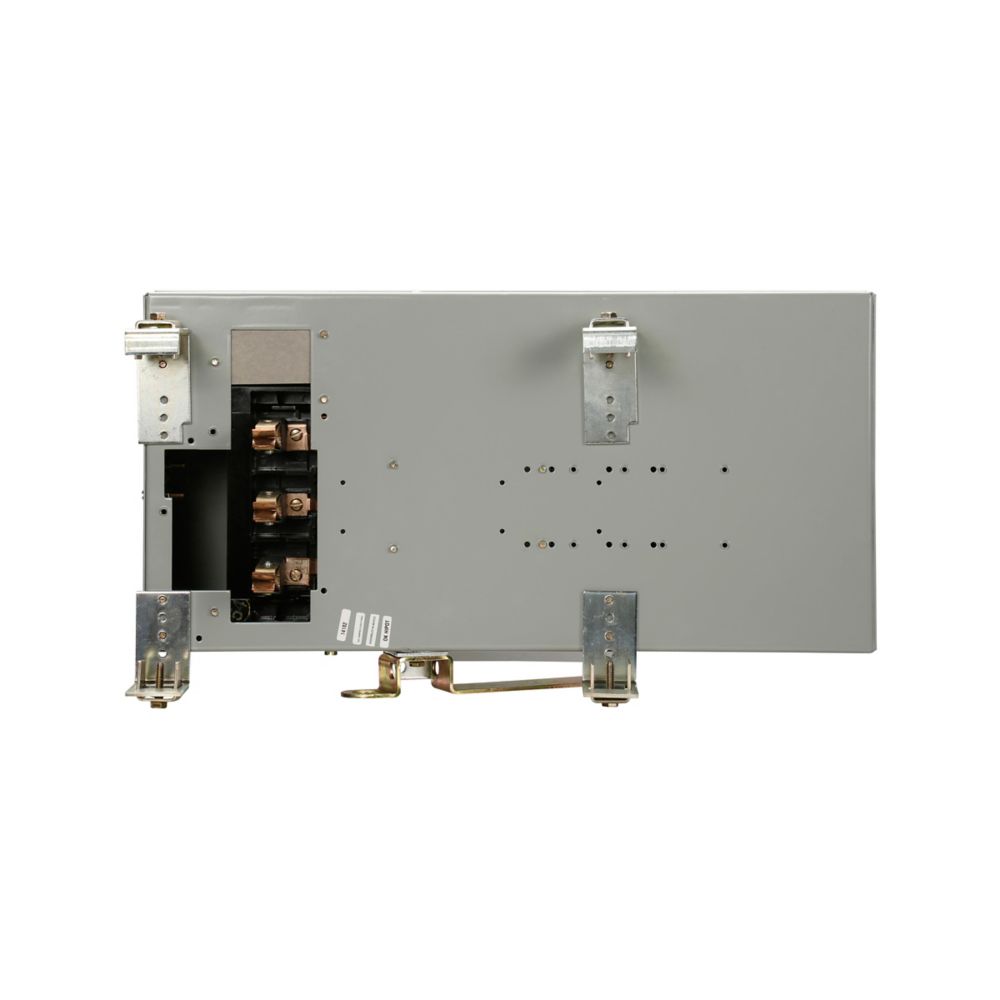

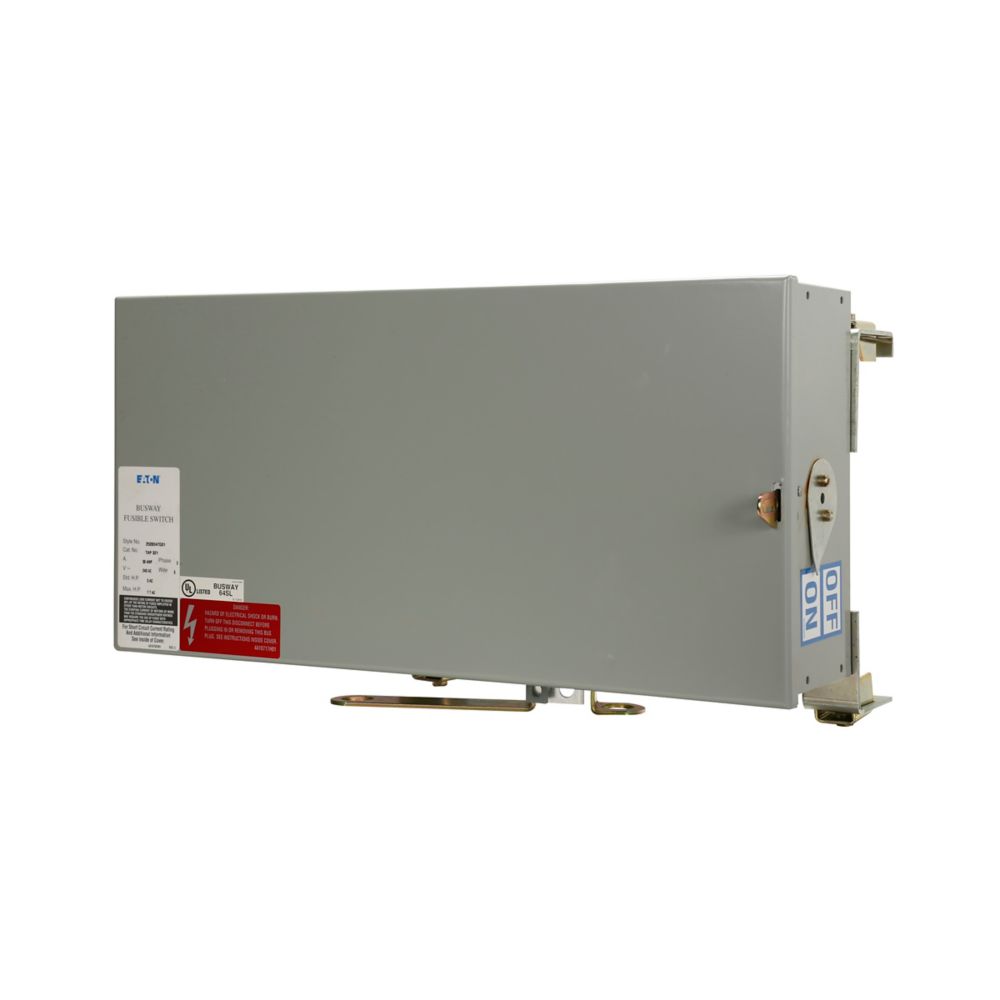

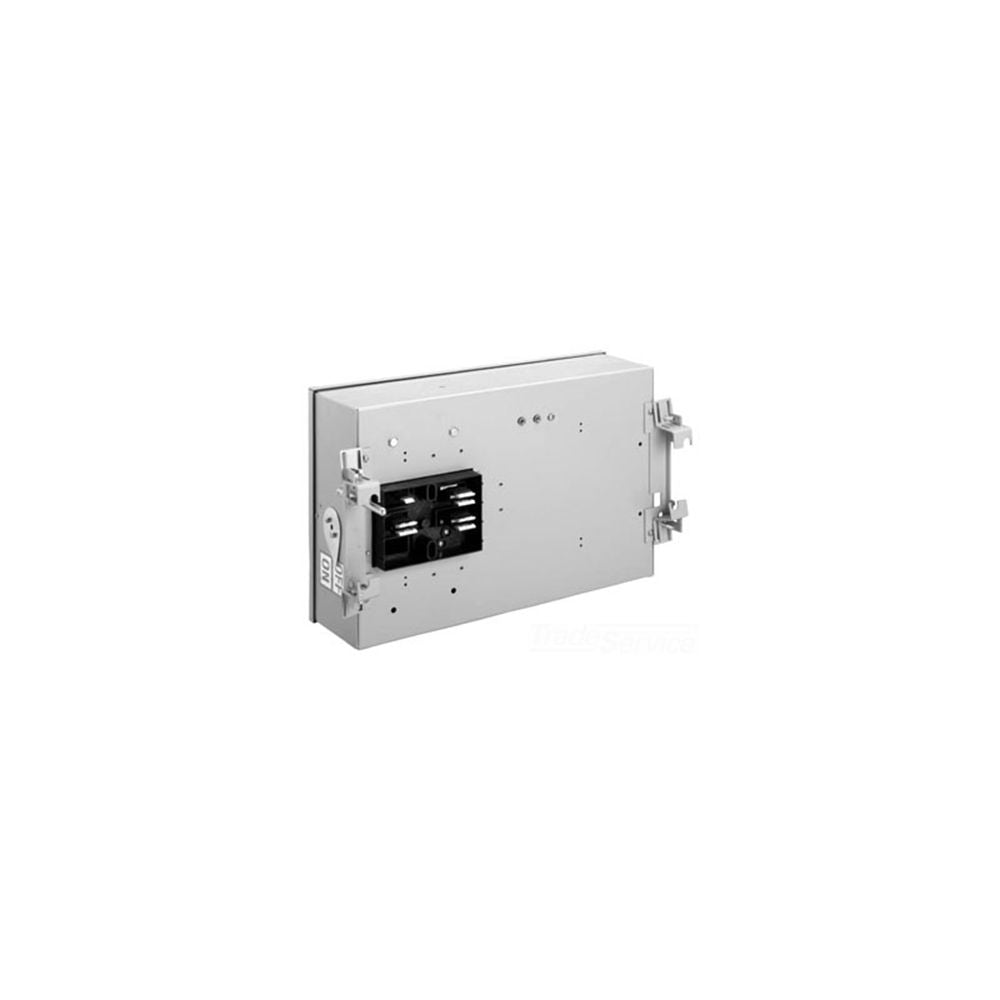

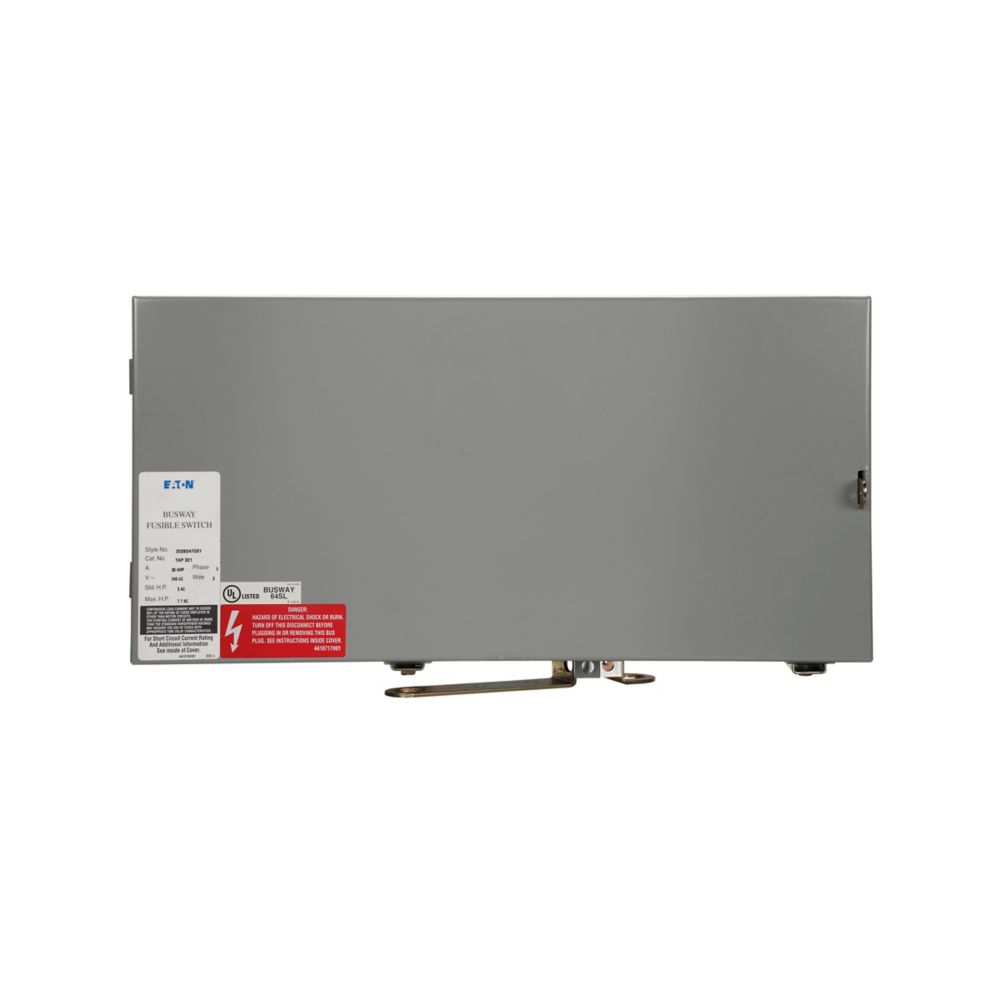

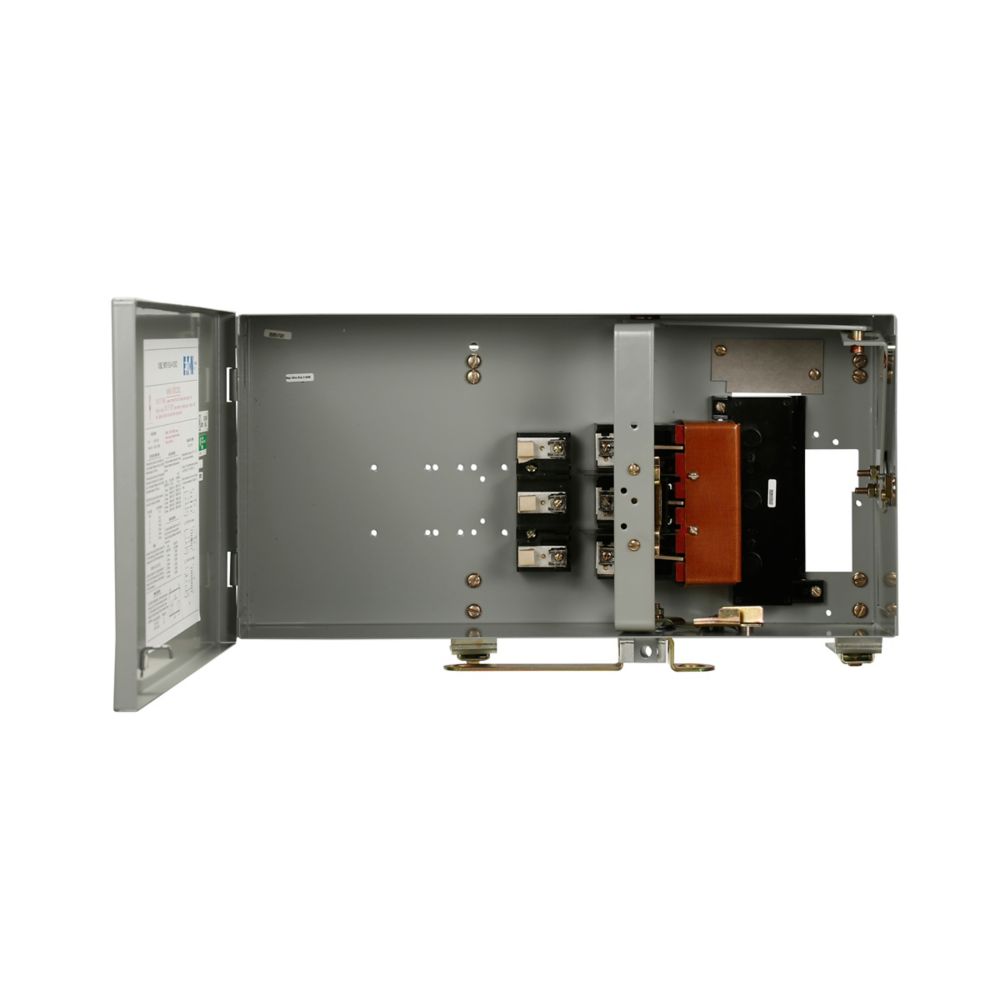

TAP323
TAP323 is a 100 amp, 240 volt, 3-pole fusible bus plug from Eaton's Standard Design series for plug-in busway applications.TAP323 features a fusible design compatible with R, H, and J class fuses and has a high interrupting rating of 200kA at 240V. It is designed for use with Eaton Old Line busway systems and provides reliable overcurrent protection with mechanical lugs standard. This bus plug is NEMA compliant and certified to ANSI, IEEE, CSA, and UL 857 standards.
- Key Specifications
- Amperage: 100A
- Voltage: 240V
- Poles: 3
- Fuse Types: R, H, J class
- Interrupt Rating: 200kAIC @ 240V
- Series: Standard Design / Old Line
- Mounting Type: Plug-in unit for busway
- Certifications: ANSI, IEEE, CSA, UL 857
- Ground Tab: No
- Weight: Approx. 25 lbs
- Warranty: 1 year from installation or 18 months from shipment
Specifications
- Part Number: TAP323
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : Standard Design
- Type : TAP
- Voltage : 240
- Amperage : 100
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : R,H,J
- Wire : 3
Product Data
- UPC : 078668340003
- GTIN : 00786683400039
- Country of Origin : Mexico
- Dimensions : 20 in x 18 in x 18 in (Length/Depth x Height x Width)
- Weight : 25
- Certification : ANSI,UL 857,IEEE Certified,CSA Certified,NEMA Compliant
