Product Info
- Manufacturer:ABB
- Sub-Category:Overload Relay
Description
TA42DU25

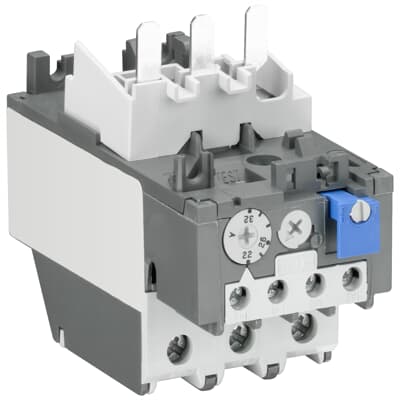

TA42DU25 is a thermal overload relay from ABB designed for motor protection with an adjustable current range of 18 to 25 amperes. It provides reliable overload and phase failure protection for motors.TA42DU25 features a trip class 10A, selectable automatic or manual reset, trip-free mechanism, and includes STOP and TEST functions. It is designed for direct mounting on ABB A-Line contactors and supports both close-coupled and separate base mounting. The relay offers a maximum operating voltage of 600V AC and includes normally closed (NC) trip contacts and normally open (NO) signal contacts.
- Key Specifications
- Amperage Range: 18-25 A
- Voltage Rating: 600 V AC max
- Poles: 1 Pole
- Series/Frame: A-Line
- Trip Class: 10 A
- Reset Type: Automatic or Manual selectable
- Mounting Type: Direct mounting on contactors or separate base
- Trip Mechanism: Trip-free
- Contacts: 1 NC (trip), 1 NO (signal)
- Functions: STOP and TEST available
- Certifications: CE compliant
Specifications
- Part Number: TA42DU25
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : A-Line
- Type : TA
- Relay Style : Thermal
- Amperage Maximum : 25
- Amperage Minimum : 18
Product Data
- UPC : 01361421665
- GTIN : 04013614216657
- Weight : 5
