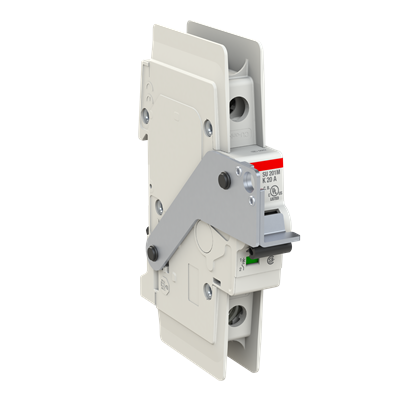

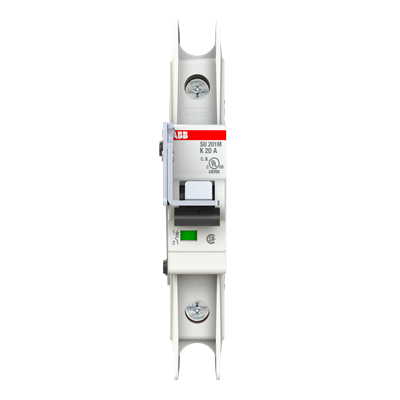

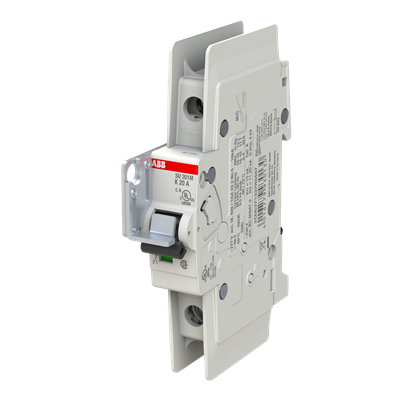

SU201M-K20 - ABB 20A 1-Pole Miniature Circuit Breaker K-Trip 10kA 277/480VAC DIN Mount

SU201M-K20

SU201M-K20 is a 20 amp, 1-pole miniature circuit breaker from ABB designed for branch circuit protection with a K trip curve.This circuit breaker features a 10 kA interrupting capacity compliant with UL 489 and CSA standards, suitable for use up to 277/480 VAC and 48/96 VDC. It is DIN rail mounted and provides electromechanical thermal/magnetic protection with clear red/green contact position indication. The SU201M-K20 is compatible with System pro M compact UL 489 accessories and certified for AC and DC applications.

• Amperage: 20 A
• Poles: 1
• Voltage Rating: 277/480 VAC, 48/96 VDC
• Interrupt Rating: 10 kA
• Trip Curve: K
• Mounting Type: DIN Rail
• Protection Method: Thermal/Magnetic
• Standards: UL 489, CSA 22.2 No. 5, IEC/EN 60947-2
• Dimensions: 69 mm L x 17.5 mm W x 111 mm H
• Enclosure Type: IP20
• Clear contact position indication
• Compatible with ABB System pro M accessories

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SU201M-K20
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SU200M Series
• Poles : 1

Product Data

• UPC : 016779930134
• Dimensions : Depth / Length 69 mm X Height 111 mm X Width 17.5 mm
• Weight : 0.3
• Certification : CSA EN IEC UL
