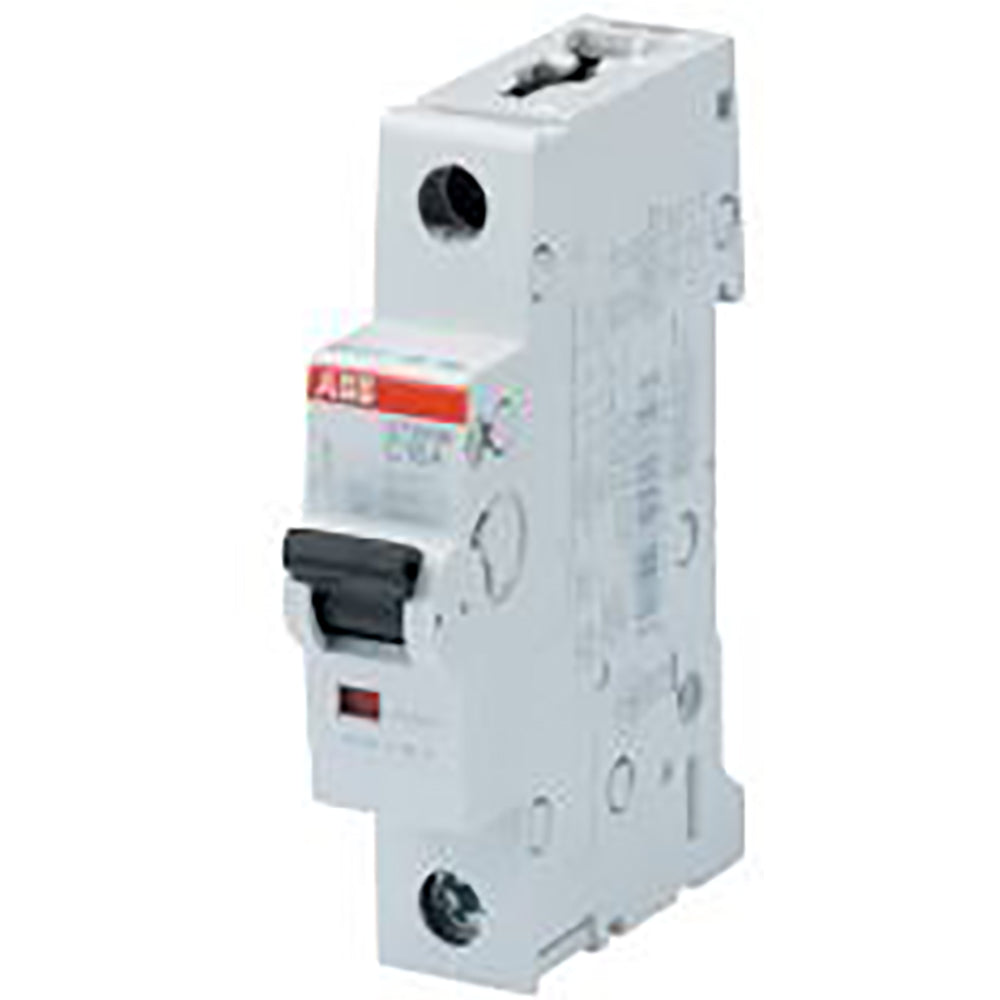

ST201M-K6 - ABB 6A 230VAC 1-Pole Miniature Circuit Breaker K-Trip Thermal Magnetic 10kA Interrupt Rating

ST201M-K6

ST201M-K6 is a high-performance ABB miniature circuit breaker designed for reliable circuit protection with a 6 amp rating and 1 pole configuration.This ABB ST201M-K6 breaker features a thermal magnetic K-trip unit, suitable for 230 VAC operation at 50/60 Hz frequency. It has a 10 kA interrupt rating at 277 VAC and 60 VDC, ensuring robust short circuit protection. The breaker is part of the ST200M series, mounts on a 35 mm DIN rail, and offers IP20/IP40 enclosure protection. It supports wiring up to 35 mm² with patented twin terminals and operates within a temperature range of -25 to 55 °C. Certified to UL 1077 and CSA 22.2 No. 235 standards, it includes clear red/green contact position indication and a durable thermoplastic housing.

• Amperage: 6 A
• Voltage Rating: 230 VAC
• Number of Poles: 1
• Interrupt Rating: 10 kA at 277 VAC / 60 VDC
• Trip Unit: Thermal Magnetic, K-Characteristic
• Mounting Type: 35 mm DIN Rail
• Series: ST200M
• Enclosure Type: IP20/IP40
• Operating Temperature: -25 to 55 °C
• Wire Size Capacity: Up to 35 mm²
• Certifications: UL 1077, CSA 22.2 No. 235
• Dimensions: 69 mm L x 17.5 mm W x 88 mm H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ST201M-K6
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case

Product Data

• Dimensions : Depth / Length 69 mm X Height 88 mm X Width 17.5 mm
• Weight : 0.25
• Certification : CSA EN IEC UL
