Product Info
- Manufacturer:Thomas & Betts
Description
ST150472

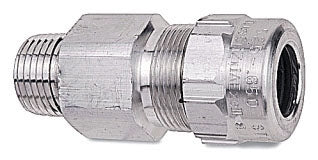

ST150472 is a Thomas & Betts Star Teck aluminum jacketed cable fitting featuring a 1-1/2 inch hub and a cable range of 1.7 to 1.965 inches.ST150472 provides durable, watertight protection for armored and metal clad cables. Constructed from aluminum with stainless steel grounding and retaining rings, it includes a built-in O-ring and sharp biting teeth for secure cable retention. Suitable for ACWU/MC cable types, it supports a temperature range from -40 to 194 degrees Fahrenheit and features a 1-1/2 inch NPT connection.
- Key Specifications
- Manufacturer: Thomas & Betts
- Part Number: ST150472
- Type: Star Teck Aluminum Jacketed Cable Fitting
- Hub Size: 1-1/2 inch
- Cable Range: 1.7 to 1.965 inches
- Material: Aluminum body and gland nut; stainless steel grounding and retaining rings; neoprene components
- Connection Type: 1-1/2 inch NPT
- Cable Type: ACWU/MC (Armored/Metal Clad)
- Temperature Rating: -40 to 194 °F
- Features: Built-in O-ring, sharp biting teeth, watertight construction
- Color: Silver
- Certifications: UL, CSA
Specifications
- Part Number: ST150472
- Manufacturer : Thomas & Betts
- Brand : Thomas & Betts
Product Data
- UPC : 786210712925
- GTIN : 786210712925
- Weight : 5.19
