SSP05EMA24 - Square D 3-Pole 480VAC 240kA Surge Protection Device QO Frame

SSP05EMA24

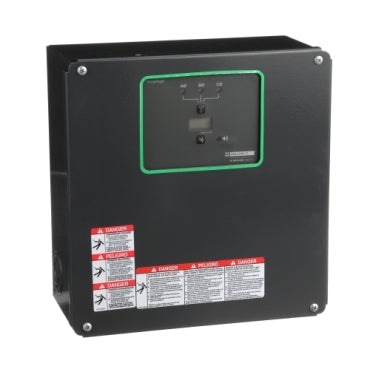

SSP05EMA24 is a 3-pole surge protection device designed for 480VAC delta systems with a 240kA surge current rating per phase. This Square D Surgelogic surge suppressor features a QO frame type and is suitable for automation enclosure applications. The device provides high-energy suppression across 10 modes, protecting against surge currents ranging from 100000 to 480000 peak amps per phase. Key Specifications

• Manufacturer: Square D
• Part Number: SSP05EMA24
• Voltage Rating: 480VAC Delta
• Poles: 3
• Phases: 3
• Wire Configuration: 3-wire
• Surge Current Rating: 240kA
• Frame Type: QO
• Mounting: Surface
• Lug Size: AWG 10 to AWG 2 Copper
• Torque Specification: 35.4 lbf.in (4 N.m)
• Status Indicators: LED green per phase for normal operation, LED red per phase for fault

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SSP05EMA24
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Automation
• Item Subcategory : Components & Accessories
• Family : EMA
• Type : QO
• Voltage : 480VAC
• Amperage : 240000
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 3
• Nema Rating : 1, 3R, 12
• Mounting : Surface
• Enclosure Grade : Painted Sheet Steel

Product Data

• GTIN : 785901994350
• Dimensions : 11.1 in (282 mm) x 10.0 in (253.5 mm) x 5.3 in (135 mm) (Height x Width x Depth)
• Weight : 20.501
• Temp Rating : -13–158 °F (-25–70 °C)
