SSP04EMA24 - Square D 3-Phase 480Y/277V AC Surge Protection Device Surface Mount EMA Series

SSP04EMA24

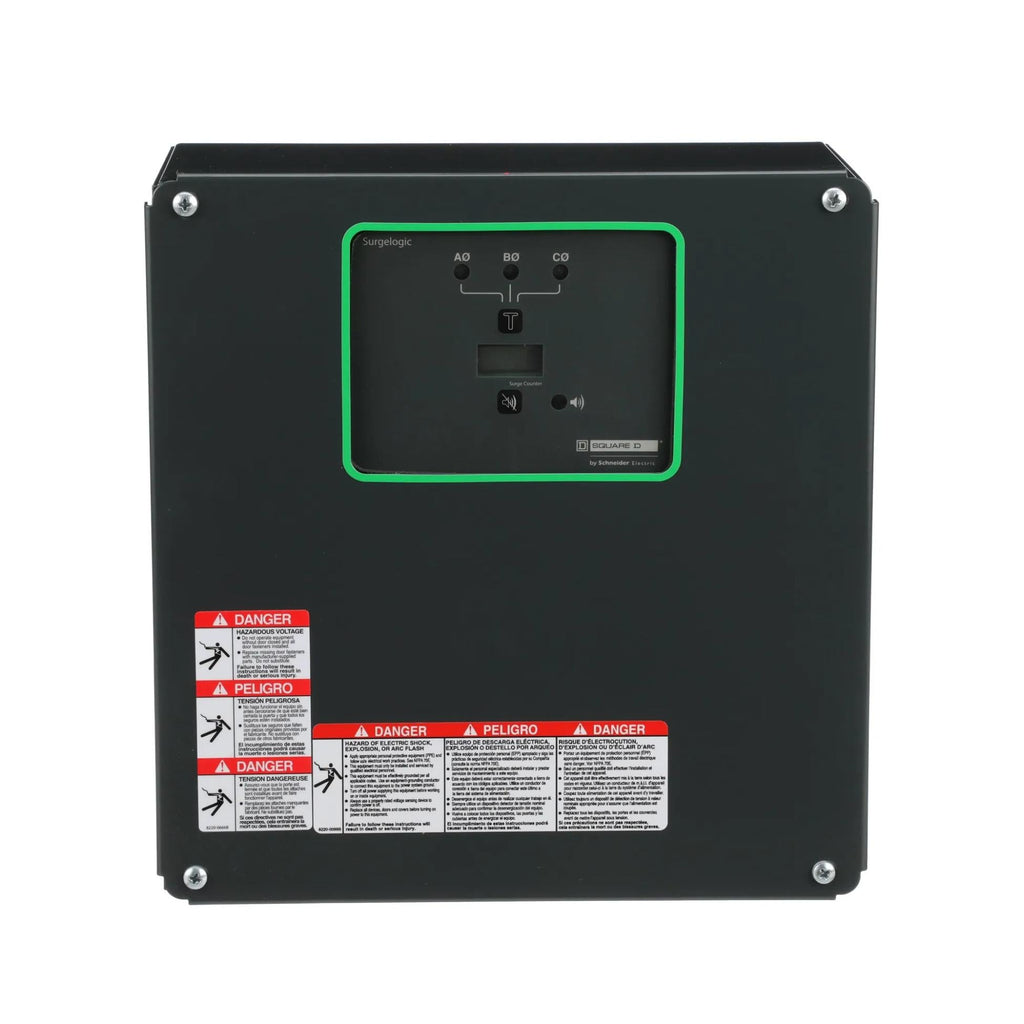

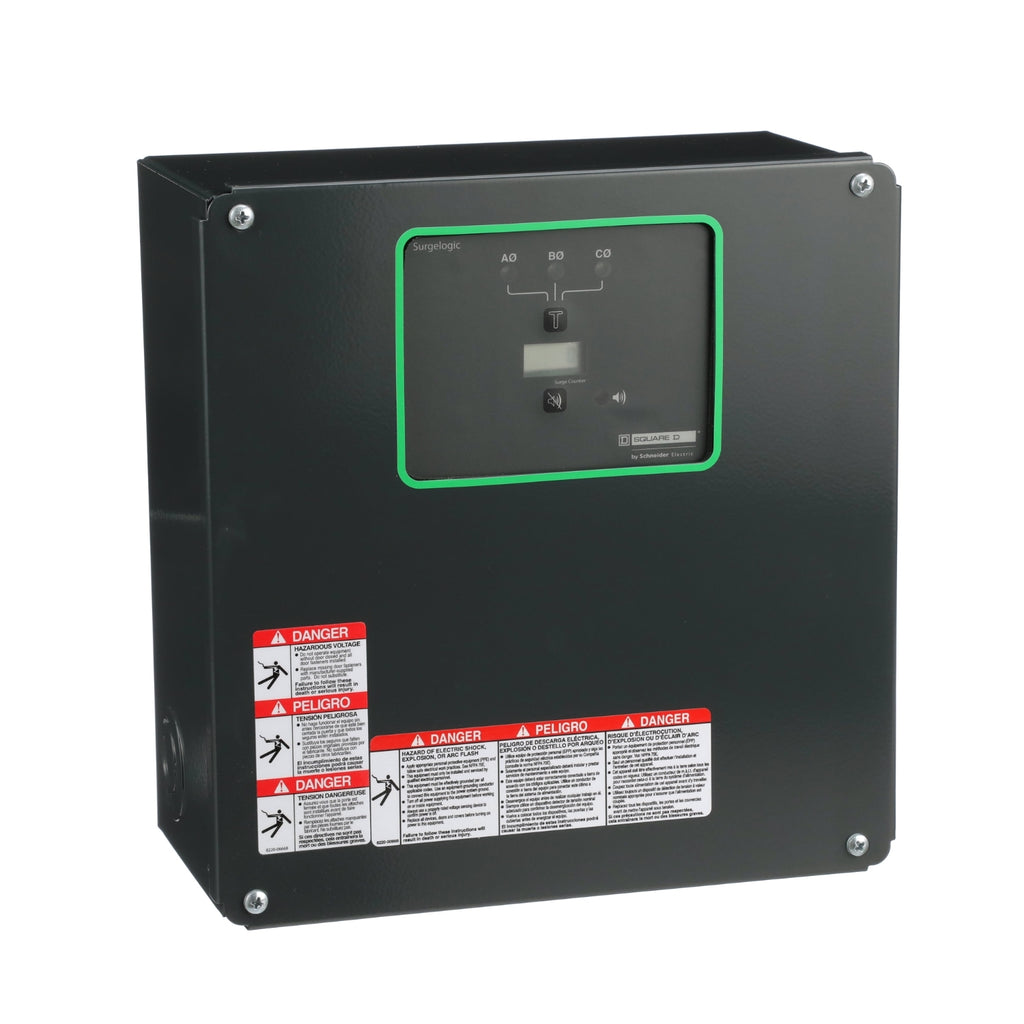

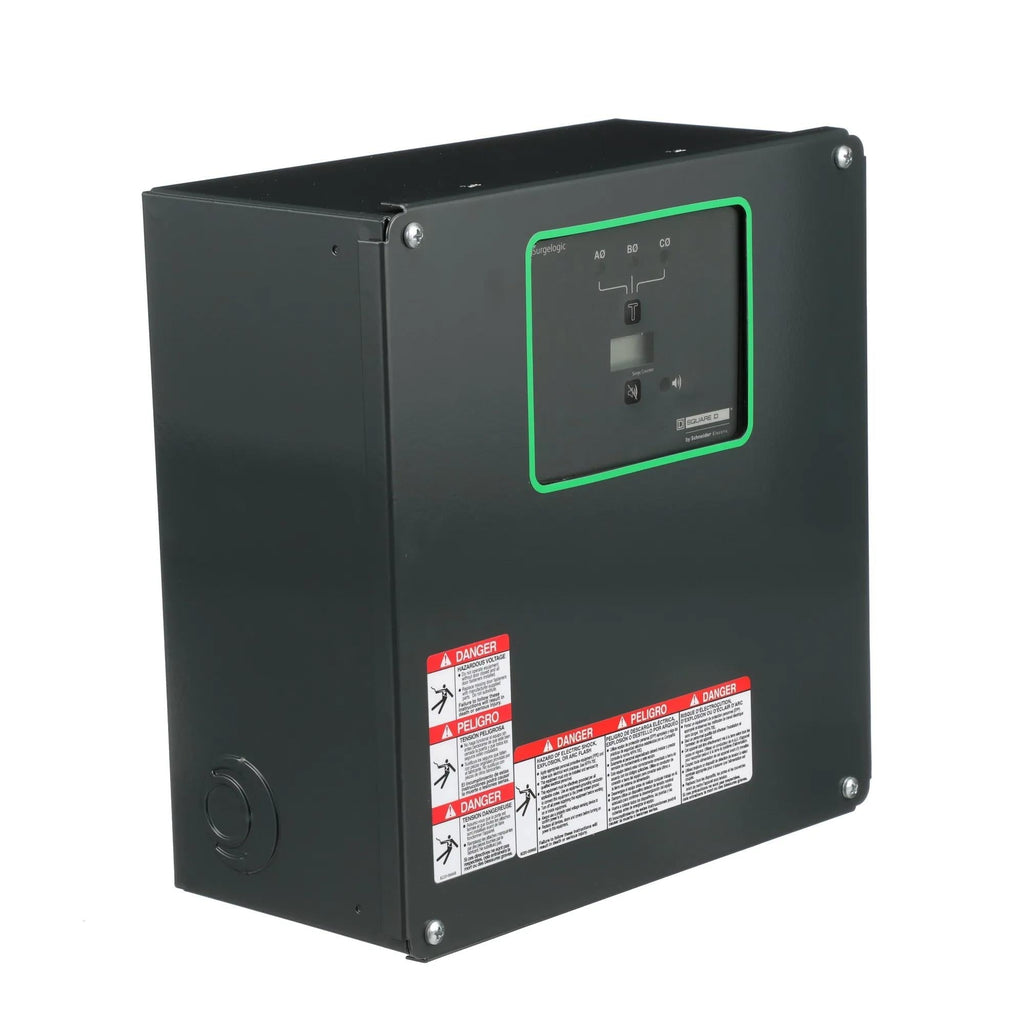

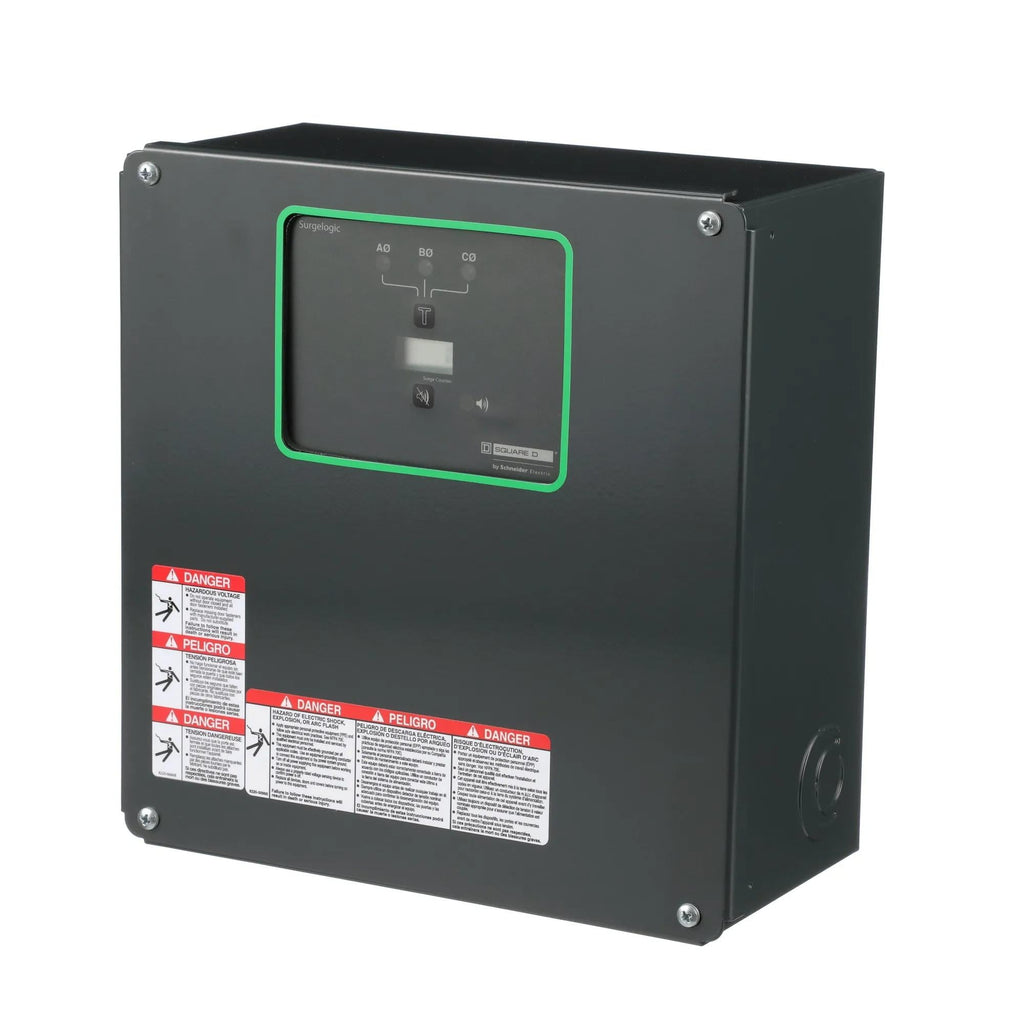

SSP04EMA24 is a Square D 3-phase surge protection device designed for 480Y/277 V AC systems with surface mounting.SSP04EMA24 from the EMA Series offers specification-grade transient suppression and noise filtration for service entrance or critical branch panel applications. It features a durable gray painted sheet steel enclosure, diagnostic interface with push-to-test switches, status LEDs, dry contacts, audible alarm with disable switch, and a surge counter. Certified to UL and CSA standards, it supports wire gauges AWG 10 to AWG 2 with lug connections and has a 240 kA surge current rating.

Key Specifications
• Manufacturer: Square D
• Part Number: SSP04EMA24
• Voltage Rating: 480Y/277 V AC
• Phase: 3
• Mounting Type: Surface Mount
• Series: EMA
• Surge Current Rating: 240 kA

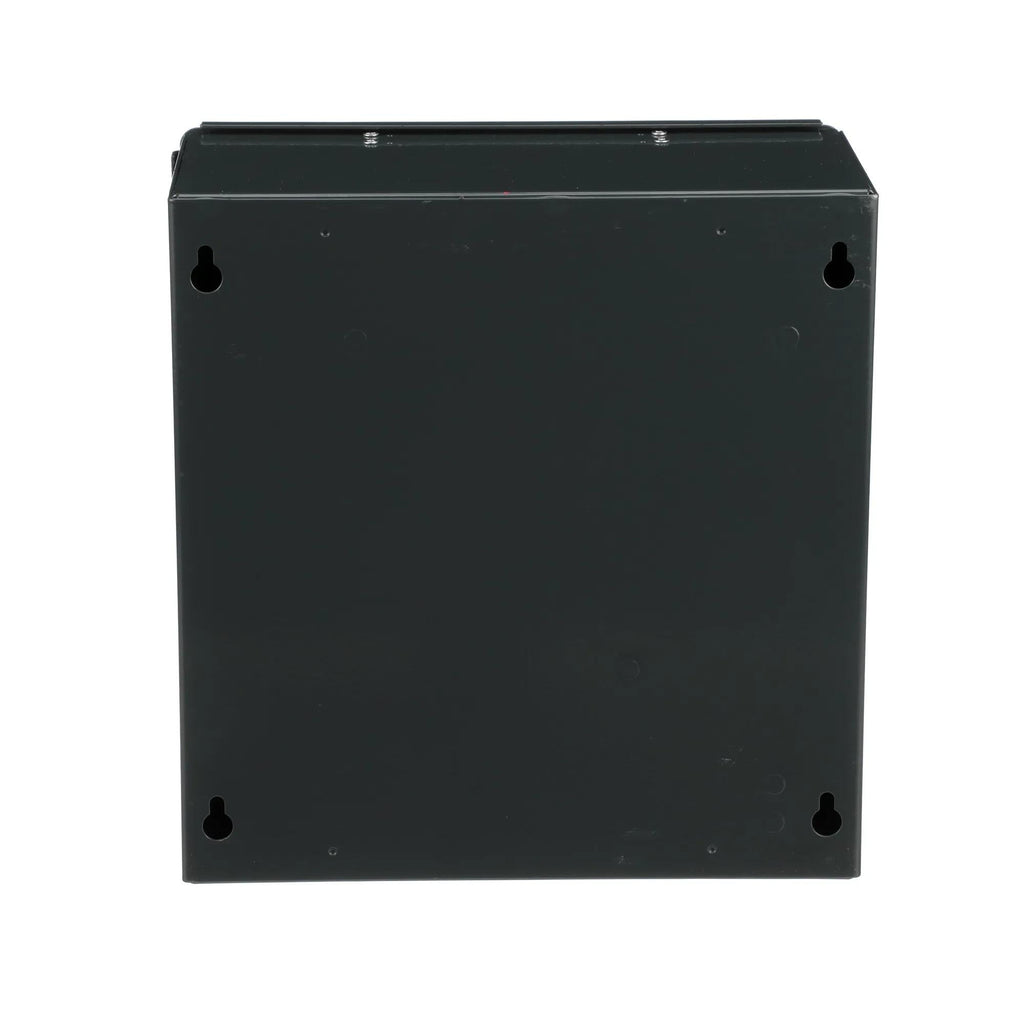

• Enclosure: Gray Painted Sheet Steel
• Connection: Lugs AWG 10 - AWG 2 Copper
• Certifications: UL, CSA
• Diagnostic Features: Push-to-test, LEDs, Audible Alarm, Surge Counter
• Operating Temperature: Up to 65°C (149°F)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SSP04EMA24
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Type : EMA
• Voltage : 480Y/277 V AC
• Phase : 3
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901991489
• GTIN : 00785901991489
• Dimensions : 11.1 in (282 mm) x 10.0 in (253.5 mm) x 5.3 in (135 mm) (Height x Width x Depth)
• Weight : 16.799
• Standards : CSA C22.2 No 8, UL 1449:ed. 4, UL 1283:ed. 5
• Certification : UL,CSA
• Wire Size : Lugs AWG 10 - AWG 2 copper 35.40 lbf.in (4 N.m)
