SSP02EMA12D - Square D Surge Protection Device 120kA 208Y/120V AC 3-Phase 4-Wire Surface Mount NEMA 1

SSP02EMA12D

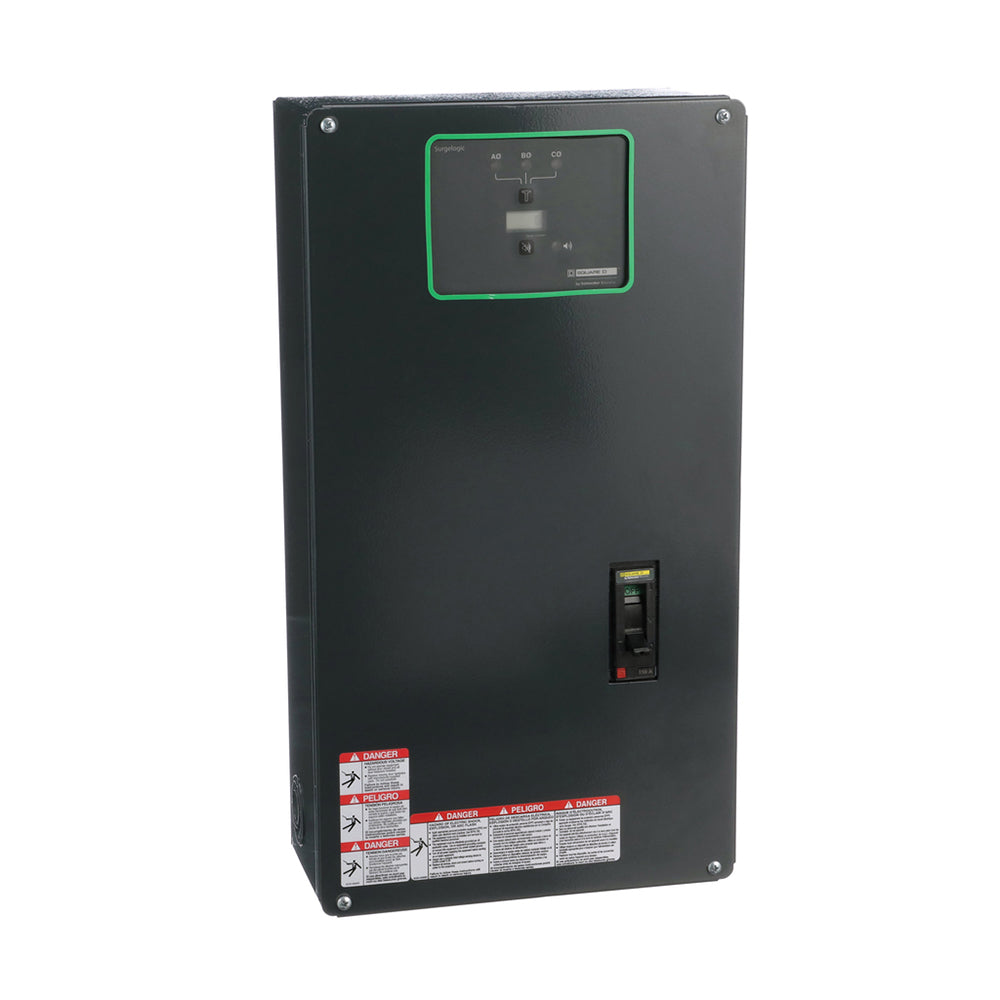

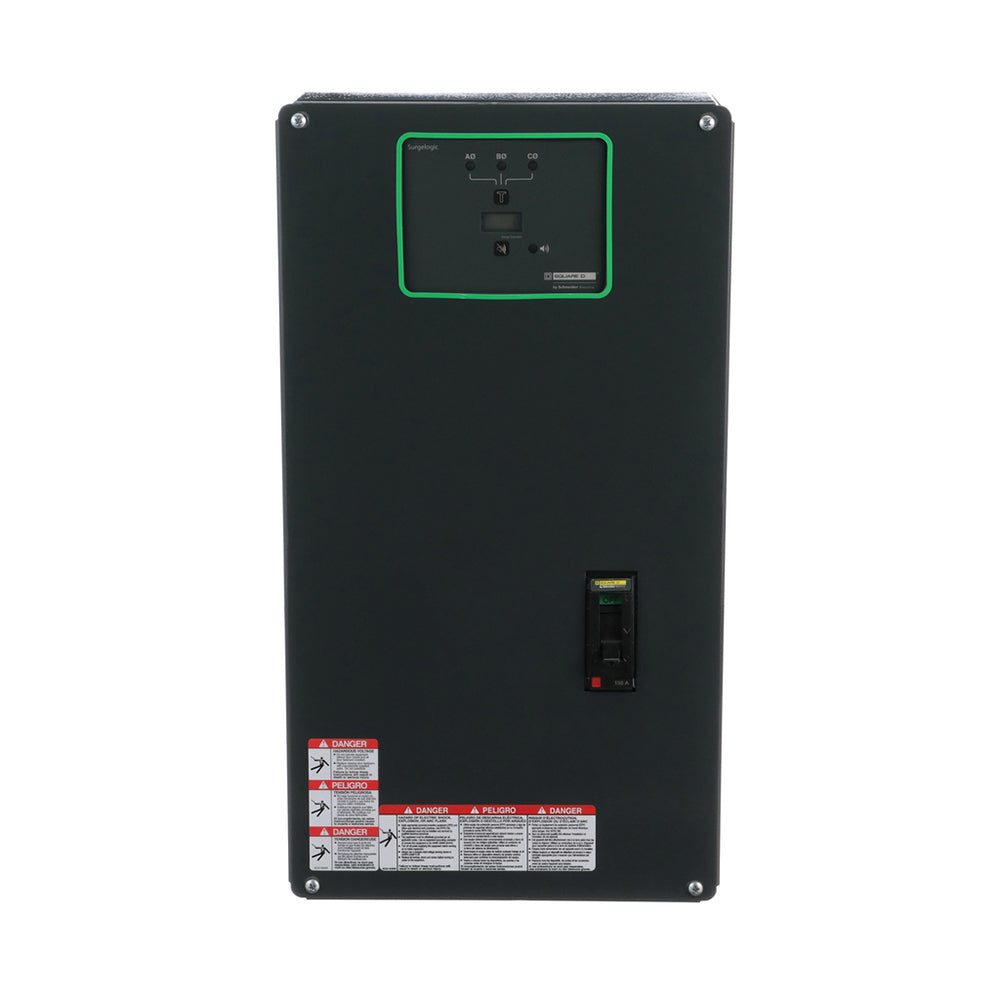

SSP02EMA12D is a Square D surge protection device designed for 3-phase, 4-wire systems with a 120kA surge current rating and 208Y/120V AC voltage. It features surface mounting and NEMA 1 enclosure.SSP02EMA12D offers robust surge protection with a 150A line rated current and 150V maximum continuous operating voltage. It includes a switch-disconnector, surge counter, alarm enable/disable switch, and dry contacts for remote signaling. The device has status LEDs for local fault indication and is CSA, UL 1449, and UL 1283 certified. It is designed for easy installation with lug terminals and provides a Type 1 SPD configuration.

Key Specifications
• Surge Current: 120 kA
• System Voltage: 208Y/120V AC
• Phases: 3
• Wires: 4
• Line Rated Current: 150 A
• Maximum Continuous Operating Voltage: 150 V
• Number of Poles: 3
• Mounting Type: Surface Mount
• Degree of Protection: NEMA 1
• Local Signaling: LED status indicators (green normal, red fault)
• Provided Equipment: Surge counter, switch-disconnector, alarm enable/disable switch, dry contacts
• Certifications: CSA C22.2 No 8, UL 1449 ed. 4, UL 1283 ed. 5

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SSP02EMA12D
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Automation
• Item Subcategory : Components & Accessories
• Family : EMA
• Type : QO
• Voltage : 208Y/120VAC
• Amperage : 120000
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 4
• Nema Rating : 1
• Mounting : Surface
• Enclosure Grade : Painted Sheet Steel

Product Data

• GTIN : 785901972587
• Dimensions : 19.5 in (495 mm) x 9.9 in (251 mm) x 5.3 in (135 mm) (Height x Width x Depth)
• Weight : 25.168
• Temp Rating : -13–158 °F (-25–70 °C)
