Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Power Quality
Description
SSP02EMA12

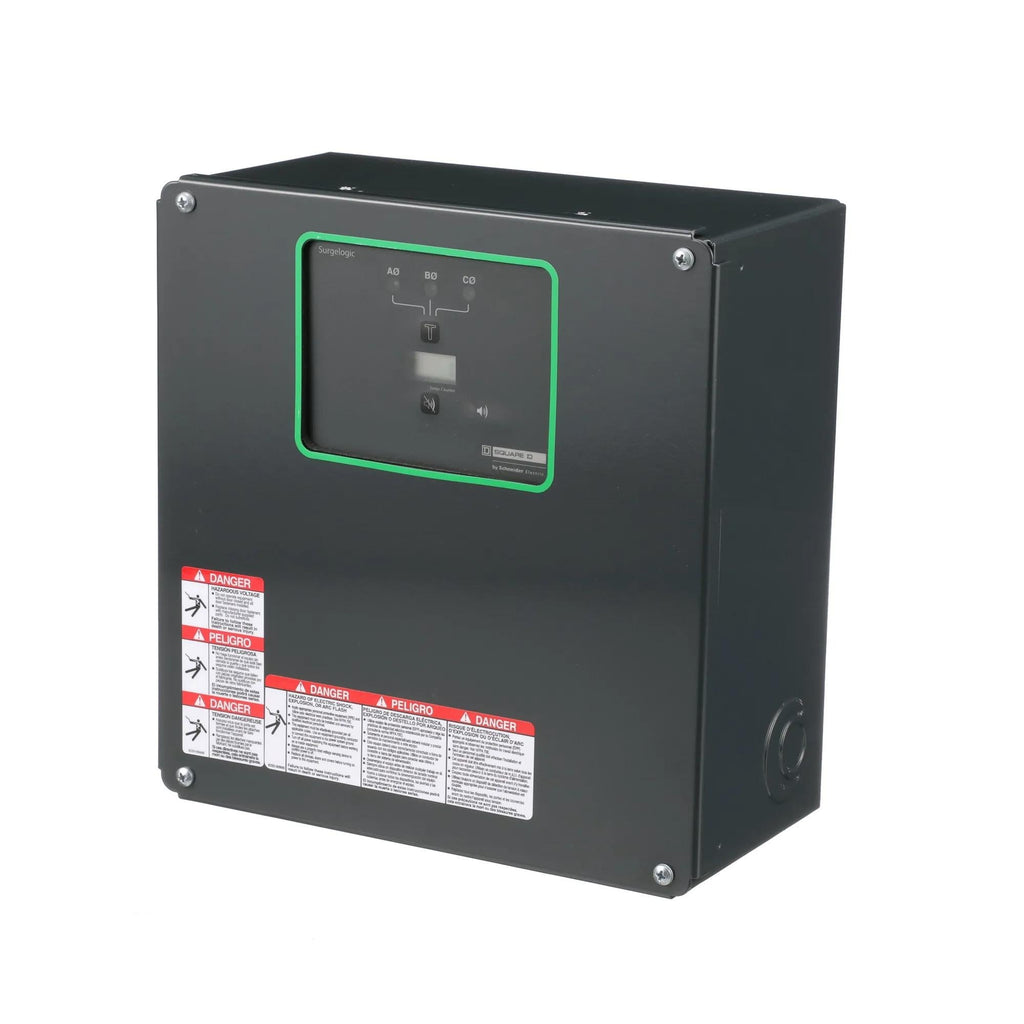

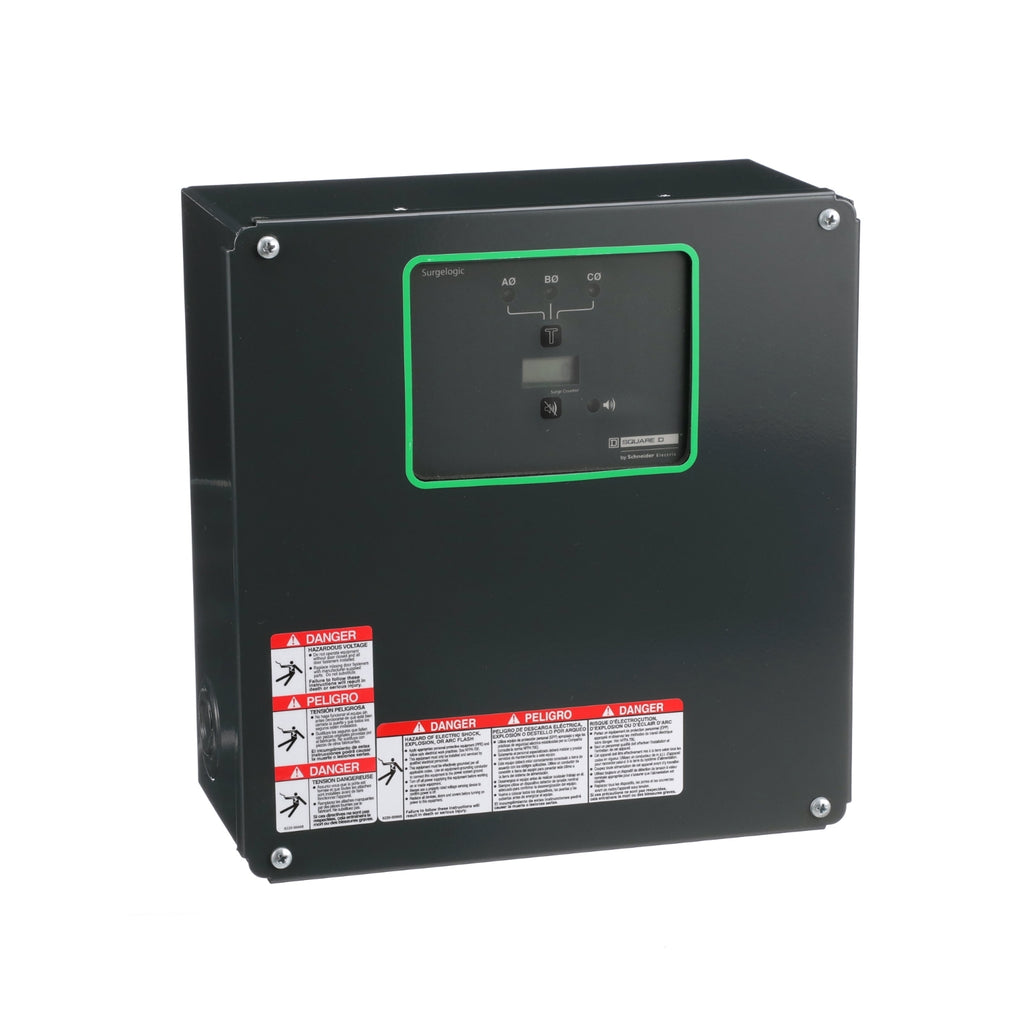

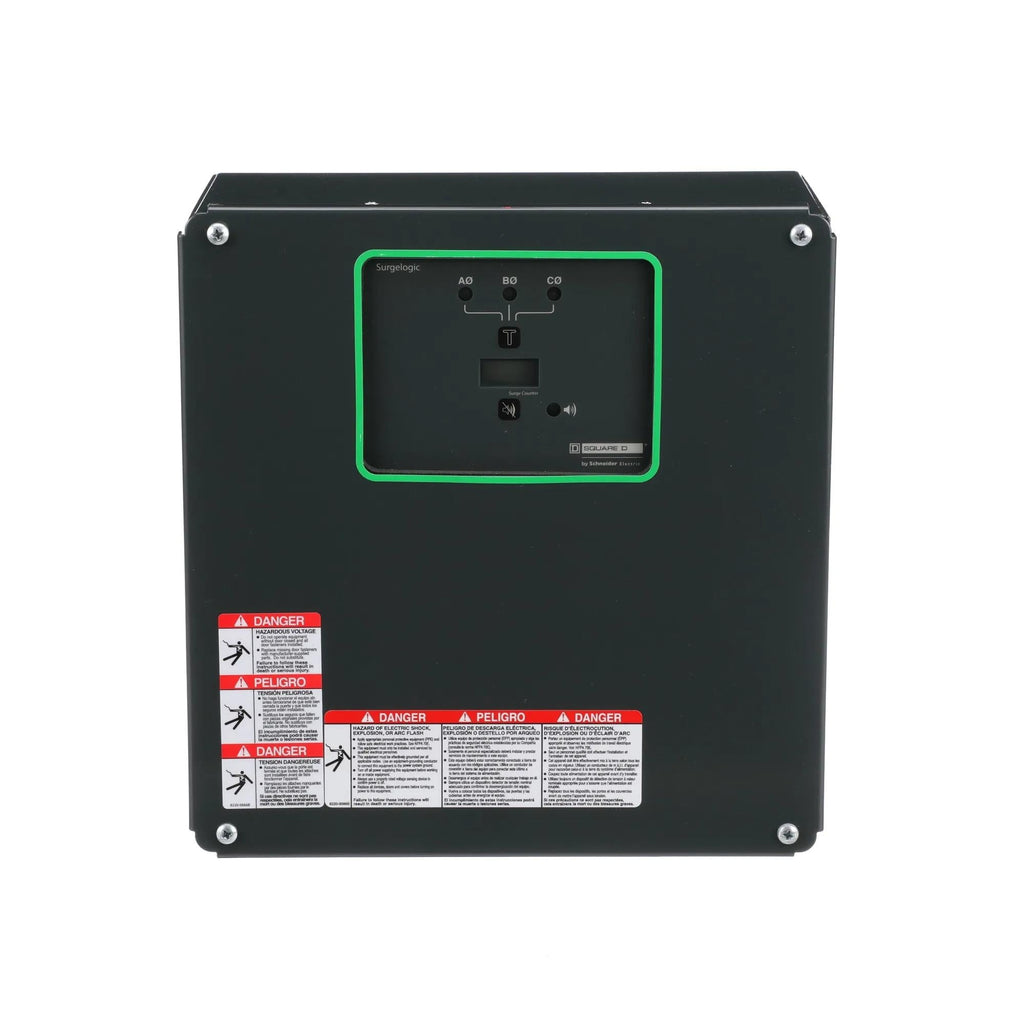

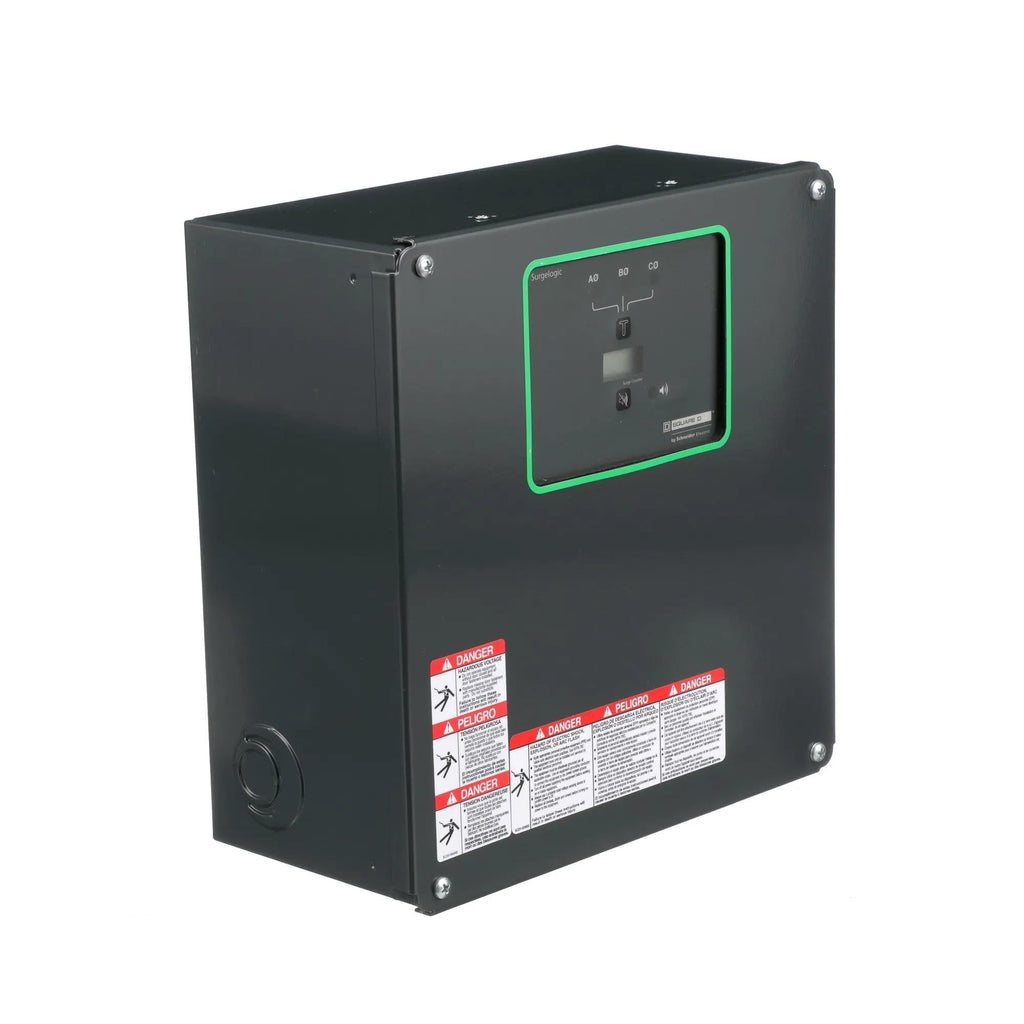

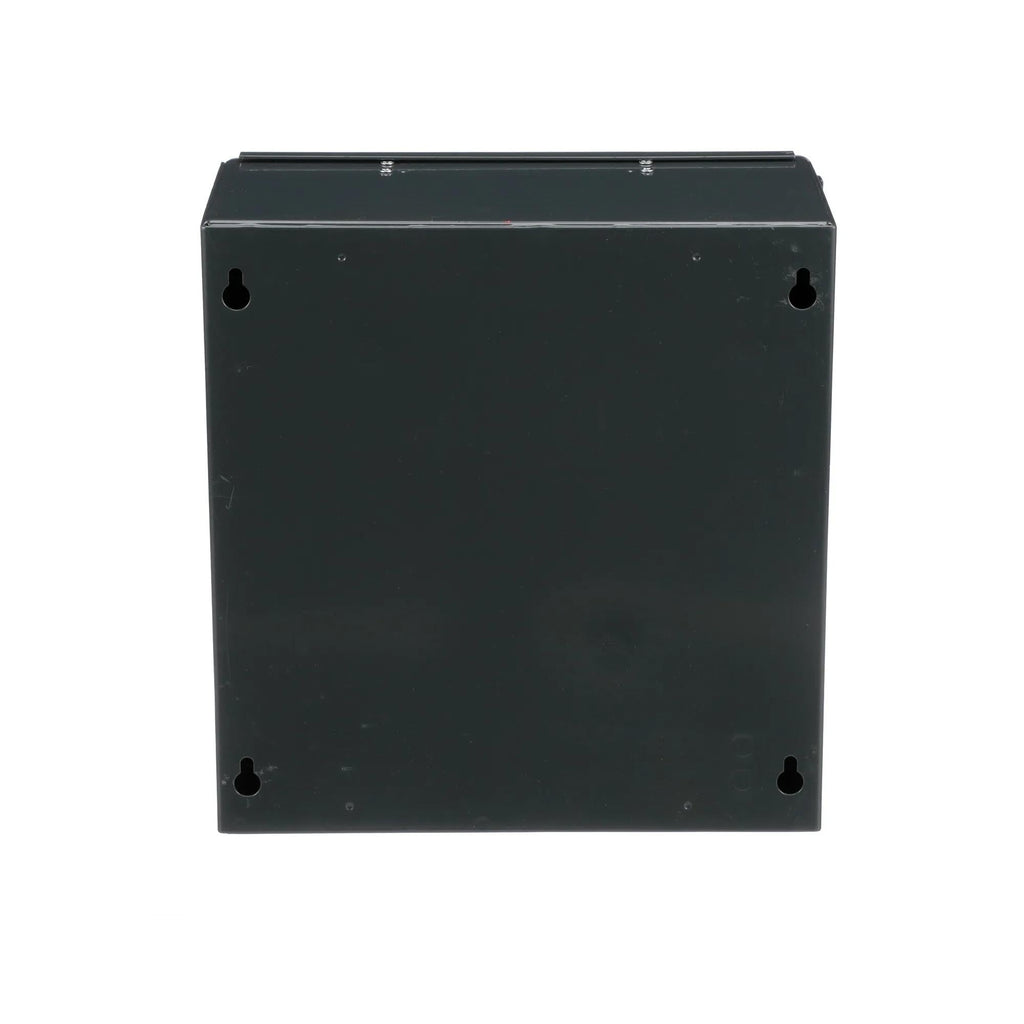

SSP02EMA12 is a Square D Surgelogic surge protection device designed for 3-phase, 4-wire service entrance or critical branch panel applications. This device provides robust transient suppression and noise filtration in a durable modular package. The SSP02EMA12 features a 120kA peak surge current rating, 20kA nominal discharge current, and a maximum continuous operating voltage of 150V. It is designed for surface mounting and is compatible with QO and Homeline load centers. The unit includes diagnostic features such as push-to-test switches, red and green status LEDs, module status LEDs per mode, dry contacts, an audible alarm with disable switch, and a surge counter. It is UL and CSA listed, complying with UL 1449 and CSA C22.2 standards.
- Manufacturer: Square D
- Series: EMA
- Amperage: 120A
- Voltage: 208Y/120V AC
- Phase: 3
- Mounting Type: Surface
- Interrupt Rating: 120kA
- Frame: QO
- Wiring Configuration: 4-wire
- NEMA Rating: 1
- Approvals: UL, CSA
- Warranty: 10 years
Specifications
- Part Number: SSP02EMA12
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Distribution Equipment
- Item Subcategory : Power Quality
- Section : Surge arrestor
- Family : EMA
- Voltage : 120/208 AC
Product Data
- UPC : 785901972464
- Country of Origin : Mexico
- Dimensions : 11.4 in (290 mm) x 8.2 in (208 mm) x 5.3 in (135 mm) (Height x Width x Depth)
- Weight : 15.75
- Certification : CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5
