Product Info
- Manufacturer:Eaton
Description
SRD6484D

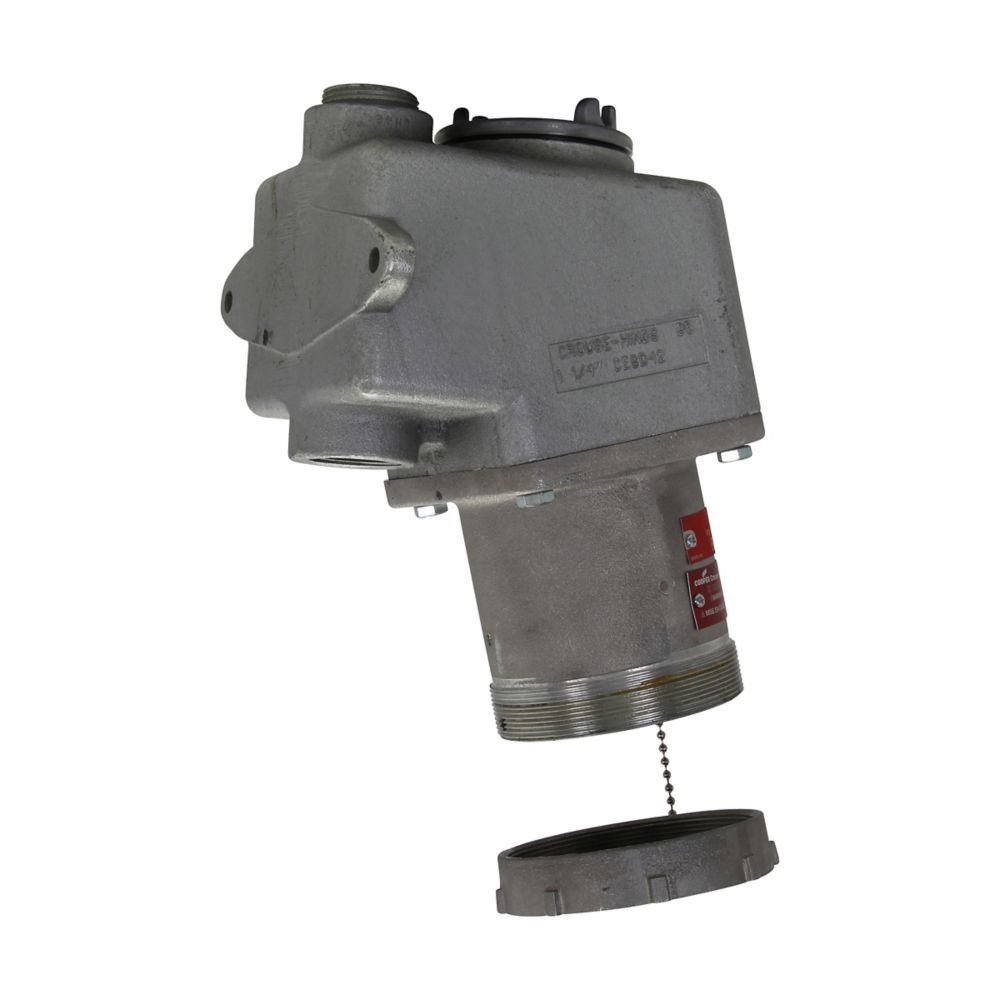

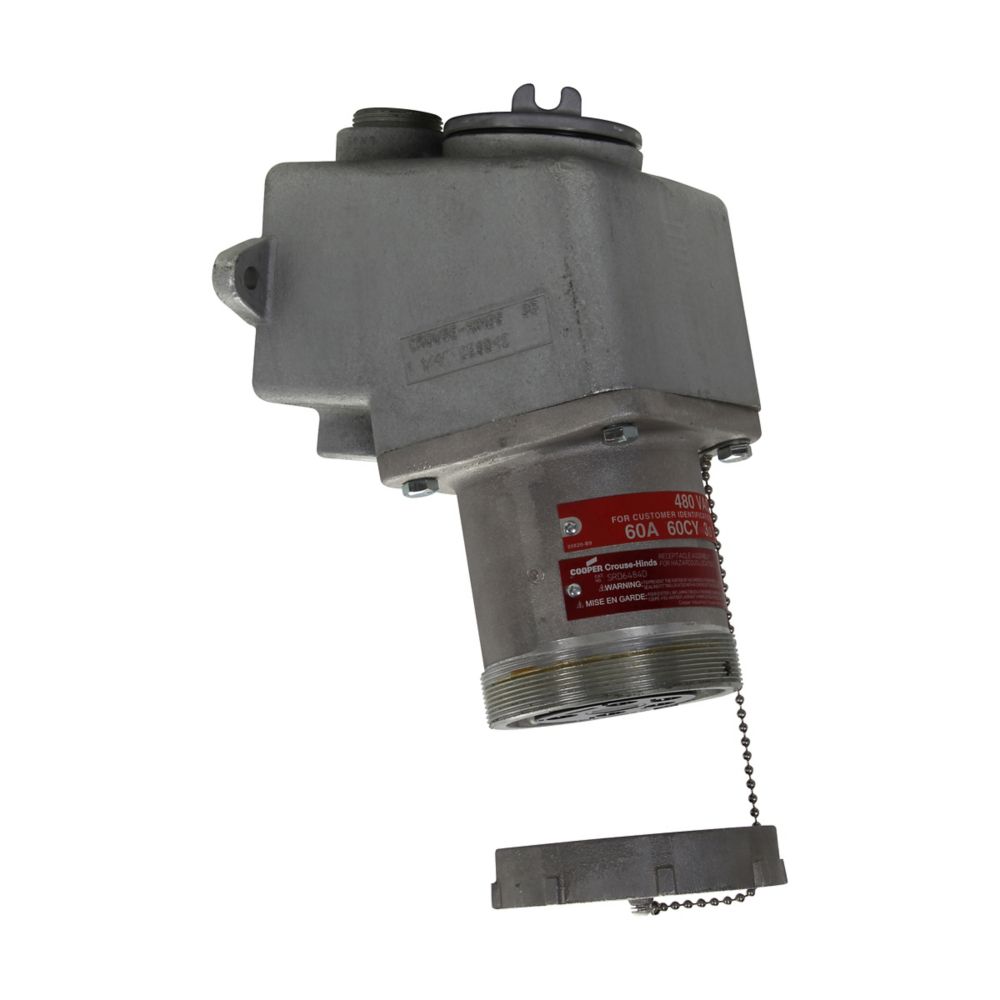

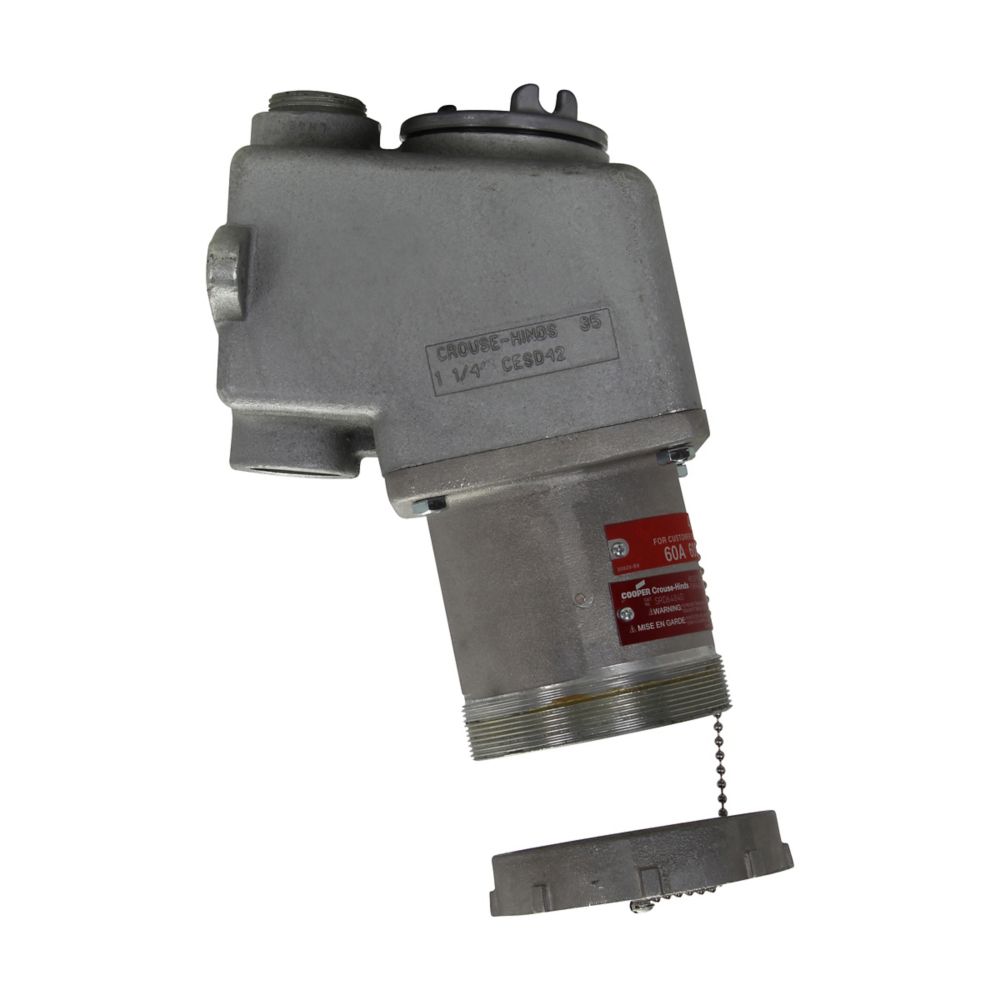

SRD6484D is an Eaton Crouse-Hinds interlocked receptacle with switch rated at 60A and 480V.The SRD6484D features a dead front interlocked design, factory sealed switch, three-wire four-pole configuration, brass contacts, copper-free aluminum construction, and threaded cap.Key Specifications
- Part Number: SRD6484D
- Manufacturer: Eaton
- Amperage: 60 A
- Voltage: 480 V
- Poles: 4
- Wire Configuration: 3W4P
- Type: Dead Front Interlocked Receptacle with Switch
Specifications
- Part Number: SRD6484D
- Manufacturer : Eaton
- Brand : Eaton
- Category : Wiring Devices
- Item Subcategory : Pin and sleeve devices
- Voltage : 480 V
- Amperage : 60 A
- Poles : 4
- Functions : Dead Front Interlocked Receptacle with Switch
- Wire : 3W4P
- Nema Rating : 3 7 9 12
- Material : Copper-free aluminum
- NEC hazardous rating : Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
- Trade size : 1-1/4"
- Contact material : Brass
Product Data
- UPC : 782274083261
- GTIN : 00782274000000
- Dimensions : 7.25 in x 18.5 in x 9.94 in (Length/Depth x Height x Width)
- Weight : 21.48 lb
