Product Info
- Manufacturer:Eaton
Description
SRD3484D

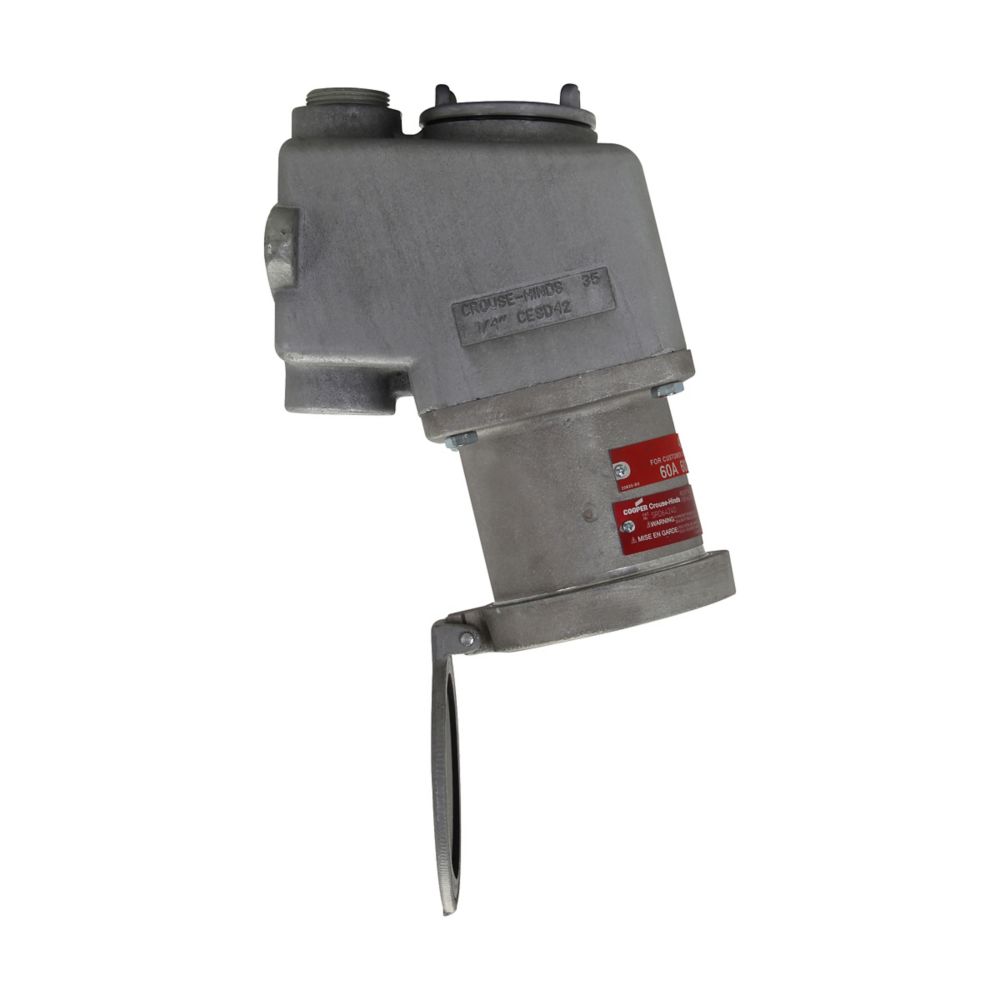

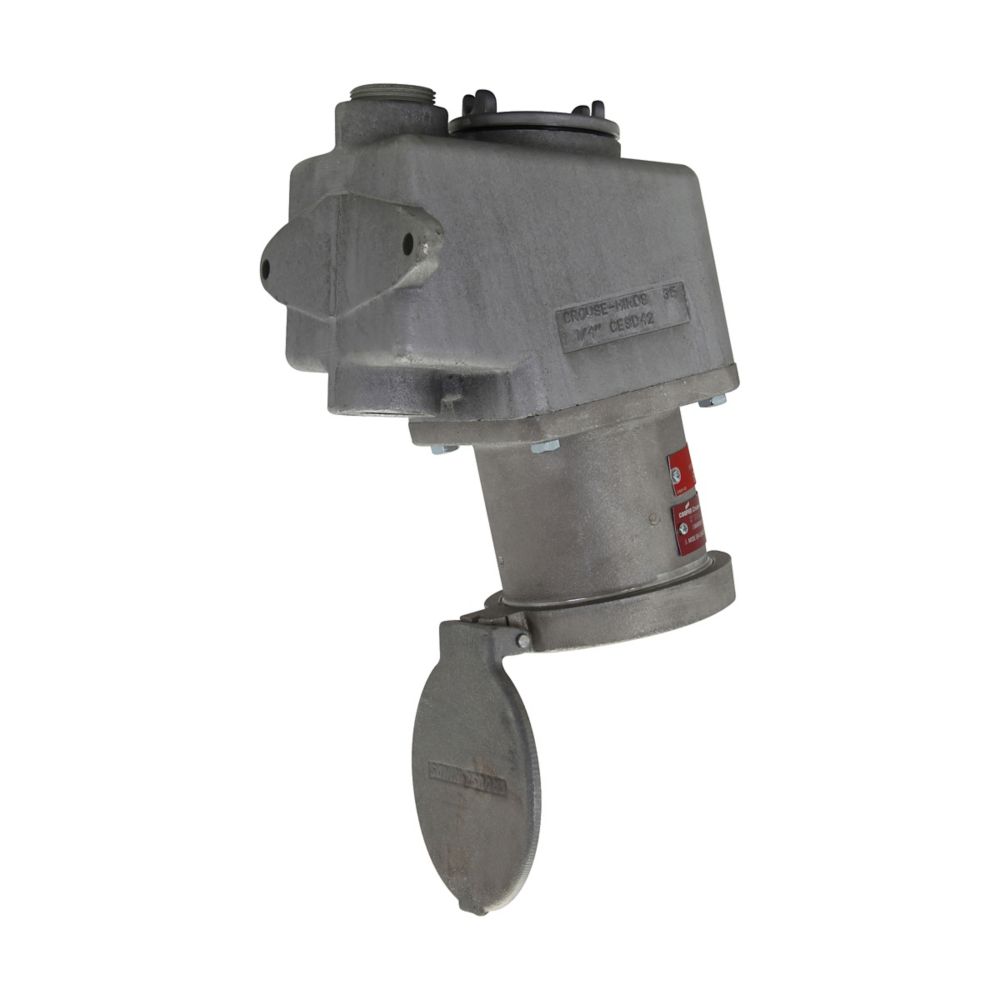

SRD3484D is an Eaton Crouse-Hinds series SRD interlocked receptacle with switch for hazardous locations.The SRD3484D features 30A rating, 480 Vac, three-wire four-pole configuration, through feed back box, Style 2 grounding, brass contacts, copper-free aluminum material, threaded cap receptacle style, and 1-1/4" trade size. It meets NEMA 3,7,9,12 ratings and NEC Class I/II/III Division 1&2 standards.Key Specifications
- Part Number: SRD3484D
- Manufacturer: Eaton
- Amperage Rating: 30A
- Voltage rating: 480 Vac
- Configuration: Three-wire, four-pole
- Trade size: 1-1/4"
- NEMA Rating: 3 7 9 12
- Grounding style: Style 2
- Back box style: Through feed
- Receptacle style: Threaded cap
- Contact material: Brass
- Material: Copper-free aluminum
Specifications
- Part Number: SRD3484D
- Manufacturer : Eaton
- Brand : Eaton
- Category : Wiring Devices
- Item Subcategory : Pin and sleeve devices
- Voltage : 480 Vac
- Amperage : 30 A
- Poles : 4
- Connection : Through feed
- Functions : Interlocked receptacle with switch
- Terminal Connection : Threaded cap
- Configuration : Three-wire, four-pole
- Nema Rating : 3 7 9 12
- Enclosure : Copper-free aluminum
- Material : Copper-free aluminum
- NEC hazardous rating : Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
- Trade size : 1-1/4"
- Contact material : Brass
Product Data
- UPC : 782274083209
- GTIN : 00782274000000
- Dimensions : 7.25 in x 18.5 in x 9.94 in (Length/Depth x Height x Width)
- Weight : 21.5 lb
