Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
SPF-010

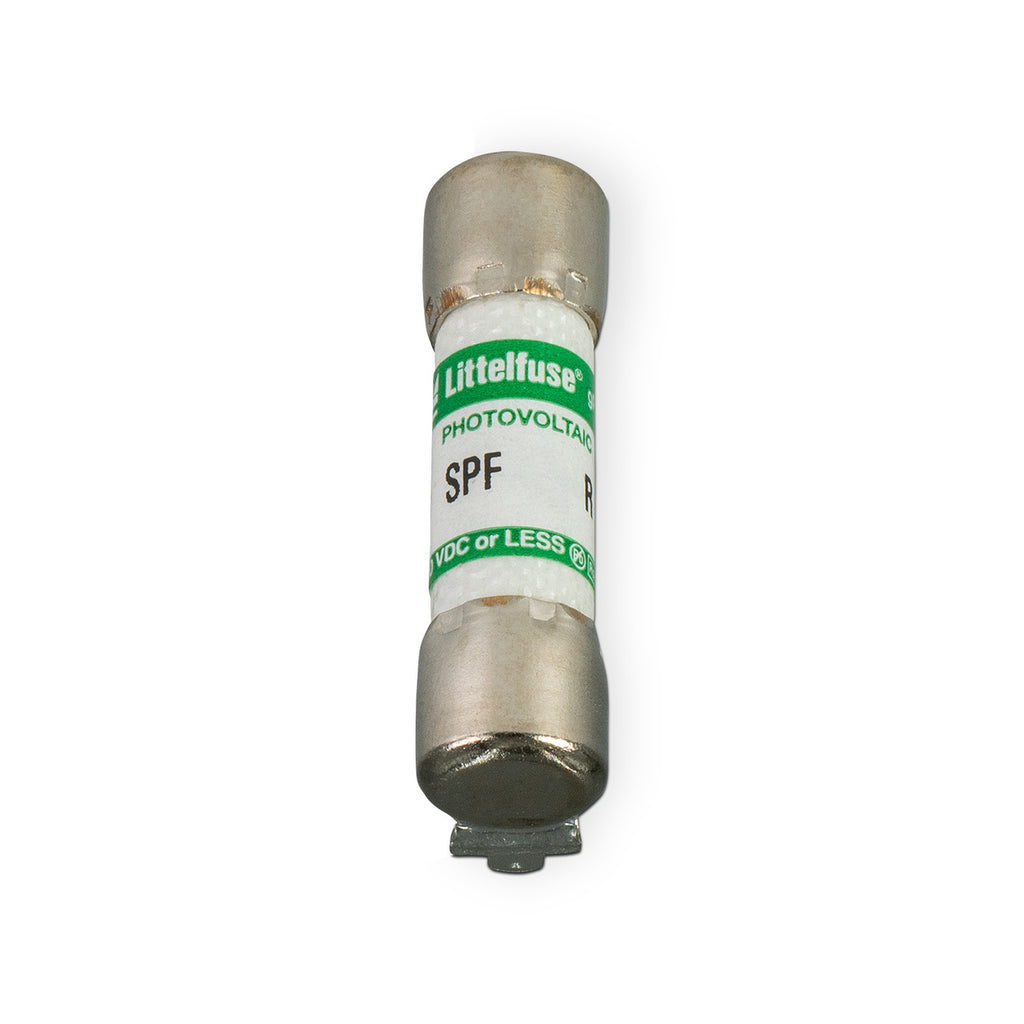

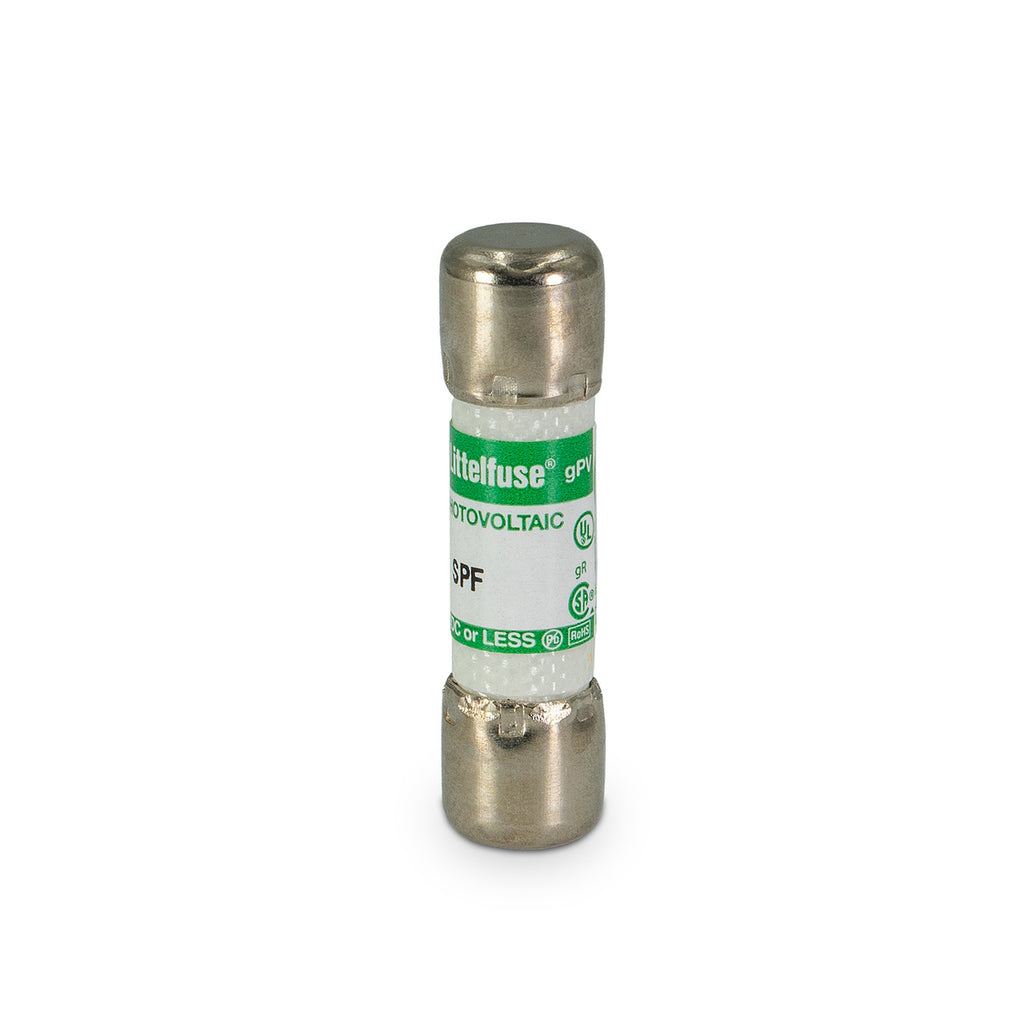

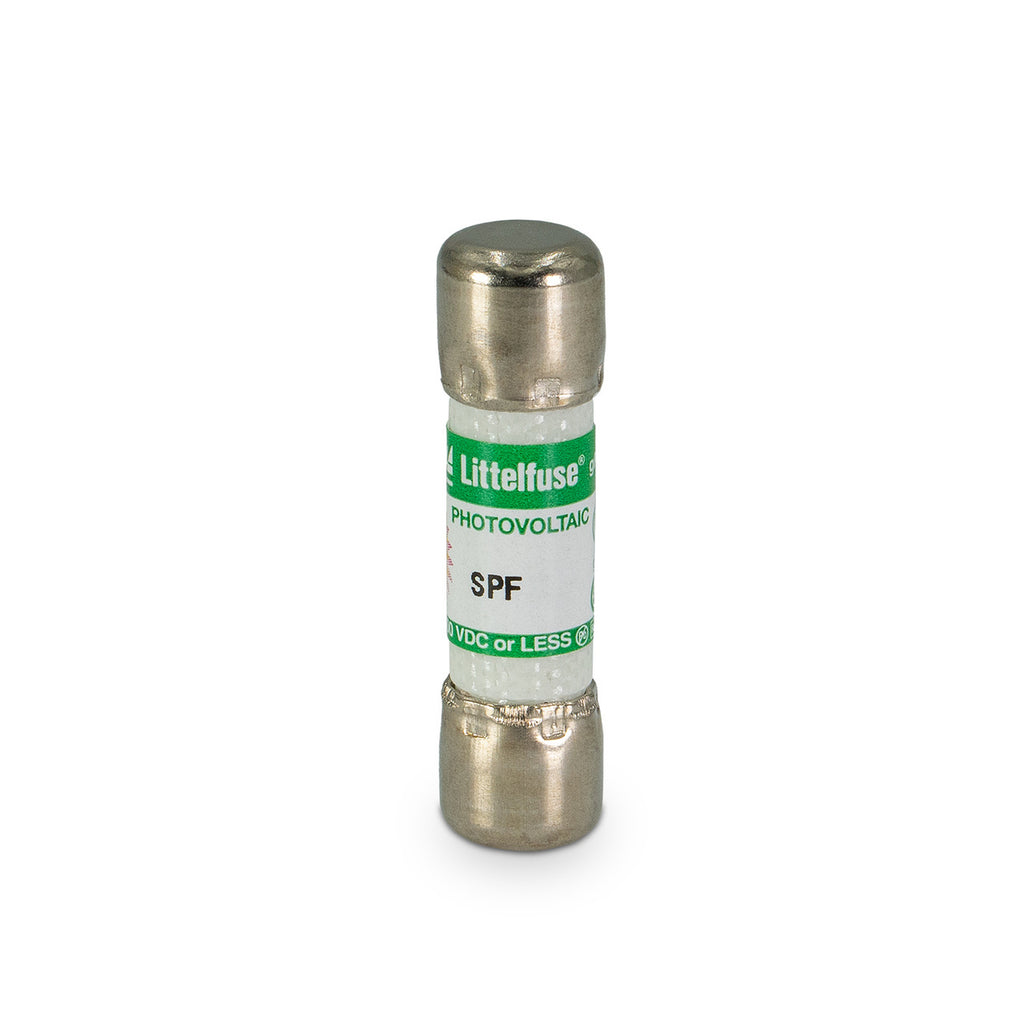

SPF-010 is a Littelfuse 10 Amp, 1000 VDC midget solar protection fuse designed for photovoltaic (PV) systems to protect against reverse overcurrent conditions.This fast-acting fuse features a 20,000 Amp interrupting rating and a compact 10x38 mm midget size. It is UL 248-19 and IEC 60269-6 listed, suitable for use in fuse blocks or holders in PV modules, inverters, combiner boxes, and battery charge controllers. The body is melamine with copper alloy caps, and it meets stringent UL and IEC photovoltaic standards.
- Amperage: 10 A
- Voltage Rating: 1000 VDC
- Fuse Type: Midget (10x38 mm)
- Interrupting Rating: 20 kA
- Mounting Type: Cartridge (Fuse Block, Fuse Holder compatible)
- Opening Type: Fast-Acting
- Body Material: Melamine
- Certifications: UL 248-19, IEC 60269-6, UL 2579 Listed
- Application: Photovoltaic (PV) system protection
- Standards: UL, IEC, California Proposition 65 compliant
Specifications
- Part Number: SPF-010
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 2
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 758150429904
- Weight : 0.08
