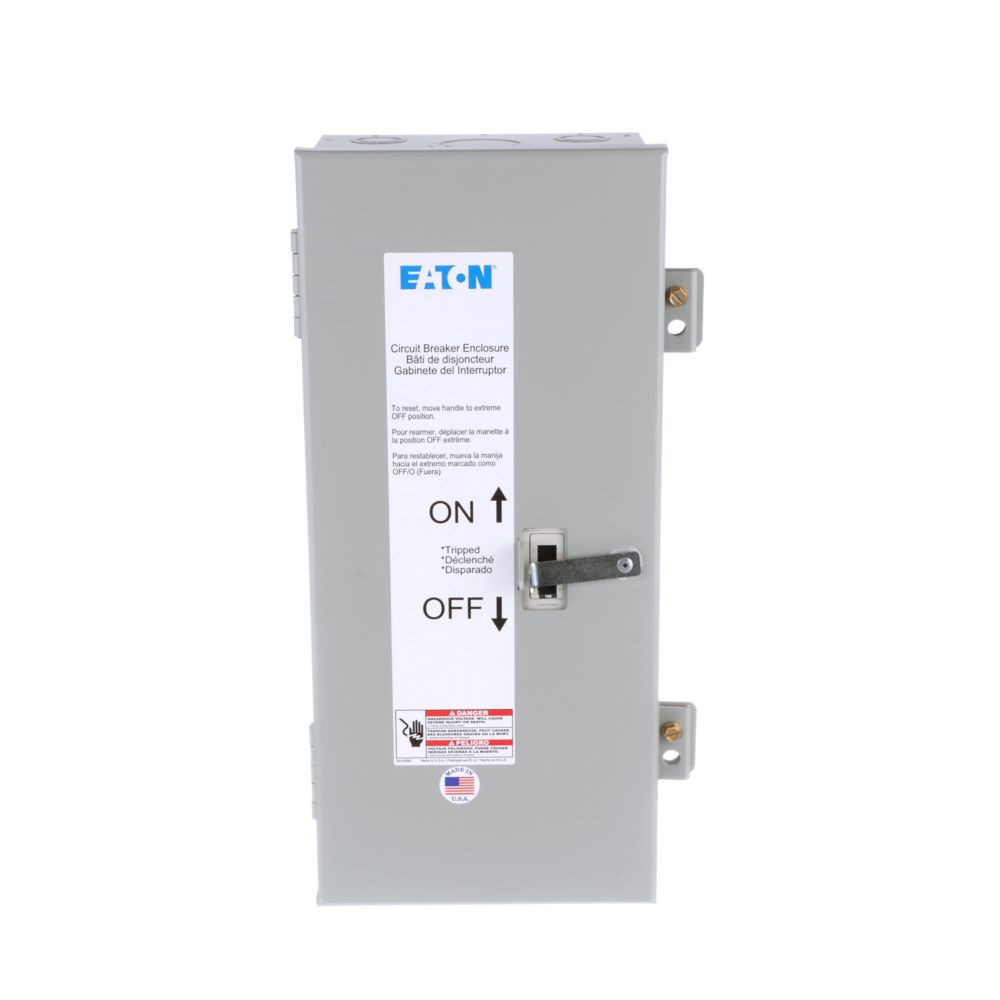

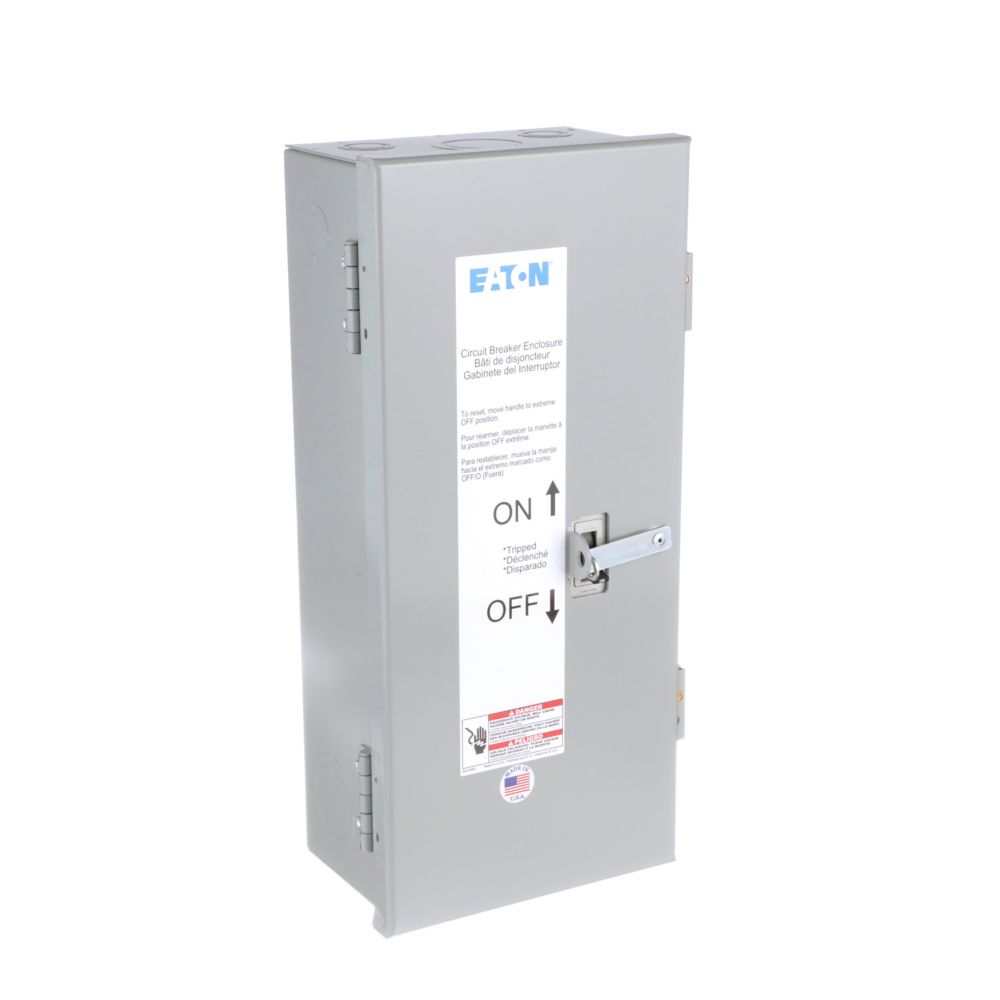

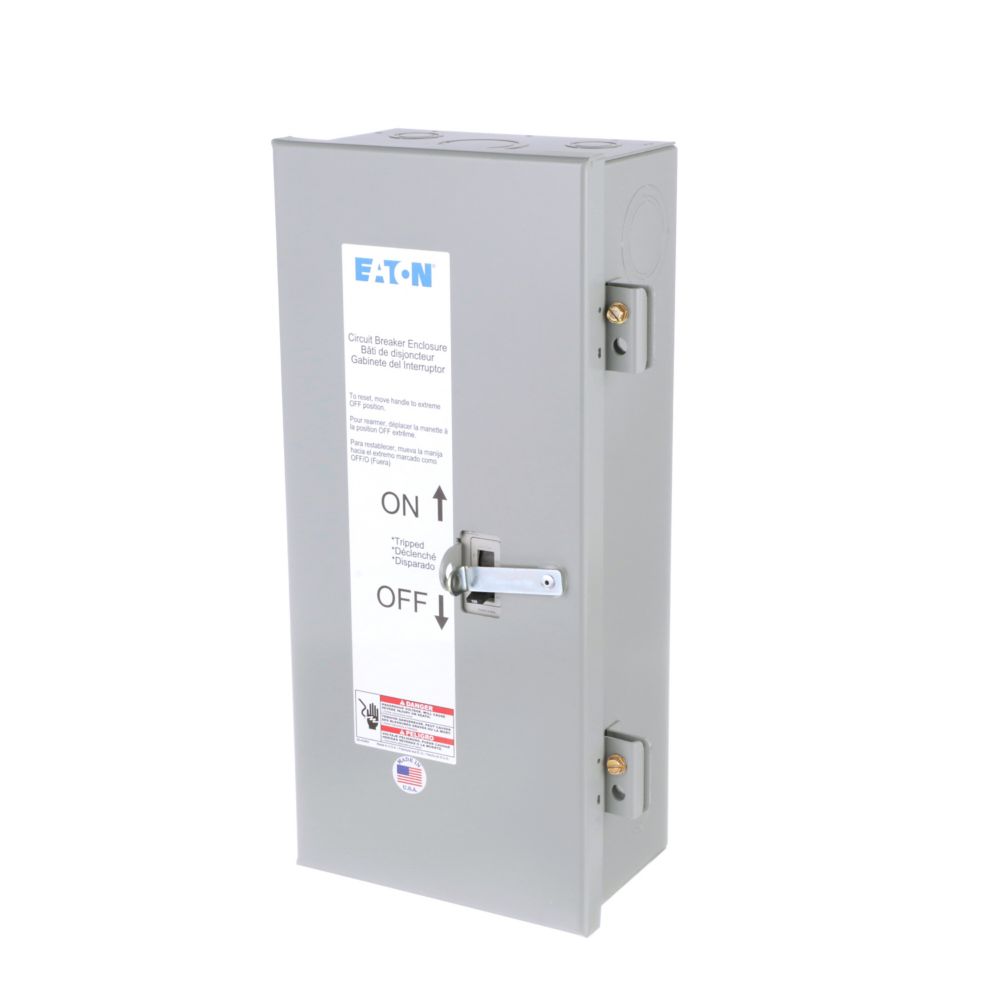

SPD2K0225 Eaton Power Defense NEMA 1 Surface Mount Circuit Breaker Enclosure, 3-Pole 225A Frame

SPD2K0225

SPD2K0225 Eaton Power Defense NEMA 1 Surface Mount Circuit Breaker Enclosure, 3-Pole 225A Frame

The SPD2K0225 is an Eaton Power Defense circuit breaker enclosure rated for a 3-pole, 225A frame molded case circuit breaker at up to 600VAC. It is a NEMA 1 surface mount enclosure, UL Listed and CSA Certified, built to accept an Eaton PD2 series MCCB (sold separately). It is not approved for use with Series C or Series G molded case circuit breakers.

Despite sharing the "SPD" catalog prefix with Eaton's unrelated surge protective device line, the SPD2K0225 is strictly an enclosure for a PD2 molded case circuit breaker, not a surge protection device.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Housing a 3-pole, 225A frame PD2 molded case circuit breaker for service entrance or feeder disconnect assemblies
• Indoor commercial and industrial power distribution installations
• Surface mount panel and switchboard applications requiring a NEMA 1 enclosure

Key Features

• NEMA 1 surface mount enclosure: Indoor-rated housing designed for surface mounting on a wall or structure
• Accepts PD2 frame breaker: Sized for a 3-pole, 225A frame Eaton Power Defense (PD2) molded case circuit breaker, sold separately
• 600VAC rated: Supports circuit breaker applications up to 600 volts AC
• UL Listed and CSA Certified: Meets recognized North American electrical safety standards
• Not for Series C/G: Compatible only with PD2 frame breakers, not Eaton Series C or Series G molded case circuit breakers

Specifications

• Catalog Number: SPD2K0225
• Manufacturer: Eaton
• Product Family: Power Defense Enclosure
• Enclosure Type: NEMA 1
• Mounting: Surface mount
• Poles: 3
• Frame Rating: 225A
• Voltage Rating: 600VAC
• Breaker Compatibility: Accepts PD2 frame MCCB (breaker sold separately); not approved for Series C or Series G MCCB
• Certifications: UL Listed, CSA Certified

Product Identification

• Dimensions: 9 in H x 9 in W x 23.8 in D
• Weight: 14.3 lb
• UPC: 786689661854

FAQ

What is the Eaton SPD2K0225?

The SPD2K0225 is a NEMA 1 surface mount enclosure built to house a 3-pole, 225A frame Eaton PD2 molded case circuit breaker.

Does the SPD2K0225 include a circuit breaker?

No, the SPD2K0225 is an empty enclosure and the PD2 frame molded case circuit breaker is sold separately.

Is the SPD2K0225 a surge protective device?

No, although it shares the "SPD" catalog prefix with Eaton's surge protective device line, the SPD2K0225 is a circuit breaker enclosure, not a surge protector.

What volt

Specifications

• Part Number: SPD2K0225
• Manufacturer : Eaton
• Brand : Eaton
• Category : Switch
• Section : Enclosed circuit breaker
• Amperage : 225
• Poles : 3

Product Data

• UPC : 786689661854
• Dimensions : 23.8 in x 9 in x 9 in (Length/Depth x Height x Width)
• Weight : 14.3 lb
