SPD1K0125 Eaton NEMA 1 Surface Mount Circuit Breaker Enclosure, 3-Pole, 125 A Frame, Accepts PD1

SPD1K0125

SPD1K0125 Eaton NEMA 1 Surface Mount Circuit Breaker Enclosure, 3-Pole, 125 A Frame, Accepts PD1

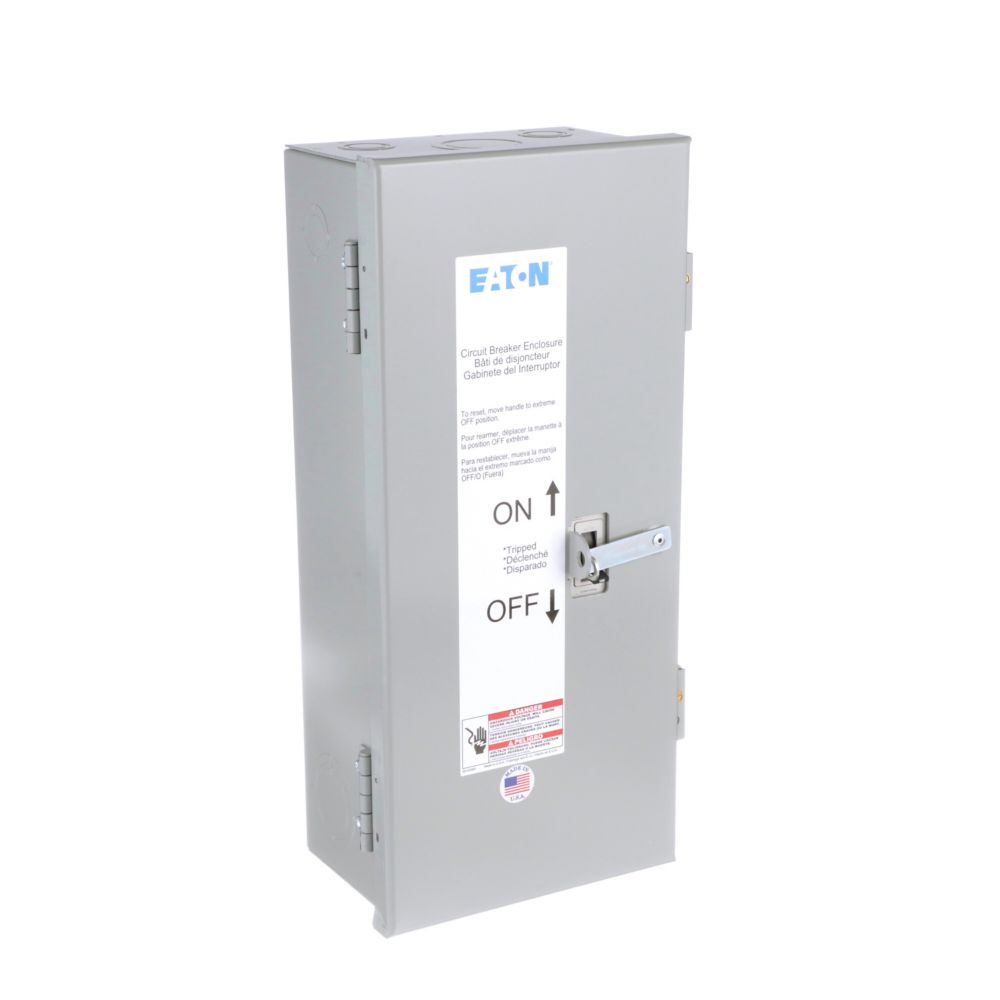

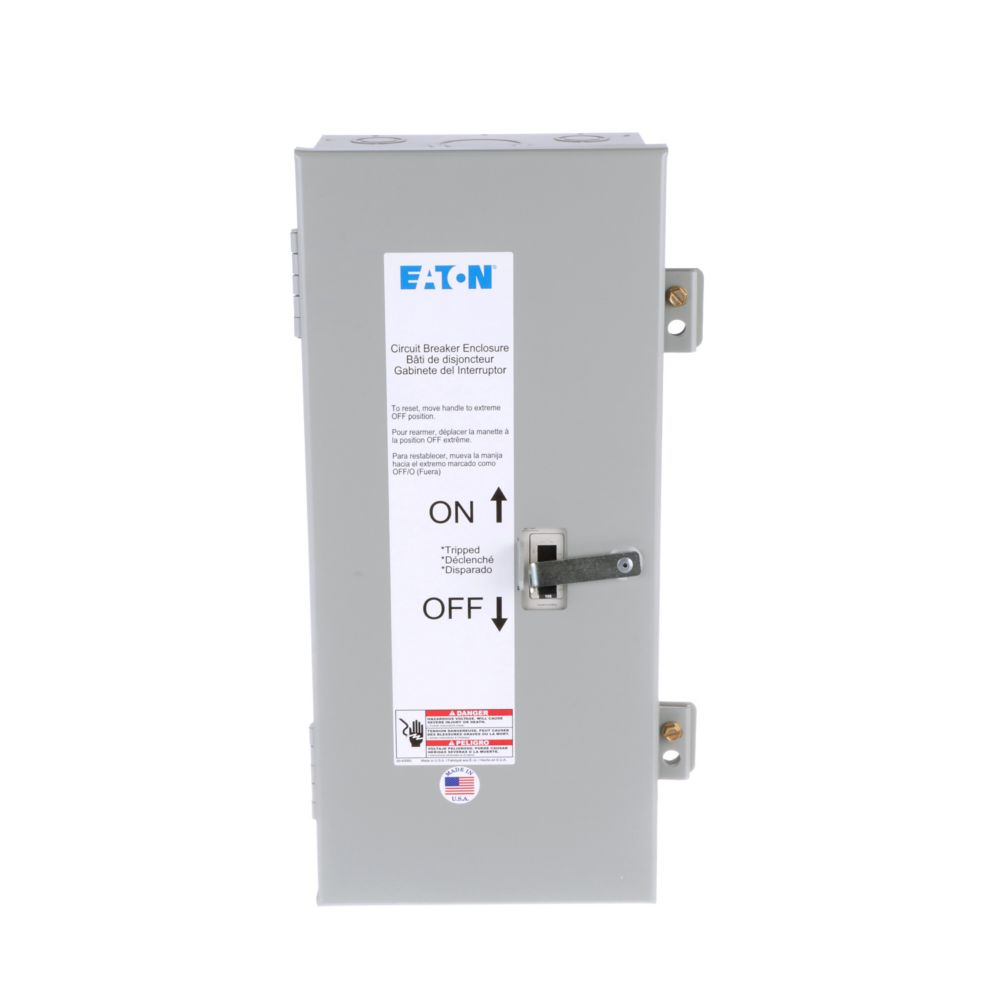

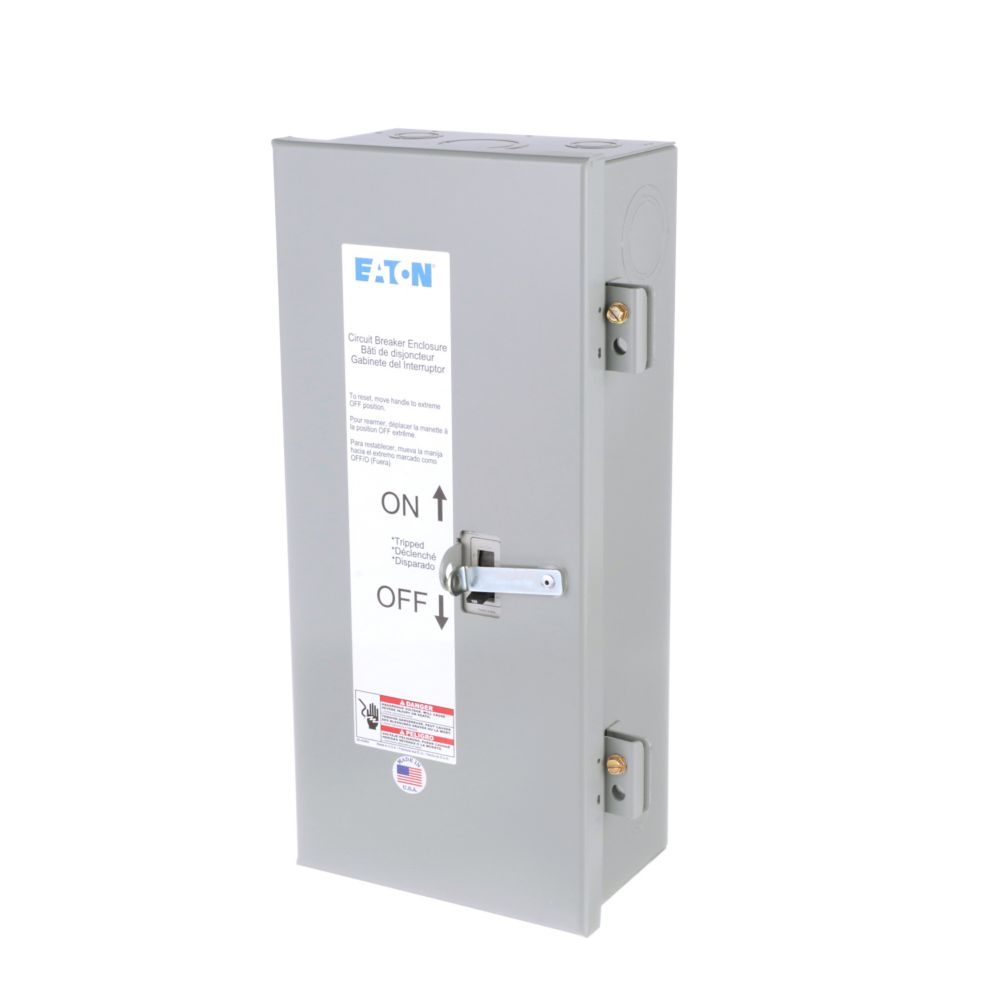

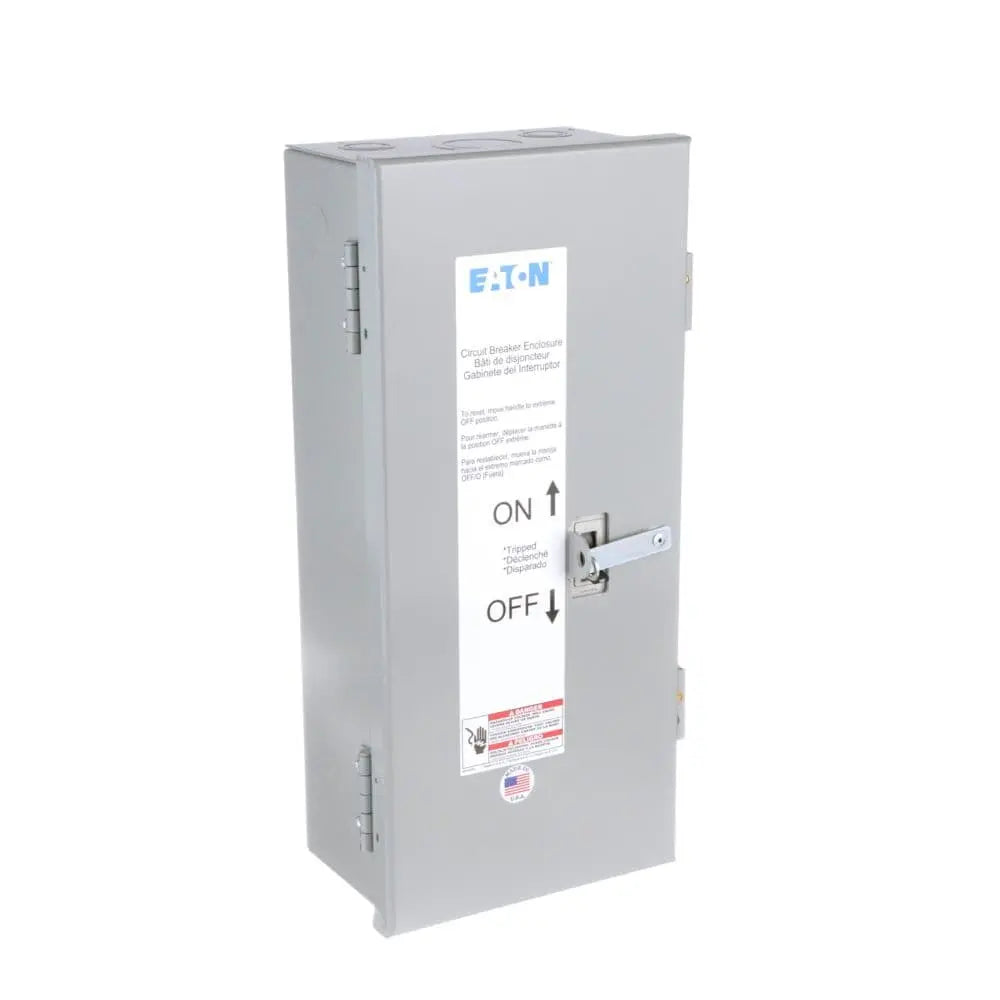

The Eaton SPD1K0125 is a NEMA Type 1 surface mount circuit breaker enclosure rated 125 A, configured for a three-pole Power Defense PD1 frame molded case circuit breaker. Eaton publishes SPD1K0125 as UL Listed and CSA Certified, supporting its use in submittal packages requiring a listed Type 1 breaker enclosure.

Eaton catalog notes identify SPD1K0125 as a Power Defense enclosure not approved for Series C/G molded case circuit breakers. Specifying engineers should confirm the intended breaker is a PD1 frame device. Eaton publishes product dimensions of 20.1 in H x 11.2 in W x 10.7 in D and a product weight of 12.9 lb.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Indoor locations where NEMA Type 1 is the specified enclosure type
• Surface mounted assemblies built around a three-pole PD1 frame molded case circuit breaker
• Power Defense PD1 frame breaker applications at a 125 A frame rating
• Submittals specifying a UL Listed and CSA Certified Type 1 breaker enclosure

Key Features

• NEMA Type 1 rating: Constructed for indoor use, protecting against access to hazardous parts and against falling dirt.
• Surface mounting method: Eaton specifies surface mounting for this catalog number.
• PD1 frame configuration: Accepts a PD1, three-pole, 125 A frame MCCB per Eaton catalog data.
• Published amperage rating: Eaton lists an amperage rating of 125 A for SPD1K0125.
• Dual agency certification: UL Listed and CSA Certified per Eaton.
• Stated frame restriction: Eaton notes this Power Defense enclosure is not approved for Series C/G MCCB.

Specifications

• Catalog Number: SPD1K0125
• Manufacturer: Eaton
• Product Type: Circuit breaker enclosure
• Amperage Rating: 125 A
• Number of Poles: Three-pole
• Enclosure Type: NEMA 1
• Mounting Method: Surface mounting
• Breaker Compatibility: Accepts PD1, 3-pole, 125 A frame MCCB
• Certifications: UL Listed, CSA Certified
• Catalog Notes: Power Defense enclosure, not approved for Series C/G MCCB

Product Identification

• UPC: 786689661878
• Product Dimensions: 20.1 in H x 11.2 in W x 10.7 in D
• Product Weight: 12.9 lb

FAQ

What is the Eaton SPD1K0125? SPD1K0125 is an Eaton NEMA 1 surface mount circuit breaker enclosure rated 125 A that accepts a three-pole PD1 frame MCCB.

What enclosure type does SPD1K0125 carry? NEMA Type 1. NEMA defines Type 1 as constructed for indoor use, protecting personnel against access to h

Specifications

• Part Number: SPD1K0125
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Surge Protective Device
• Type : SPD
• Amperage : 125
• Poles : 3

Product Data

• UPC : 786689661878
• Dimensions : 10.7 in x 20.1 in x 11.2 in (Length/Depth x Height x Width)
• Weight : 12.9 lb
• Certification : UL, CSA
