Product Info
- Manufacturer:Eaton
- Sub-Category:Parts And Accessories
Description

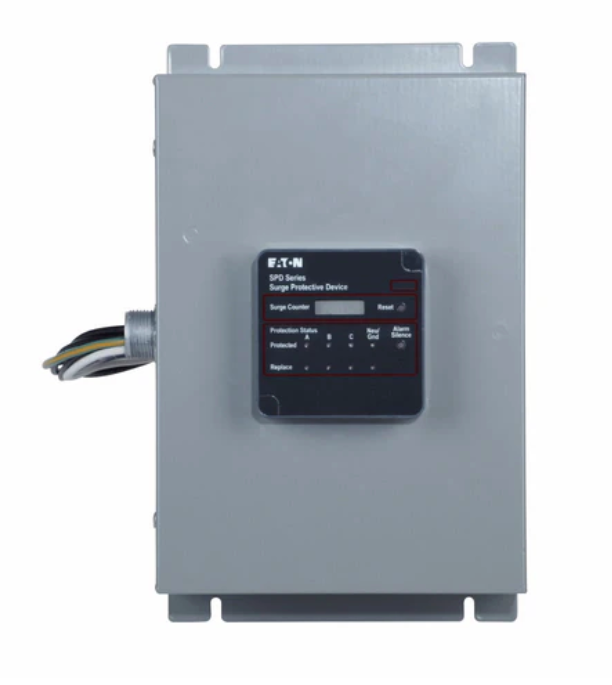

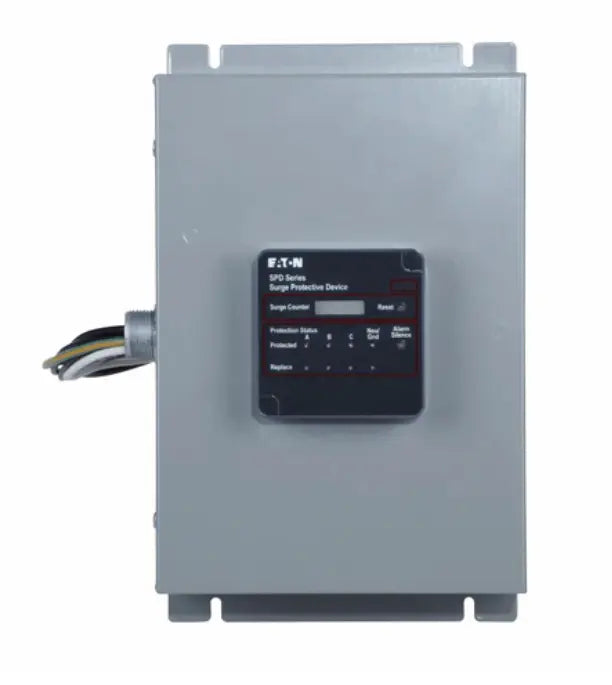

SPD120480Y3K
SPD120480Y3K is an Eaton surge protection device designed for 277/480V wye electrical systems with a 120kA interrupt rating.This SPD120480Y3K model features a standard feature package with surge counter, suitable for external side mounting in electrical distribution equipment. It supports 3 poles with 4 wires plus ground (4W+G) and is housed in a NEMA 1 enclosure. The device is engineered to protect against transient voltage surges in commercial and industrial applications.
- Key Specifications
- Amperage: Not specified (SPD device)
- Voltage: 277/480V Wye (4W+G)
- Poles: 3
- Mounting Type: External side mount
- Interrupt Rating: 120kA
- Series/Frame: SPD Series
- Trip Unit: Standard feature package with surge counter
- Enclosure: NEMA 1
- Certifications: Not explicitly listed
- Dimensions: 9.5" L x 5.4" W x 3.45" H
- Weight: 3.5 lbs
Specifications
- Part Number: SPD120480Y3K
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Parts And Accessories
- Family : SPD
- Type : SPD
- Voltage : 480
Product Data
- UPC : 786685327778
- GTIN : 00786685327778
- Dimensions : 9.5 in x 3.45 in x 5.4 in (Length/Depth x Height x Width)
- Weight : 3.5 lb
