SP750MQMJ - Hammond Power Solutions 750VA 1-Phase Control Transformer 240/480V

SP750MQMJ

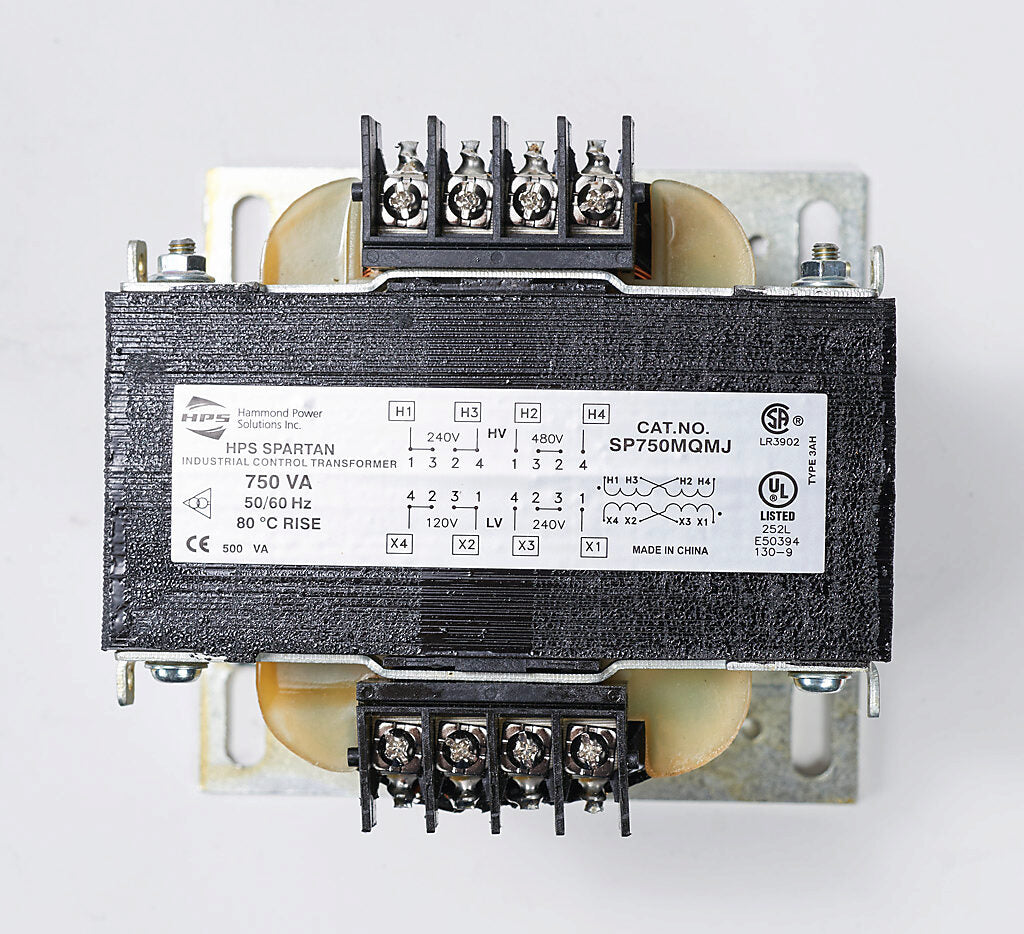

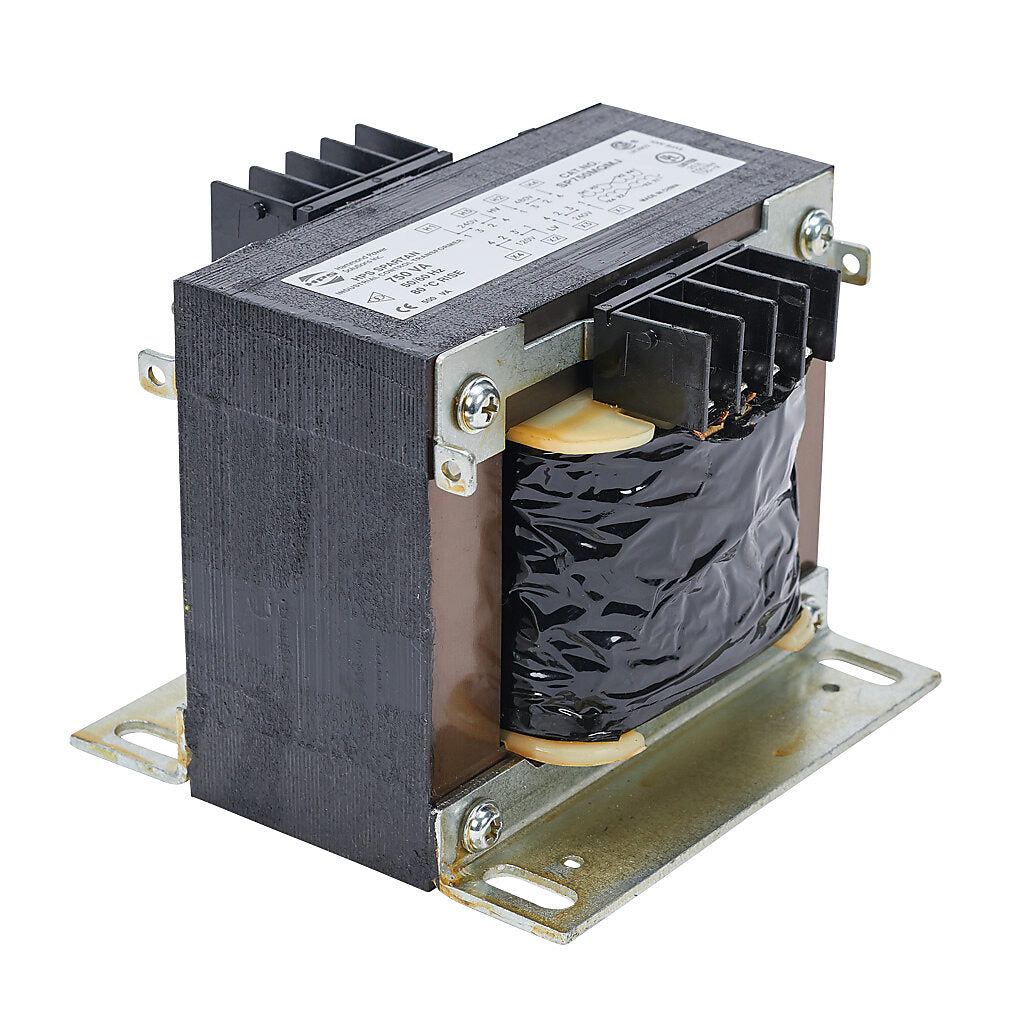

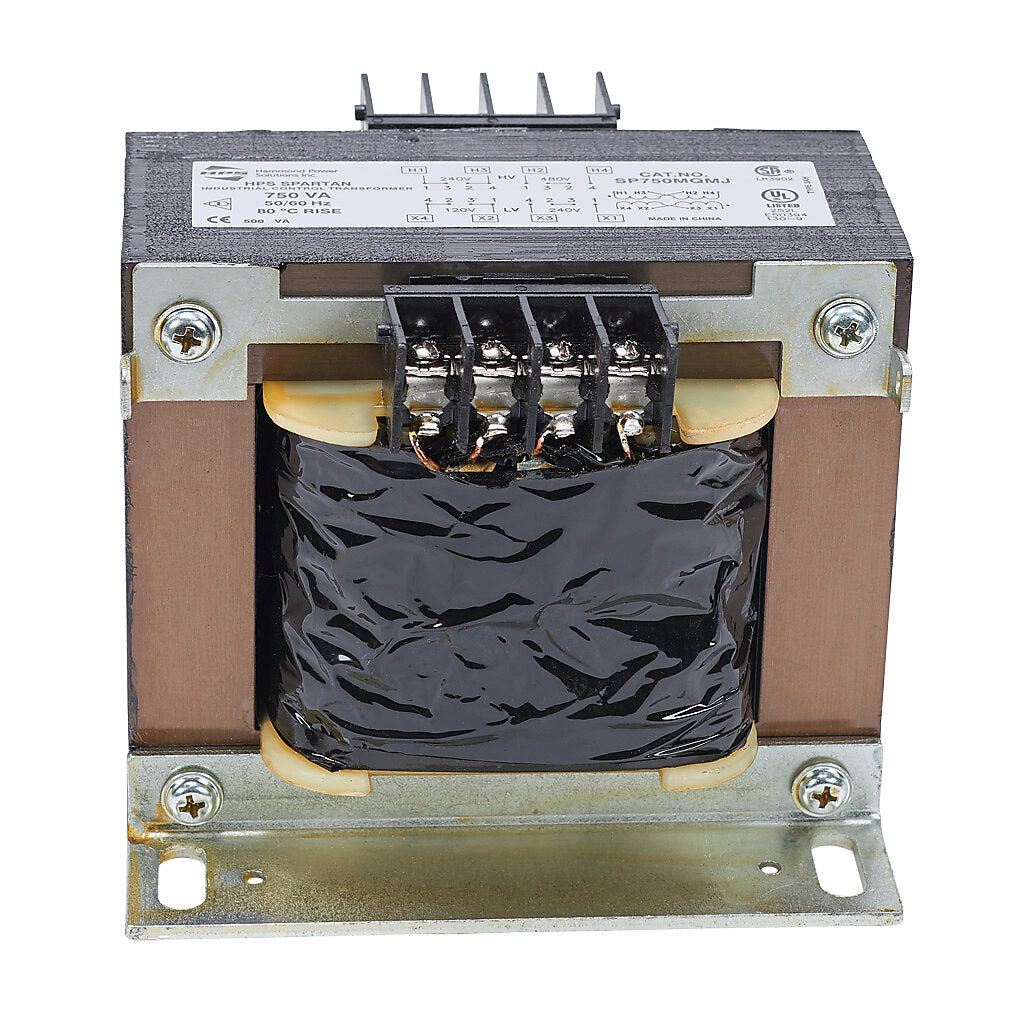

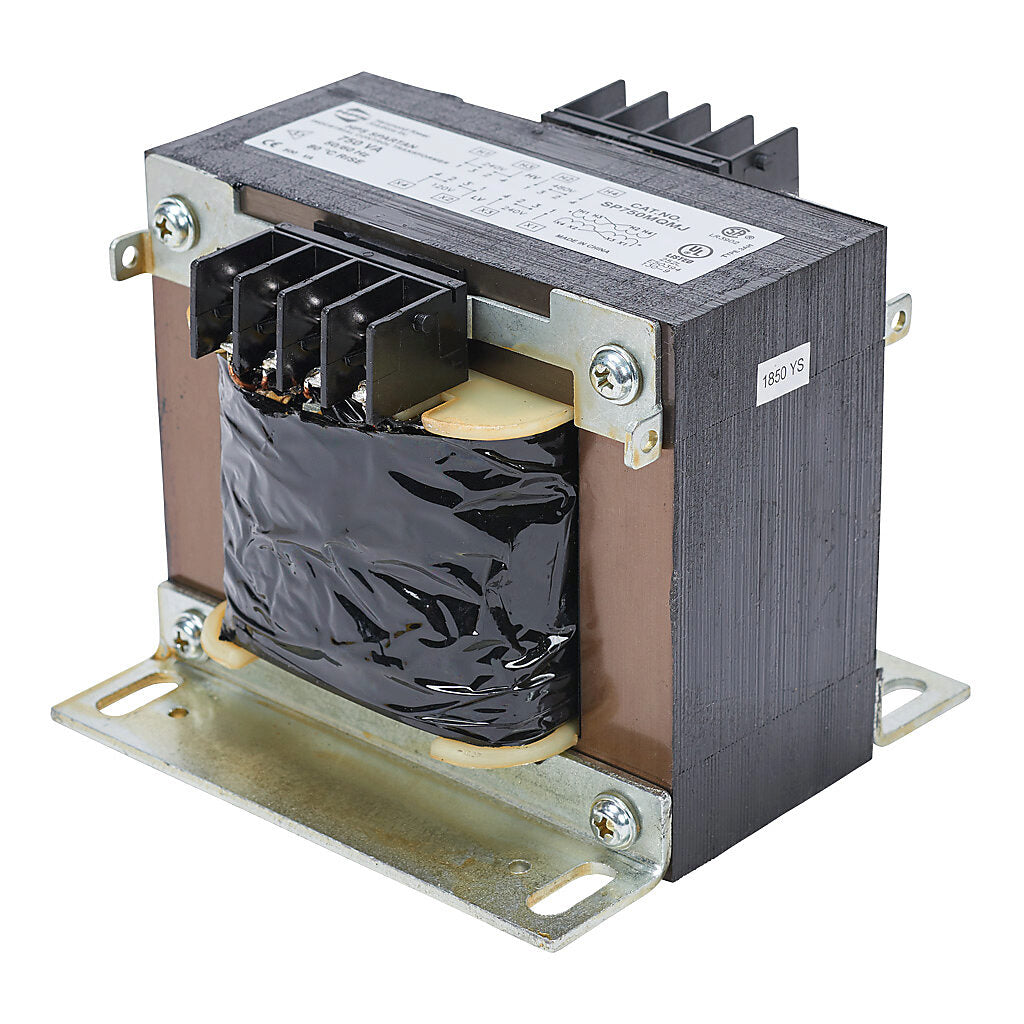

SP750MQMJ is a 750 VA single-phase open core and coil control transformer from Hammond Power Solutions HPS Spartan series, designed for industrial control applications with primary voltage of 240/480 VAC and secondary voltage of 120/240 VAC. This panel-mount transformer features copper wound coils with high dielectric strength insulation, bolted core construction, and vacuum impregnation with polyester resin for reliable performance in demanding environments. The unit operates at 50/60 Hz and includes solid terminal blocks with standard combination screw connections and bolt-on mounting brackets for secure installation.

• 750 VA Rating
• Single Phase
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Output Amperage: 6.25/3.13 A
• Frequency: 50/60 Hz
• Insulation Class: 130 degrees C
• Panel Mount Configuration
• Open Core and Coil Enclosure
• Certifications: UL, CSA, CE
• Dimensions: 5.25 inch W x 4.93 inch D x 4.37 inch H
• Weight: 16 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP750MQMJ
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 1.11093
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block

Product Data

• UPC : 803423098810
• Weight : 16
• Certification : CSA, UL, CE
