Product Info
- Manufacturer:Hammond Power Solutions
Description
SP50ACP

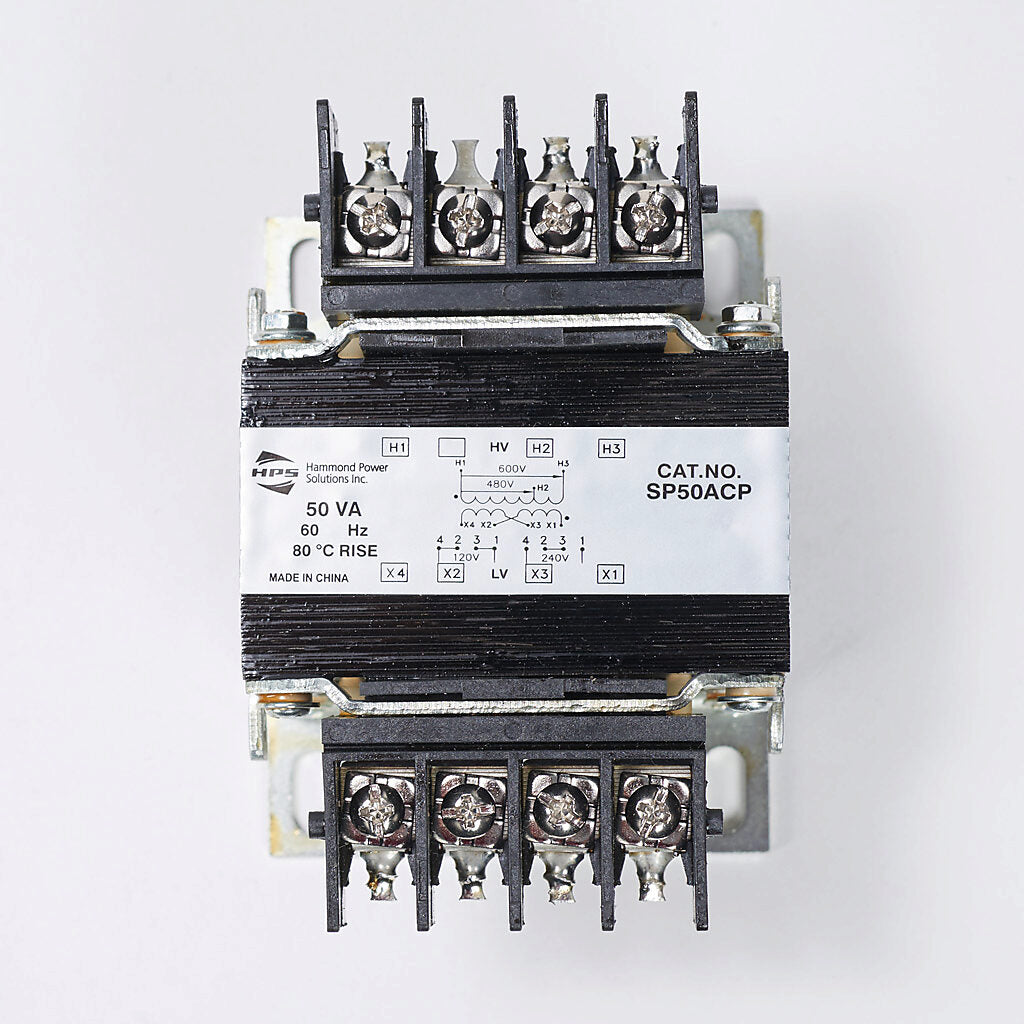

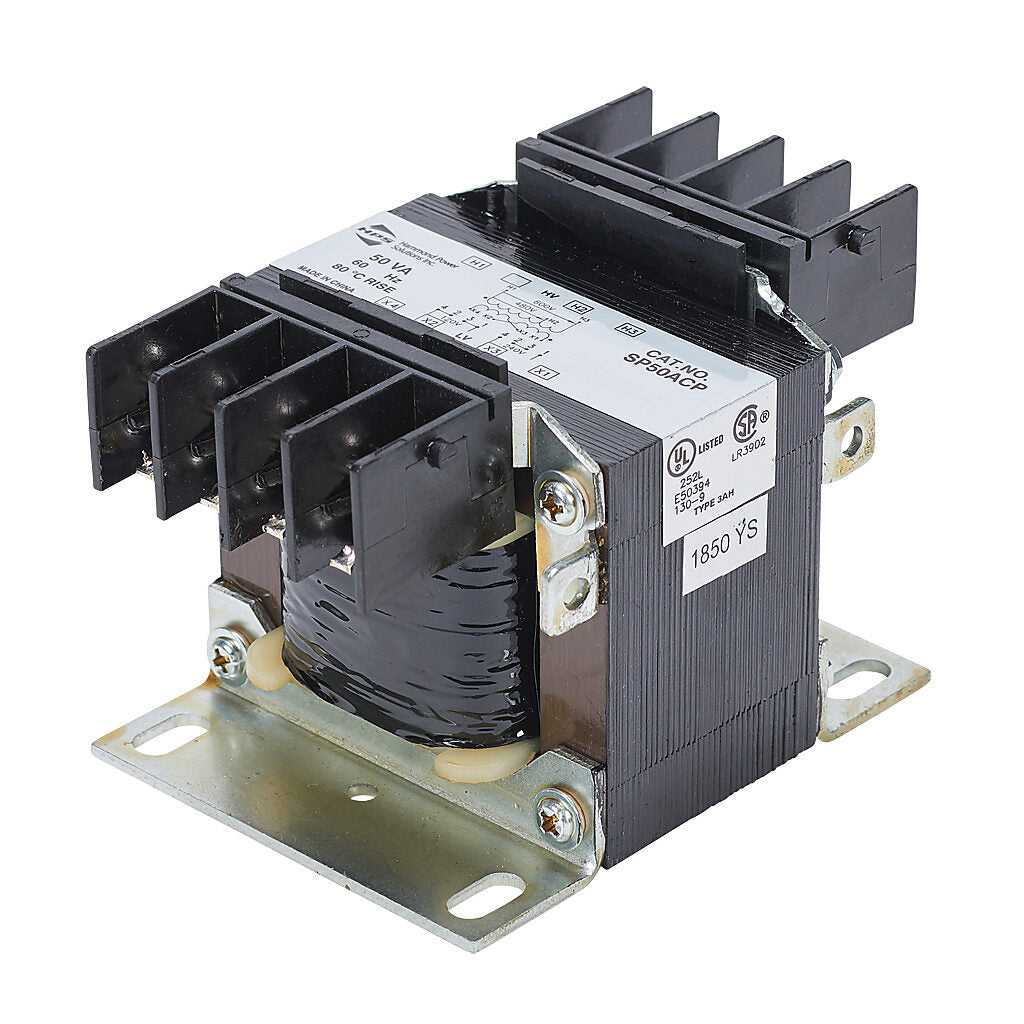

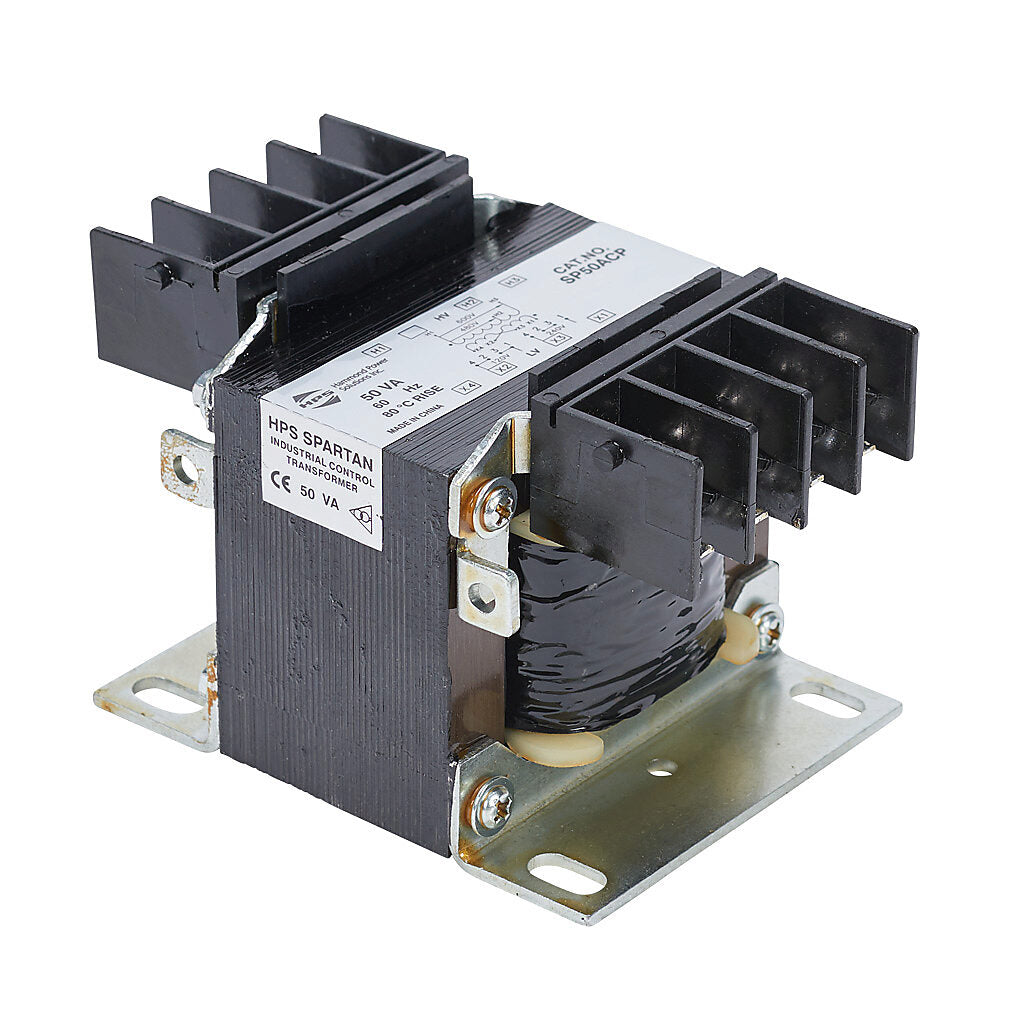

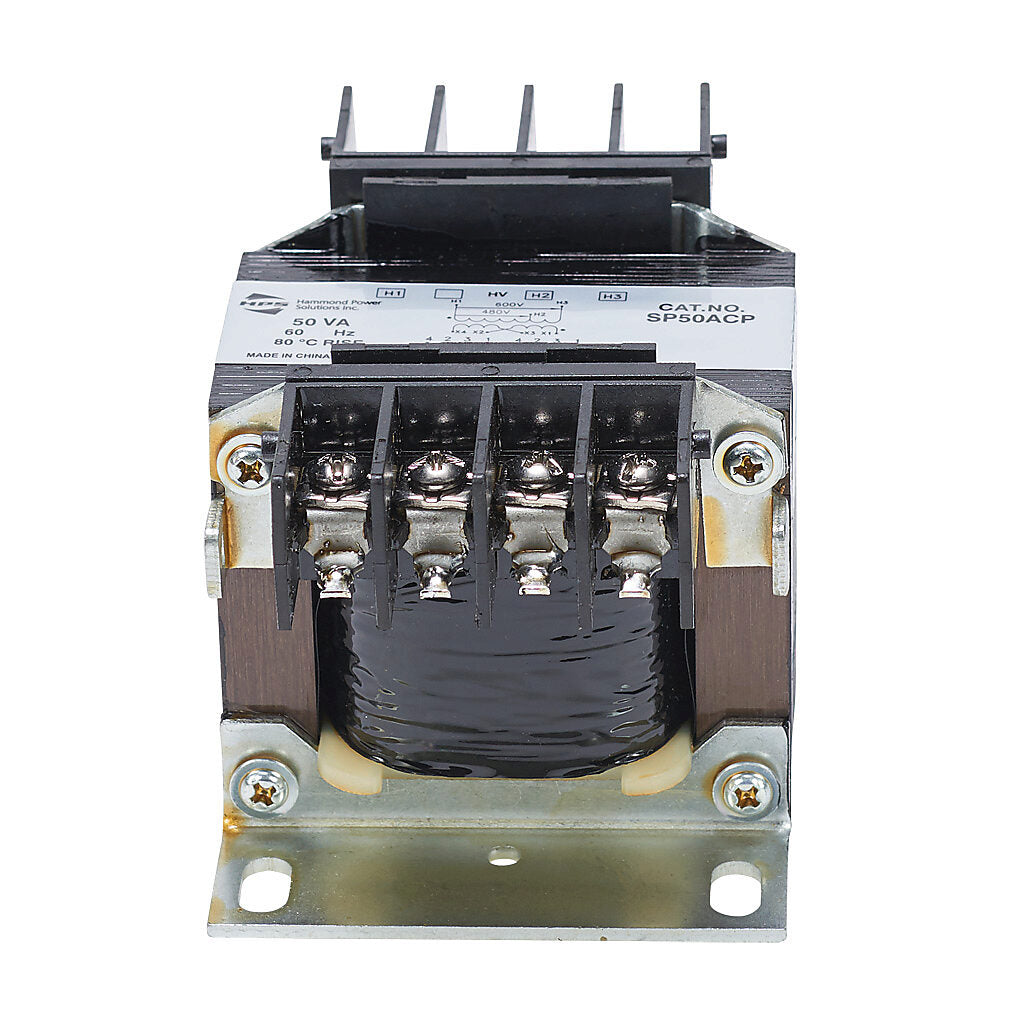

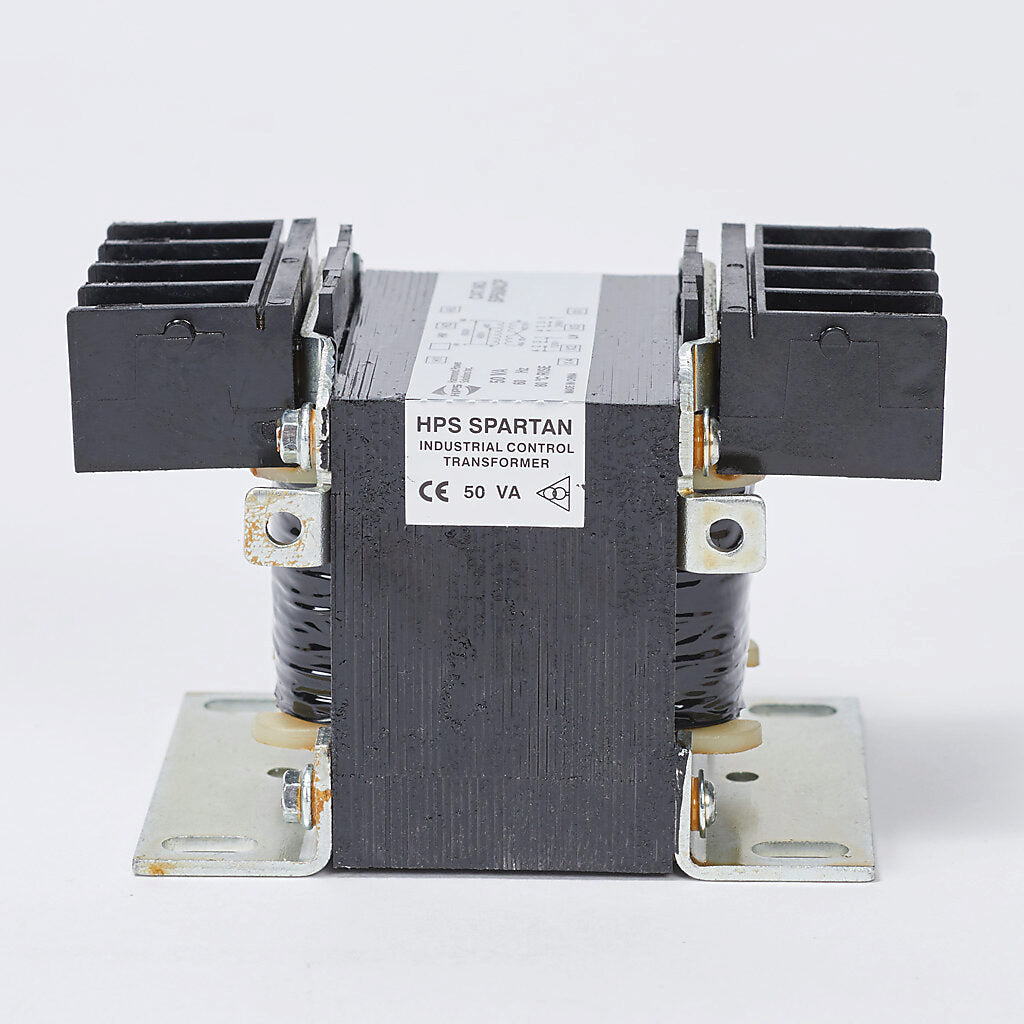

Hammond Power Solutions SP50ACP is a single-phase core and coil transformer designed for industrial power distribution applications. The unit features dual primary voltage capability of 600V/480V with series connection and secondary output of 120x240V with parallel x series configuration, operating at 60Hz frequency with copper windings. Constructed with 130°C insulation class and designed for 80°C temperature rise, the transformer meets rigorous seismic compliance standards including OSHPD certification and IBC 2018 requirements (Sds=2.0, z/h=1, lp=1.5). This transformer is suitable for industrial control systems, machinery power supplies, and equipment requiring reliable voltage transformation in seismically active regions, featuring standard terminal block primary terminations and 180° vector configuration. Key Features & Specifications
- Type: Single-Phase Core & Coil Transformer
- Primary Voltage: 600V/480V
- Secondary Voltage: 120x240V
- Frequency: 60Hz
- Material: Copper Windings
- Temperature Rise: 80°C
- Insulation Class: 130°C
- Seismic Compliance: OSHPD, IBC 2018
- Vector Configuration: 180°
- Primary Termination: Terminal Block
Specifications
- Part Number: SP50ACP
- Manufacturer : Hammond Power Solutions
- Brand : Hammond Power Solutions
- Category : Transformer
- Phase : 1
- Enclosure Grade : N / A
- Frequency : 60Hz
- Primary Voltage : 600, 480
- Primary Connection : Series (V)
- Secondary Voltage : 120x240
- Secondary Connection : Parallel x Series (Vx2V)
- Material : Copper
- Temperature Rise : 80°C
- Insulation Class : 130°C
- EKVA : 0.0740621
- Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Enclosure Type : Core & Coil
- Nameplate : Standard
- Vector Configuration : 180°
- Seismic Standard Value : IBC 2018
- OSHPD : Yes
- Seismic IP : lp=1.5
- Seismic ZH : z/h=1
- Seismic SDS Value : Sds=2.0
- Primary Termination (Std) : Terminal Block, Terminal Block
Product Data
- UPC : 803423098575
- GTIN : 00803423098575
- Weight : 2

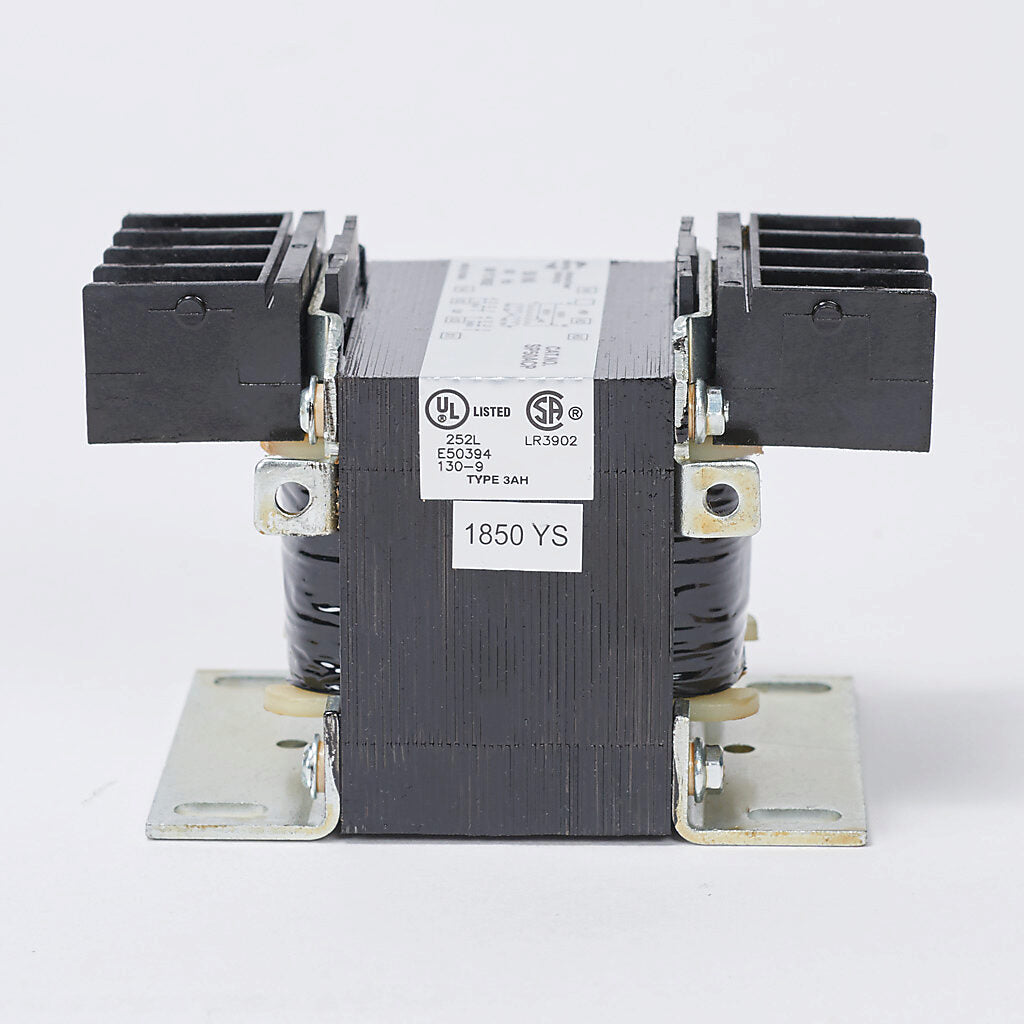

- Certification : CSA, UL, CE
