SP500SP - Hammond Power Solutions 500 VA Open Core Control Transformer 1-Phase 208/416 VAC Primary 120/240 VAC Secondary 50/60 Hz Panel Mount

SP500SP

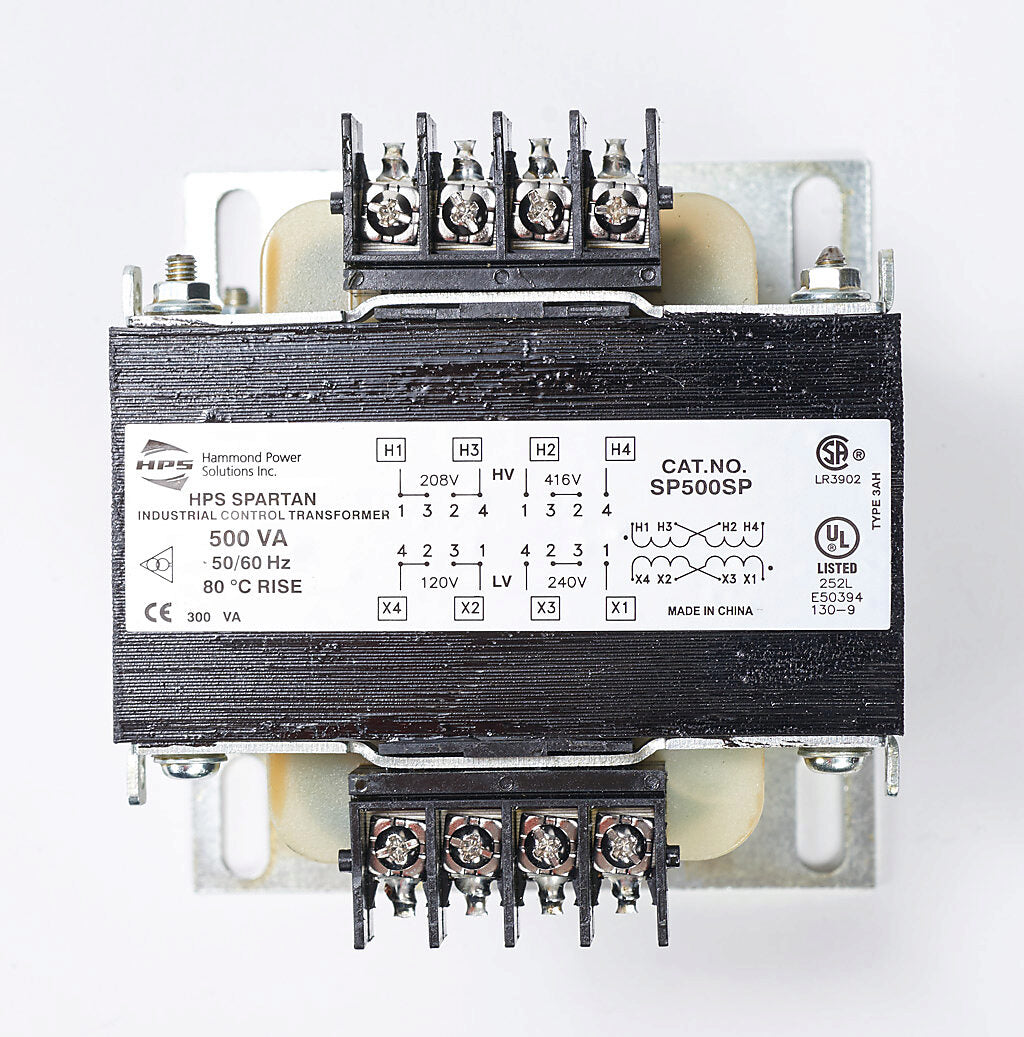

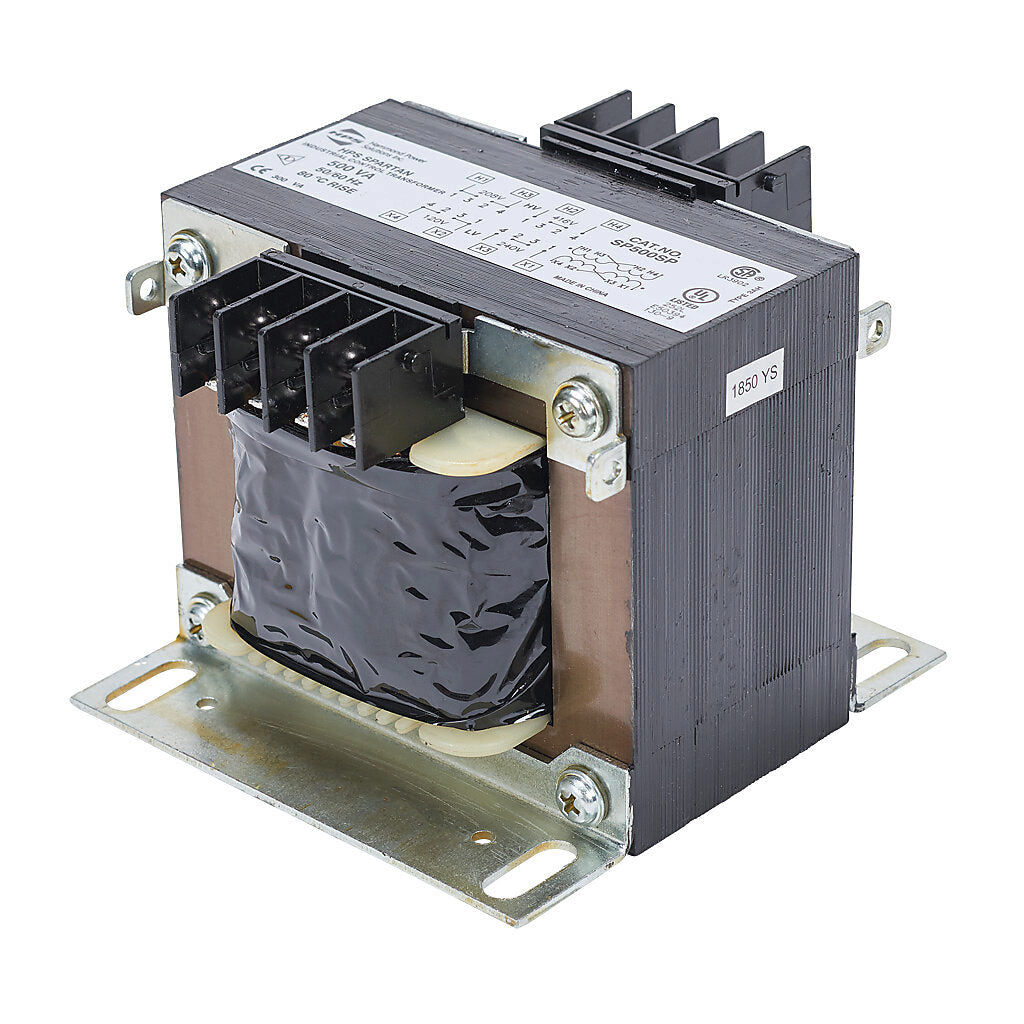

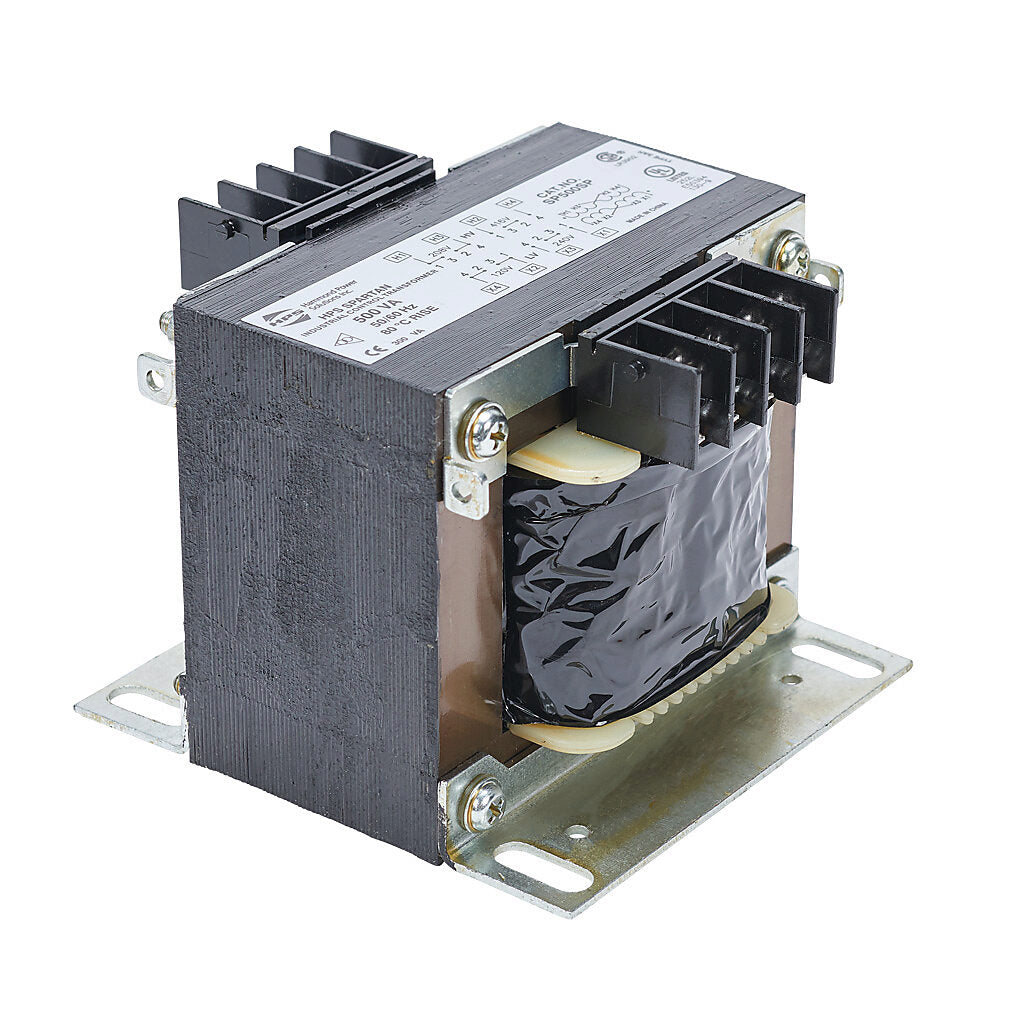

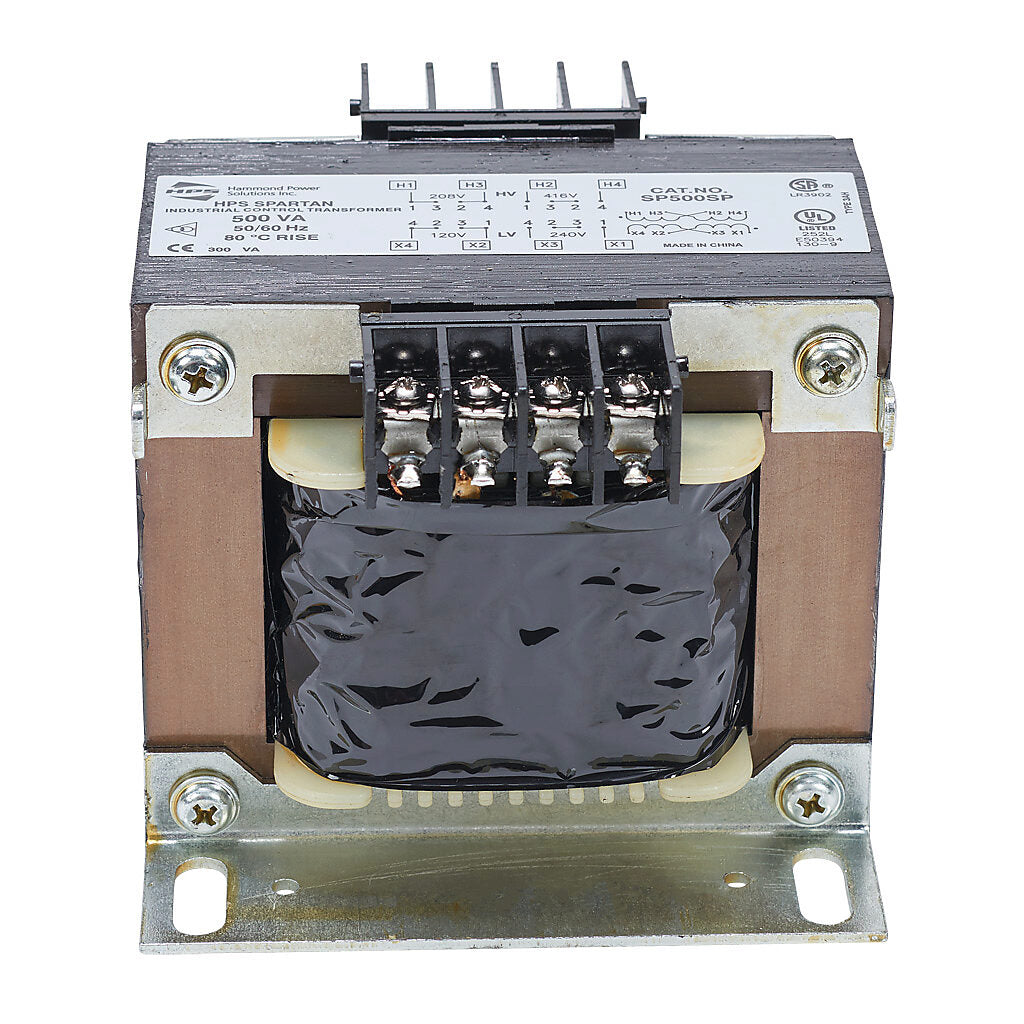

SP500SP is a single-phase open core control transformer from Hammond Power Solutions, designed for general purpose industrial applications with a 500 VA rating, 208/416 VAC primary, and 120/240 VAC secondary. This HPS Spartan series transformer features a robust open core and coil construction, copper wound coils with high dielectric strength insulation, and molded terminal blocks for secure connections. It is suitable for panel mounting and offers reliable performance in a variety of industrial environments.

• Part Number: SP500SP
• Manufacturer: Hammond Power Solutions
• Series: HPS Spartan
• Type: Open Core Control Transformer
• VA Rating: 500 VA
• Phase: Single Phase
• Primary Voltage: 208/416 VAC
• Secondary Voltage: 120/240 VAC
• Frequency: 50/60 Hz
• Mounting Type: Panel Mount
• Terminal Block: Molded
• Certifications: UL, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP500SP
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 208x416
• Primary Connection : Parallel x Series (Vx2V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 0.740621
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block

Product Data

• UPC : 803423099343
• Weight : 11
• Certification : CSA, UL, CE

Documentation and Resources

• Engineering Drawing (PDF)
• Brochure
• Hammond Product Application Videos
• Frequently Asked Questions
• Troubleshooting Guide
