SP500PR - Hammond Power Solutions 500 VA 1-Phase 120/240 VAC to 12/24 VAC Open Core Control Transformer Panel Mount

SP500PR

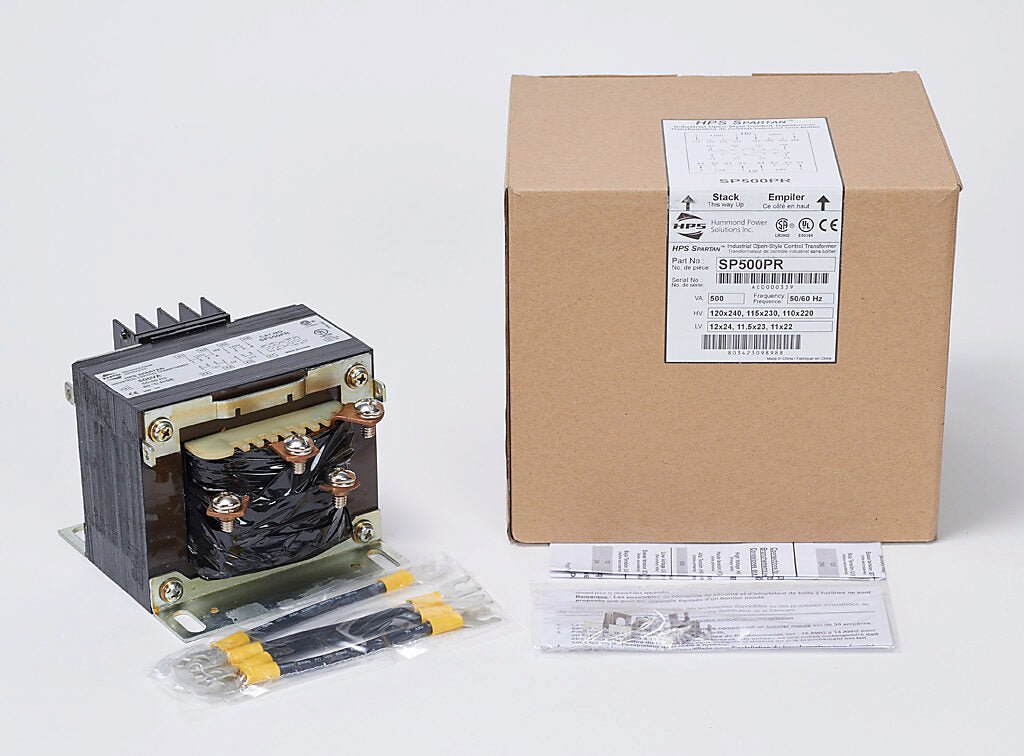

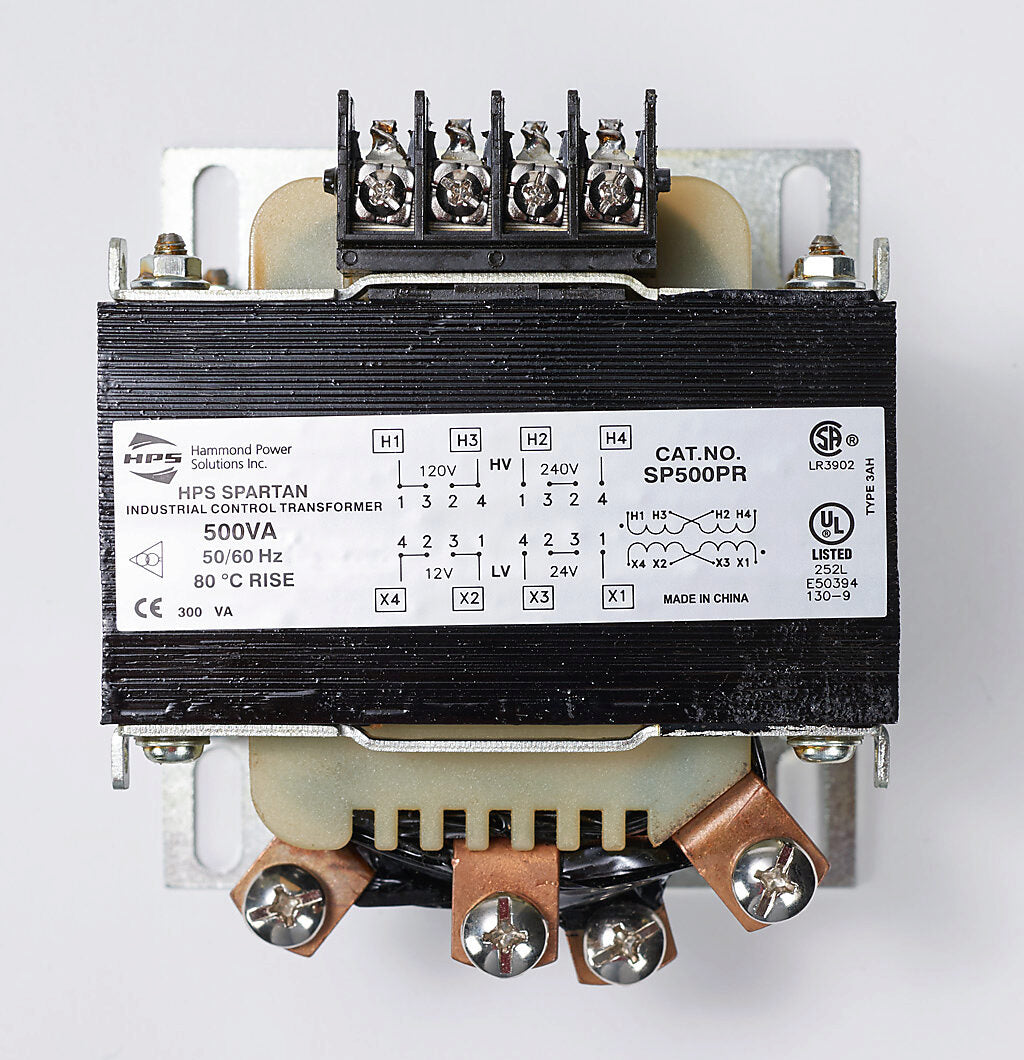

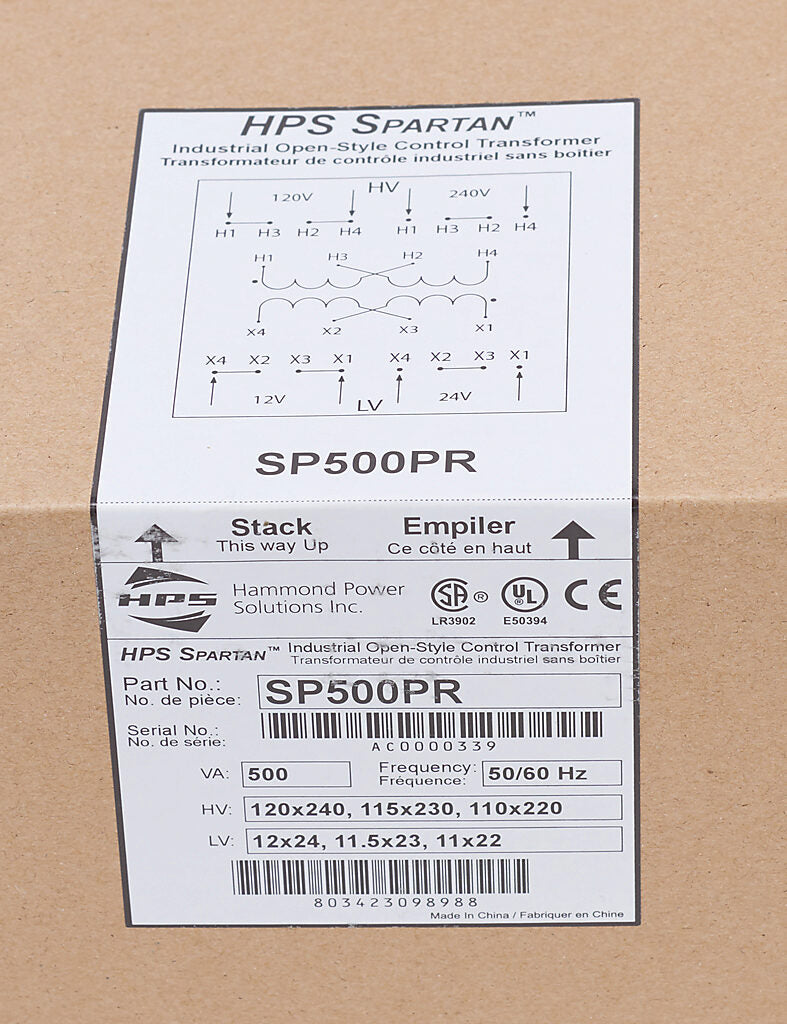

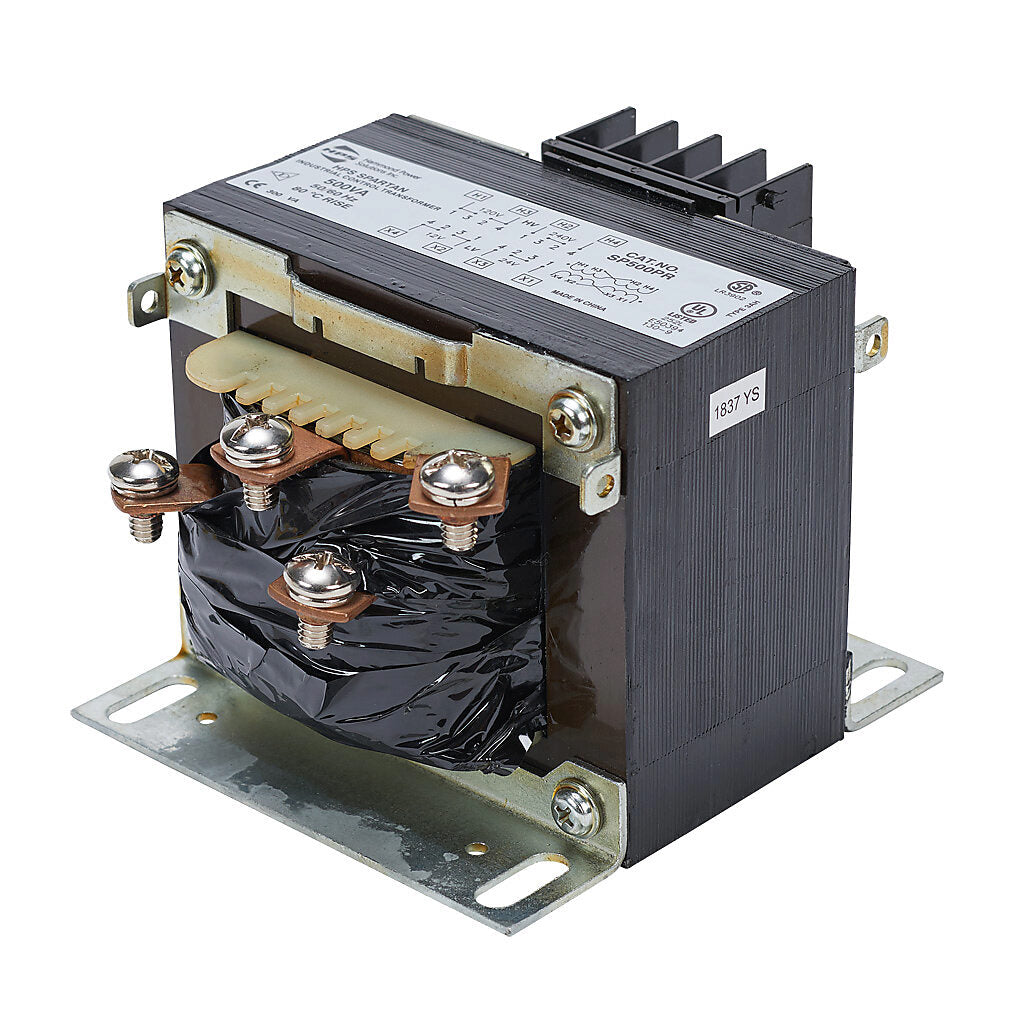

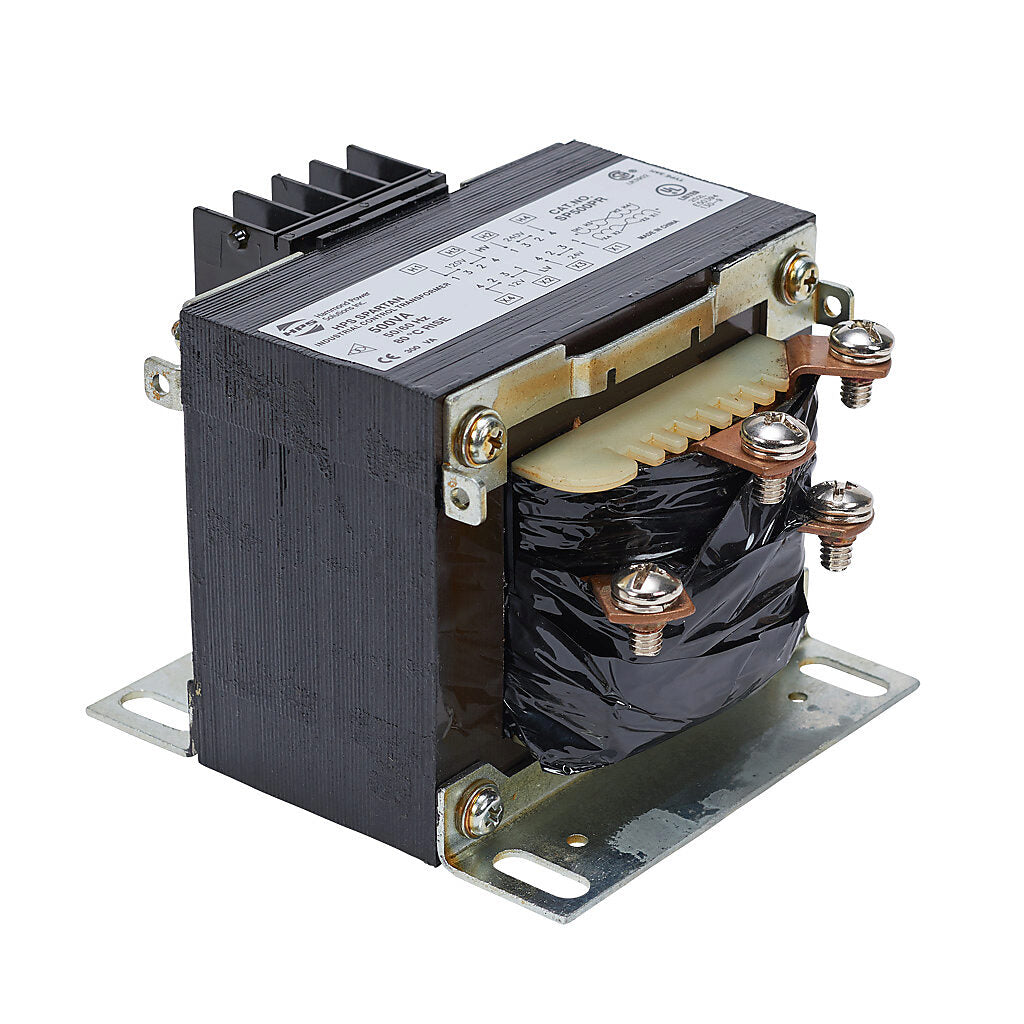

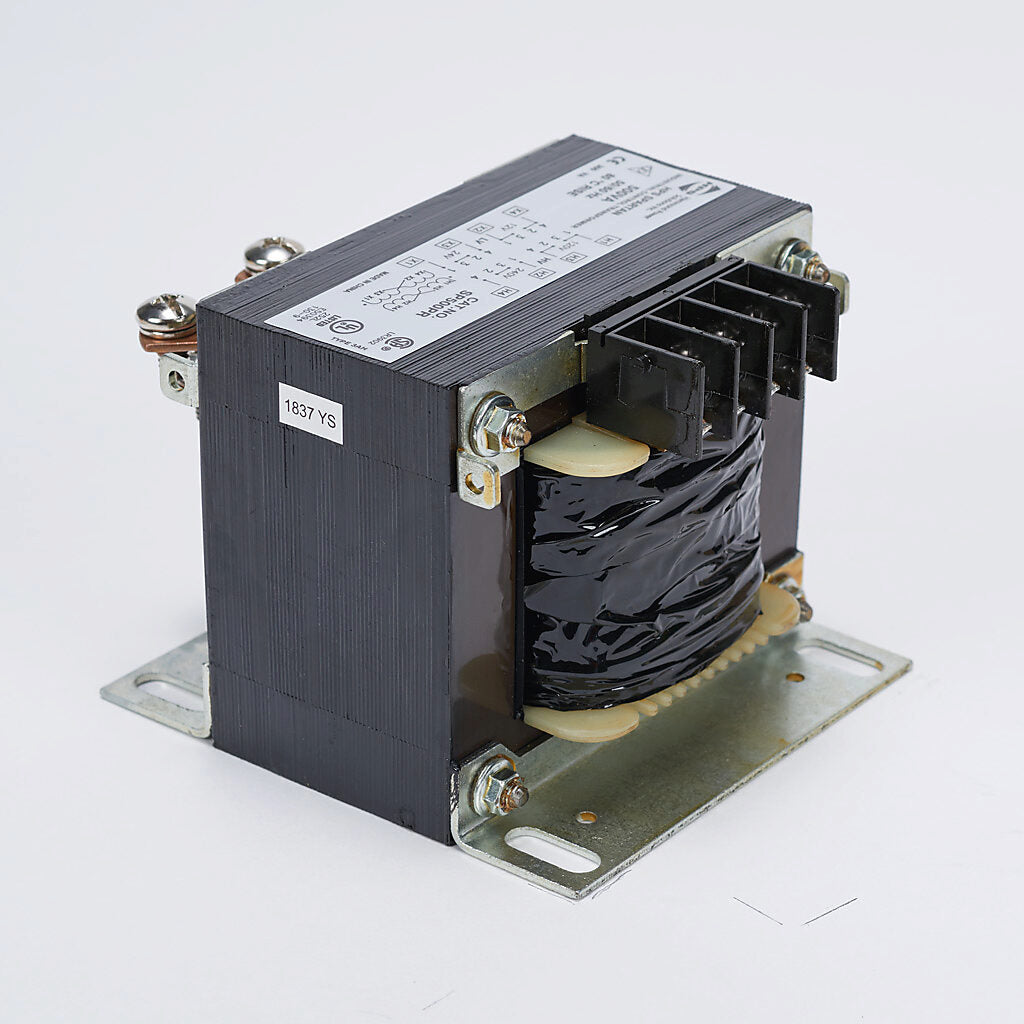

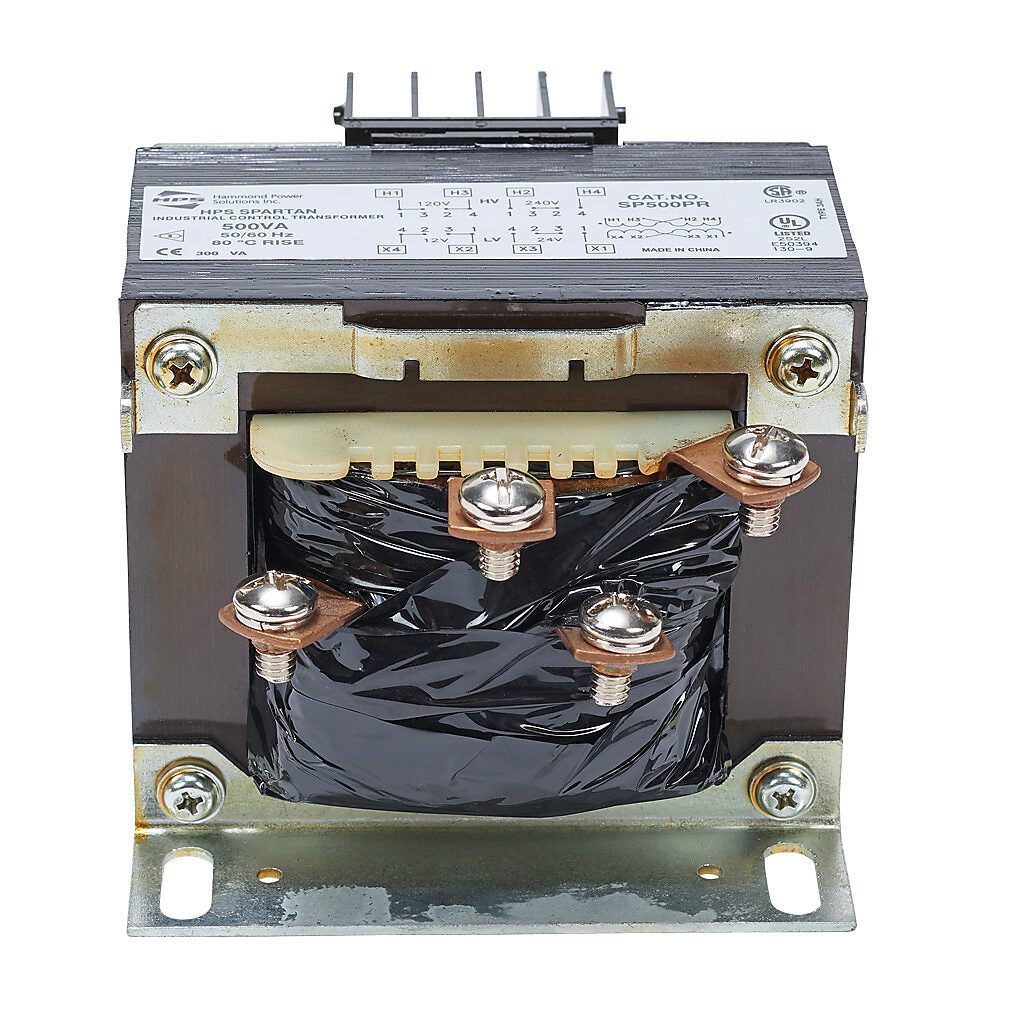

SP500PR is a Hammond Power Solutions open core control transformer with a 500 VA power rating designed for industrial and light duty applications.This single-phase transformer features a primary voltage of 120/240 VAC and a secondary voltage of 12/24 VAC, operating at 50/60 Hz frequency. It is constructed with copper wound coils and high dielectric strength insulation, bolted core construction, and includes a solid terminal block with standard combination screw connections. The unit is designed for panel mounting and is vacuum impregnated with polyester resin for durability.

• Power Rating: 500 VA
• Primary Voltage: 120/240 VAC
• Secondary Voltage: 12/24 VAC
• Phase: Single-phase
• Frequency: 50/60 Hz
• Mounting Type: Panel mount
• Core Type: Open core
• Coil Material: Copper wound
• Insulation: High dielectric strength
• Construction: Bolted core
• Terminal Block: Solid with combination screw connections

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP500PR
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 120x240
• Primary Connection : Parallel x Series (Vx2V)
• Secondary Voltage : 12x24
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 0.740621
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block

Product Data

• UPC : 803423098988
• Weight : 11
• Certification : CSA, UL, CE
