SP5000MQMJ - Hammond Power Solutions 5000VA Open Core Control Transformer 240/480V Primary 120/240V Secondary 1-Phase

SP5000MQMJ

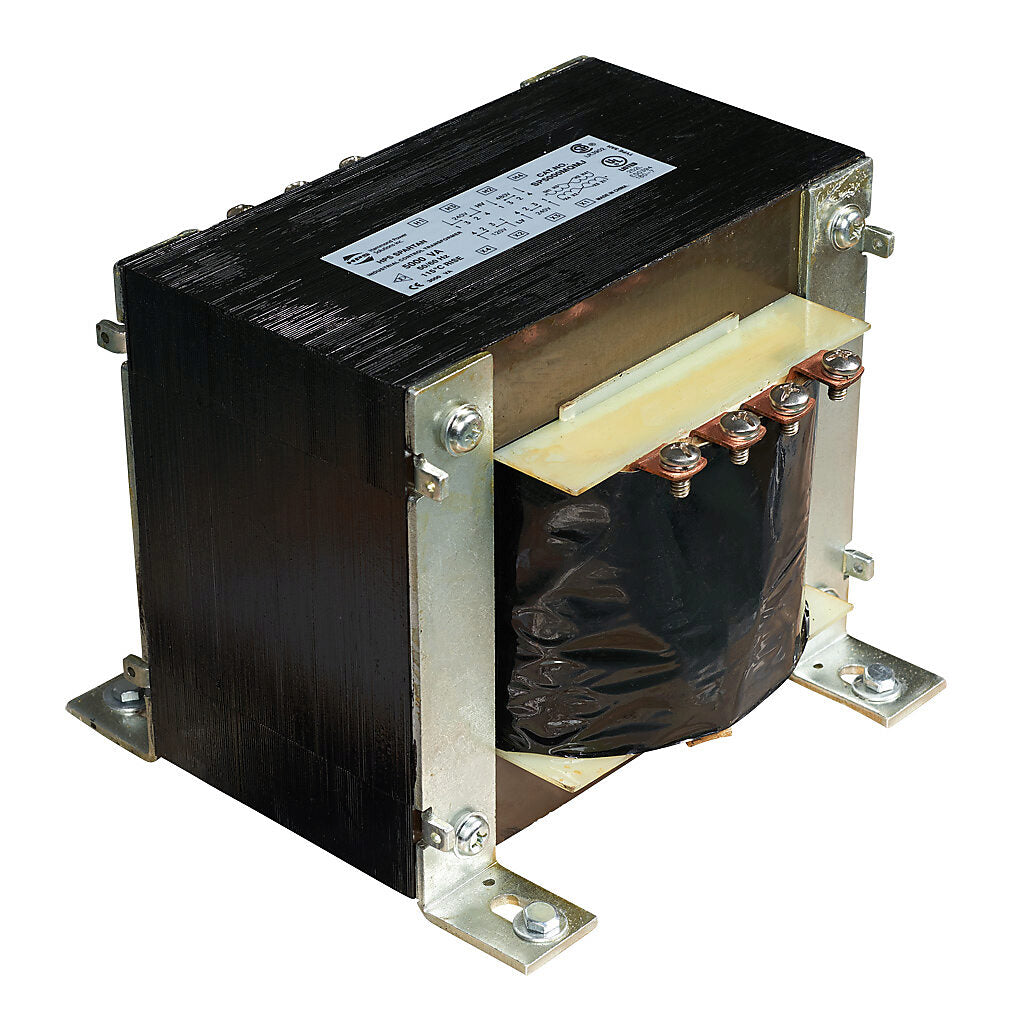

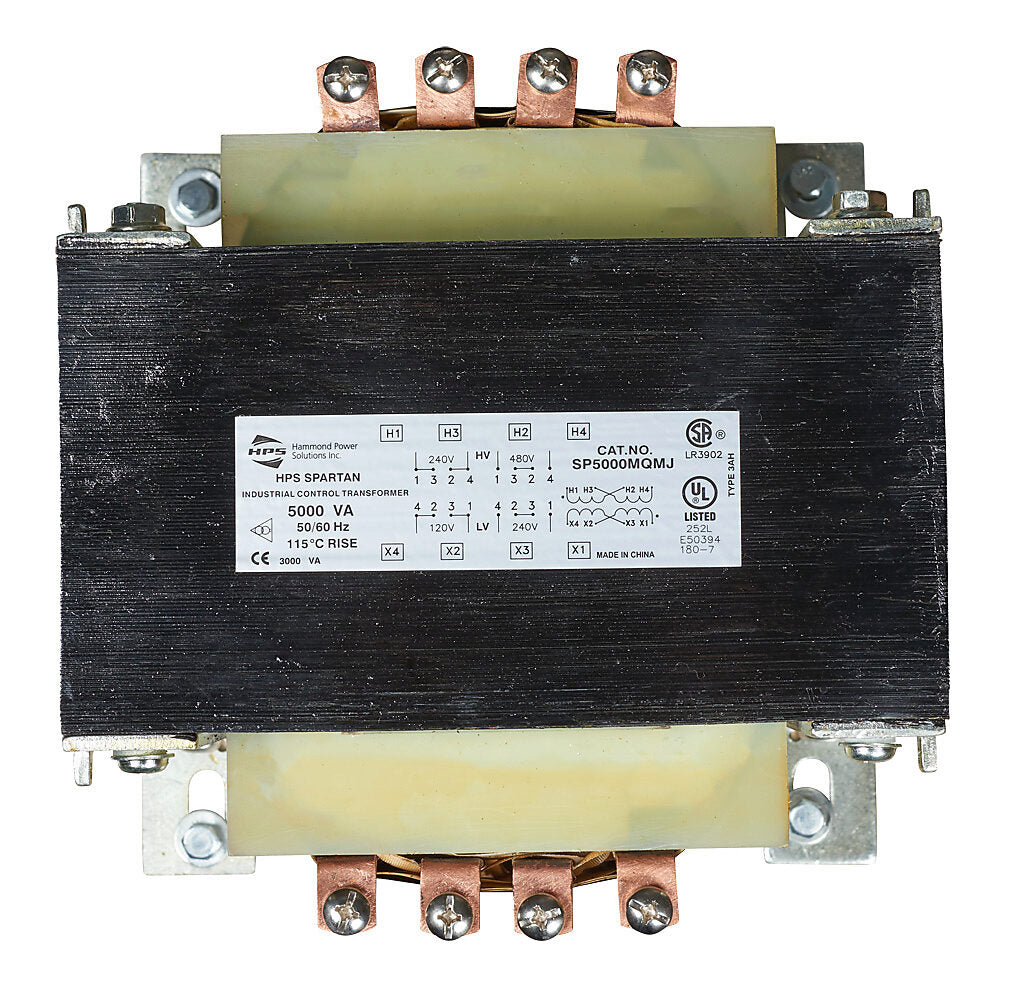

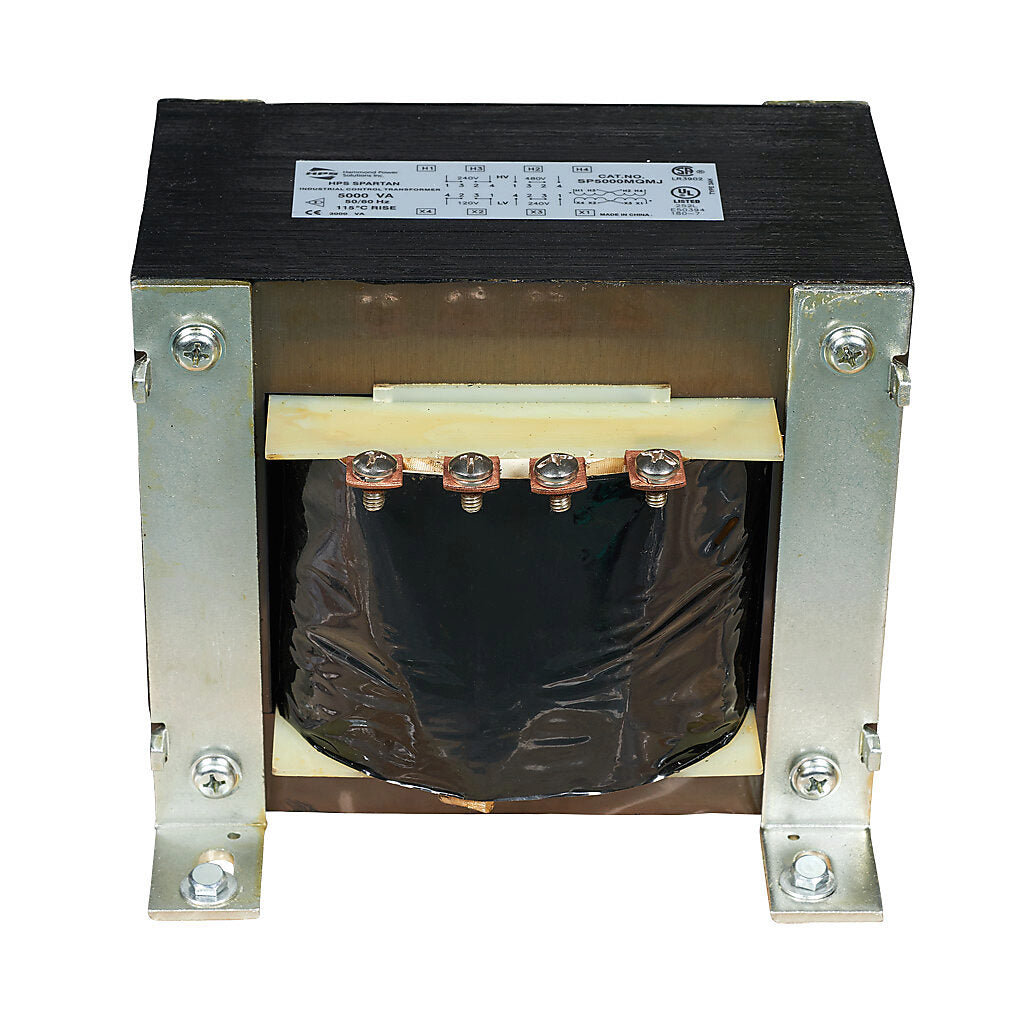

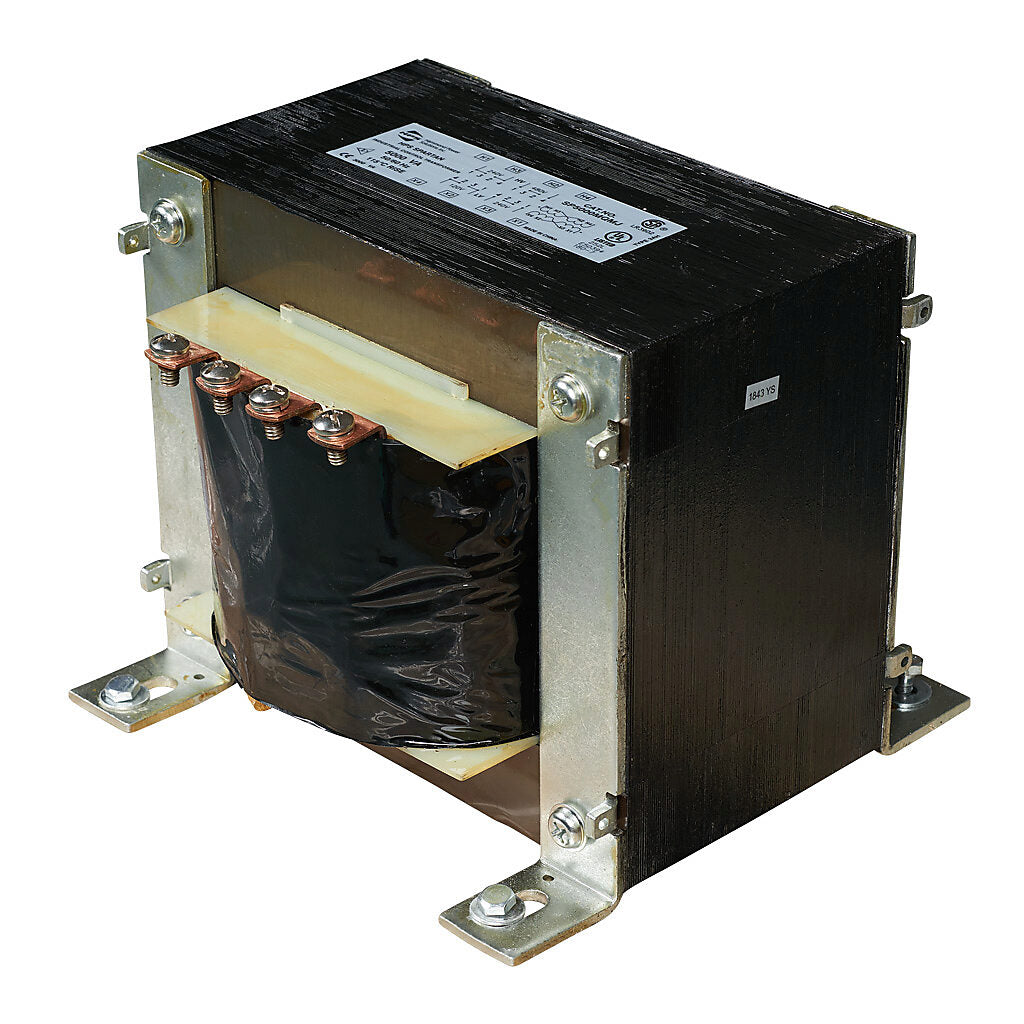

SP5000MQMJ is a single-phase open core control transformer designed for industrial and general purpose applications. This Hammond Power Solutions unit provides reliable voltage transformation for HVAC, motor control, lighting, and signal circuits.Engineered for durability and efficiency, the SP5000MQMJ features molded terminal blocks and is suitable for panel mounting. It supports primary voltages of 240/480V and secondary voltages of 120/240V, making it adaptable for a variety of control power needs. The transformer operates at 50/60 Hz and is built with a robust insulation system for long service life.

• 5000VA rating
• 1-phase
• Primary: 240/480V
• Secondary: 120/240V
• 50/60 Hz frequency
• Panel mount
• Open core design
• UL, CSA, CE certified
• Mounting dimensions: 8.98" W x 9.88" D x 7.76" H
• Output amperage: 41.7/20.8A
• Insulation system: 180°C (115°C rise)
• 15-year warranty

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP5000MQMJ
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 240x480

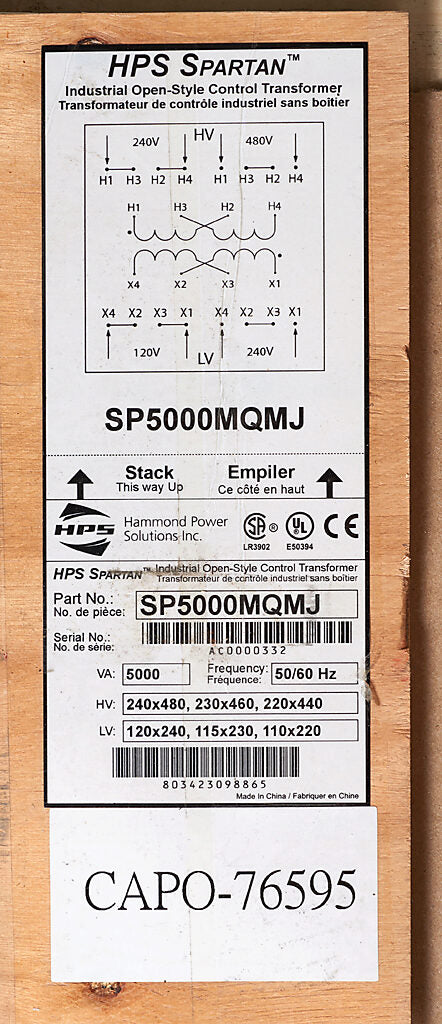

• Primary Connection : Parallel x Series (Vx2V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 115°C
• Insulation Class : 180°C
• EKVA : 5.90325
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block

Product Data

• UPC : 803423098865
• Weight : 97
• Certification : CSA, UL, CE
