- Manufacturer:Hammond Power Solutions
Description

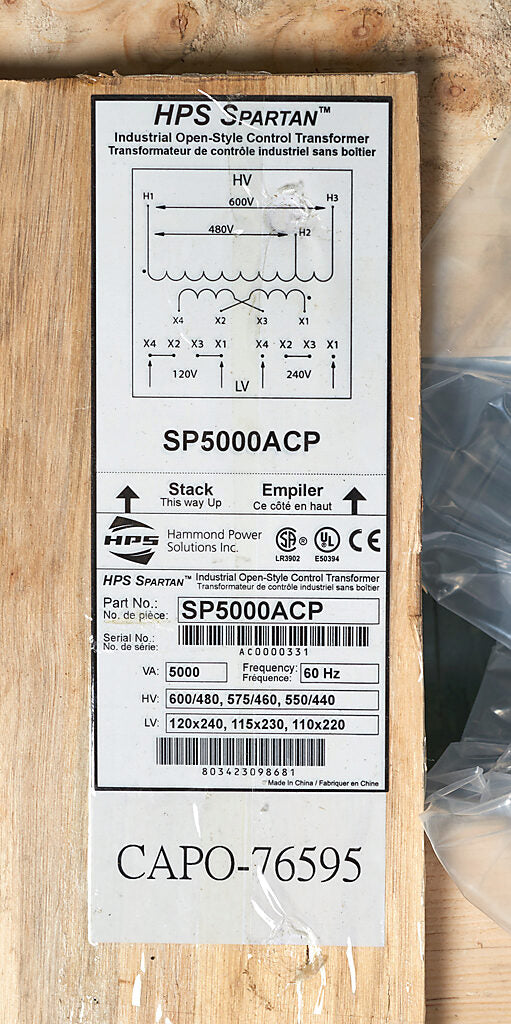

SP5000ACP

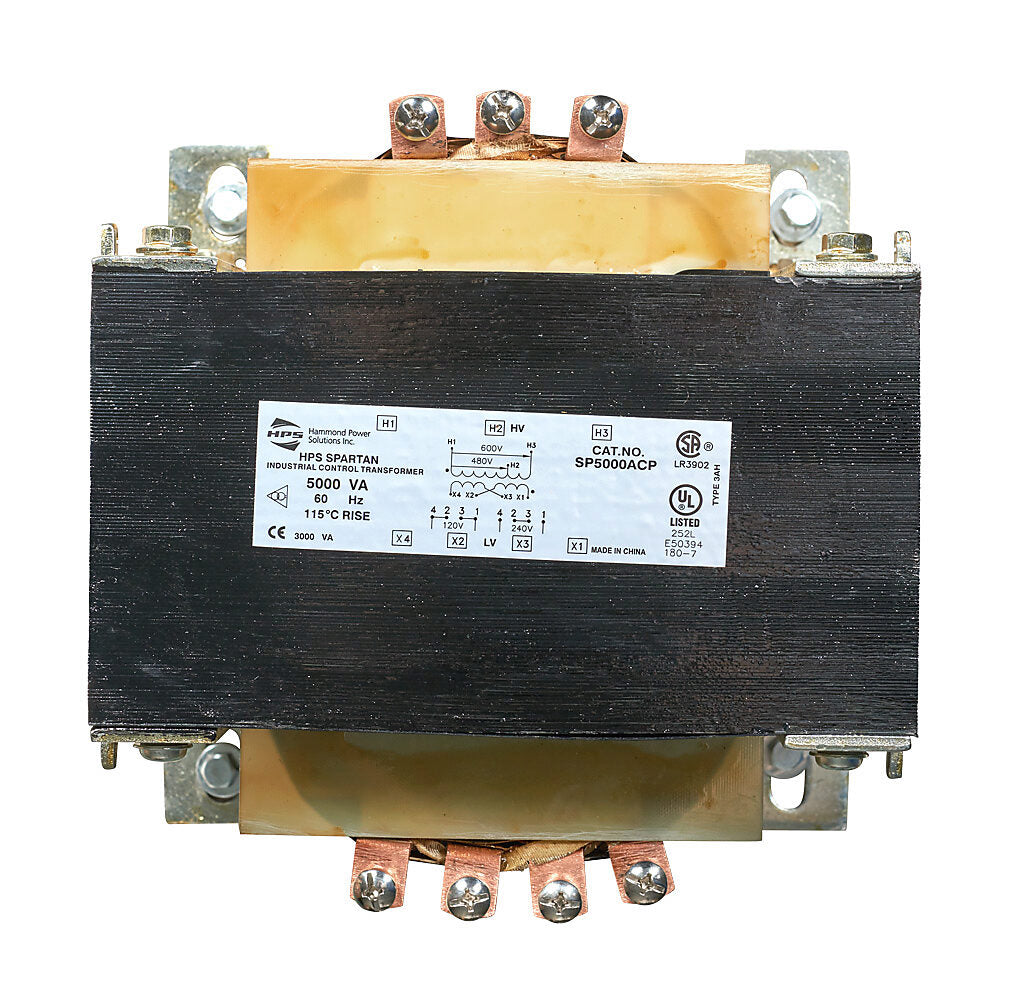

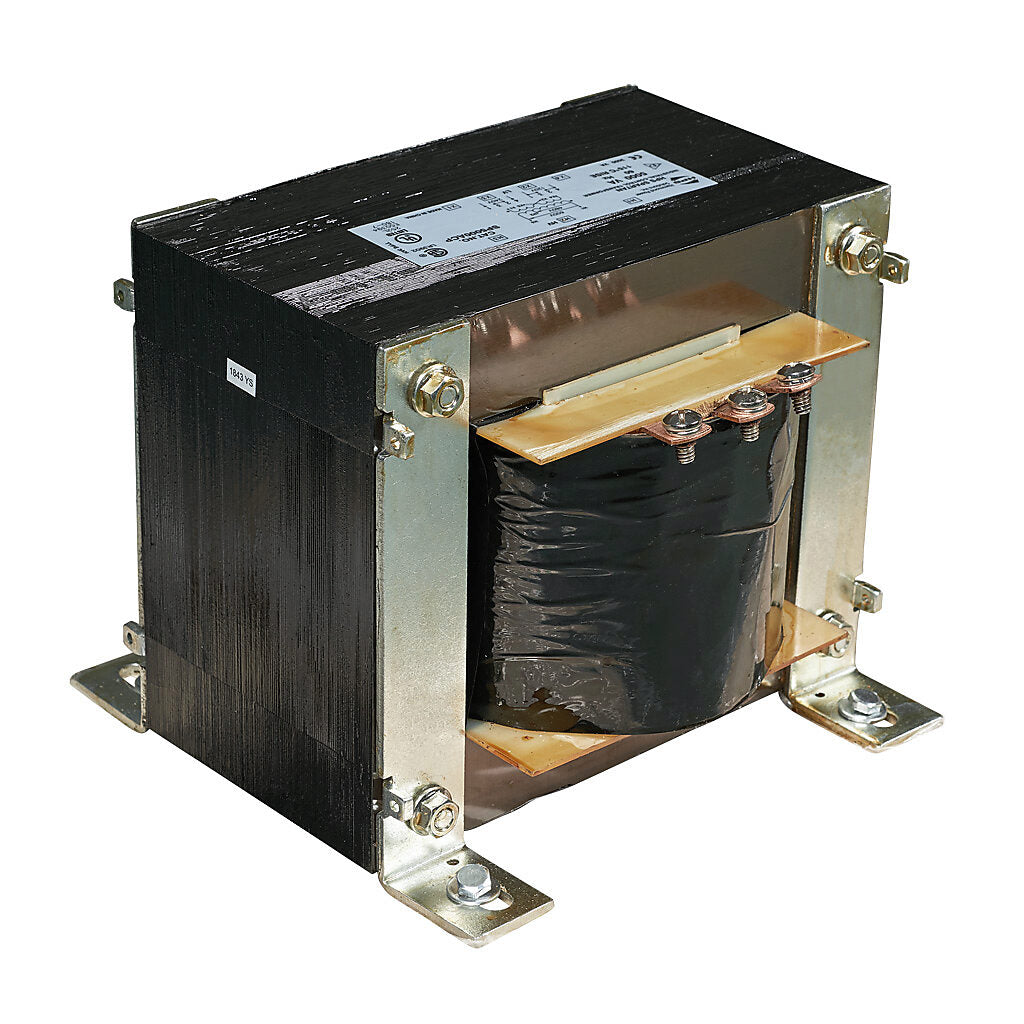

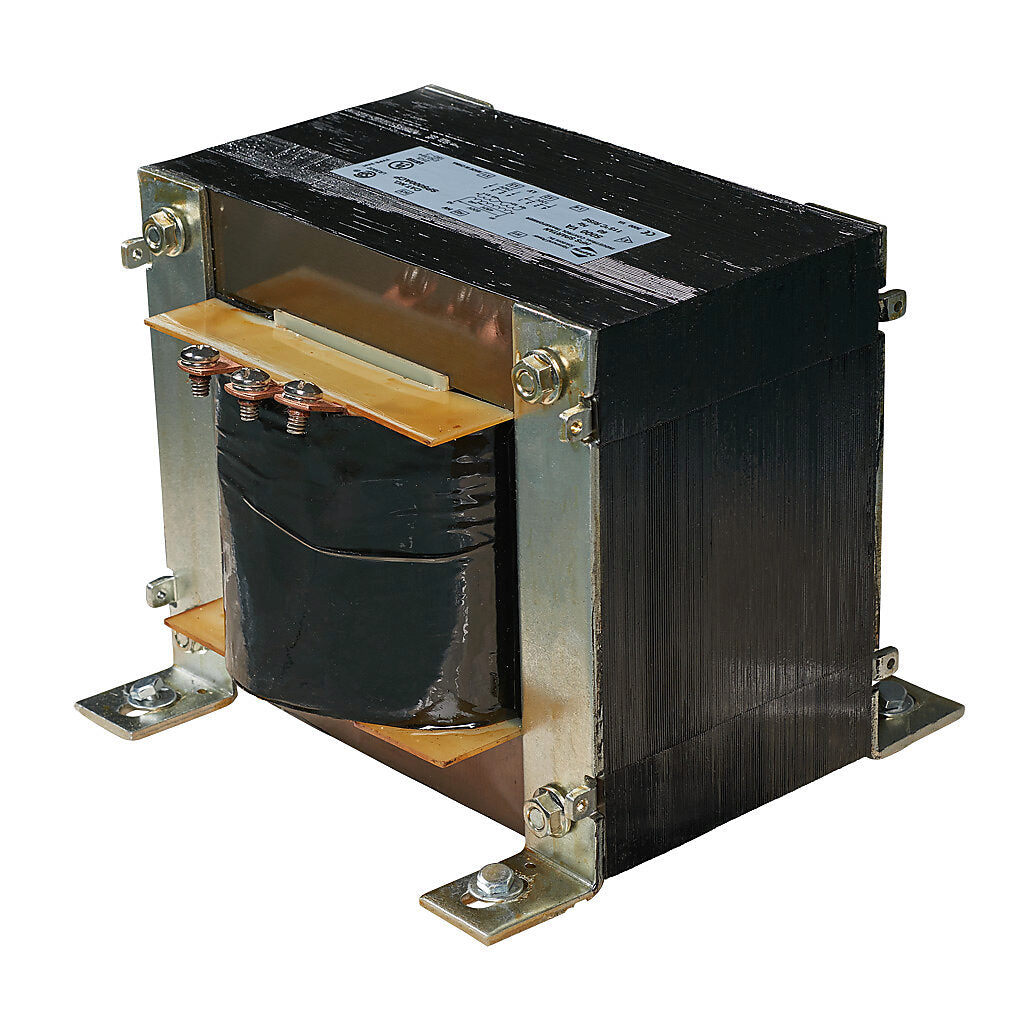

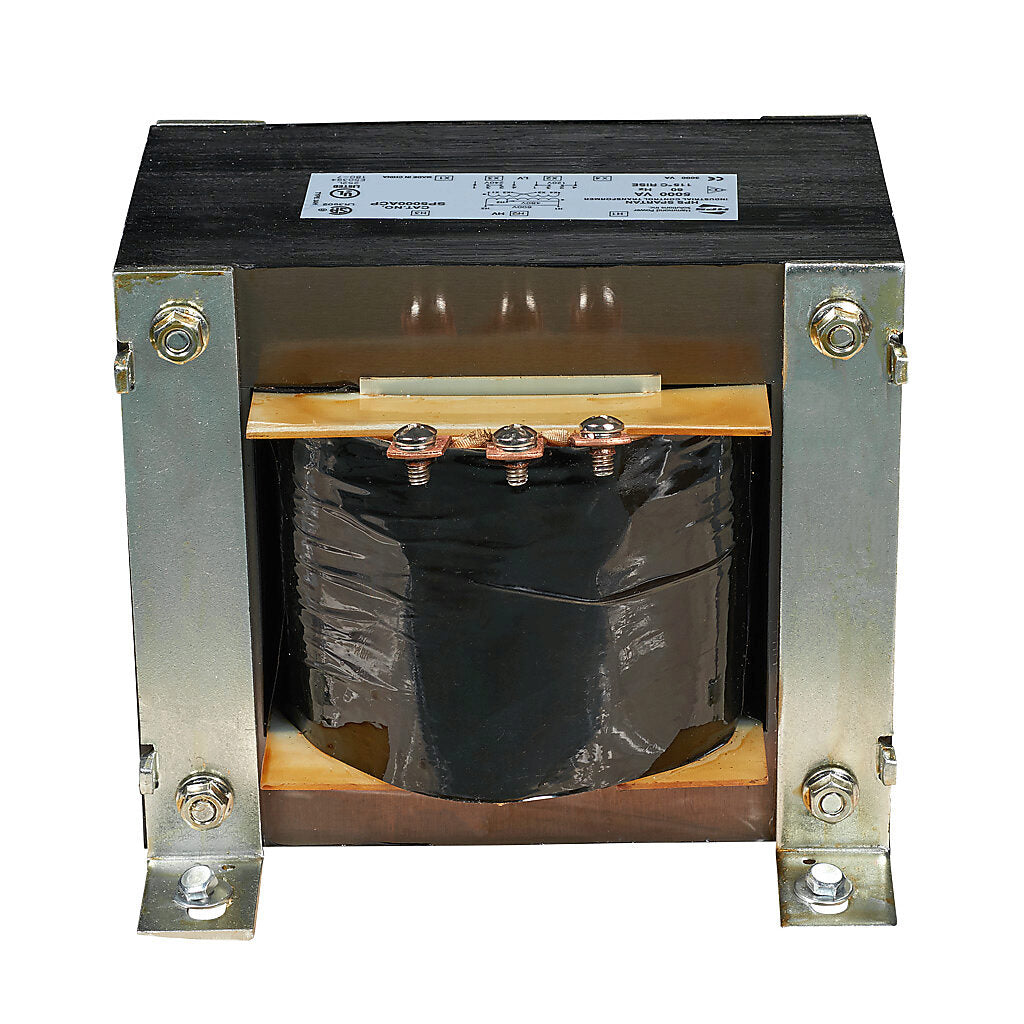

Hammond Power Solutions SP5000ACP is a single-phase core and coil transformer designed for industrial power distribution applications. This transformer features dual primary voltage capability of 600/480V with series connection and secondary voltage of 120x240V with parallel x series connection, operating at 60Hz frequency with copper windings. The unit is constructed with 115°C temperature rise capability and 180°C insulation class, housed in a core and coil enclosure with standard terminal block primary terminations. It meets OSHPD compliance and IBC 2018 seismic standards with Sds=2.0, z/h=1, and lp=1.5 seismic parameters. Typical applications include industrial control systems, machinery power supplies, and commercial electrical distribution where seismic-rated components are required. Key Features & Specifications
- Type: Single-phase core and coil transformer
- Primary Voltage: 600/480V
- Secondary Voltage: 120x240V
- Frequency: 60Hz
- EKVA: 5.90325
- Material: Copper windings
- Temperature Rise: 115°C
- Insulation Class: 180°C
- Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Vector Configuration: 180°
- Primary Termination: Terminal Block
Specifications
- Part Number: SP5000ACP
- Manufacturer : Hammond Power Solutions
- Brand : Hammond Power Solutions
- Category : Transformer
- Phase : 1
- Enclosure Grade : N / A
- Frequency : 60Hz
- Primary Voltage : 600, 480
- Primary Connection : Series (V)
- Secondary Voltage : 120x240
- Secondary Connection : Parallel x Series (Vx2V)
- Material : Copper
- Temperature Rise : 115°C
- Insulation Class : 180°C
- EKVA : 5.90325
- Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Enclosure Type : Core & Coil
- Nameplate : Standard
- Vector Configuration : 180°
- Seismic Standard Value : IBC 2018
- OSHPD : Yes
- Seismic IP : lp=1.5
- Seismic ZH : z/h=1
- Seismic SDS Value : Sds=2.0
- Primary Termination (Std) : Terminal Block, Terminal Block
Product Data
- UPC : 803423098681
- Weight : 93
- Certification : CSA, UL, CE
