SP350MQMJ - Hammond Power Solutions 350 VA 1-Phase Control Transformer 240/480 VAC Primary 120/240 VAC Secondary Panel Mount

SP350MQMJ

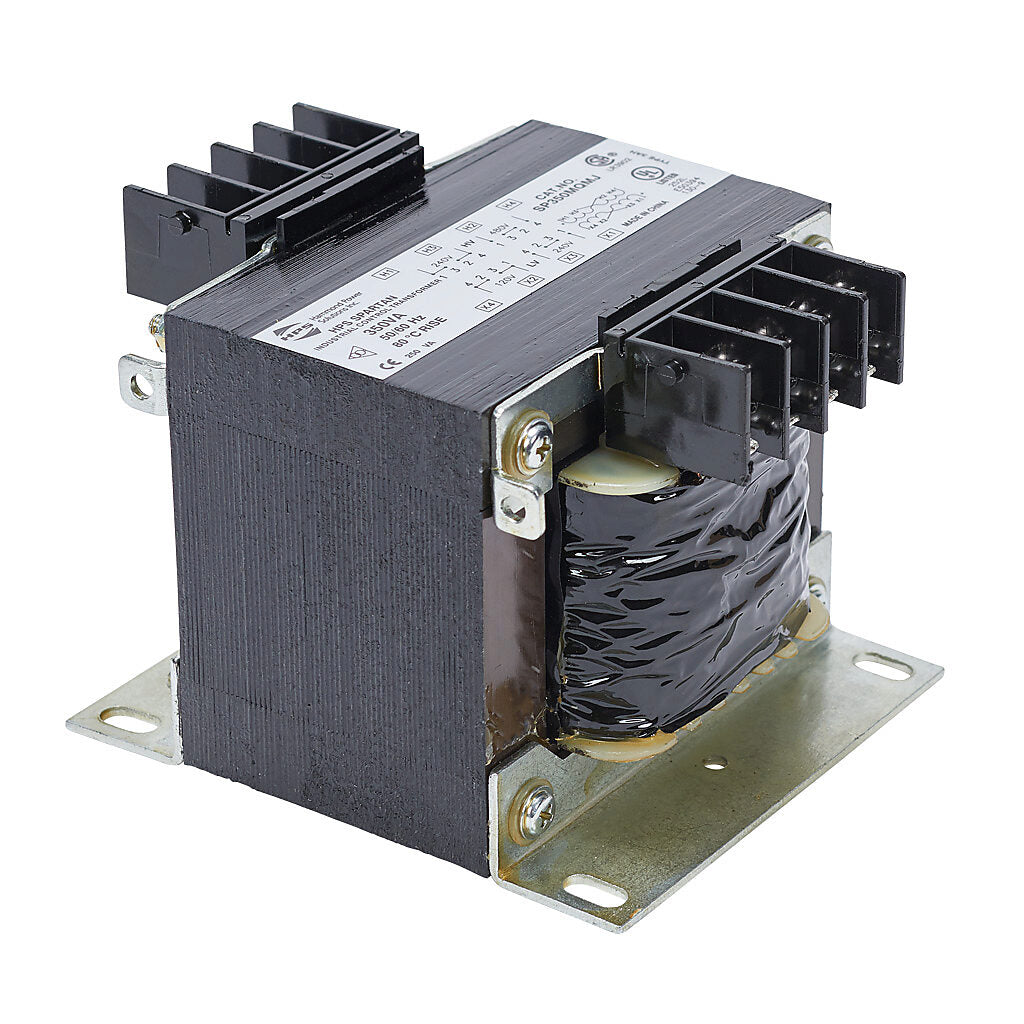

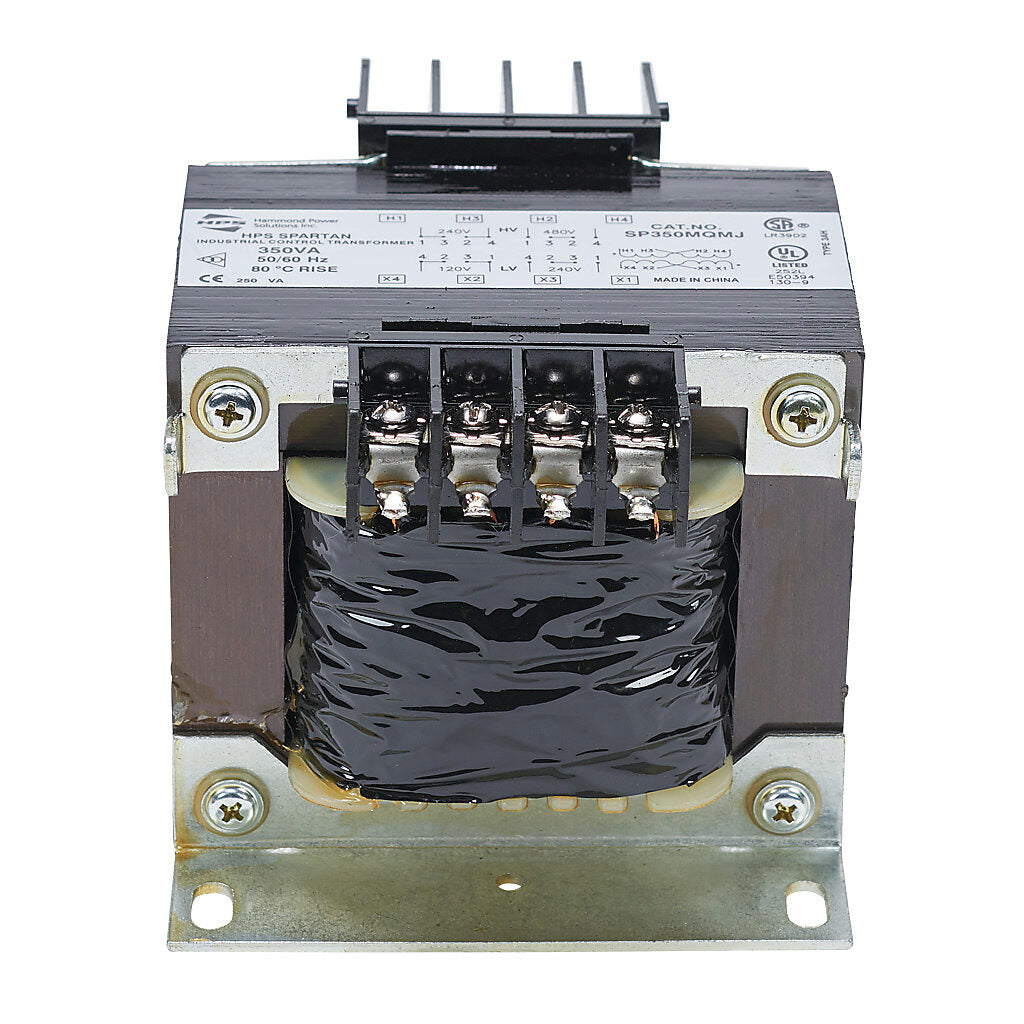

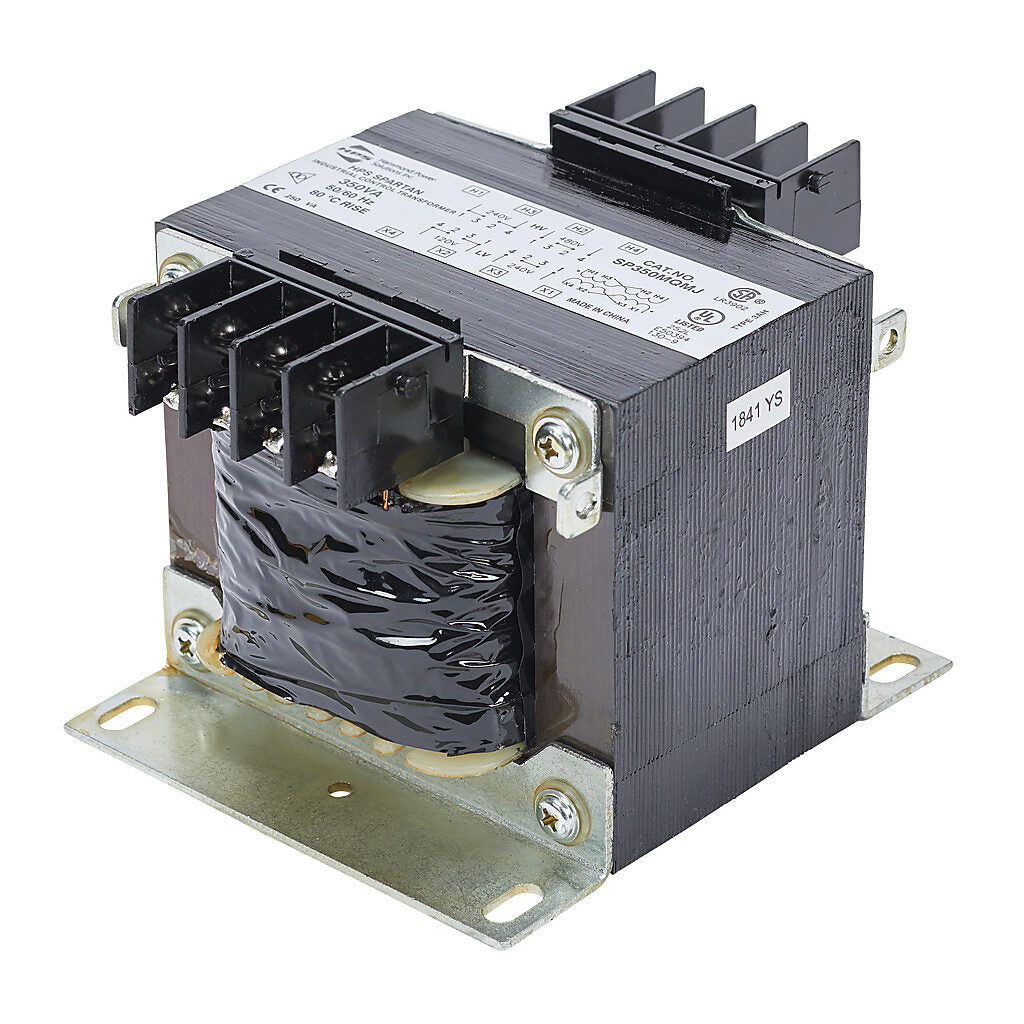

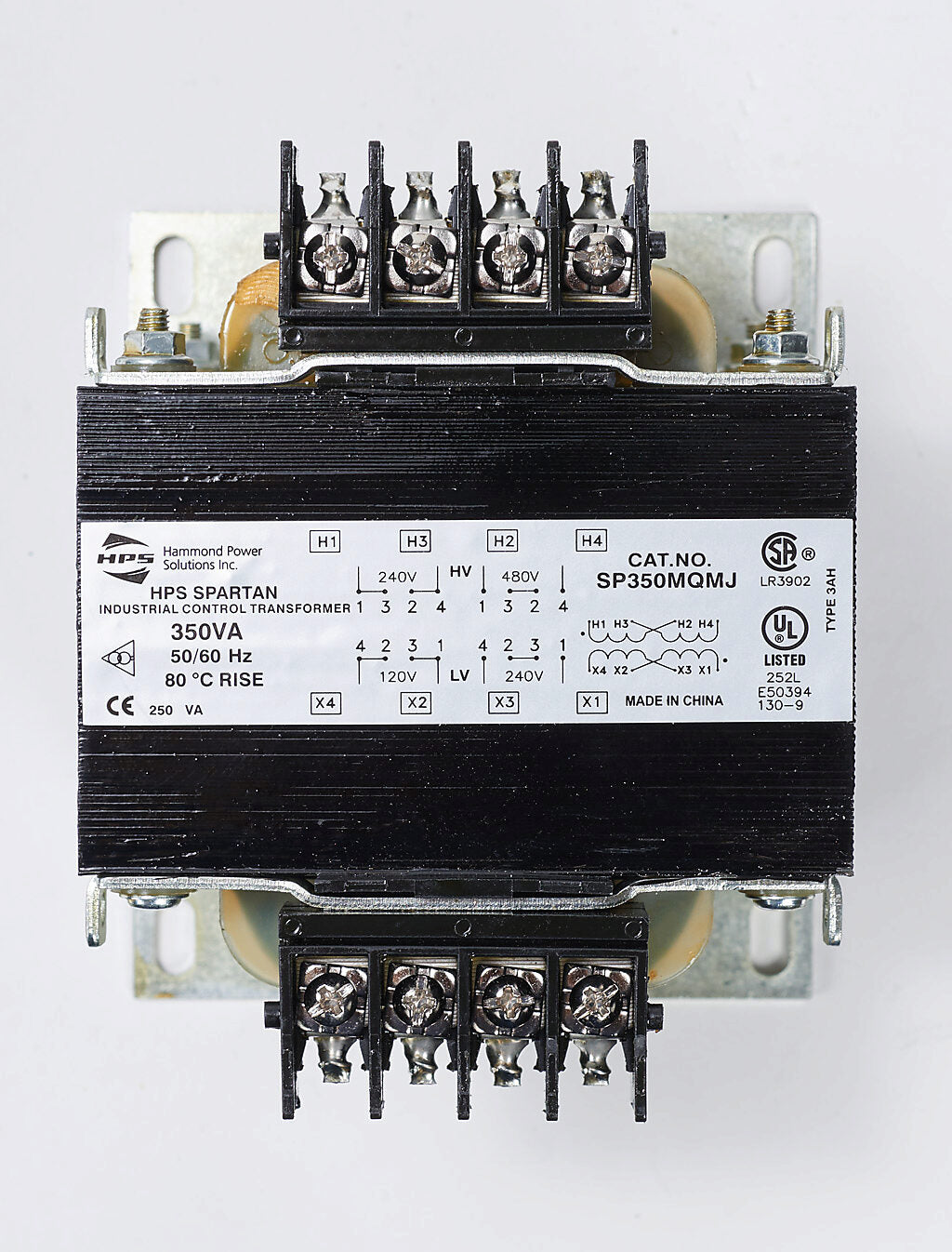

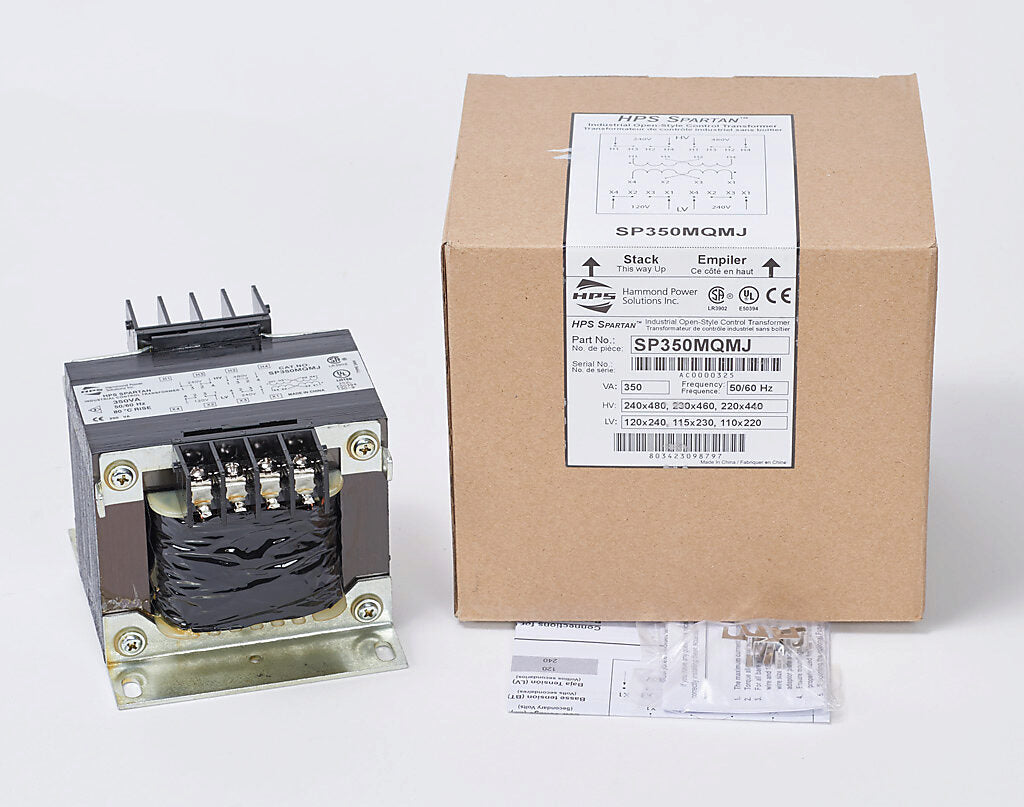

SP350MQMJ is a Hammond Power Solutions 350 VA, 1-phase control transformer designed for industrial and general purpose applications.This open core transformer features a primary voltage of 240/480 VAC and a secondary voltage of 120/240 VAC, operating at 50/60 Hz frequency. It is panel mountable with screw connections and built with a 130°C insulation system suitable for 80°C temperature rise. The transformer supports maximum output currents of 2.92 A and 1.46 A on the primary and secondary sides respectively.

• Power rating: 350 VA
• Phase: Single-phase
• Primary voltage: 240/480 VAC
• Secondary voltage: 120/240 VAC
• Frequency: 50/60 Hz
• Mounting type: Panel mount
• Insulation class: 130°C (80°C rise)
• Enclosure type: Open core and coil
• Connection type: Screw terminals
• Approvals: UL Listed, CSA Certified, CE Marked
• Dimensions (W x D x H): Approximately 3.78 x 4.69 x 3.4 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP350MQMJ
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 0.518434
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block

Product Data

• UPC : 803423098797
• GTIN : 00803423098797
• Weight : 8
• Certification : CSA, UL, CE
