SP3000ACP - Hammond Power Solutions 3 kVA 1-Phase Open Core Control Transformer 480/600V 120/240V 60Hz

SP3000ACP

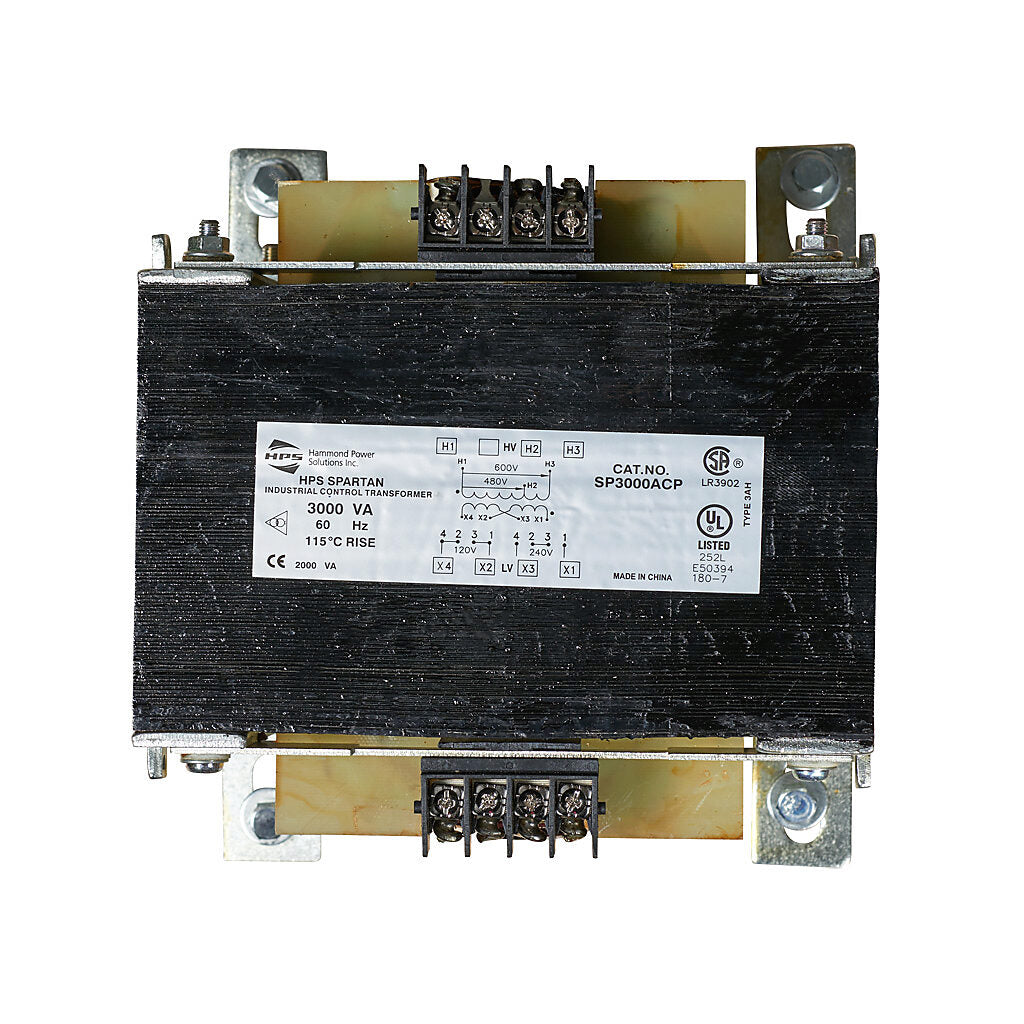

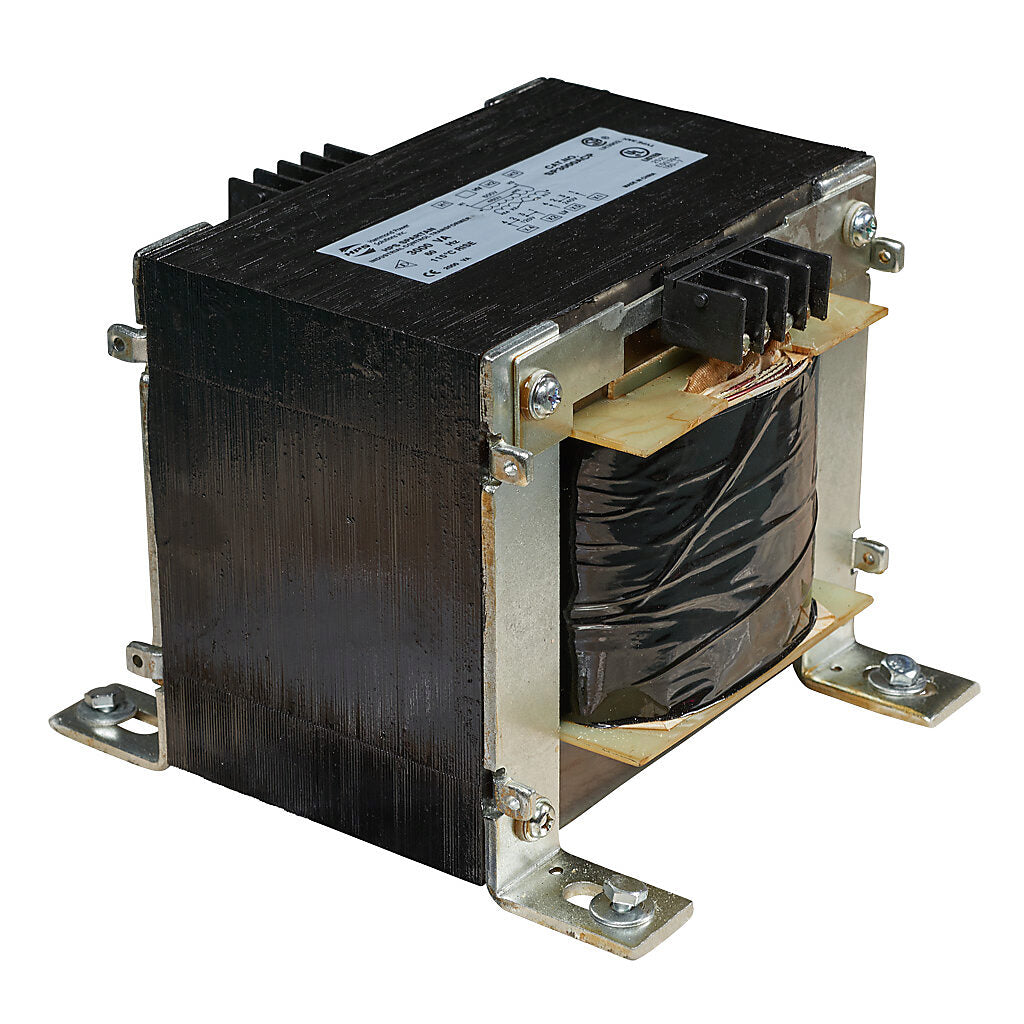

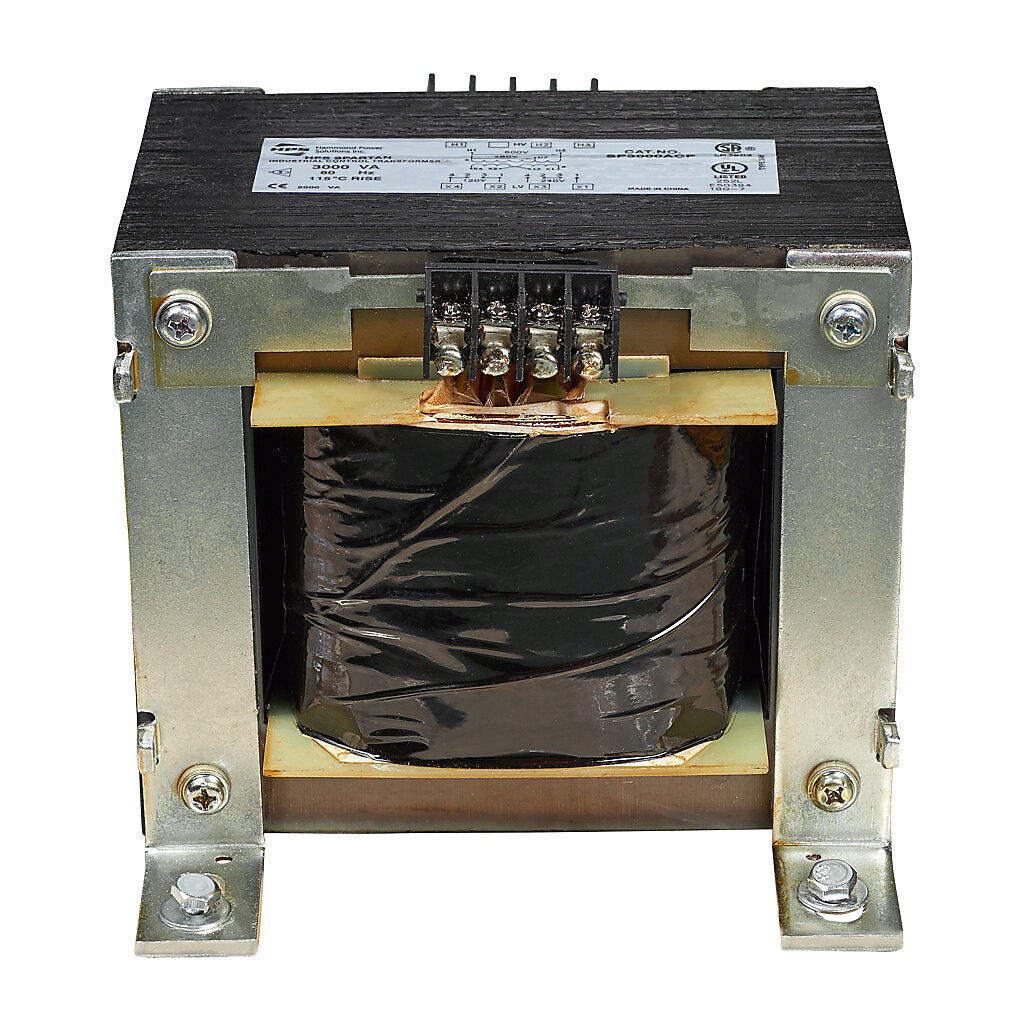

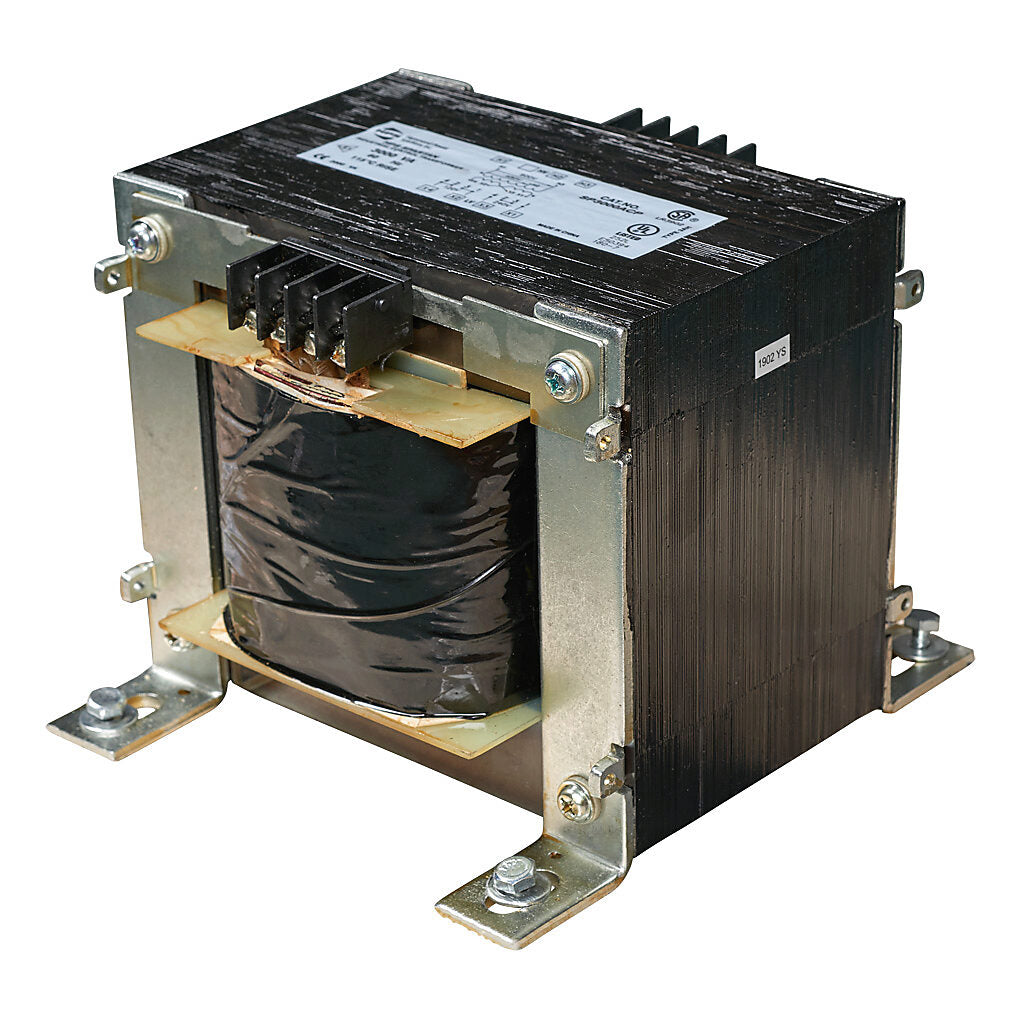

SP3000ACP is a single-phase open core control transformer designed for general purpose industrial and light duty applications. This Hammond Power Solutions unit features a 3 kVA rating, multi-tap primary and secondary windings, and is suitable for HVAC, alarm, signal, motor control, and lighting circuits. The transformer is panel mountable and includes molded terminal blocks for easy installation and maintenance. The SP3000ACP is built with copper wound coils, high dielectric strength insulation, and a bolted core construction for reliable performance. It operates at 60 Hz and is designed for use with 480/600V primary and 120/240V secondary voltages. The unit is vacuum impregnated with polyester resin and oven cured for durability in industrial environments.

• 3 kVA (3000 VA) rating
• Single-phase operation
• Open core design
• Primary voltage: 480/600 VAC
• Secondary voltage: 120/240 VAC
• 60 Hz frequency
• Panel mountable
• Molded terminal blocks
• Copper wound coils
• Bolted core construction
• UL Listed
• CSA Certified
• CE Marked
• NEMA standards compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP3000ACP
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 60Hz
• Primary Voltage : 600, 480
• Primary Connection : Series (V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 115°C
• Insulation Class : 180°C
• EKVA : 3.54195
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block, Terminal Block

Product Data

• UPC : 803423098674
• Weight : 60
• Certification : CSA, UL, CE
