SP250SP - Hammond Power Solutions 250VA Control Transformer 208/416VAC 1-Phase

SP250SP

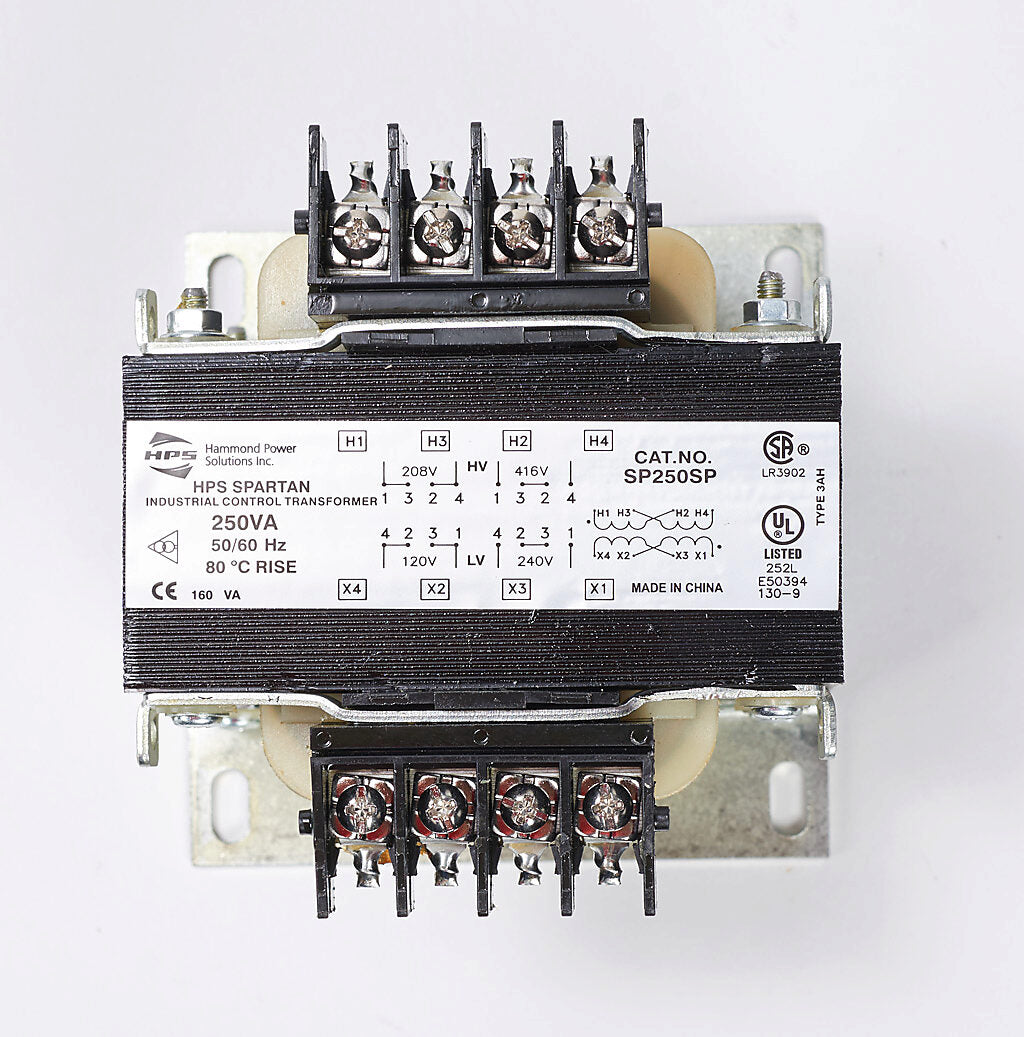

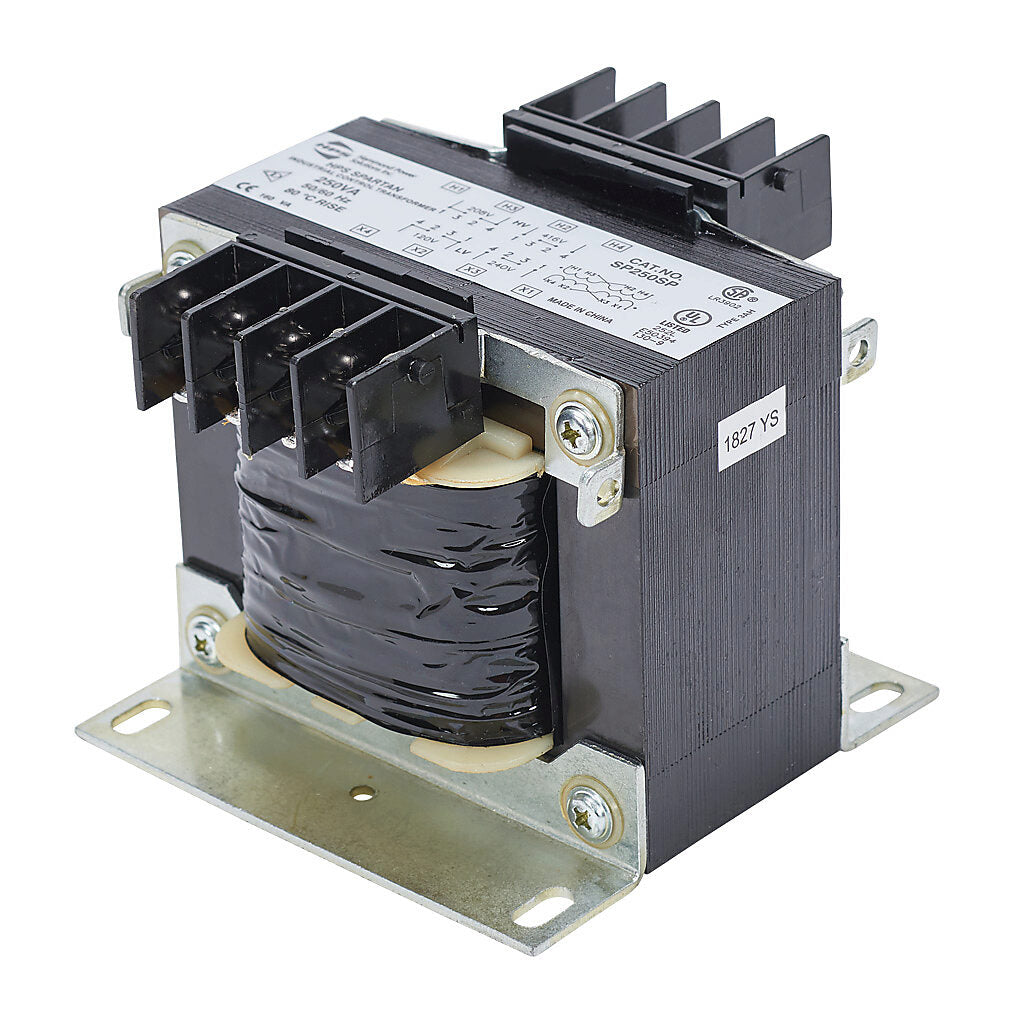

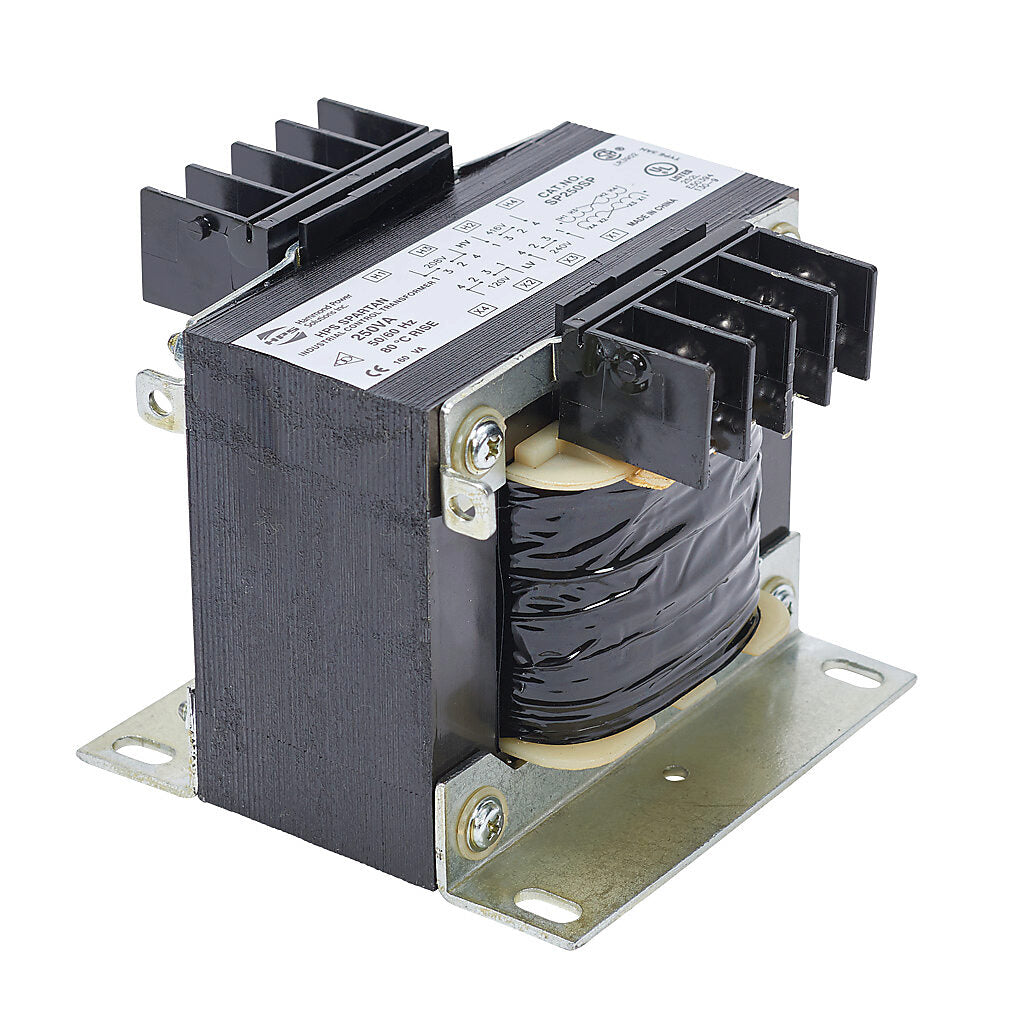

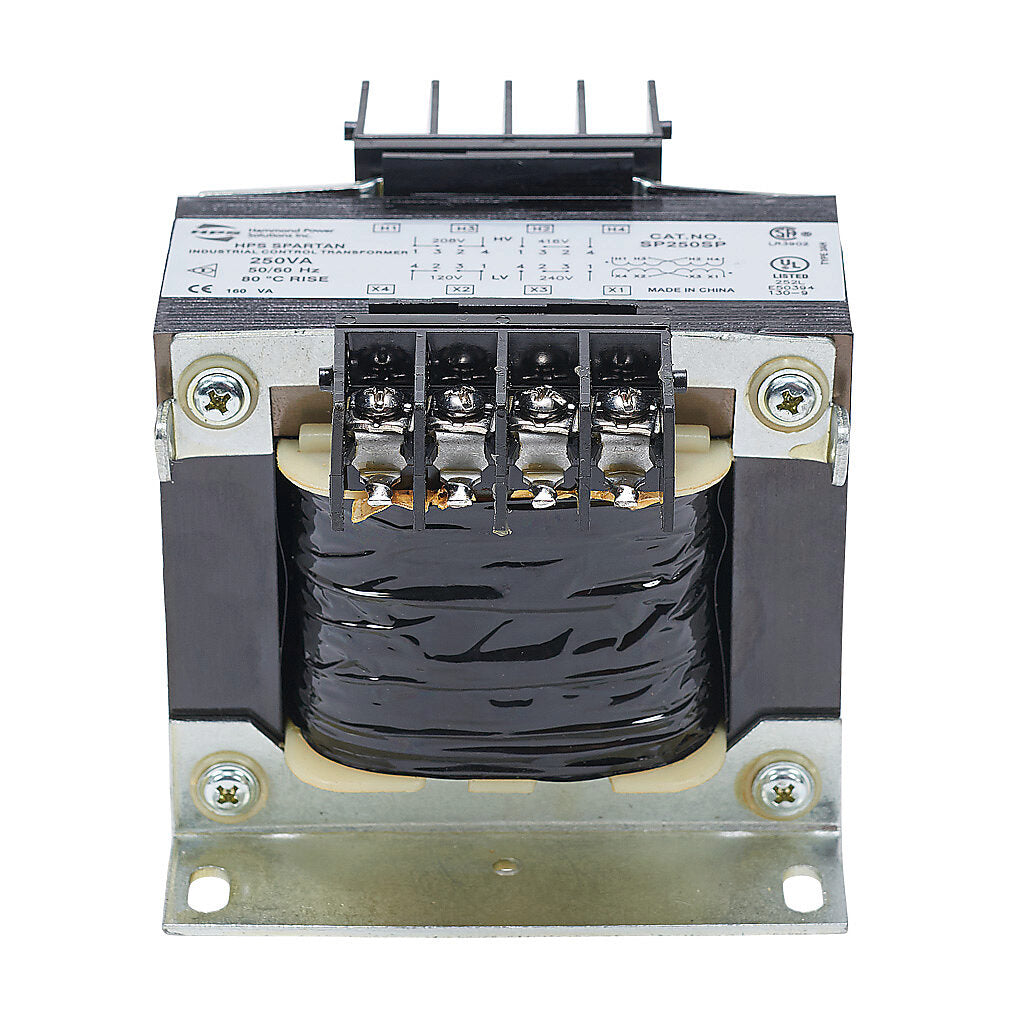

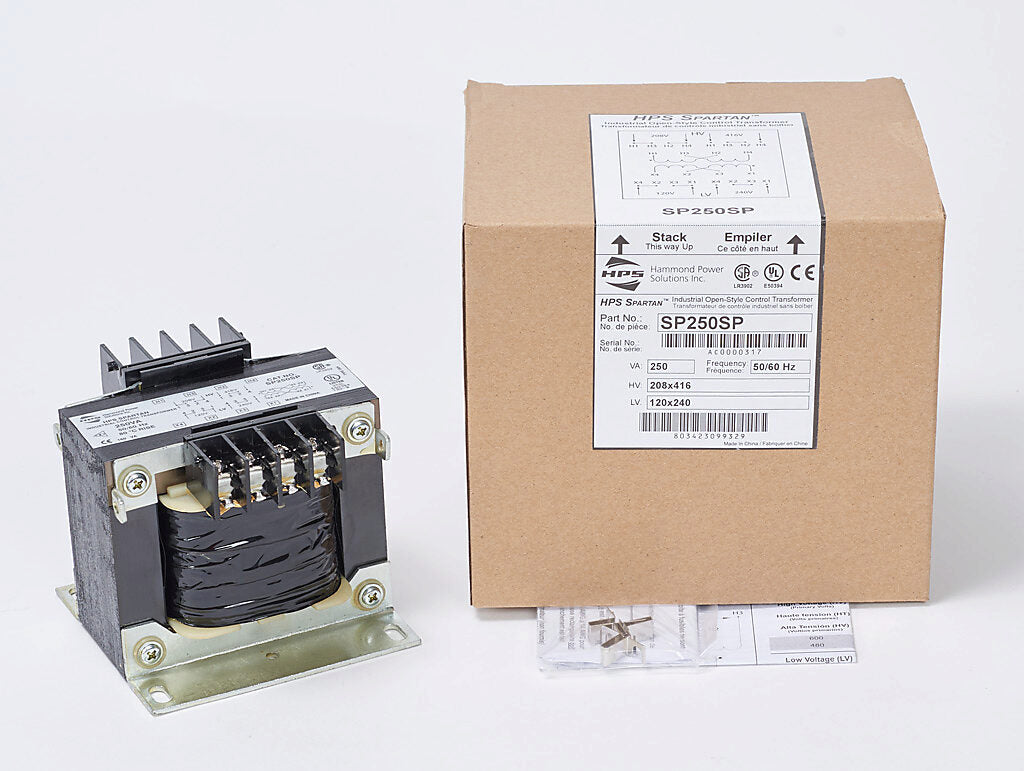

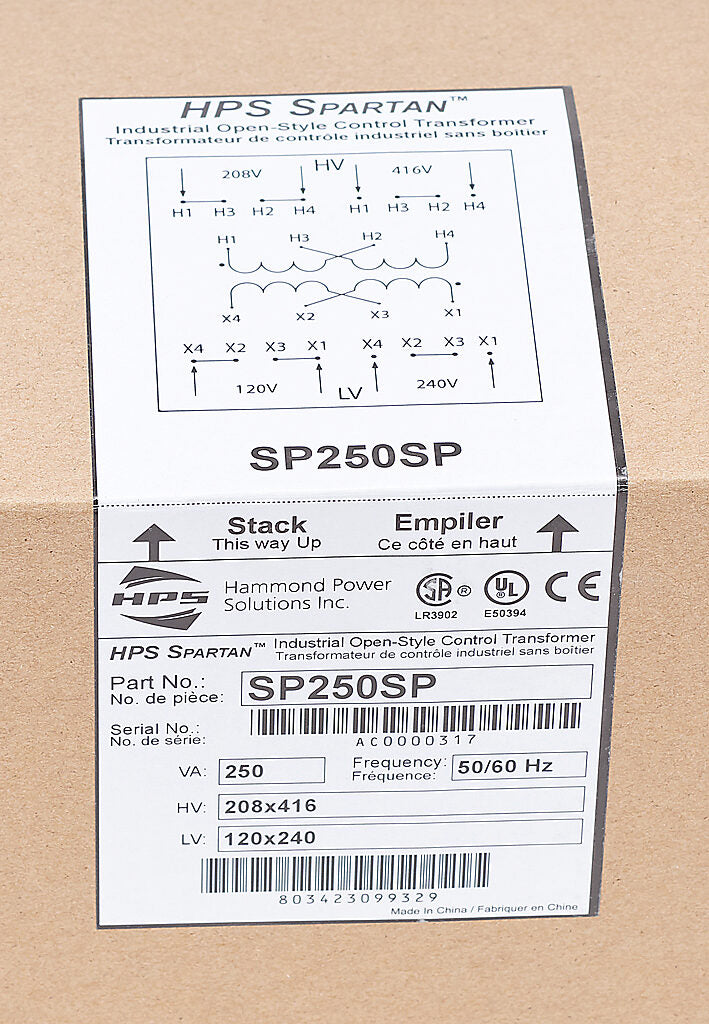

SP250SP is a Hammond Power Solutions HPS Spartan series open core industrial control transformer rated at 250 VA, single-phase, with primary voltage of 208/416 VAC and secondary voltage of 120/240 VAC, suitable for 50/60 Hz applications. This economical control transformer is designed for general purpose, industrial and light duty loads including HVAC, alarm and signal circuits, motor control, and lighting applications. The unit features molded terminal blocks, primary and secondary voltage links/jumpers supplied standard, and optional finger guards and fuse block adapter kit availability.

• Power Rating: 250 VA
• Phase: Single Phase (1-ph)
• Primary Voltage: 208/416 VAC
• Secondary Voltage: 120/240 VAC
• Frequency: 50/60 Hz
• Primary Current: 2.08/1.04 A
• Mounting Type: Panel Mount
• Dimensions: 3.78 inch W x 4.09 inch D x 3.4 inch H
• Mounting Slot: 0.22 inch L x 0.44 inch W
• Weight: 6.5 lbs
• Certifications: UL, CSA, CE
• Insulation System: 130 degrees C (80 degrees C rise)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP250SP
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 208x416
• Primary Connection : Parallel x Series (Vx2V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 0.37031
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block

Product Data

• UPC : 803423099329
• GTIN : 00803423099329
• Weight : 7
• Certification : CSA, UL, CE
