Product Info
- Manufacturer:Hammond Power Solutions
Description
SP250MQMJ

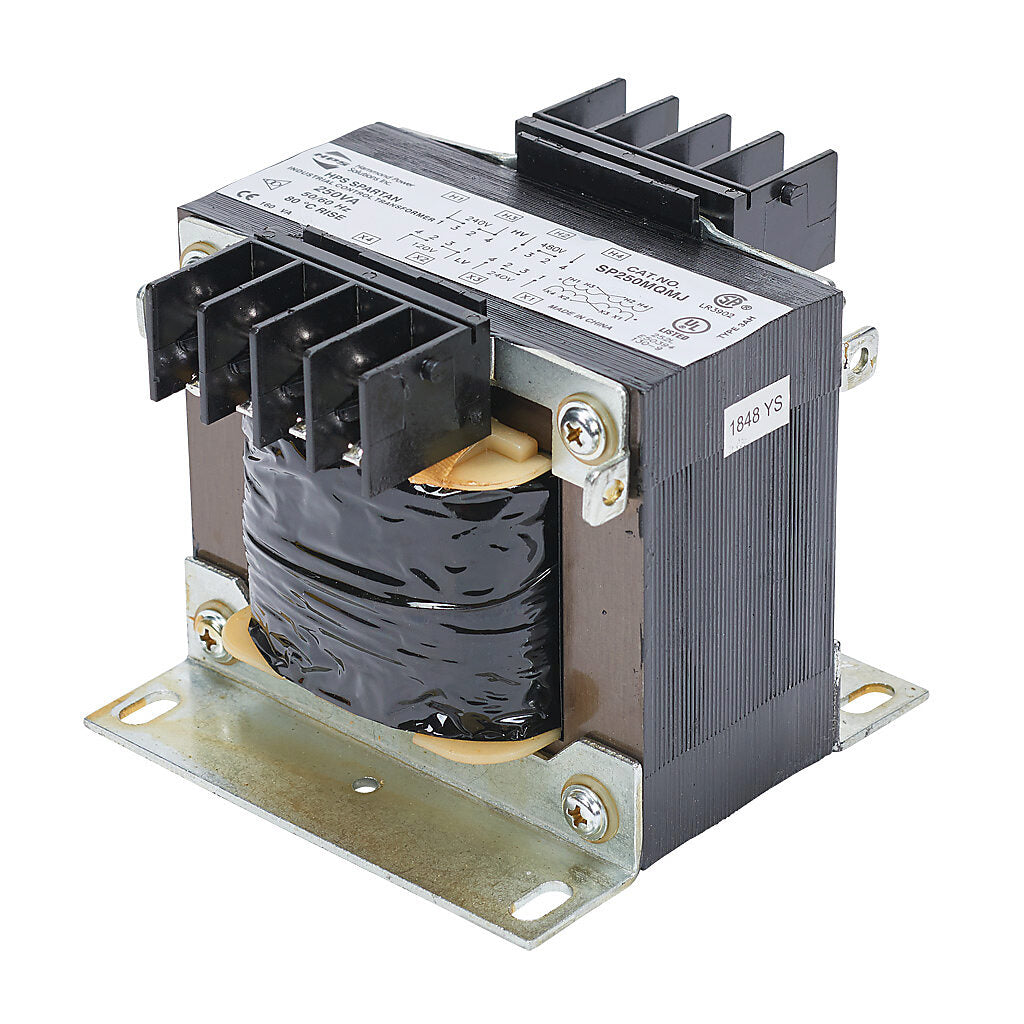

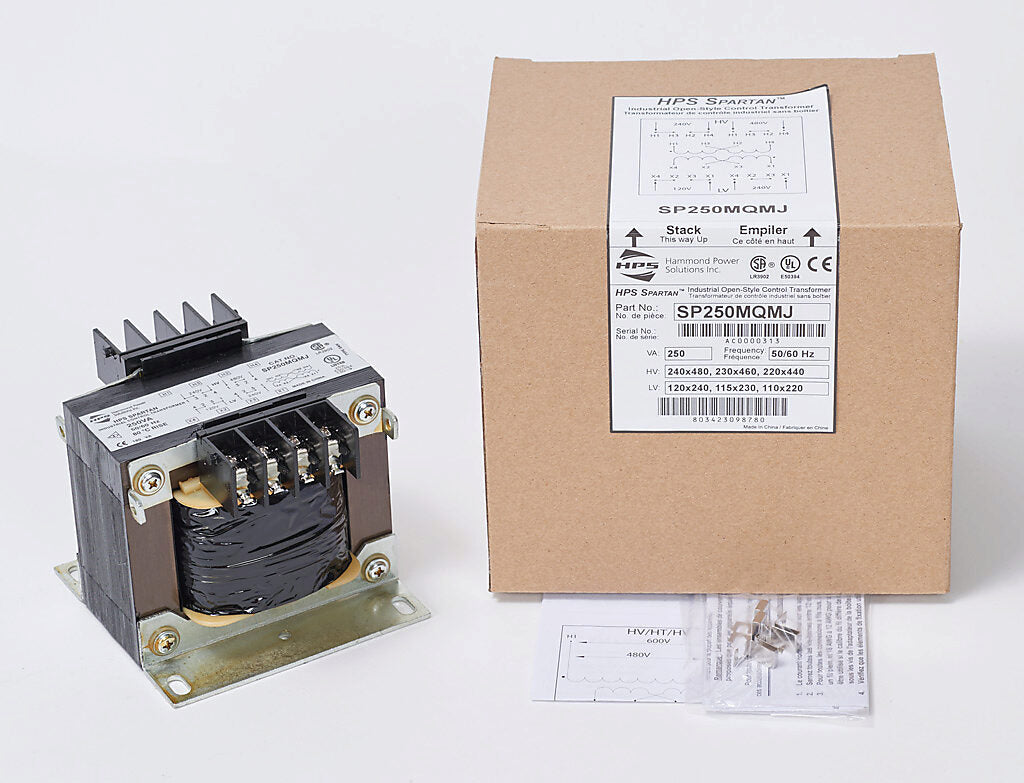

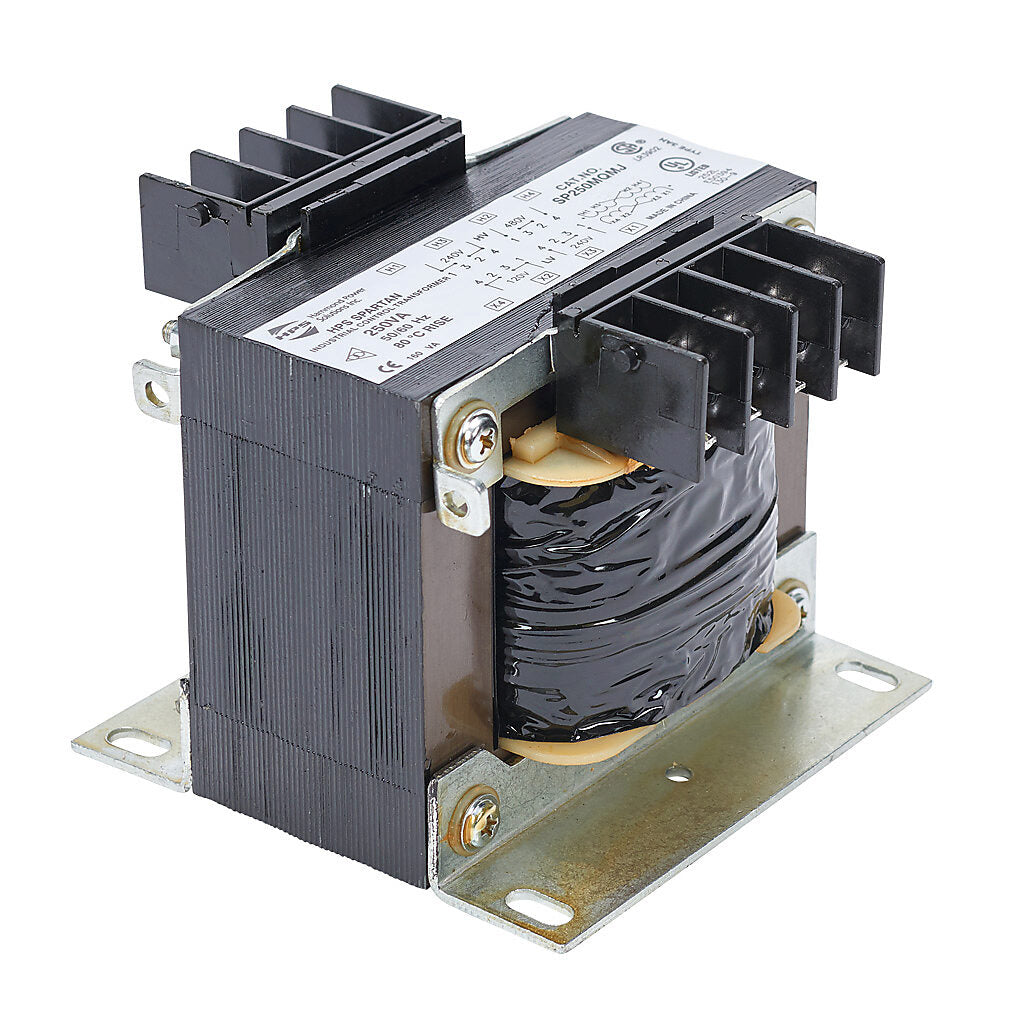

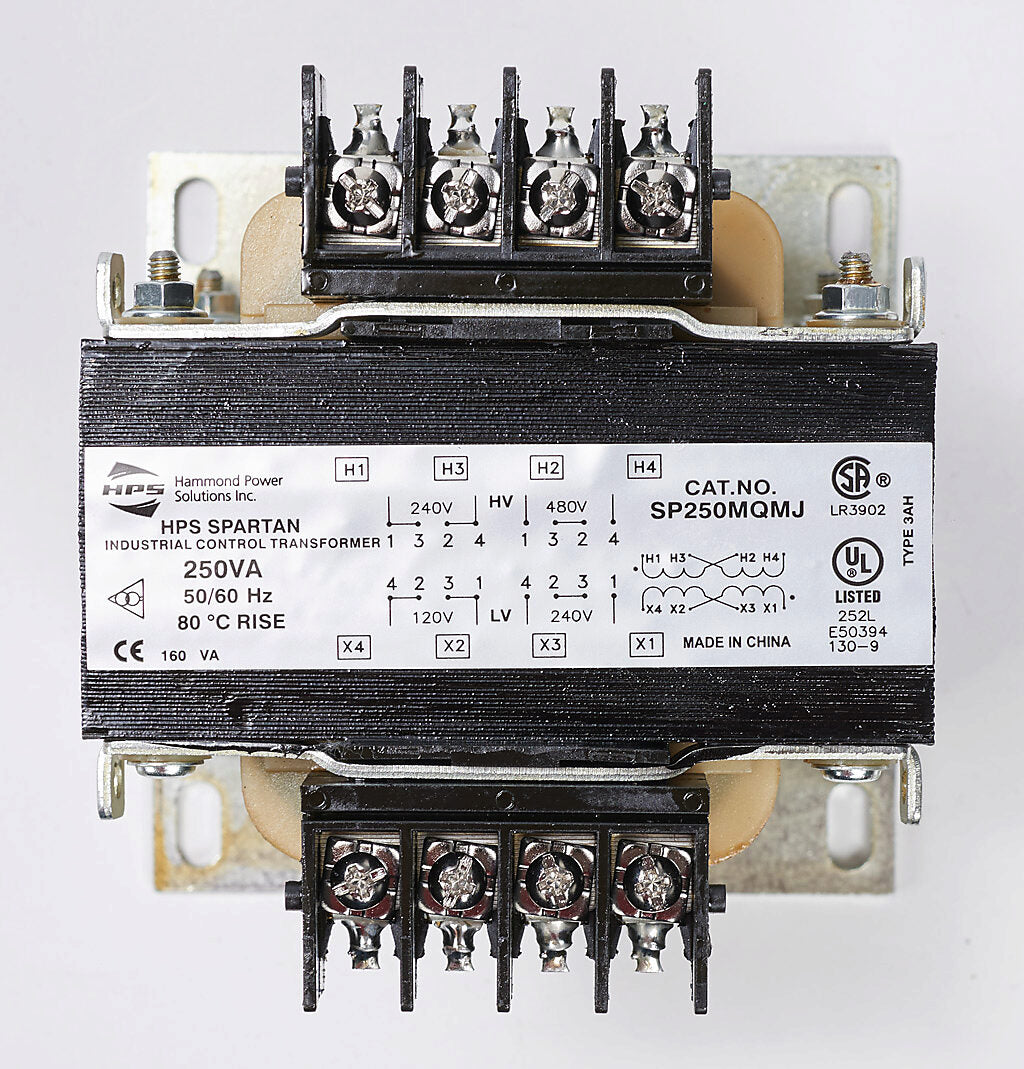

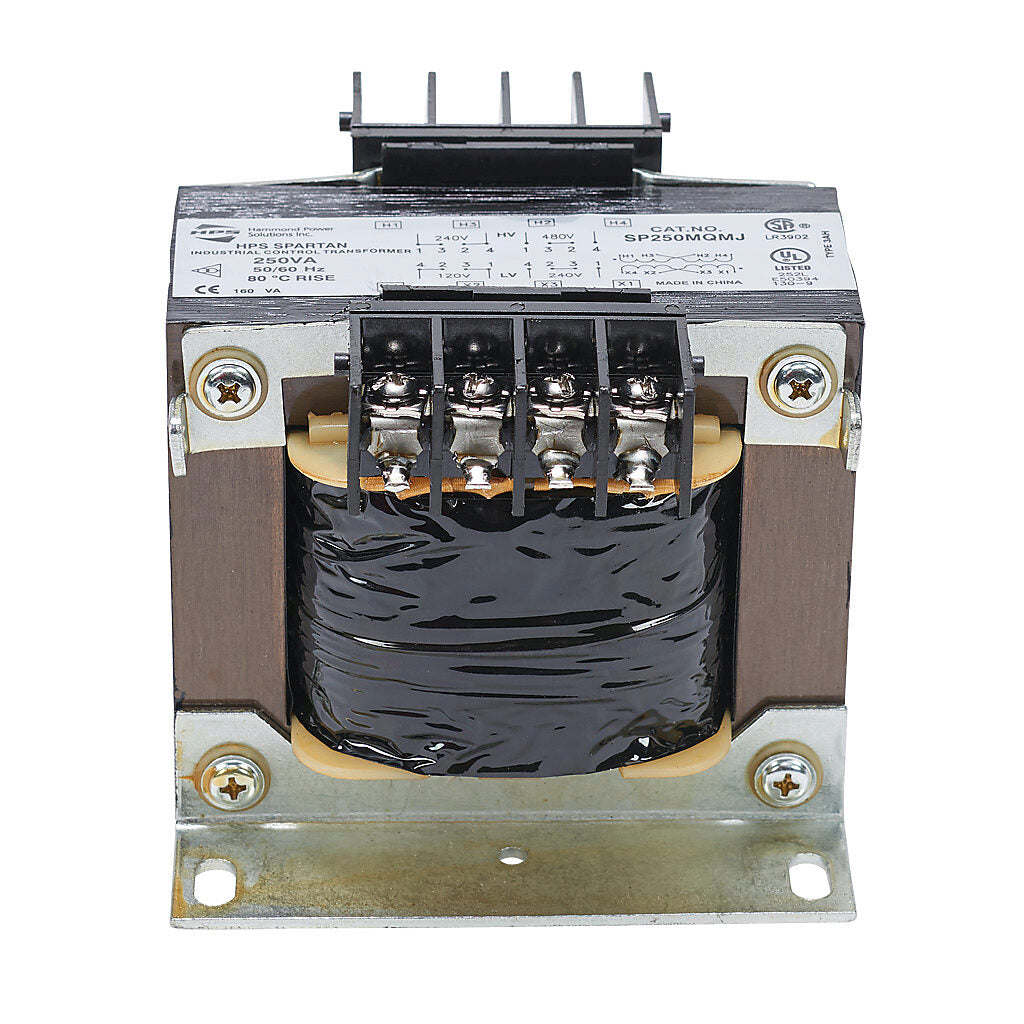

SP250MQMJ is a Hammond Power Solutions 250 VA, 1-phase control transformer designed for industrial applications.
This open core and coil transformer features a primary voltage of 240/480 VAC and a secondary voltage of 120/240 VAC, operating at 50/60 Hz frequency. It is panel mountable and suitable for general purpose, industrial, and light duty loads. The transformer includes molded terminal blocks and complies with UL, CSA, and CE certifications.
- Power Rating: 250 VA
- Phase: Single-phase
- Primary Voltage: 240/480 VAC
- Secondary Voltage: 120/240 VAC
- Frequency: 50/60 Hz
- Mounting Type: Panel mount
- Enclosure Type: Open core and coil
- Dimensions: 3.78 in W x 4.09 in D x 3.4 in H
- Certifications: UL, CSA, CE
- Terminal Type: Molded terminal blocks
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: SP250MQMJ
- Manufacturer : Hammond Power Solutions
- Brand : Hammond Power Solutions
- Category : Transformer
- Phase : 1
- Enclosure Grade : N / A
- Frequency : 50/60Hz
- Primary Voltage : 240x480
- Primary Connection : Parallel x Series (Vx2V)
- Secondary Voltage : 120x240
- Secondary Connection : Parallel x Series (Vx2V)
- Material : Copper
- Temperature Rise : 80°C
- Insulation Class : 130°C
- EKVA : 0.37031
- Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Enclosure Type : Core & Coil
- Nameplate : Standard
- Vector Configuration : 180°
- Seismic Standard Value : IBC 2018
- OSHPD : Yes
- Seismic IP : lp=1.5
- Seismic ZH : z/h=1
- Seismic SDS Value : Sds=2.0
- Primary Termination (Std) : Terminal Block
Product Data
- UPC : 803423098780
- GTIN : 00803423098780
- Weight : 7
- Certification : CSA, UL, CE
