Product Info
- Manufacturer:Hammond Power Solutions
Description
SP250ACP

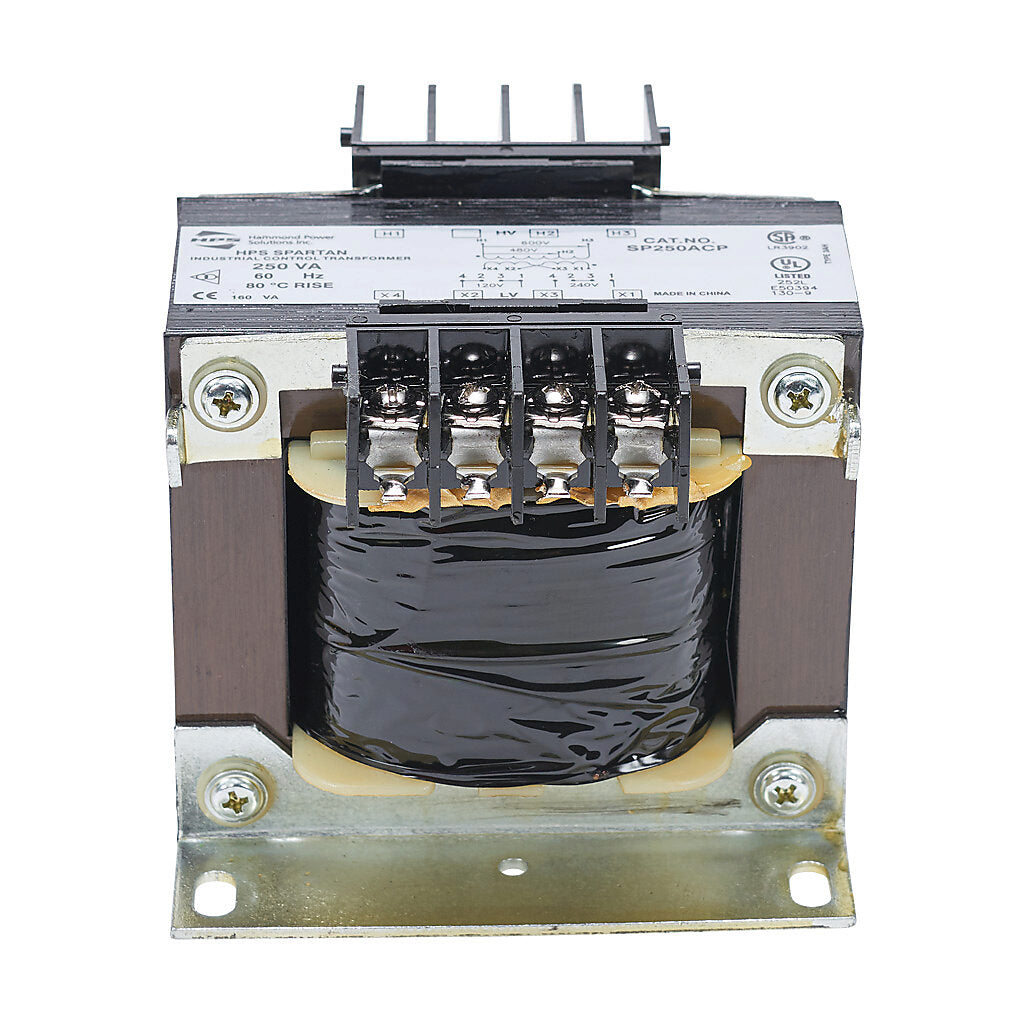

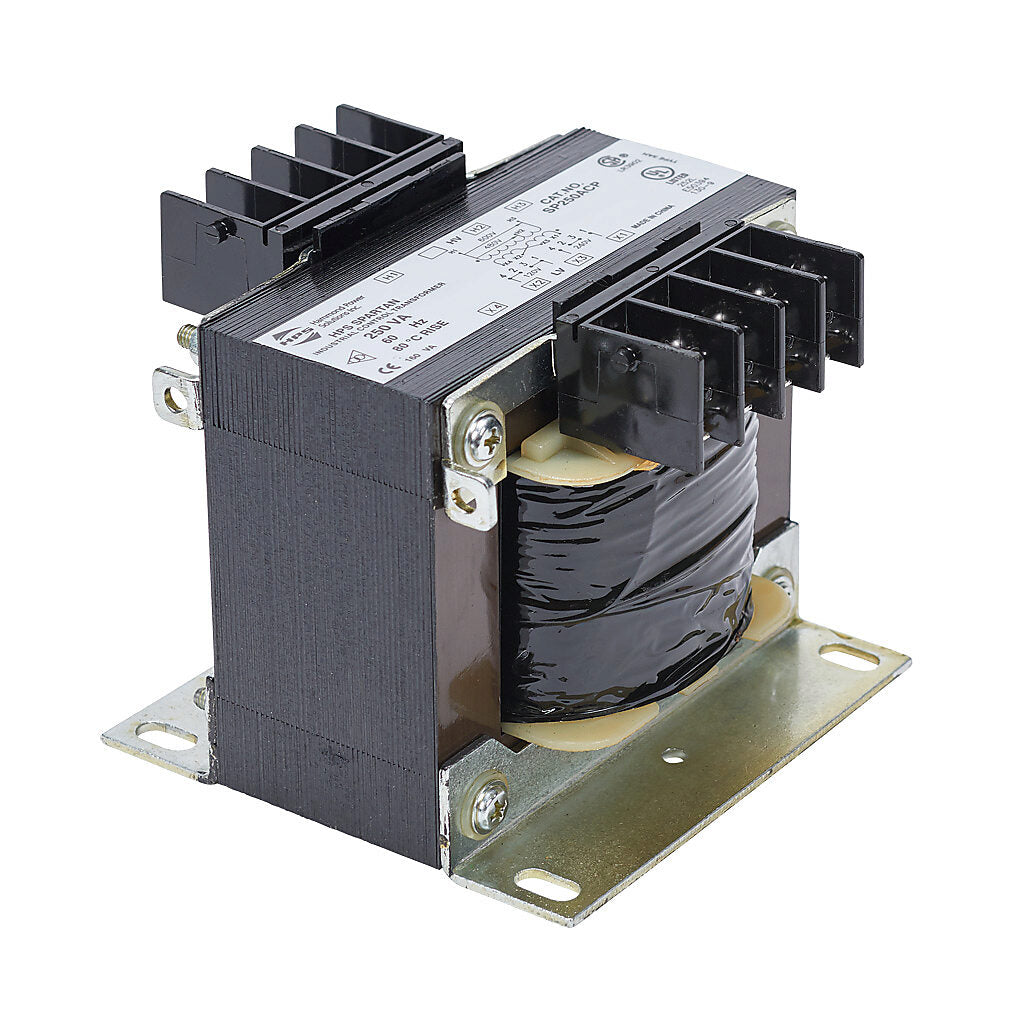

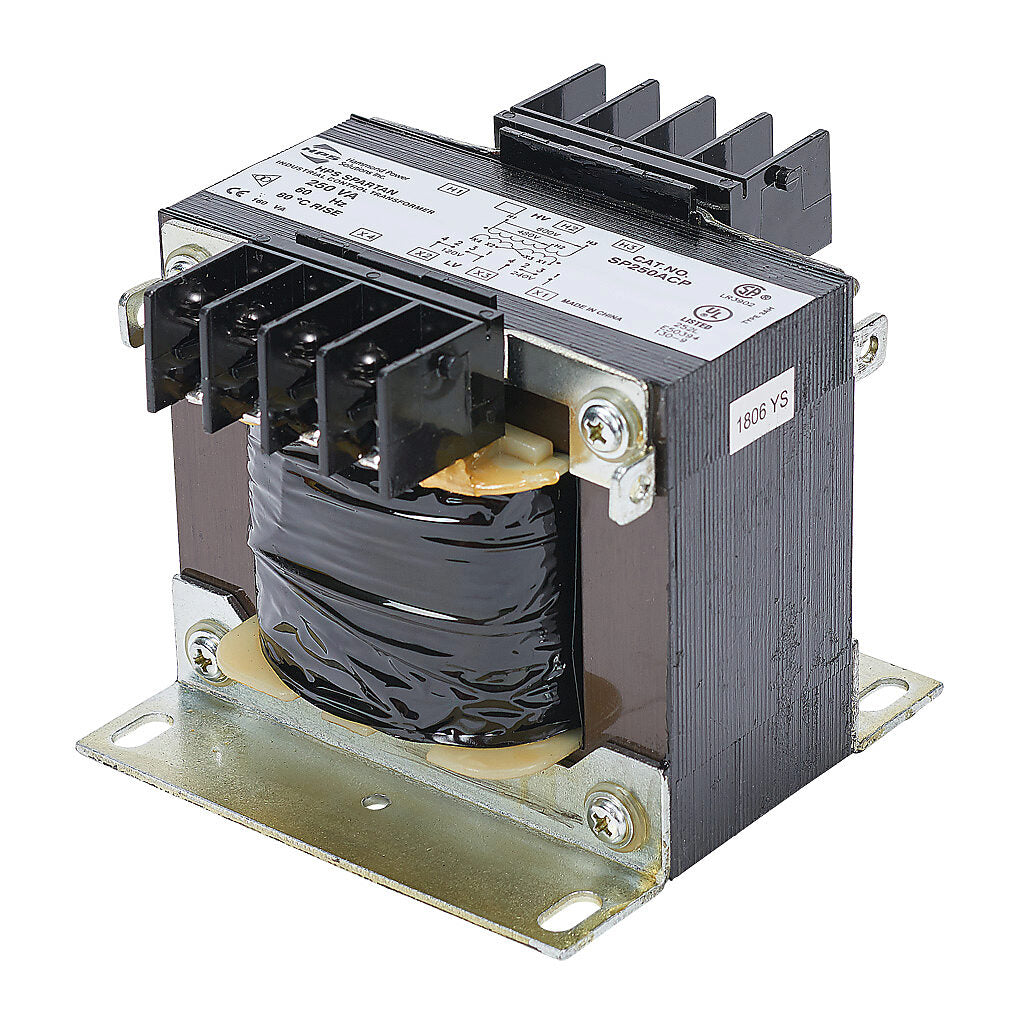

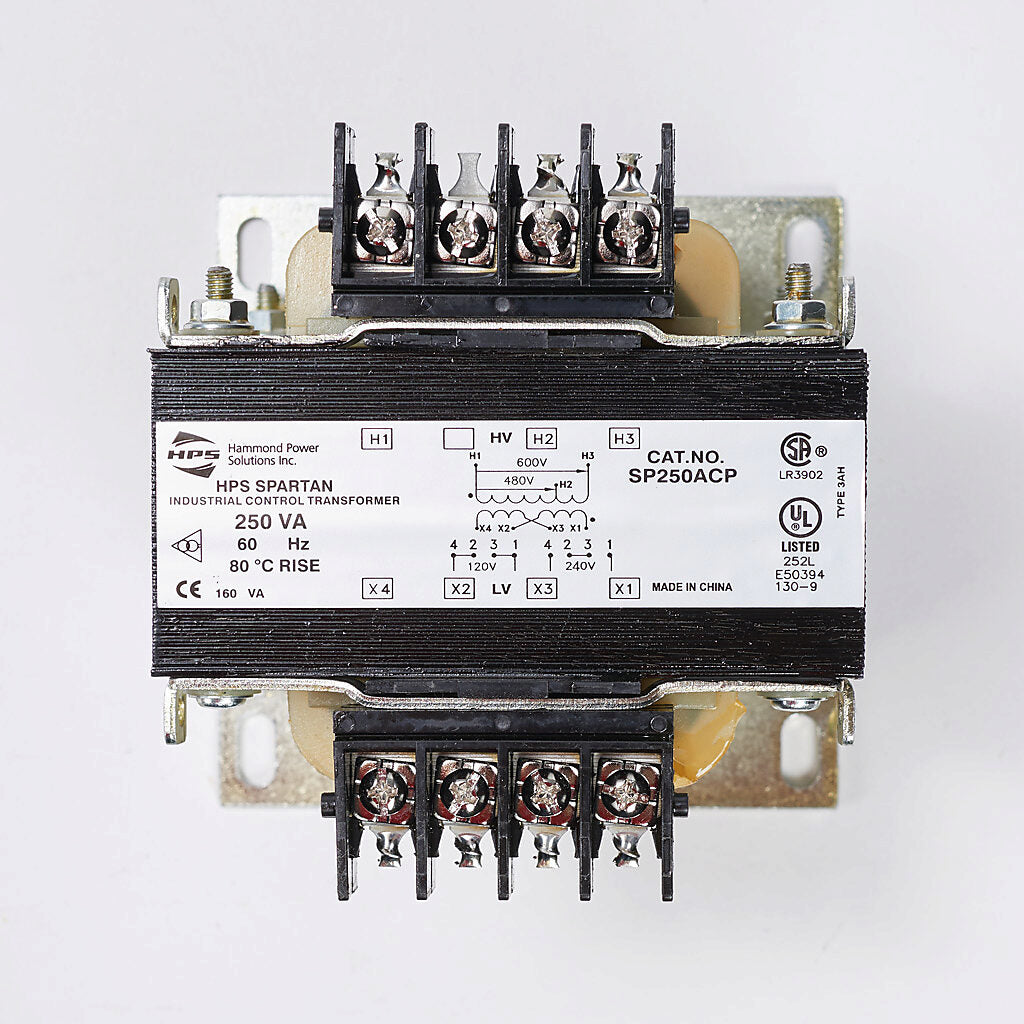

Hammond Power Solutions SP250ACP is a single-phase core and coil transformer designed for industrial power distribution applications. This unit features dual primary voltage capability of 600V/480V with series connection and secondary output of 120x240V with parallel x series configuration, operating at 60Hz frequency with copper windings. The transformer is constructed with 80°C temperature rise and 130°C insulation class, featuring standard terminal block primary terminations and 180° vector configuration. It meets stringent seismic compliance standards including OSHPD and IBC 2018 with Sds=2.0, z/h=1, and lp=1.5 parameters. Typical applications include industrial control systems, machinery power supplies, and electrical distribution networks requiring reliable voltage transformation. Key Features & Specifications
- Type: Single-Phase Core & Coil Transformer
- Primary Voltage: 600V/480V
- Secondary Voltage: 120x240V
- Frequency: 60Hz
- Material: Copper
- Temperature Rise: 80°C
- Insulation Class: 130°C
- EKVA: 0.37031
- Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Primary Connection: Series (V)
- Secondary Connection: Parallel x Series (Vx2V)
- Vector Configuration: 180°
- Primary Termination: Terminal Block
Specifications
- Part Number: SP250ACP
- Manufacturer : Hammond Power Solutions
- Brand : Hammond Power Solutions
- Category : Transformer
- Phase : 1
- Enclosure Grade : N / A
- Frequency : 60Hz
- Primary Voltage : 600, 480
- Primary Connection : Series (V)
- Secondary Voltage : 120x240
- Secondary Connection : Parallel x Series (Vx2V)
- Material : Copper
- Temperature Rise : 80°C
- Insulation Class : 130°C
- EKVA : 0.37031
- Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Enclosure Type : Core & Coil
- Nameplate : Standard
- Vector Configuration : 180°
- Seismic Standard Value : IBC 2018
- OSHPD : Yes
- Seismic IP : lp=1.5
- Seismic ZH : z/h=1
- Seismic SDS Value : Sds=2.0
- Primary Termination (Std) : Terminal Block, Terminal Block
Product Data
- UPC : 803423098605
- Weight : 6
- Certification : CSA, UL, CE
