SP2000MQMJ - Hammond Power Solutions 2KVA 1-Phase Industrial Control Transformer 240/480V

SP2000MQMJ

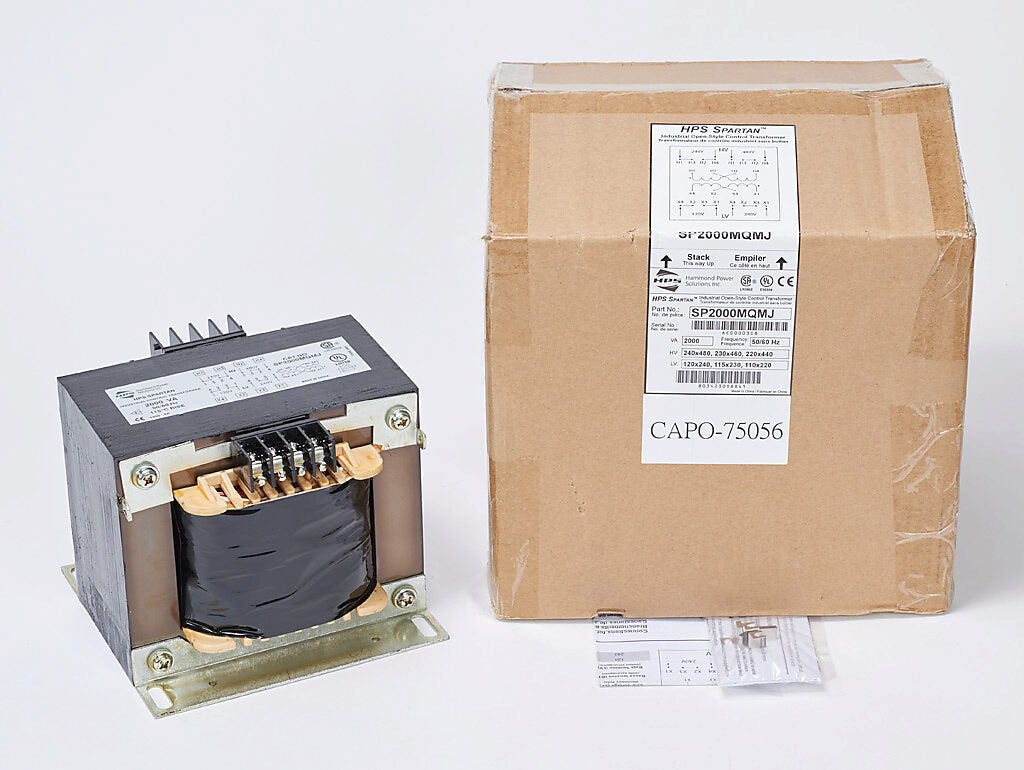

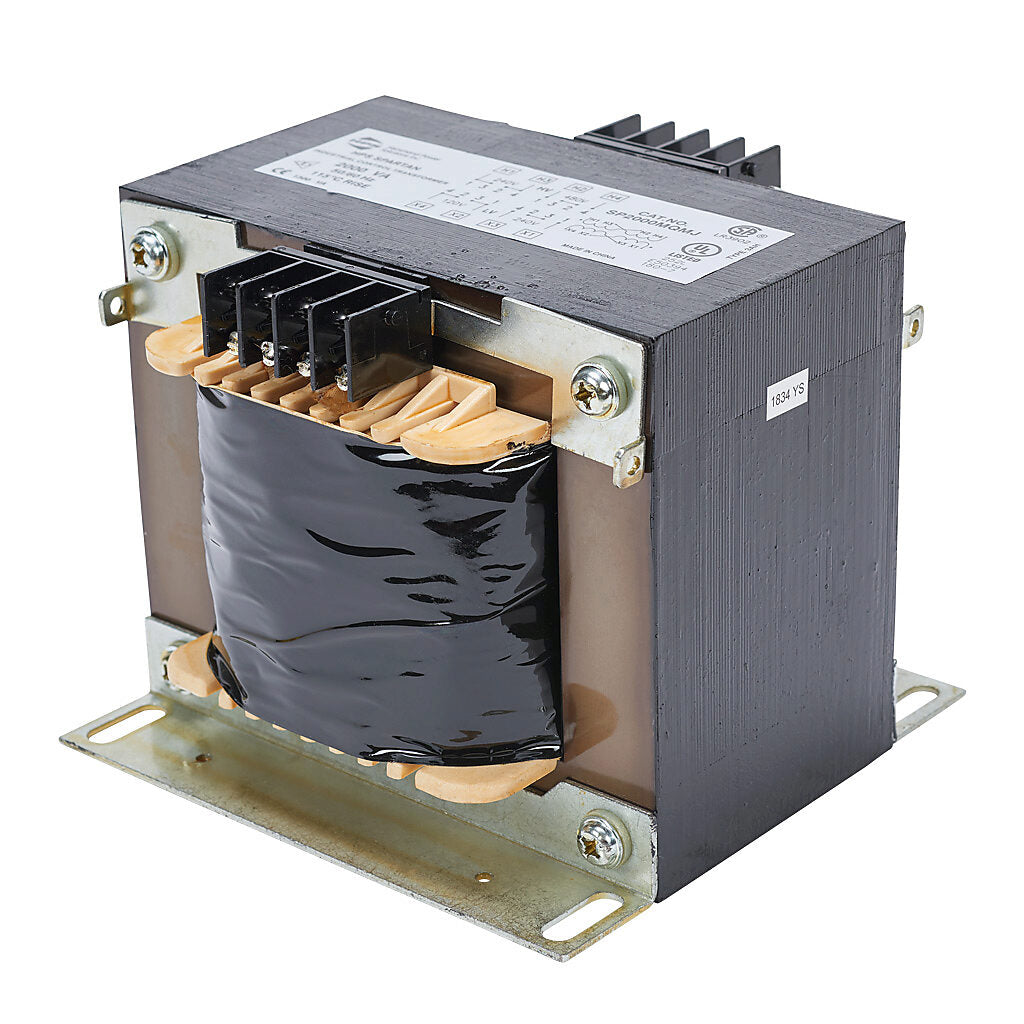

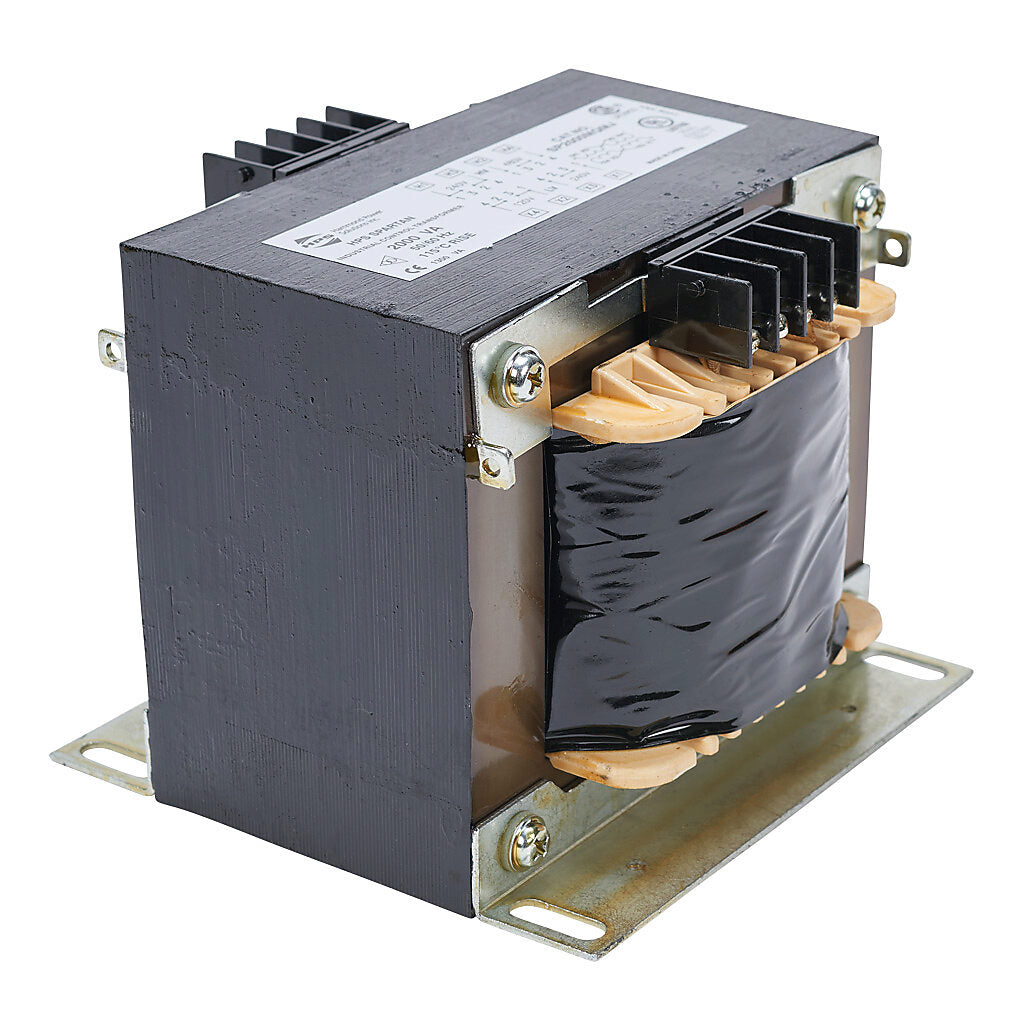

SP2000MQMJ is a 2 KVA, 1-phase industrial control transformer from Hammond Power Solutions designed for general purpose, industrial, and light duty applications. This open core transformer features multi-voltage primary and secondary configurations, making it suitable for HVAC systems, signal and alarm circuits, motor control, lighting, and circuit isolation where high inrush or machine tool duty is not required.Key Specifications

• Volt Amps: 2 KVA
• Phase: 1
• Primary Voltage: 240/480, 220/440, 230/460 VAC
• Secondary Voltage: 120/240, 110/220, 115/230 VAC
• Frequency: 50/60 Hz
• Copper wound coils with high dielectric strength insulation

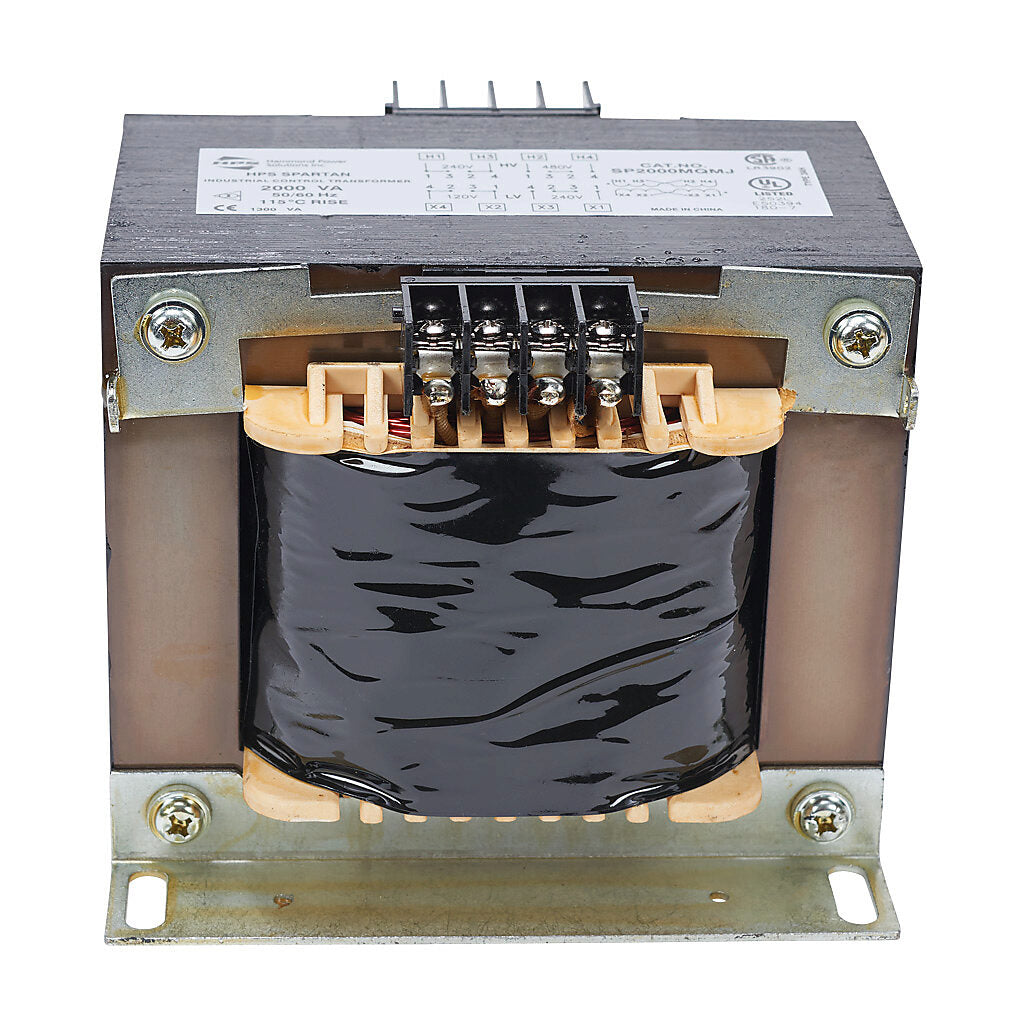

• Molded terminal blocks with combination slot/Phillips screw connections
• Bolted core construction with bolt-on mounting brackets
• CSA Certified, UL Listed, CE Marked, and RoHS Compliant
• Meets NEMA standards
• Vacuum impregnated with polyester resin

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP2000MQMJ
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz

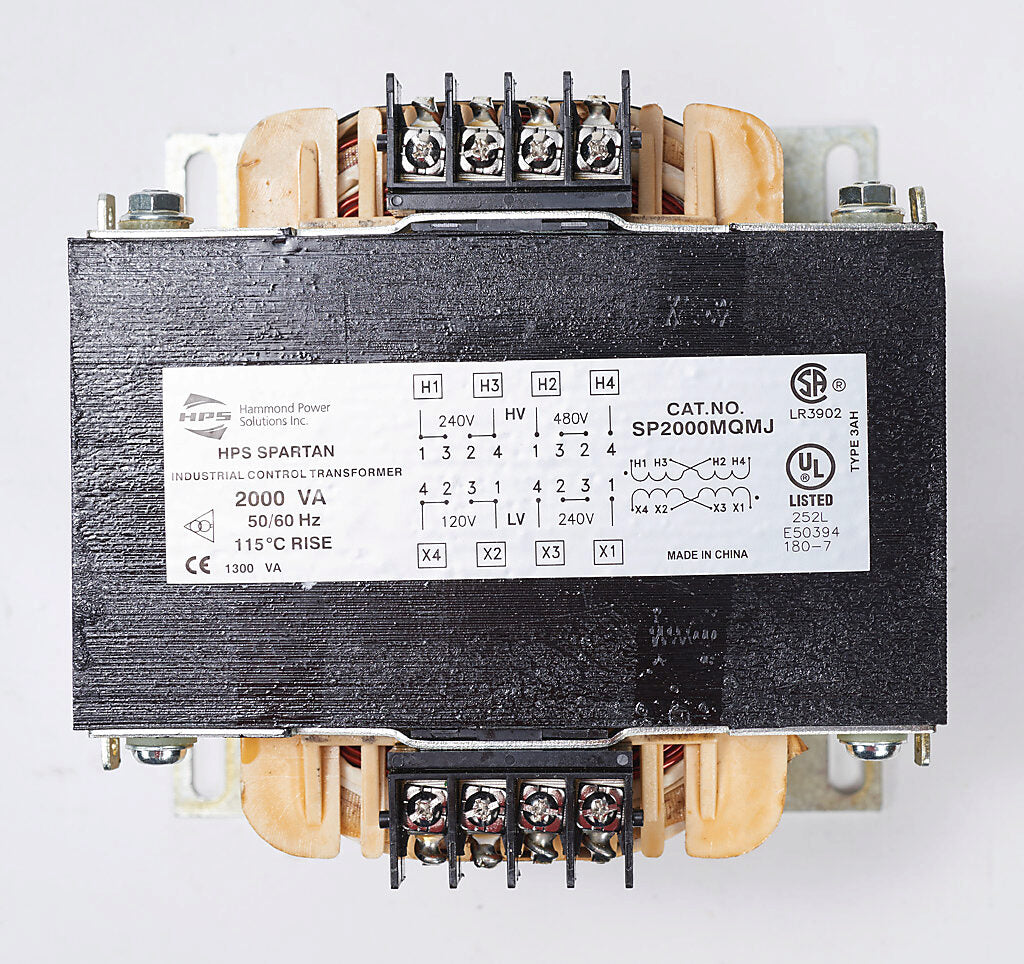

• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 115°C
• Insulation Class : 180°C
• EKVA : 2.3613
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block

Product Data

• UPC : 803423098841
• Weight : 35
• Certification : CSA, UL, CE
