SP2000ACP - Hammond Power Solutions 2 kVA 1-Phase 600/480V to 120/240V Control Transformer Panel Mount

SP2000ACP

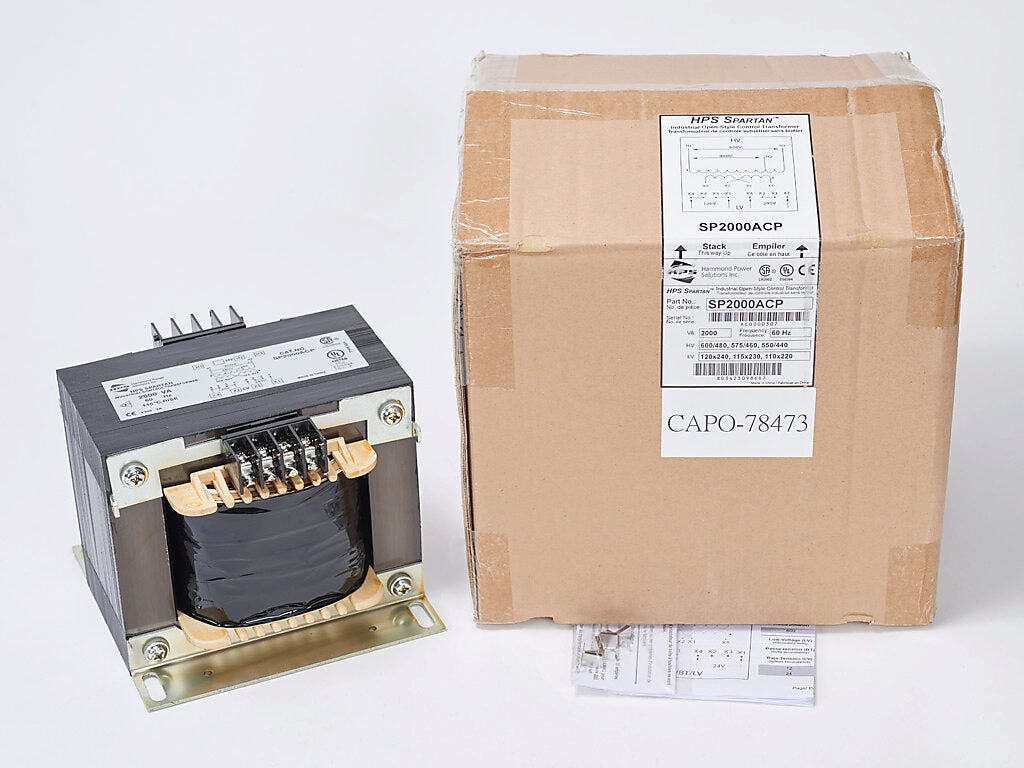

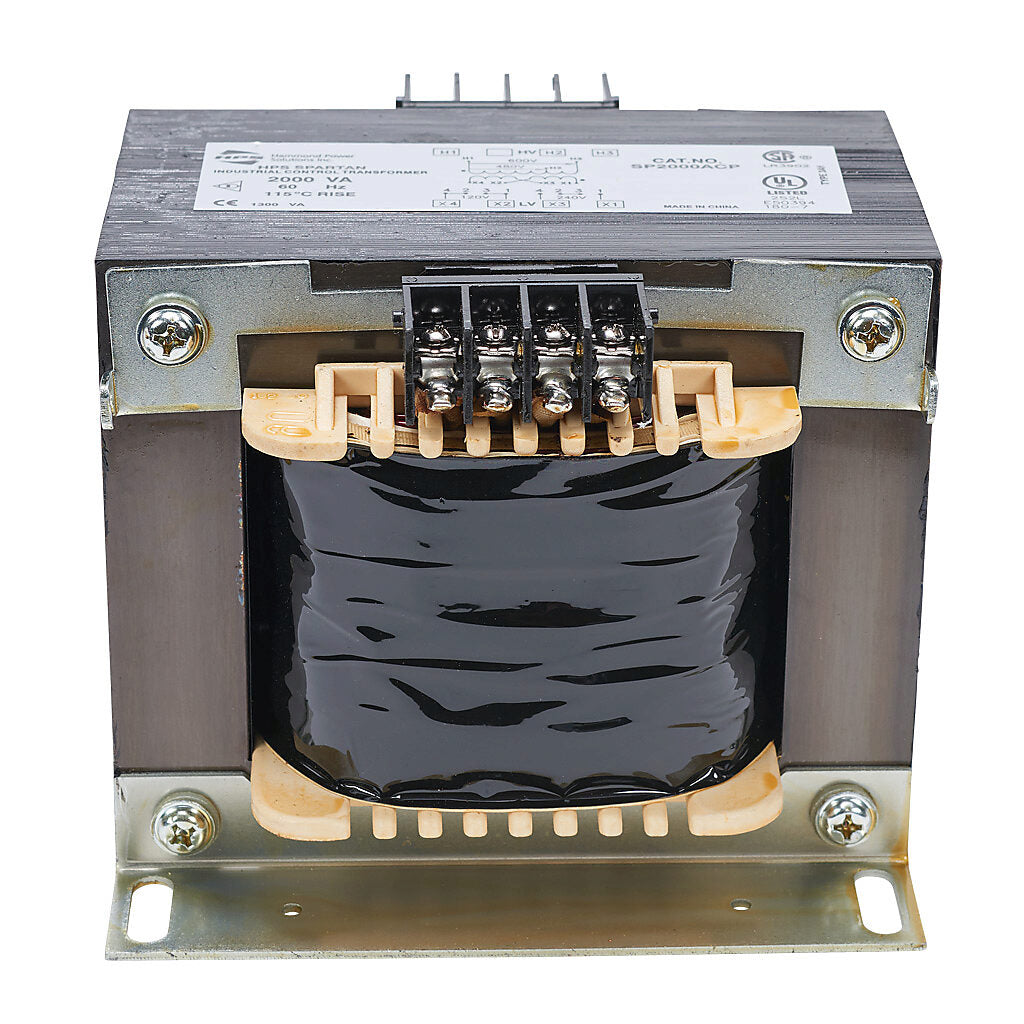

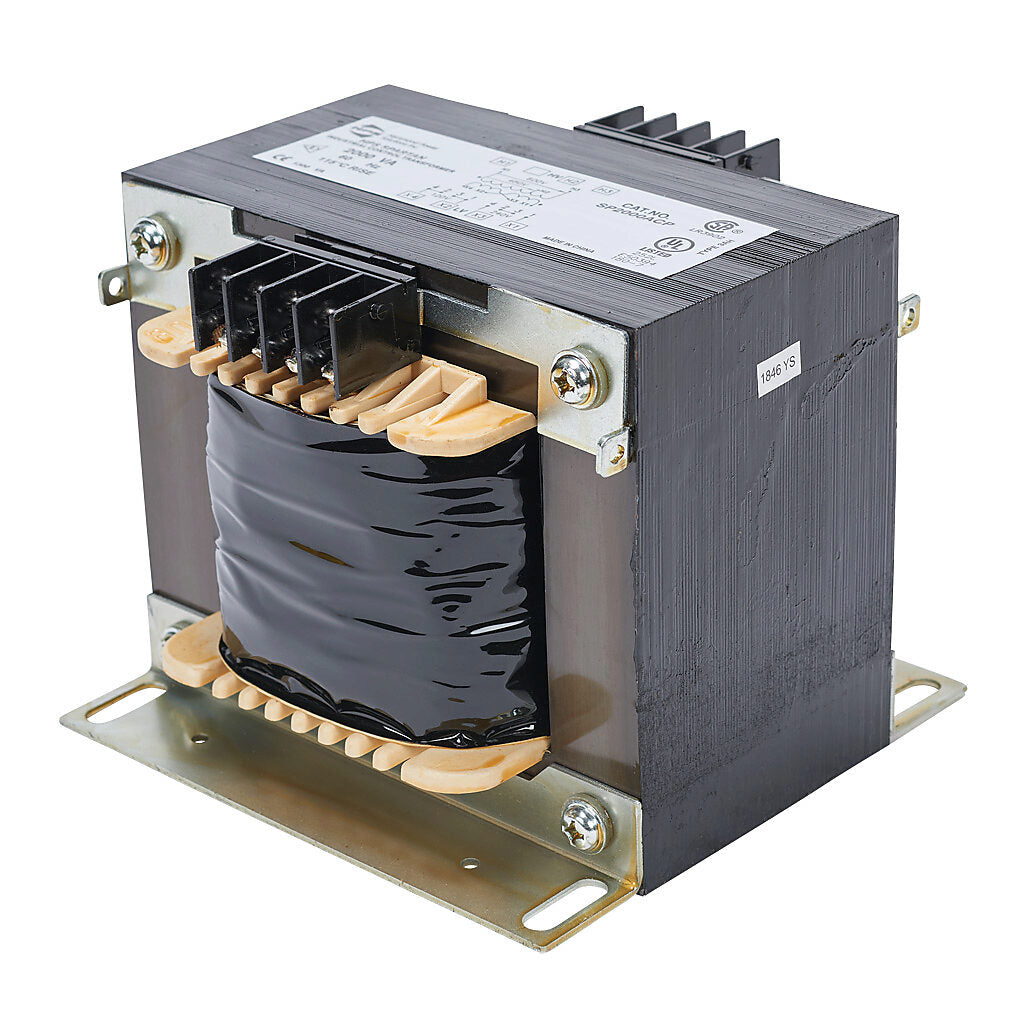

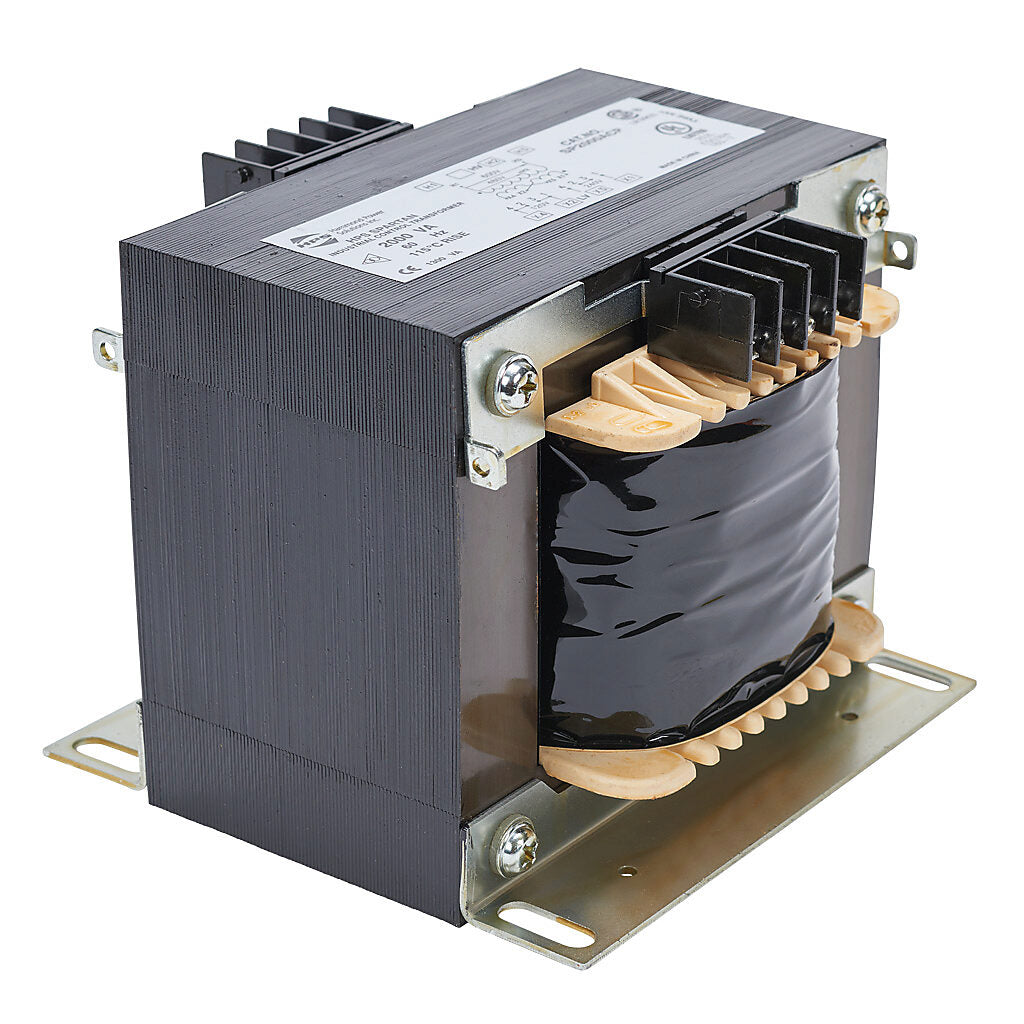

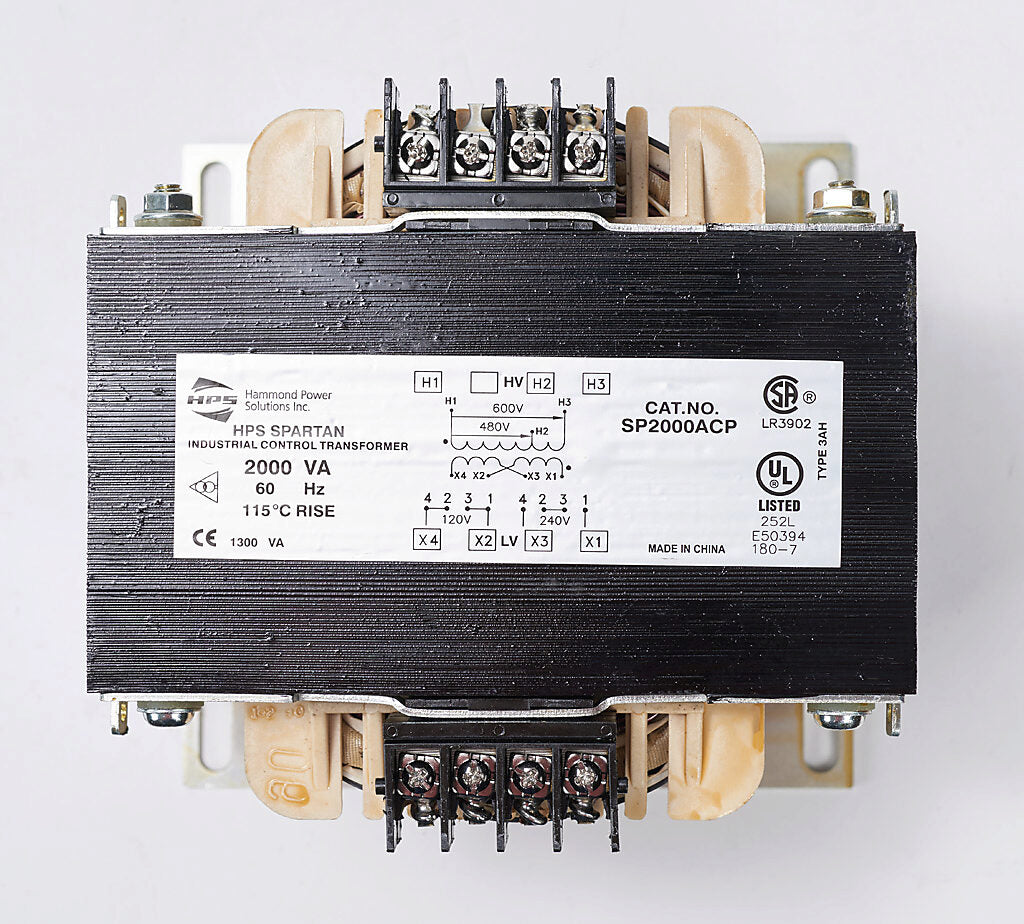

SP2000ACP is a 2 kVA, 1-phase control transformer by Hammond Power Solutions designed for industrial applications with panel mount configuration.This open core control transformer features a primary voltage rating of 600/480 VAC and a secondary voltage of 120/240 VAC at 60 Hz. It includes copper wound coils with high dielectric strength insulation and bolted core construction. The unit is vacuum impregnated with polyester resin and oven cured for durability. It comes standard with primary and secondary voltage links/jumpers and a solid terminal block with combination screw connections. The transformer is seismically qualified according to IBC 2018 and ASCE 7-10 standards.

Key Specifications
• Power Rating: 2 kVA (2000 VA)
• Phase: Single-phase
• Primary Voltage: 600/480 VAC
• Secondary Voltage: 120/240 VAC
• Frequency: 60 Hz
• Mounting Type: Panel mount
• Construction: Open core, bolted core
• Coil Material: Copper wound
• Insulation: High dielectric strength, vacuum impregnated polyester resin
• Terminal Block: Molded with combination screw connections
• Seismic Qualification: Complies with IBC 2018 and ASCE 7-10
• Certifications: UL, CSA, CE, IEC 61558
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: SP2000ACP
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 60Hz
• Primary Voltage : 600, 480
• Primary Connection : Series (V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 115°C
• Insulation Class : 180°C
• EKVA : 2.3613
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block, Terminal Block



Product Data

• UPC : 803423098667
• Weight : 34
• Certification : CSA, UL, CE
