SP150PR - Hammond Power Solutions 150VA 120/240V Control Transformer

SP150PR

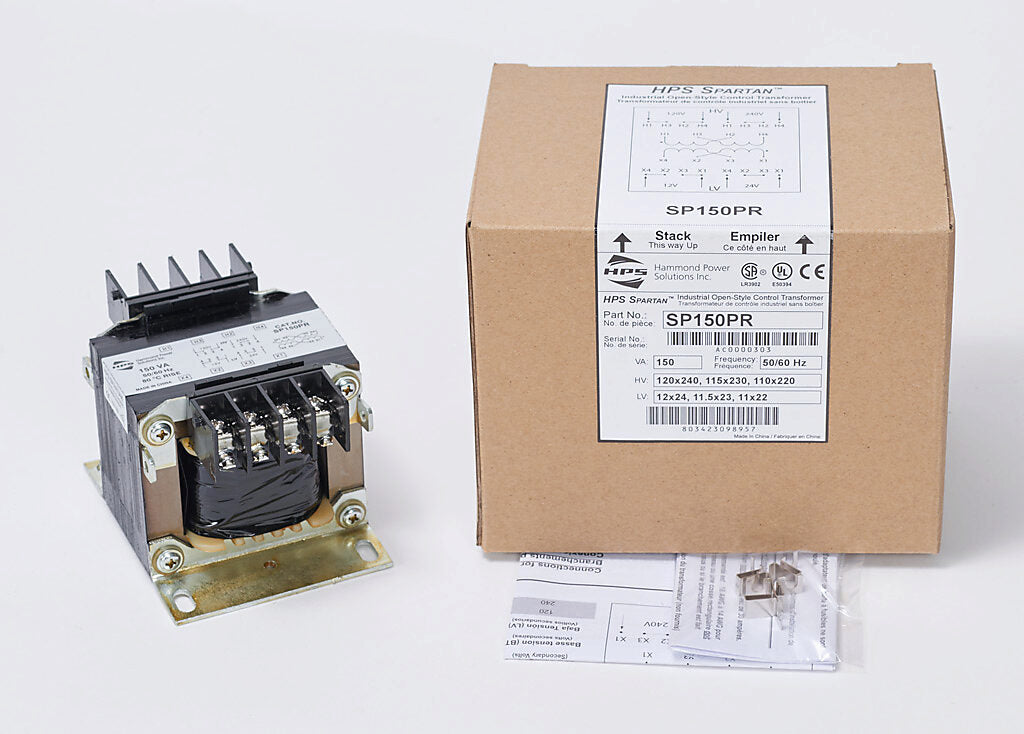

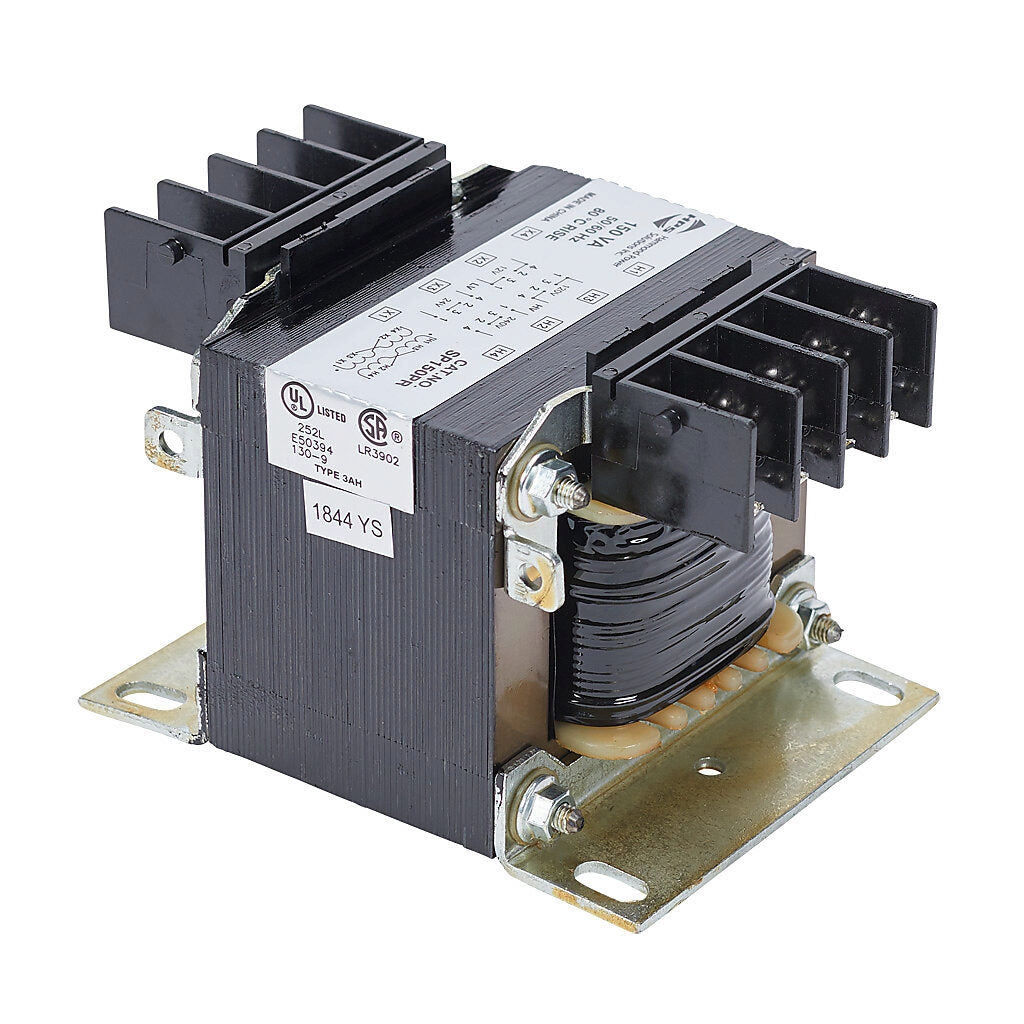

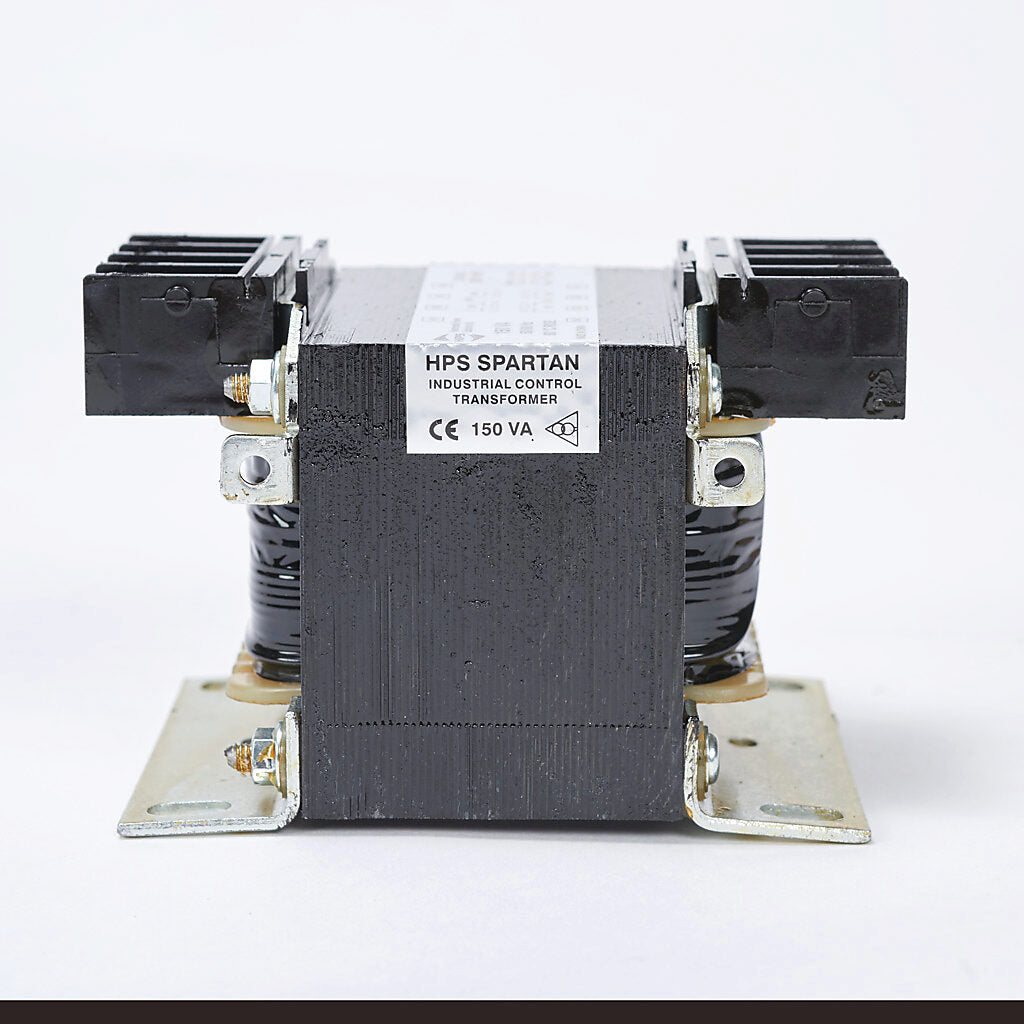

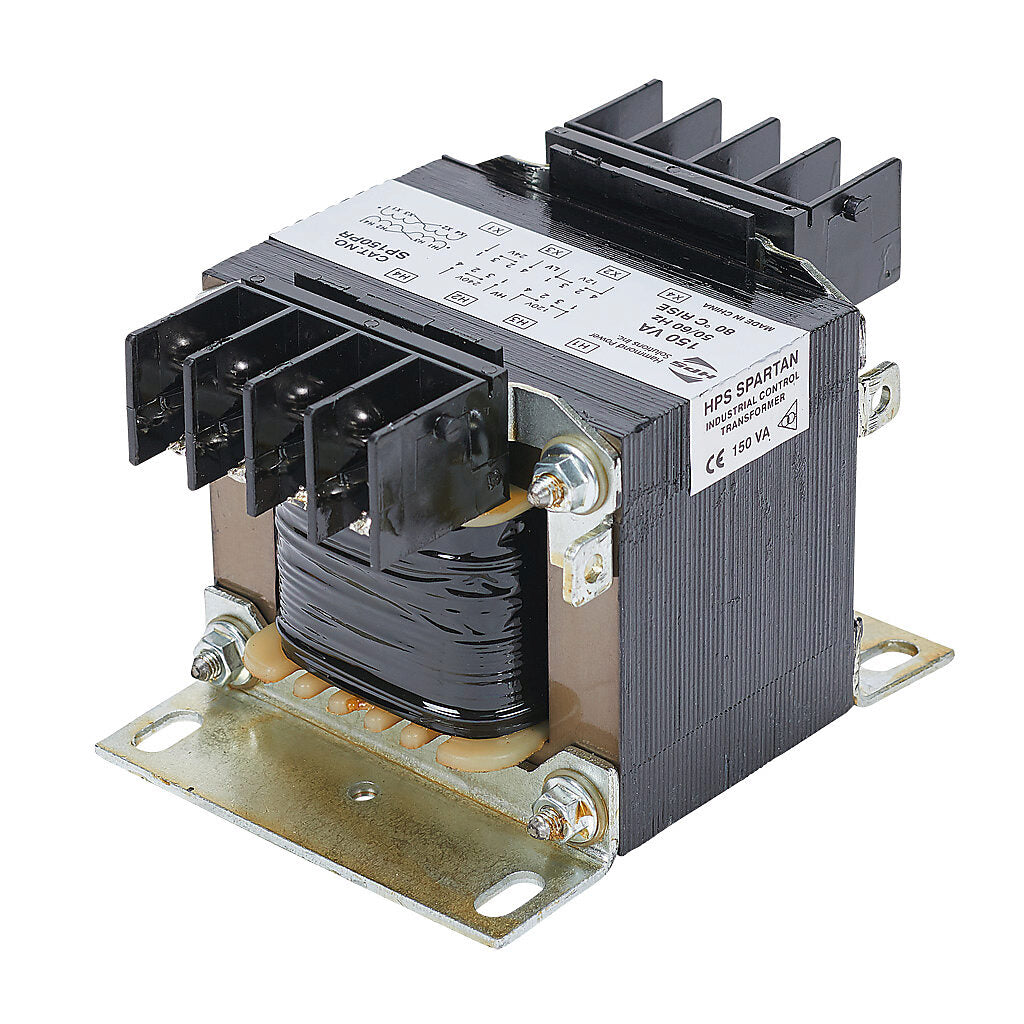

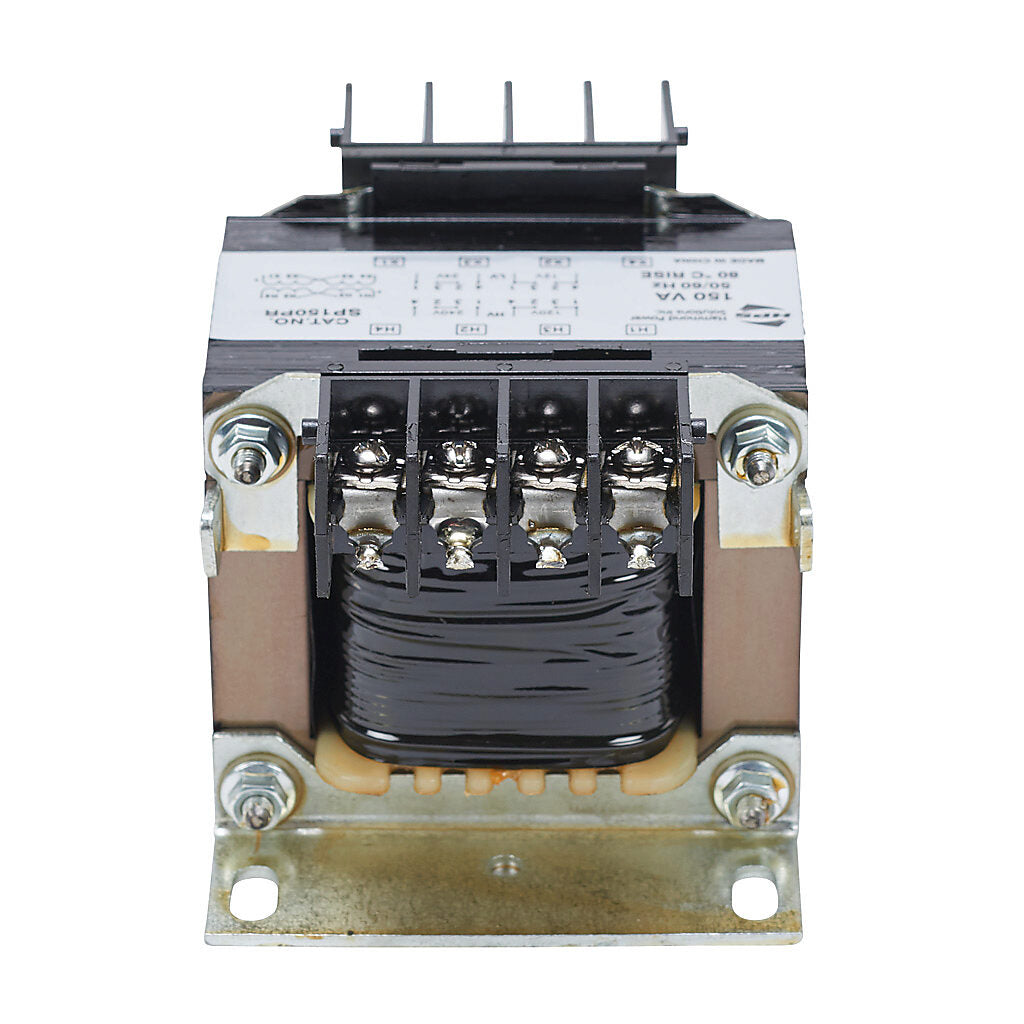

SP150PR is a Spartan series dry type control transformer designed for general purpose and industrial applications. This single phase unit features a 120/240 VAC primary voltage and 12/24 VAC secondary voltage with a 150 VA power rating, operating at 50/60 Hz. The transformer utilizes copper wound coils with high dielectric strength insulation, bolted core construction, and vacuum impregnated polyester resin for superior performance and durability. It includes molded terminal blocks with standard combination screw connections and bolt-on mounting brackets for secure installation.

• Part Number: SP150PR
• Power Rating: 150 VA
• Primary Voltage: 120/240 VAC
• Secondary Voltage: 12/24 VAC
• Phase: Single Phase
• Frequency: 50/60 Hz
• Insulation System: 130 degrees C (80 degrees C rise)

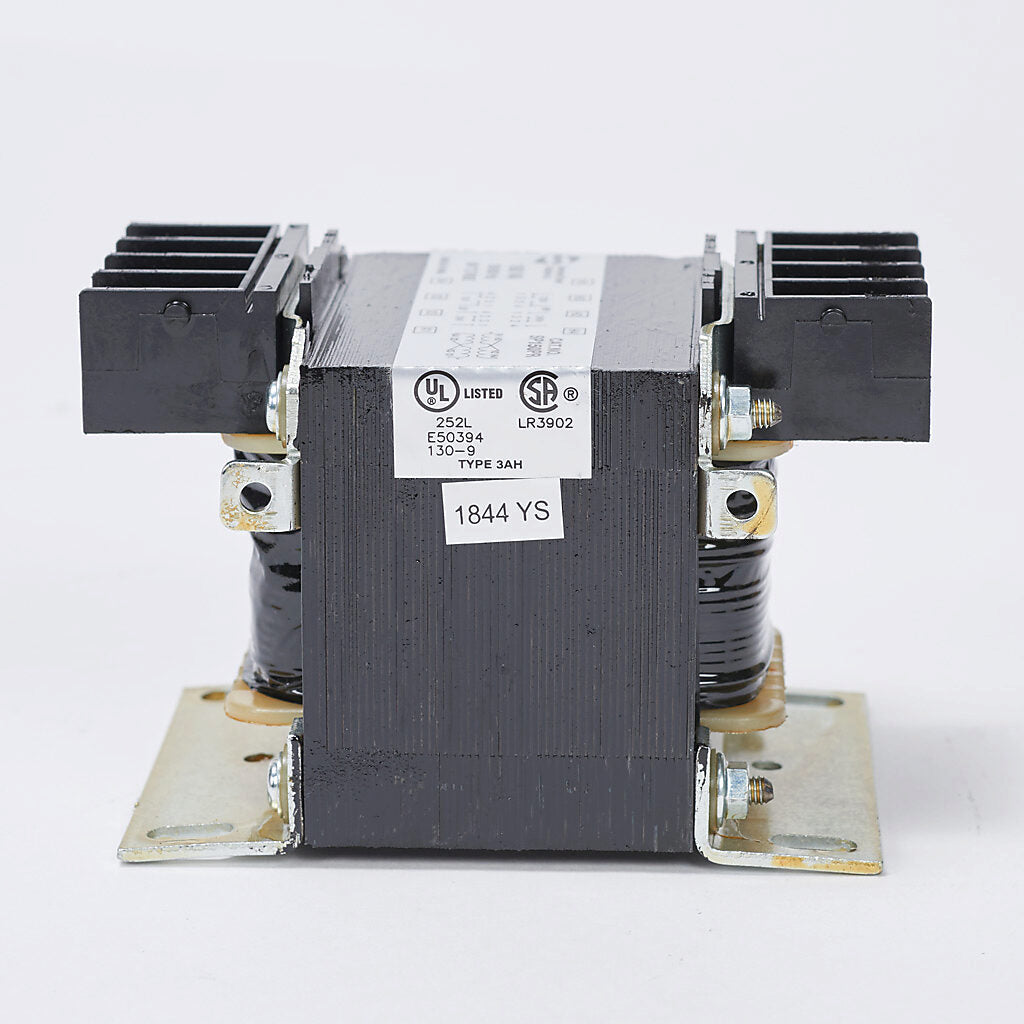

• Certifications: UL Listed, CSA Certified, CE Marked, NEMA Standards Compliant
• Dimensions: 2.99 inches W x 4.29 inches D x 2.85 inches H
• Output Amperage: 12.5/6.25 A

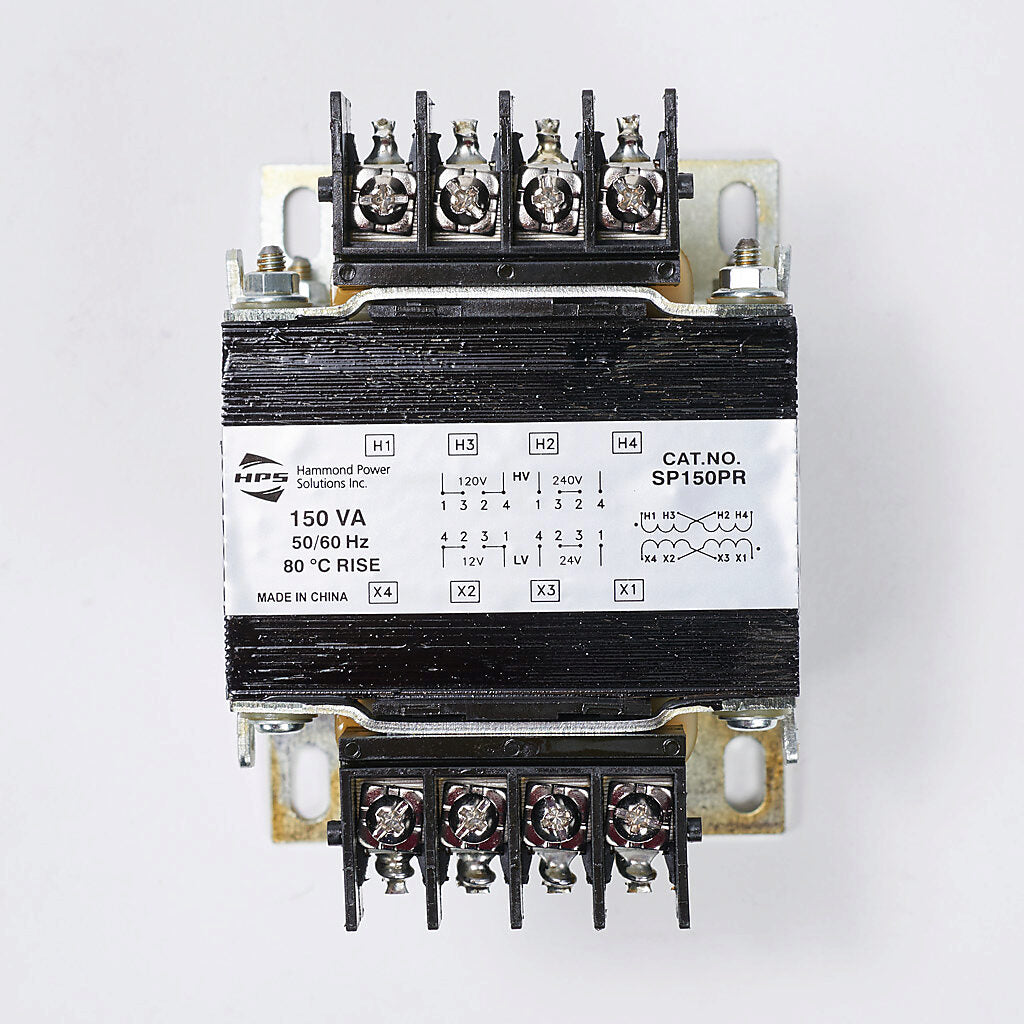

• Terminal Type: Molded terminal blocks
• Construction: Bolted core with vacuum impregnated polyester resin

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP150PR
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 120x240

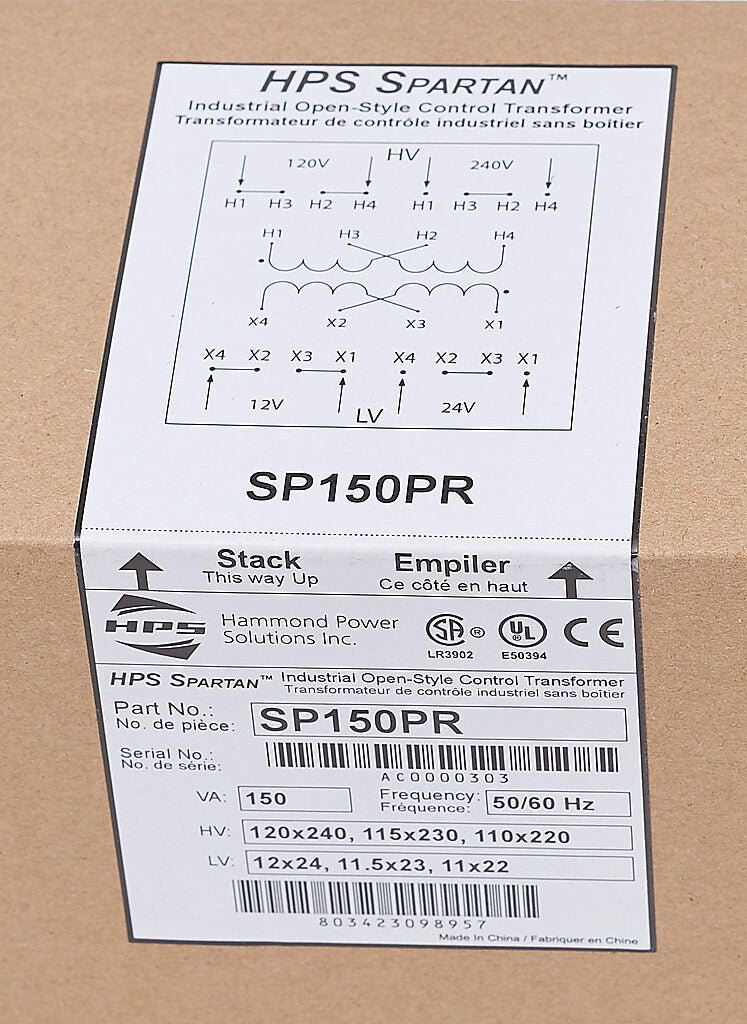

• Primary Connection : Parallel x Series (Vx2V)
• Secondary Voltage : 12x24
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 0.222186
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block

Product Data

• UPC : 803423098957
• GTIN : 00803423098957
• Weight : 4
• Certification : CSA, UL, CE
