Product Info
- Manufacturer:Hammond Power Solutions
Description
SP150ACP

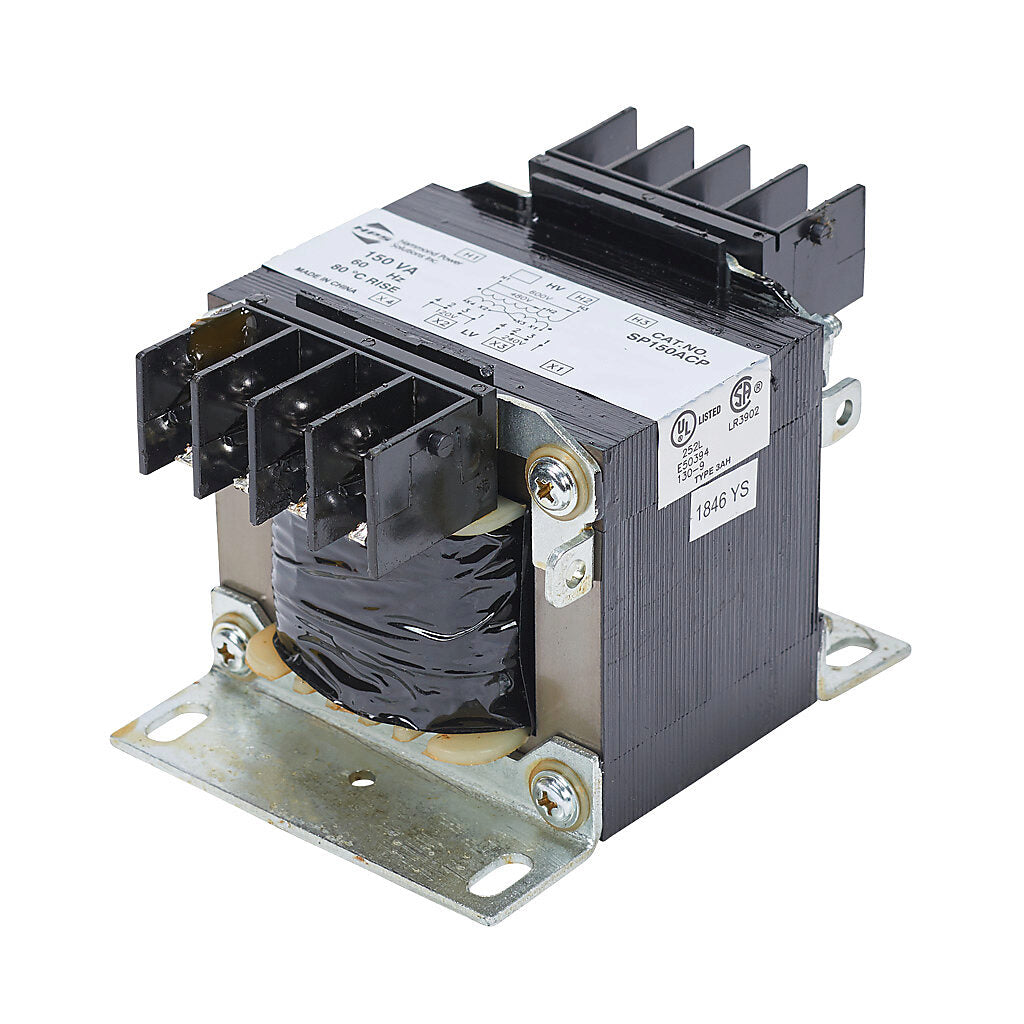

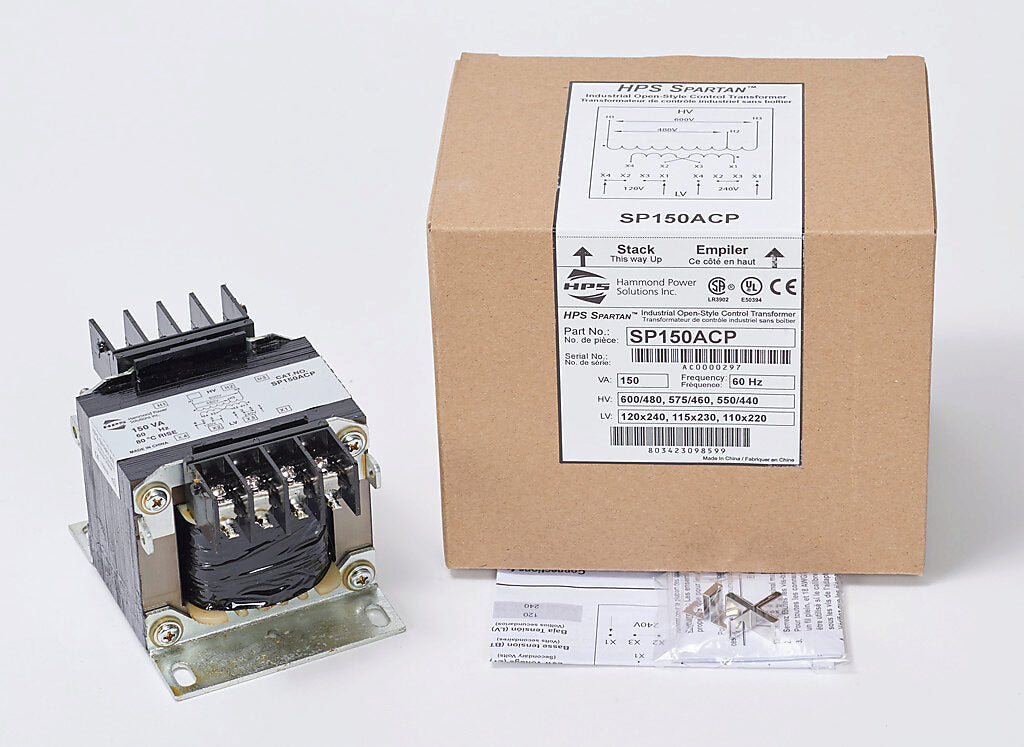

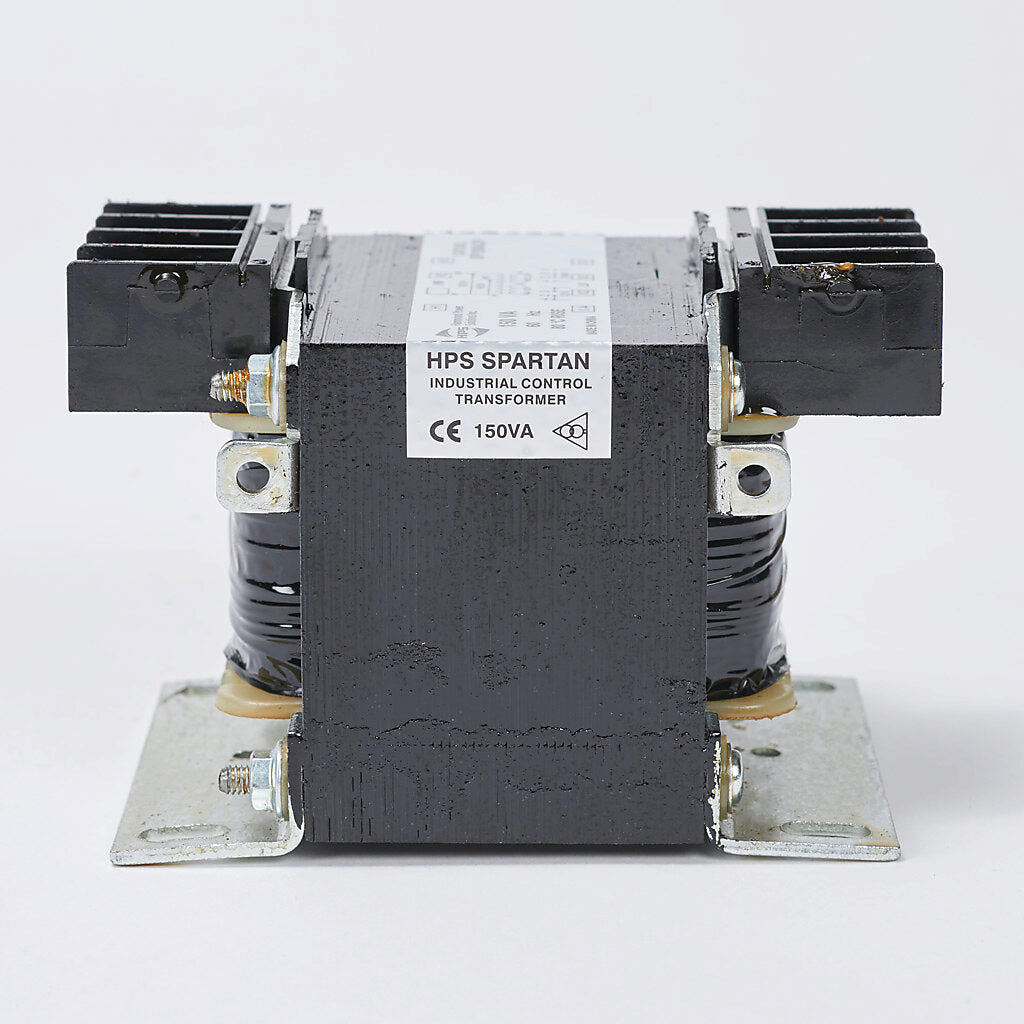

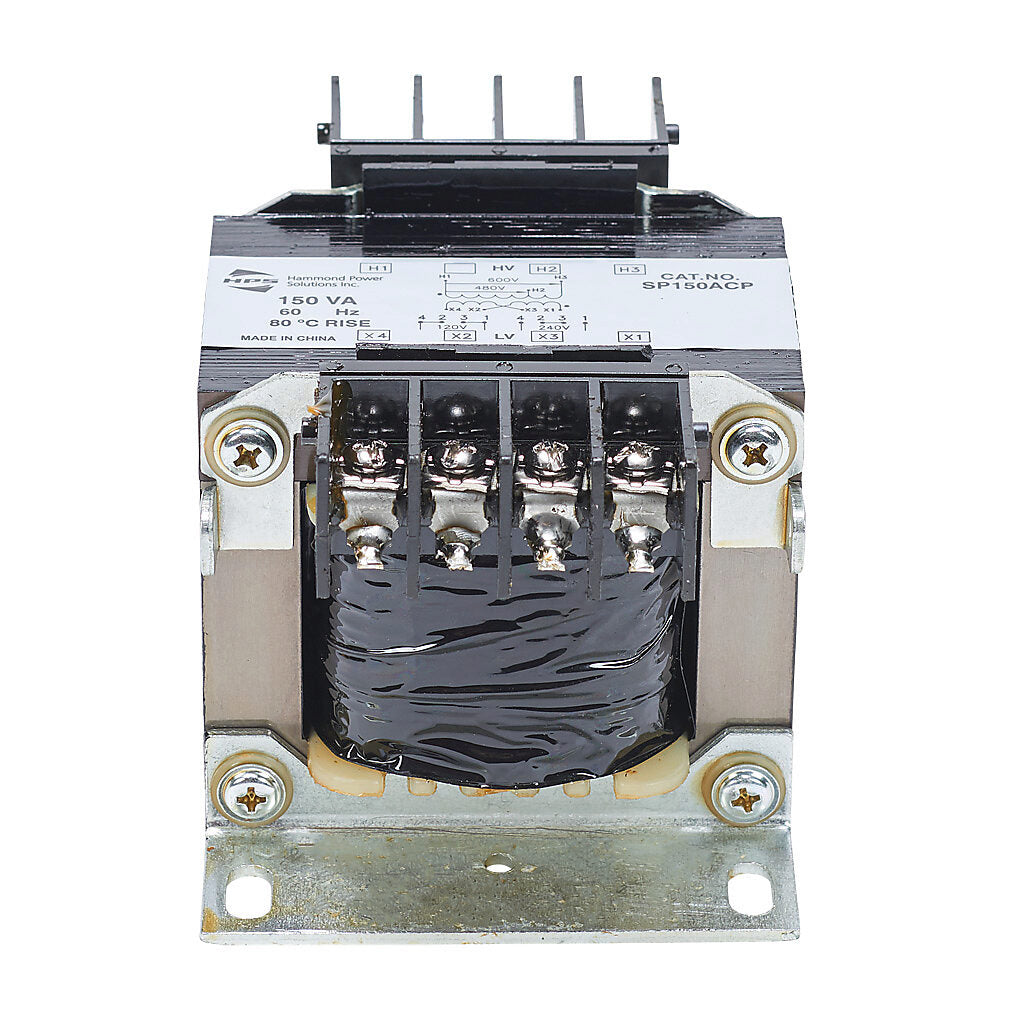

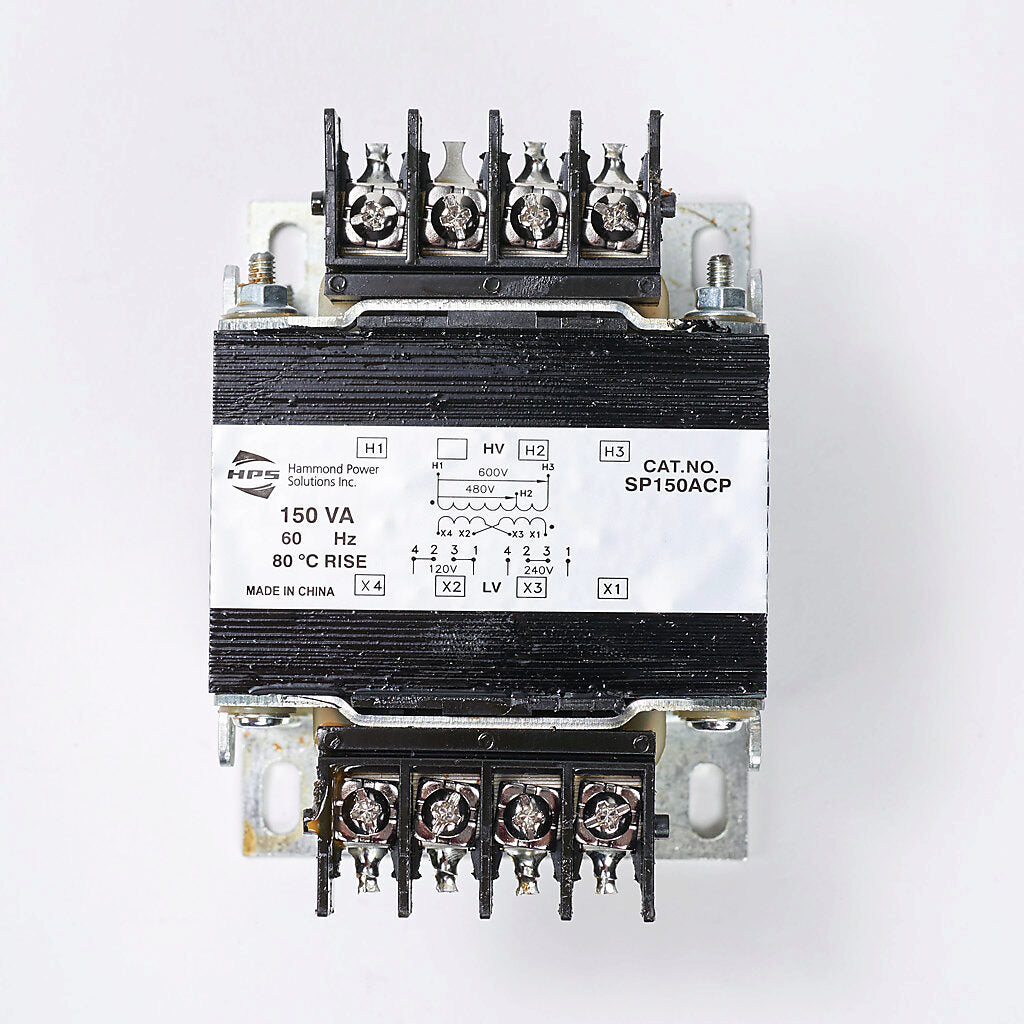

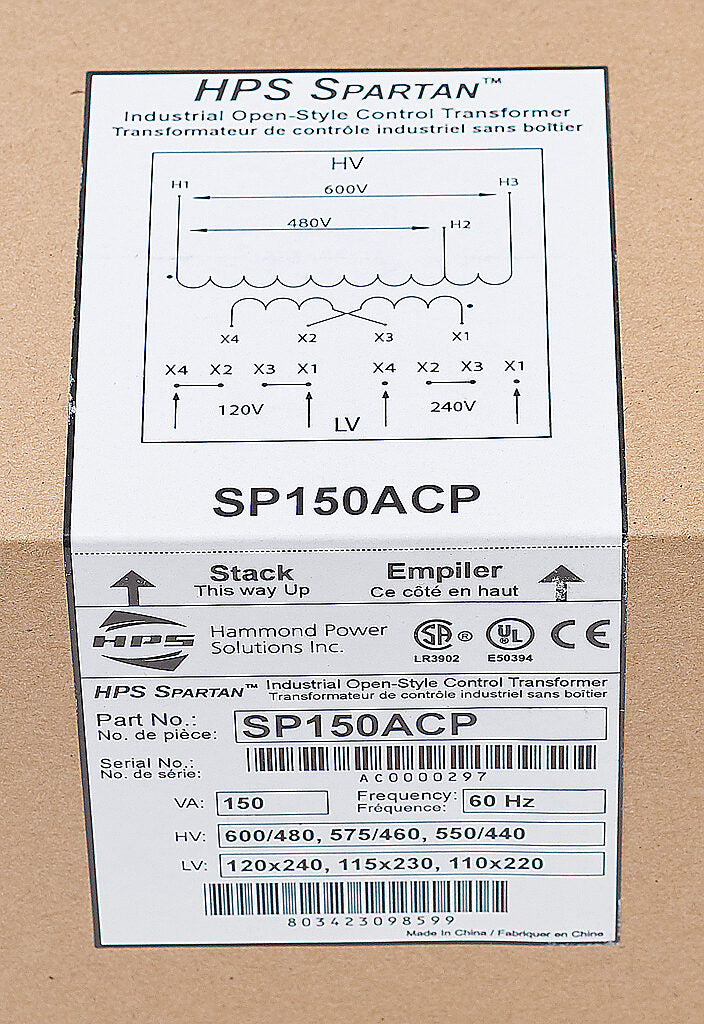

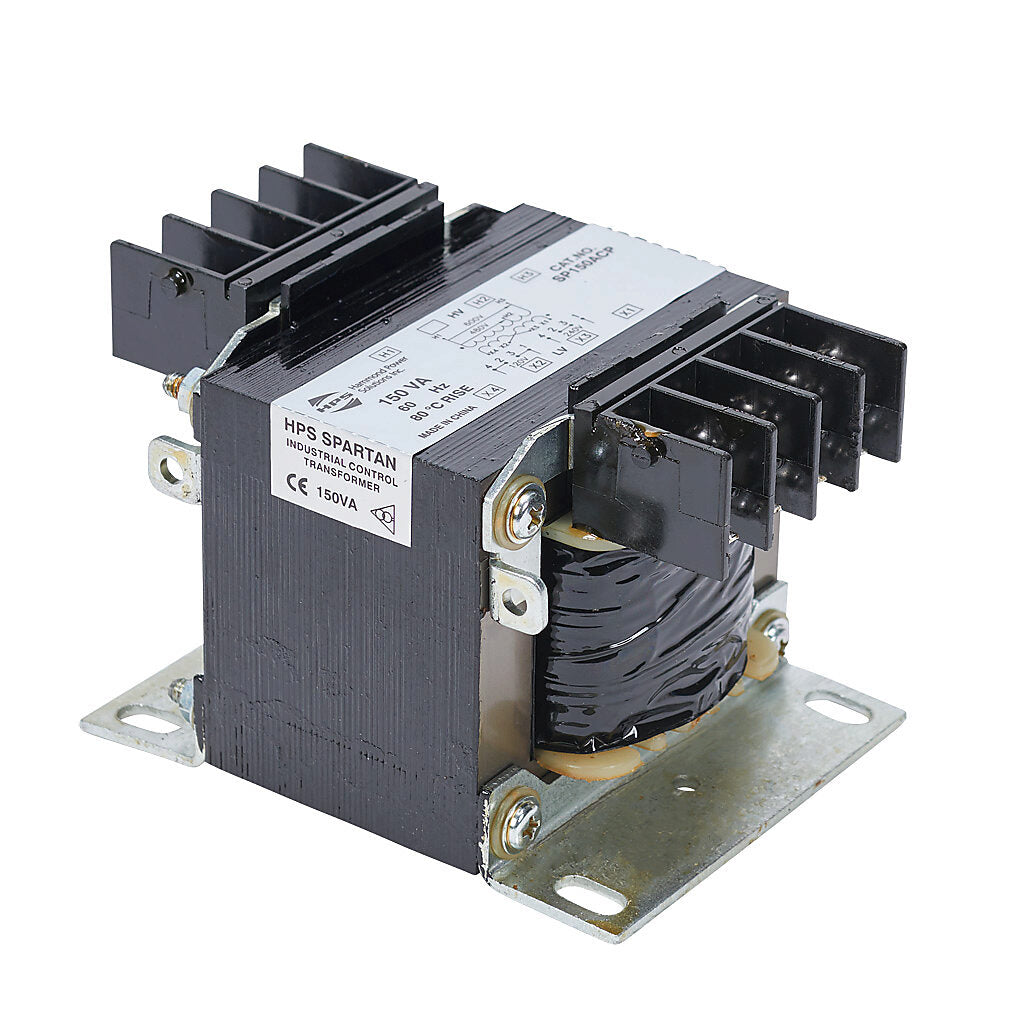

Hammond Power Solutions SP150ACP is a single-phase core and coil transformer designed for industrial power distribution applications. This unit features dual primary voltage capability of 600V/480V with series connection and secondary output of 120x240V with parallel x series configuration, constructed with copper windings for optimal conductivity. The transformer operates at 60Hz frequency with an 80°C temperature rise and 130°C insulation class, housed in a standard core and coil enclosure with terminal block primary terminations. It complies with OSHPD and IBC 2018 seismic standards (Sds=2.0, z/h=1, lp=1.5) featuring 180° vector configuration and standard nameplate. Typical applications include industrial control systems, machinery power supplies, and electrical distribution networks requiring reliable voltage transformation. Key Features & Specifications
- Type: Single-phase core and coil transformer
- Primary Voltage: 600V/480V (series connection)
- Secondary Voltage: 120x240V (parallel x series)
- Frequency: 60Hz
- Material: Copper windings
- Temperature Rise: 80°C
- Insulation Class: 130°C
- Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Primary Termination: Terminal block
- Vector Configuration: 180°
- EKVA: 0.222186
Specifications
- Part Number: SP150ACP
- Manufacturer : Hammond Power Solutions
- Brand : Hammond Power Solutions
- Category : Transformer
- Phase : 1
- Enclosure Grade : N / A
- Frequency : 60Hz
- Primary Voltage : 600, 480
- Primary Connection : Series (V)
- Secondary Voltage : 120x240
- Secondary Connection : Parallel x Series (Vx2V)
- Material : Copper
- Temperature Rise : 80°C
- Insulation Class : 130°C
- EKVA : 0.222186
- Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Enclosure Type : Core & Coil
- Nameplate : Standard
- Vector Configuration : 180°
- Seismic Standard Value : IBC 2018
- OSHPD : Yes
- Seismic IP : lp=1.5
- Seismic ZH : z/h=1
- Seismic SDS Value : Sds=2.0
- Primary Termination (Std) : Terminal Block, Terminal Block
Product Data
- UPC : 803423098599
- Weight : 4

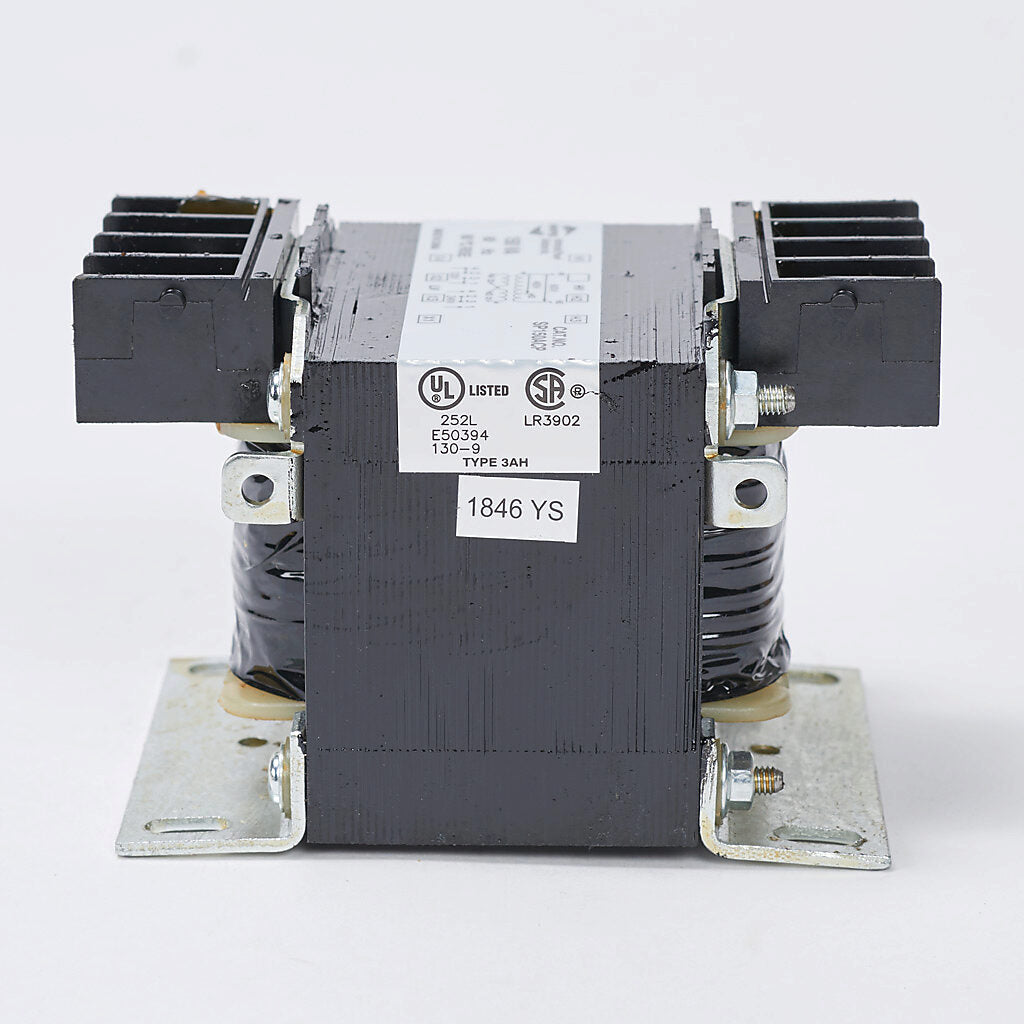

- Certification : CSA, UL, CE
