- Manufacturer:Hammond Power Solutions
Description
SP1500SP

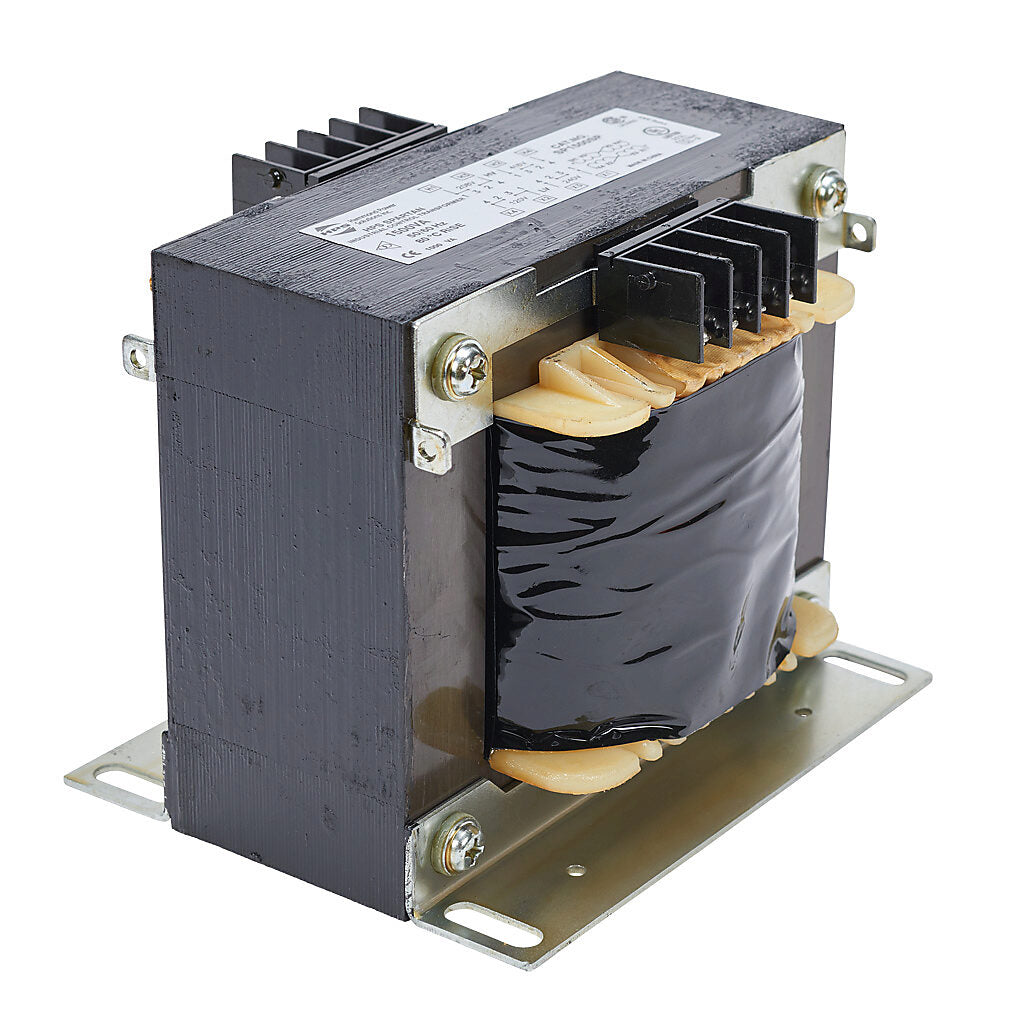

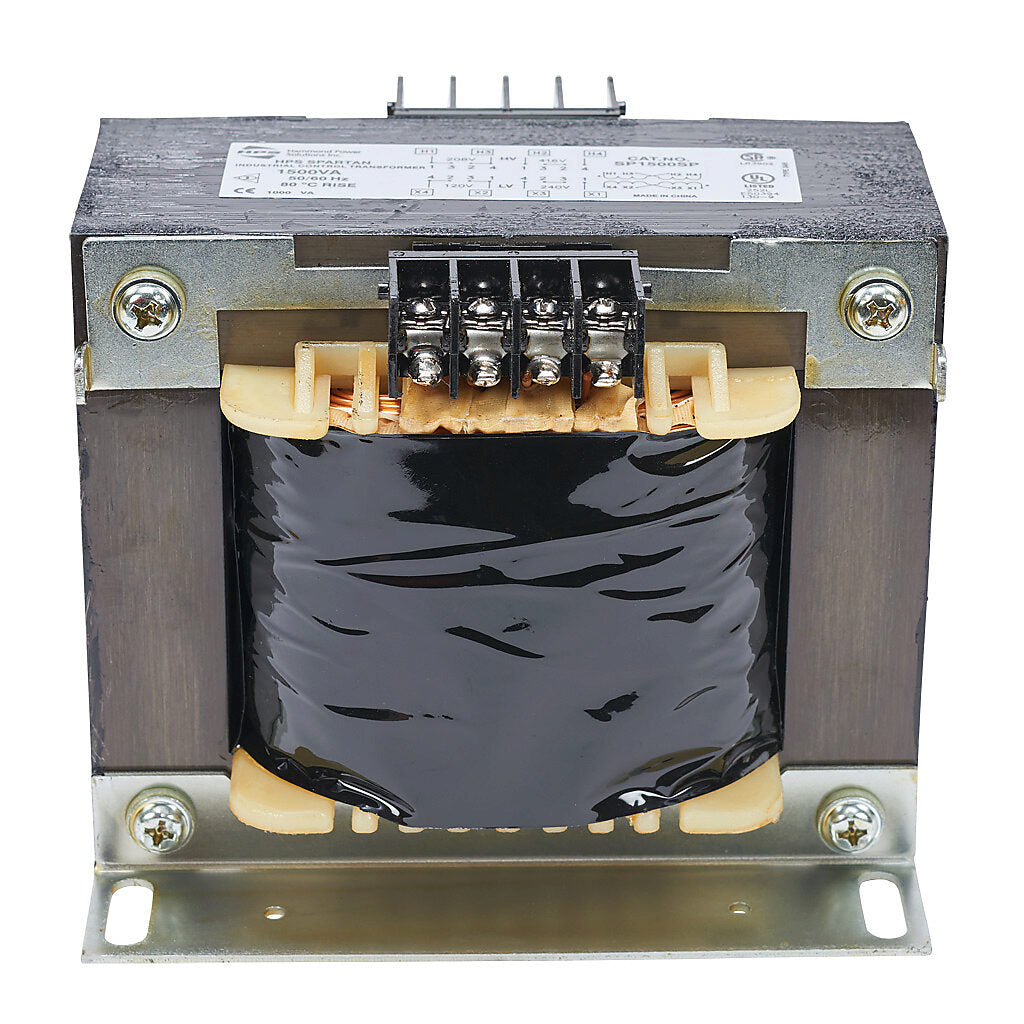

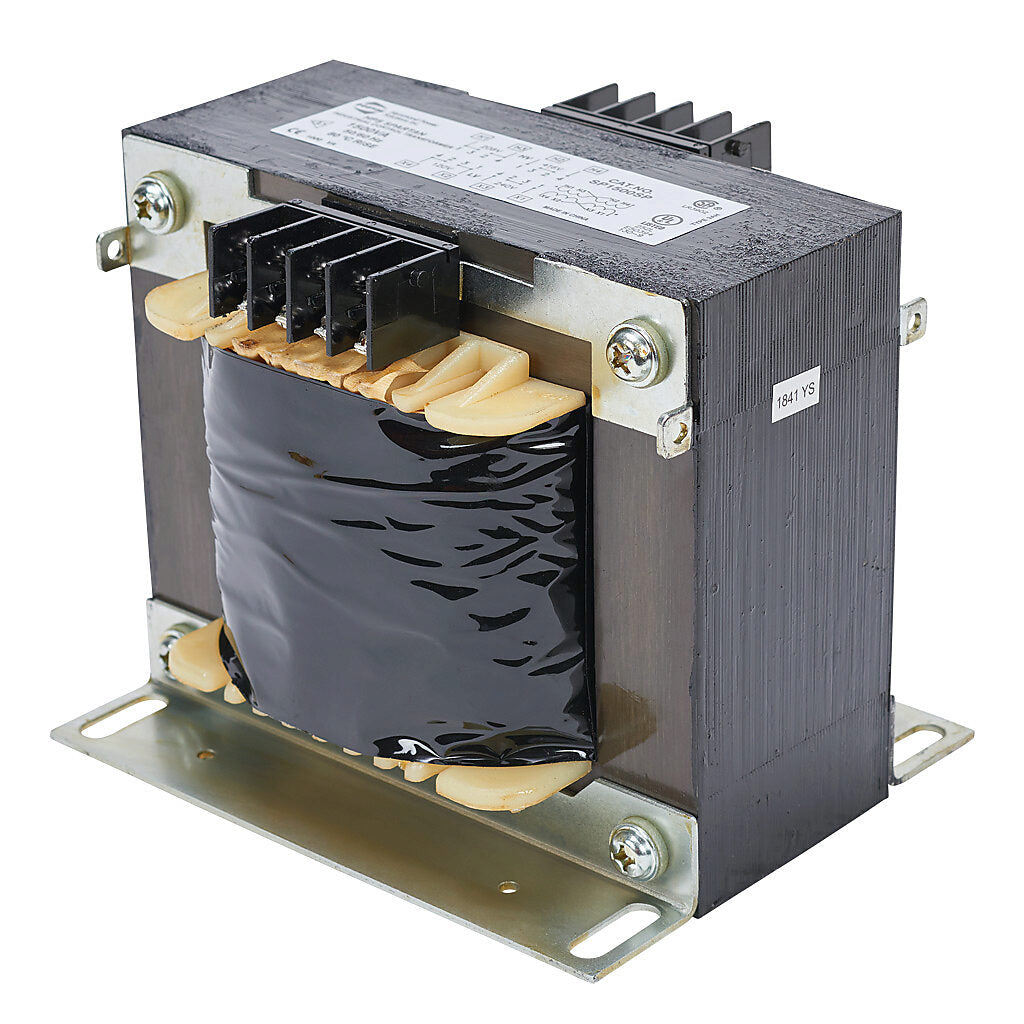

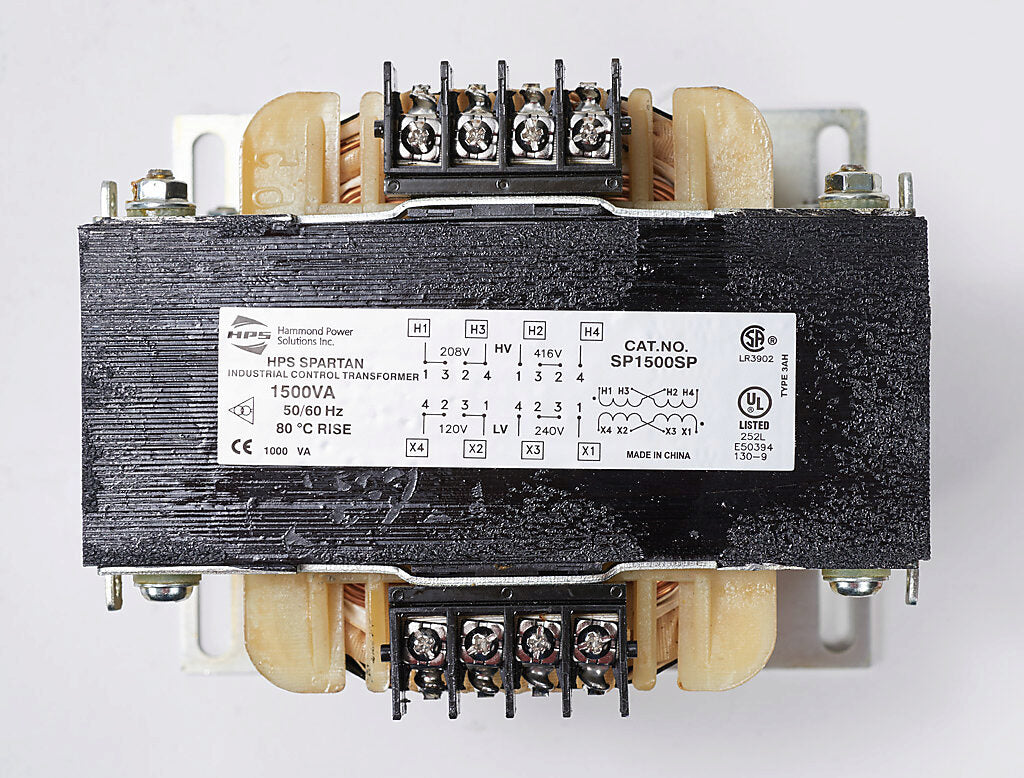

Hammond Power Solutions SP1500SP is a single-phase core and coil transformer designed for industrial power distribution applications. The unit features versatile voltage configurations with primary voltage of 208x416V and secondary voltage of 120x240V, supporting both parallel and series connections for flexible installation. Constructed with copper windings and rated for 50/60Hz operation, it maintains an 80°C temperature rise with 130°C insulation class for reliable performance. The transformer meets stringent seismic compliance standards including OSHPD and IBC 2018 with specific parameters of Sds=2.0, z/h=1, and lp=1.5. Typical applications include industrial control systems, machinery power supplies, and commercial electrical distribution where robust construction and seismic certification are required. Key Features & Specifications
- Type: Single-phase core and coil transformer
- Primary Voltage: 208x416V
- Secondary Voltage: 120x240V
- Frequency: 50/60Hz
- Material: Copper windings
- Temperature Rise: 80°C
- Insulation Class: 130°C
- EKVA: 2.22186
- Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Primary Termination: Terminal Block
- Vector Configuration: 180°
Specifications
- Part Number: SP1500SP
- Manufacturer : Hammond Power Solutions
- Brand : Hammond Power Solutions
- Category : Transformer
- Phase : 1
- Enclosure Grade : N / A
- Frequency : 50/60Hz
- Primary Voltage : 208x416
- Primary Connection : Parallel x Series (Vx2V)
- Secondary Voltage : 120x240
- Secondary Connection : Parallel x Series (Vx2V)
- Material : Copper
- Temperature Rise : 80°C
- Insulation Class : 130°C
- EKVA : 2.22186
- Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Enclosure Type : Core & Coil
- Nameplate : Standard
- Vector Configuration : 180°
- Seismic Standard Value : IBC 2018
- OSHPD : Yes
- Seismic IP : lp=1.5
- Seismic ZH : z/h=1
- Seismic SDS Value : Sds=2.0
- Primary Termination (Std) : Terminal Block
Product Data
- UPC : 803423099374
- Weight : 27
- Certification : CSA, UL, CE
