Product Info
- Manufacturer:Hammond Power Solutions
Description
SP1500MQMJ

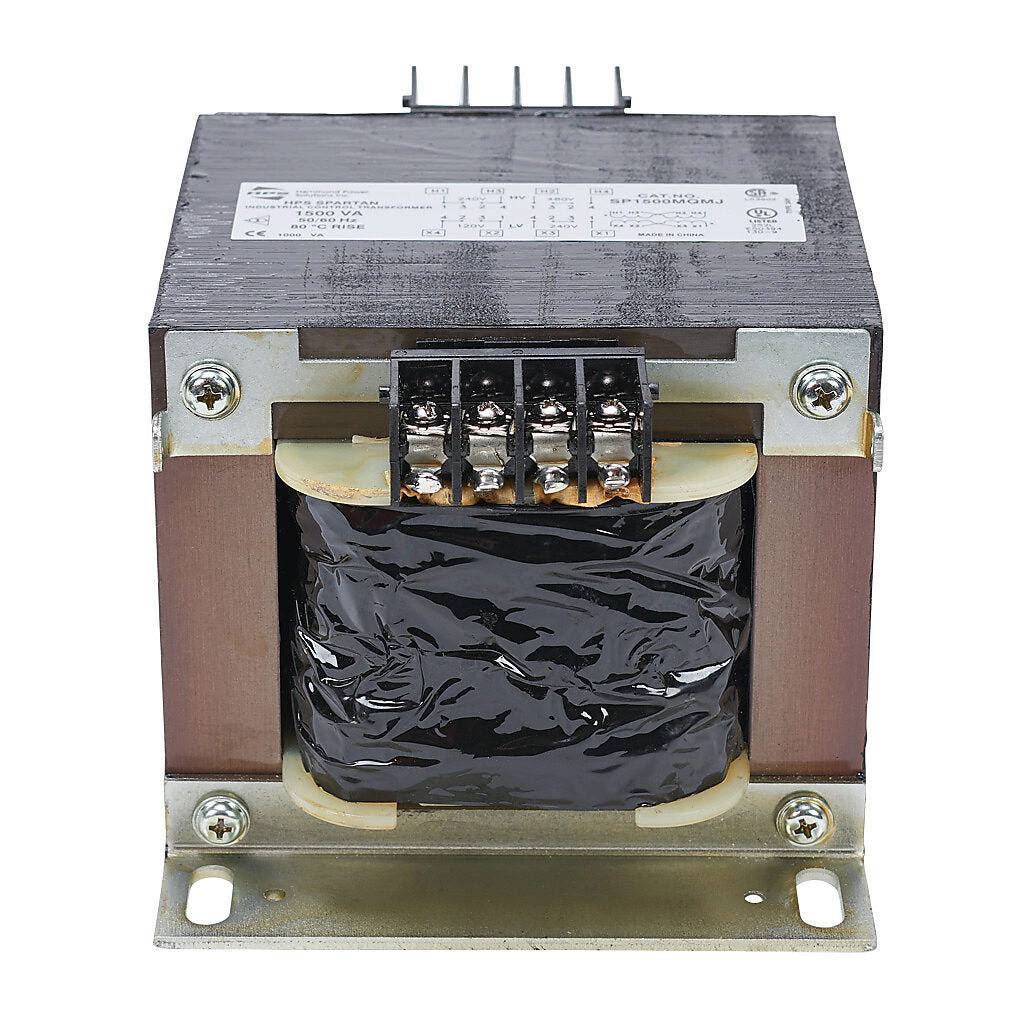

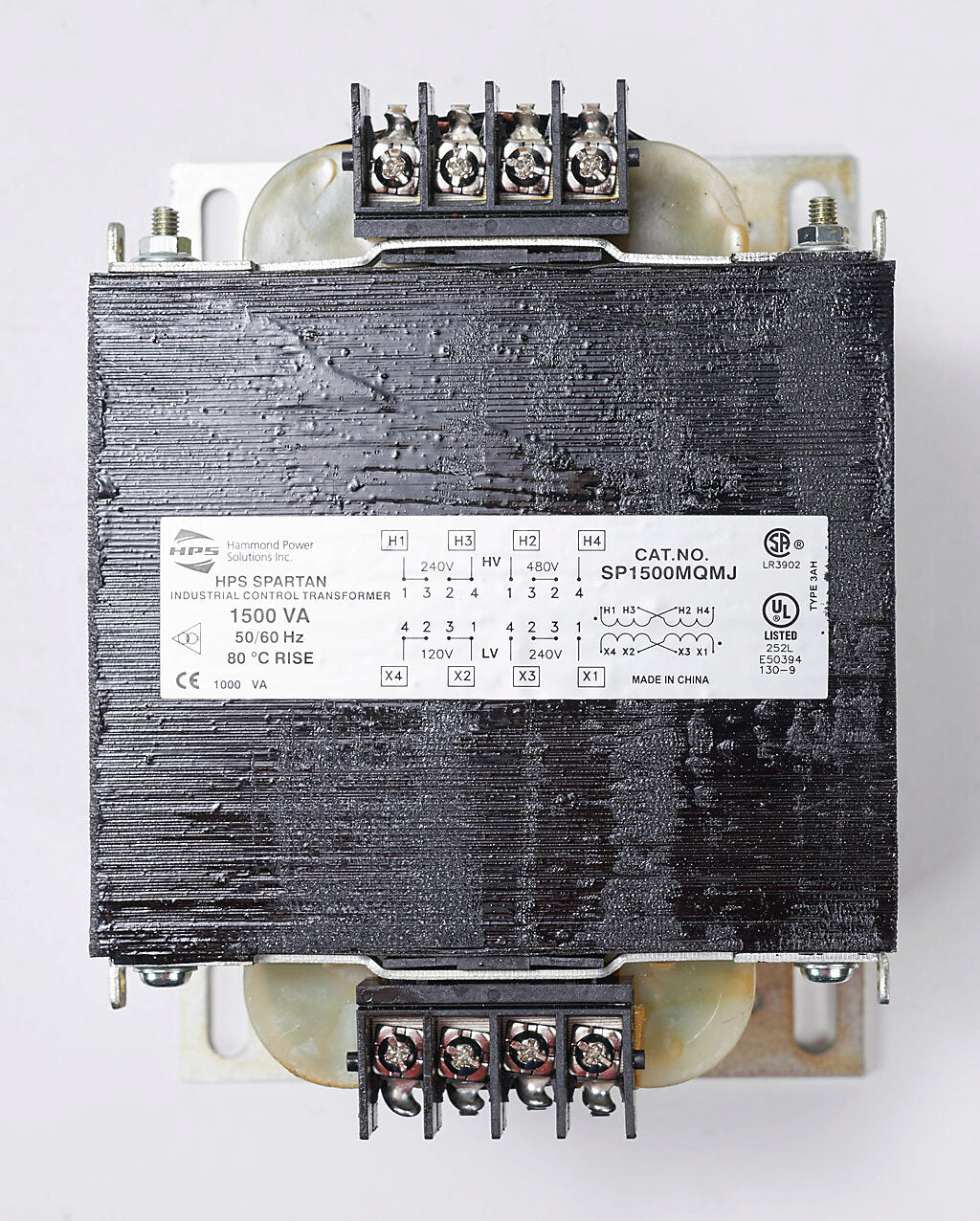

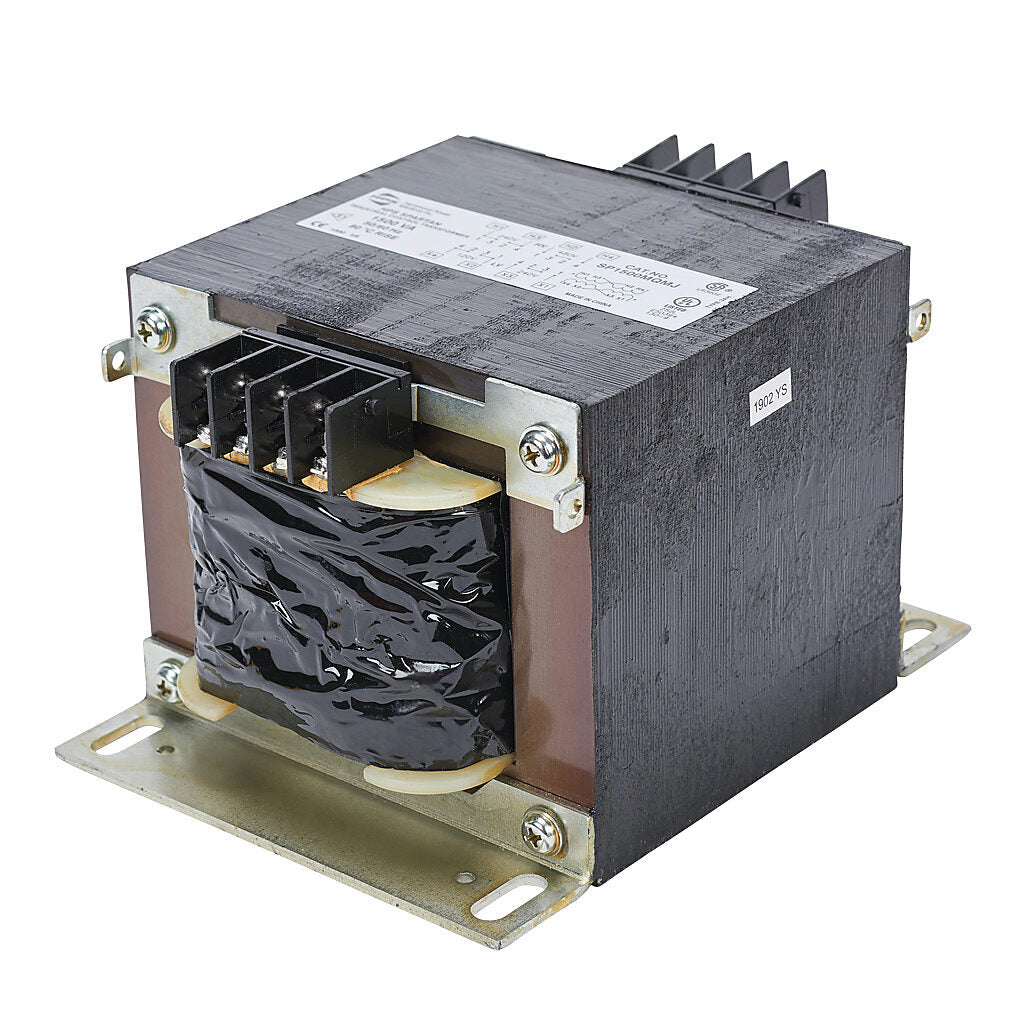

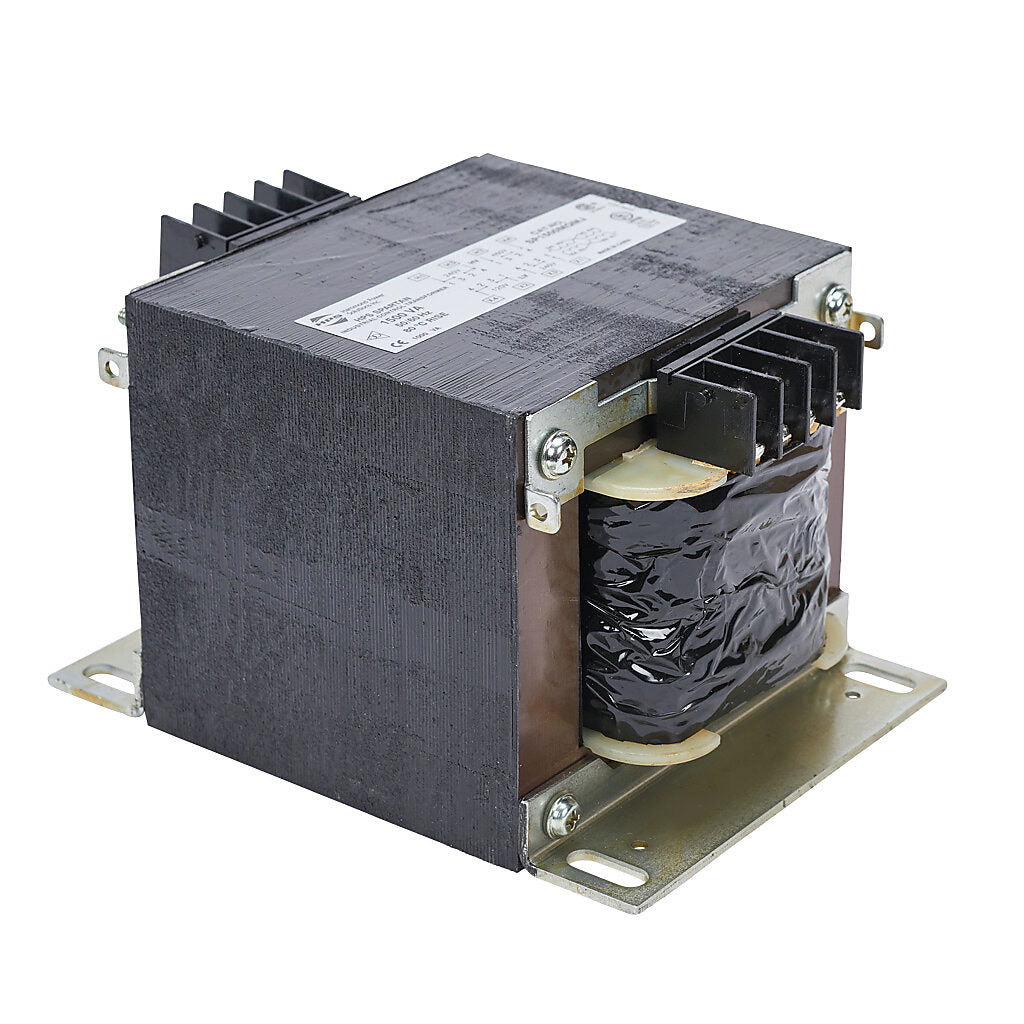

Hammond Power Solutions SP1500MQMJ is a single-phase core and coil transformer designed for industrial power distribution applications. This transformer features flexible voltage configurations with primary connections of 240x480V and secondary connections of 120x240V, operating at 50/60Hz frequency with copper windings and an 80°C temperature rise. The unit is constructed with 130°C insulation class and features standard terminal block primary terminations with a 180° vector configuration. It meets stringent seismic compliance standards including OSHPD and IBC 2018 with Sds=2.0, z/h=1, and lp=1.5 parameters. Typical applications include industrial control systems, machinery power supplies, and commercial electrical distribution where reliable power conversion and seismic resilience are required. Key Features & Specifications
- Type: Single-phase core and coil transformer
- Primary Voltage: 240x480V
- Secondary Voltage: 120x240V
- Frequency: 50/60Hz
- EKVA: 2.22186
- Material: Copper windings
- Temperature Rise: 80°C
- Insulation Class: 130°C
- Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Primary Termination: Terminal Block
- Vector Configuration: 180°
Specifications
- Part Number: SP1500MQMJ
- Manufacturer : Hammond Power Solutions
- Brand : Hammond Power Solutions
- Category : Transformer
- Phase : 1
- Enclosure Grade : N / A
- Frequency : 50/60Hz
- Primary Voltage : 240x480
- Primary Connection : Parallel x Series (Vx2V)
- Secondary Voltage : 120x240
- Secondary Connection : Parallel x Series (Vx2V)
- Material : Copper
- Temperature Rise : 80°C
- Insulation Class : 130°C
- EKVA : 2.22186
- Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
- Enclosure Type : Core & Coil
- Nameplate : Standard
- Vector Configuration : 180°
- Seismic Standard Value : IBC 2018
- OSHPD : Yes
- Seismic IP : lp=1.5
- Seismic ZH : z/h=1
- Seismic SDS Value : Sds=2.0
- Primary Termination (Std) : Terminal Block
Product Data
- UPC : 803423098834
- Weight : 28
- Certification : CSA, UL, CE
